PowerColor's SCS3 HD6850: Radeon HD 6850 Goes Fanless

By Igor Wallossek, Greg Ryder
published

It takes guts to try passively cooling a 127 W graphics processor. PowerColor sells the first Radeon HD 6850 we've seen topped only with a heatsink. Does the triple-slot cooler do its job, or is Barts simply too complex of a GPU to cool like this?

Measuring Sound Level

Interim Assessment

It's pretty easy to see that our home-cooked Scythe Slip Stream setup vanquishes the competition. Mounted inside a case, the sound level is undetectable, making this solution an ideal fit for a silent PC. Slot card fan mounts are readily available online or in computer stores. Whether you choose a product from Noiseblocker, Noctua, or Scythe is merely a matter of taste.

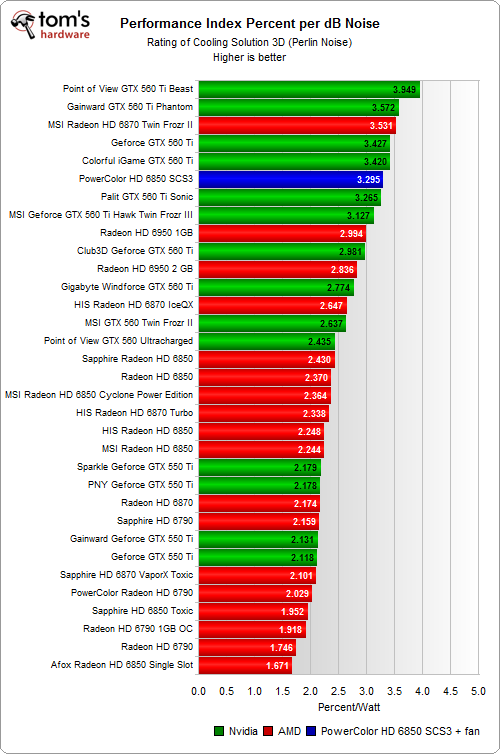

Performance per dB(A)
