Test Setup, Hold-Up Time, Inrush Current, Peak Load, And Short Circuit Protection Test
Swipe to scroll horizontally
| Test Hardware | |
|---|---|
| AC Source | Chroma Programmable AC Source 6530 |
| Power Meter | Yokogawa WT210 Digital Power Meter |
| Loads | 4 x 600 W Chroma 63306 for 12 V testing4 x 300 W Chroma 63303 for 5 and 3.3 V testingusing Chroma HighSpeed- DC Load Mainframes 6334 |
| Oscilloscope | Tektronix DPO3034 Digital Phosphor Oscilloscope (300 MHz) |
| Test Procedure | |
| Voltages | 110 and 230 V |
| Standby Power | 0.25 A fixed current to simulate PC standby power on 5 Vsb |
| 80 PLUS Efficiency Testing | 100/50/20% load, relative to specified total output Load distribution across 12/5/3.3 V rails at the same proportion as specified for 100% testing at 110 V according to ATX 2.3 specification |
| Efficiency at Fixed Loads | 25, 50, 85, 300, 500 W loads Load distribution across 12/5/3.3 V rails at the same proportion as specified for 100% |

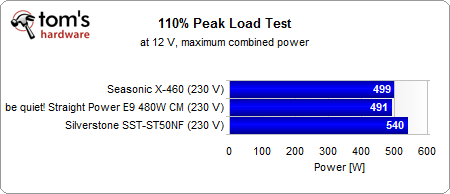

| Peak Load Test | 110% Overload Testing at maximum combined 12 V |
| Temperature Test | Air intake vs. Outtake temperature delta tracking highest delta during all tests |
For more test data about these three and other power supplies, please refer to our power supply charts.

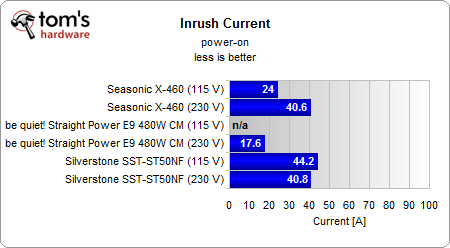

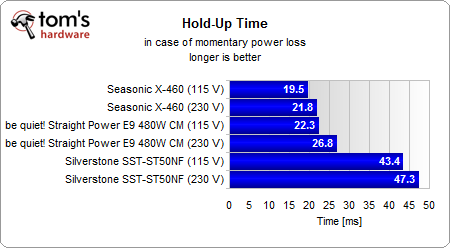

Hold-Up Time, Inrush Current, Peak Load Test, and Short Circuit Protection Test
Swipe to scroll horizontally
| Short Circuit Protection Test at 12 V | |
|---|---|
| Power Supply / Mains Voltage | Test Passed |
| Seasonic X-460 (115 V) | Yes |
| Seasonic X-460 (230 V) | Yes |
| be quiet! Straight Power E9 CM 480 W (115 V) | Yes |
| be quiet! Straight Power E9 CM 480 W (230 V) | Yes |
| SilverStone SST-ST50NF (115 V) | Yes |
| SilverStone SST-ST50NF (230 V) | Yes |
