Riotoro Prism CR1280 EATX/XL-ATX Full Tower Case Review

A new case company brings together industry specialists to produce a high-profile mid-tower with enhanced (RGB) lighting features. Can its combination of features and performance put Riotoro's Prism CR1280 on our recommended list?

Building Inside The Prism CR1280

Pull the face off, and you'll find two 120mm, 256-color LED fans. Dual 140mm mounts are also available, and there's enough space above and below those fans for the end caps of nearly any radiator.

Embedded mesh turns the entire front panel into a filter, though some dust can be pulled around that filter through the hand hold at the front-panel's bottom. While vacuum cleaning is an option, dust removal is accomplished most-easily with compressed air.

Image 1 of 2

Image 2 of 2

A 0.4" gap allows air to flow around the Prism 1280's smoke-colored plastic cover, and beneath it the top panel supports up to three 120mm fans or two 140mm fans. Direct mounting of 3x120mm radiators could be difficult since the top panel latch is so close to the fan holes, and stacking the radiator beneath those three fans still leaves only around 1.2" for end caps and fittings. Given those limitations, most users will be far more comfortable installing a 2x 140mm radiator here.

Image 1 of 3

Image 2 of 3

Image 3 of 3

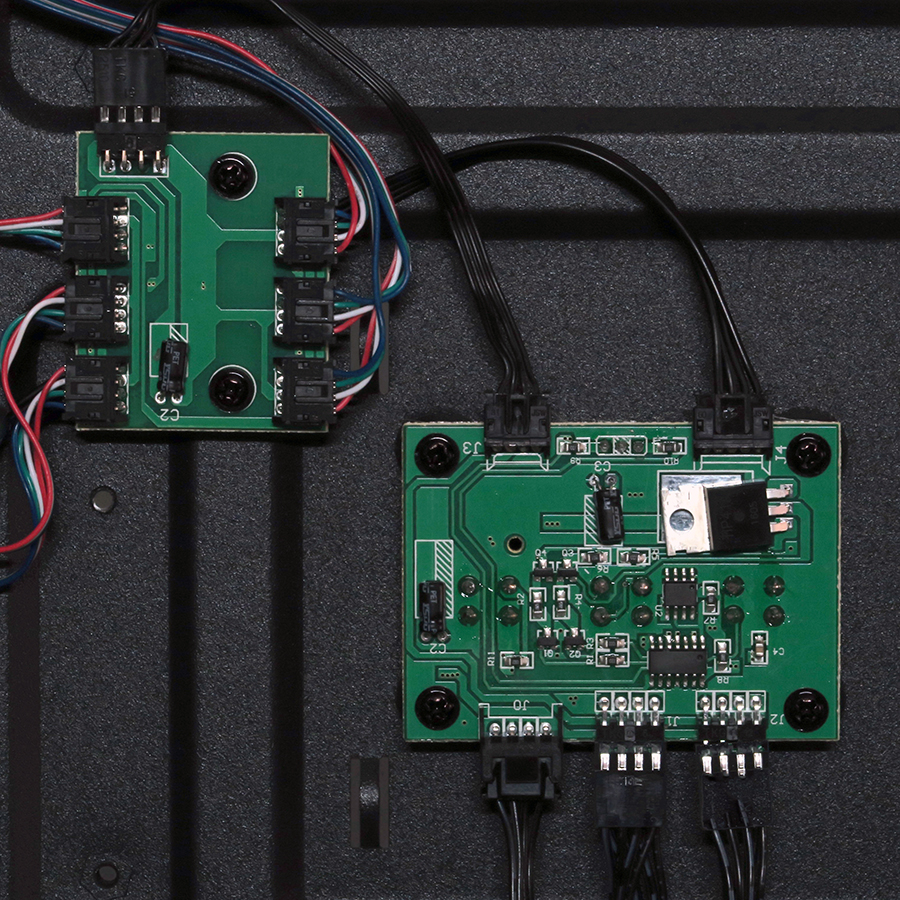

There's enough space behind the Prism 1280's motherboard tray to hold nearly any cable, though crossing a second cable over the main power cable may not be possible. Builders will also find a 9"-deep hole to insert the power supply, but cable fitment could be an issue for power supplies longer than 7.5". This is also the side were we find the four-fan (via splitter cables) speed controller, multi-mode LED controller, four 2.5" clip-on drive trays, and four 3.5" clip on trays with screw-in support for 2.5" drives.

Riotoro uses a split power LED to fit standard (2-pin) and legacy (3-pin) header spacing, ditches the outdated AC-97 pigtail from the HD Audio connector, yet relies on a similarly outdated 4-pin ATA drive power connector for its fans and LEDs.

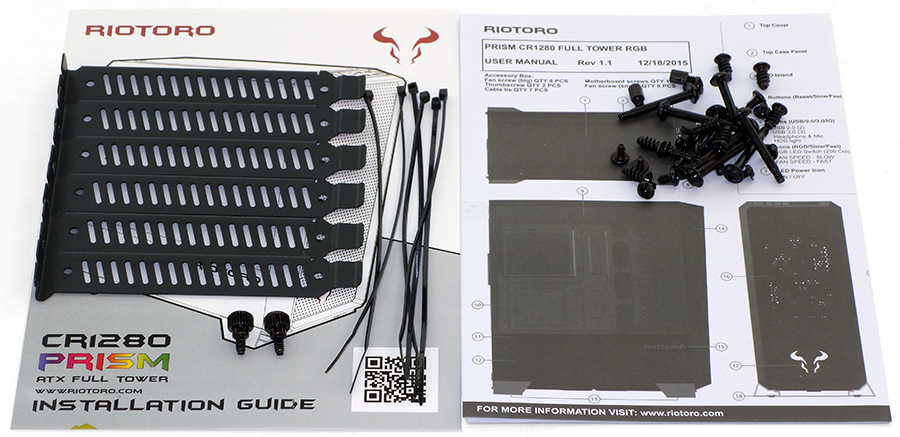

The Prism CR1280 installation kit includes six slot covers and two slot screws that are strangely missing from the back when the cases is delivered. Also included are motherboard screws, standoffs, fan screws, 2.5" drive screws for adapting the 3.5" drive trays, and a set of long machine screws for installing a radiator on the opposite side of the fans.

The Prism 1280 has enough unobstructed space to install a 13"-wide EATX motherboard, but access holes are placed properly only for standard ATX boards. The good news for enthusiast builders is that your so-called EATX motherboard is probably only 10.6" wide, so you'll still be able to use more than half of the width of those access holes. Furthermore, users of true EATX boards will find an extra access hole in the motherboard compartment's floor, in addition to access holes above the motherboards.

Apparent graininess in the finished photo isn't just a matter of camera settings, as the tinted plastic is also a little cloudy. This visual effect could be due to plastic type, pigment size, or manufacturing process, but it barely distracts from the nice lighting effects.
