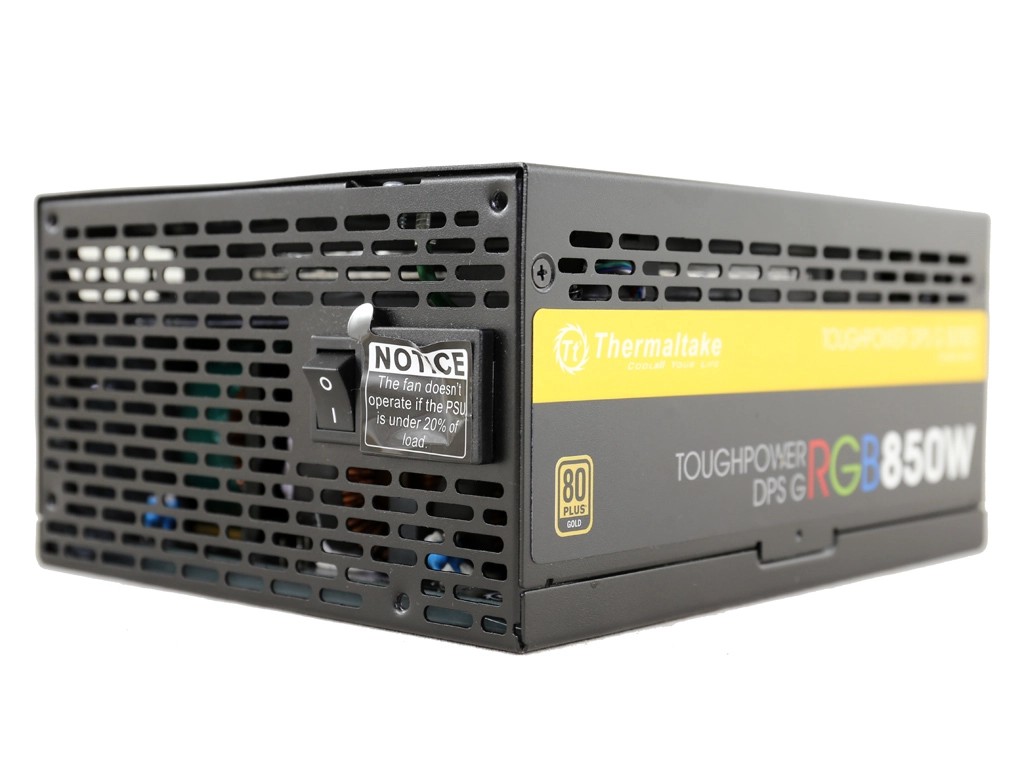

Thermaltake Toughpower DPS G RGB 850W PSU Review

by
12 Comments

Cross-Load Tests And Infrared Images

Our cross-load tests are described in detail here.

To generate the following charts, we set our loaders to auto mode through our custom-made software before trying more than 25,000 possible load combinations with the +12V, 5V and 3.3V rails. The load regulation deviations in each of the charts below were calculated by taking the nominal values of the rails (12 V, 5 V and 3.3 V) as point zero.

Load Regulation Charts

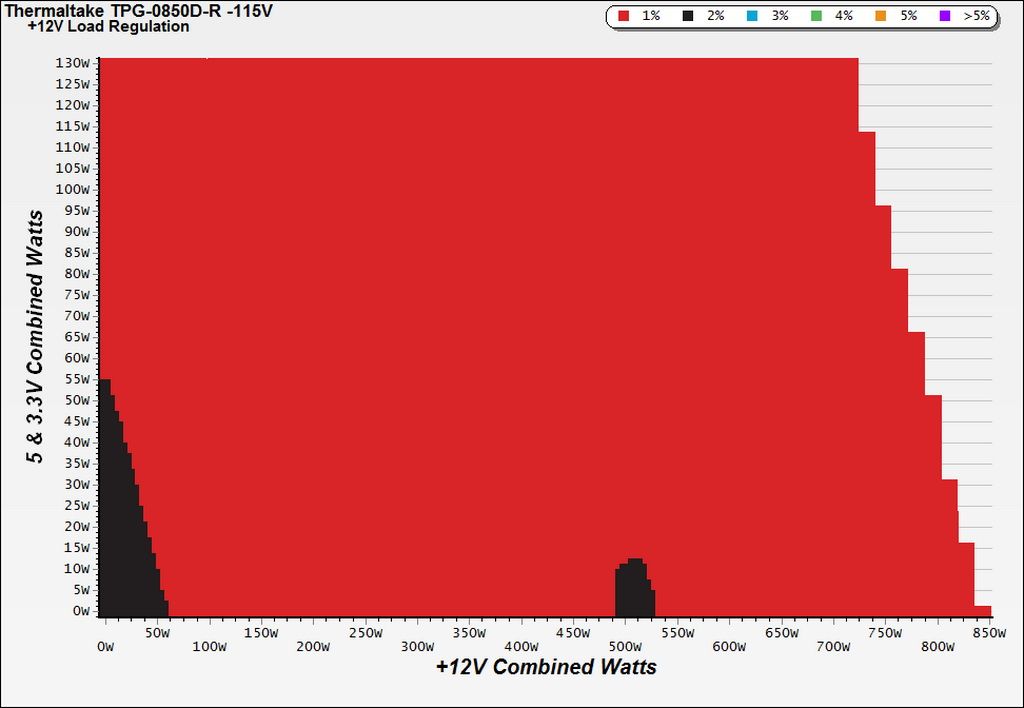

  • CL_12V

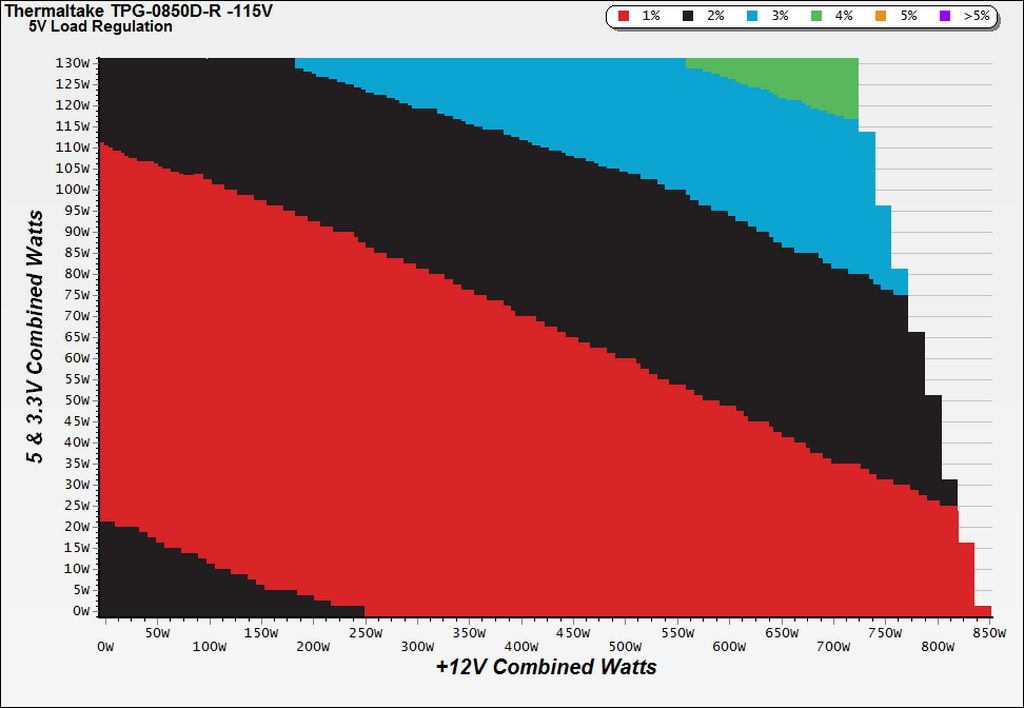

  • CL_5V

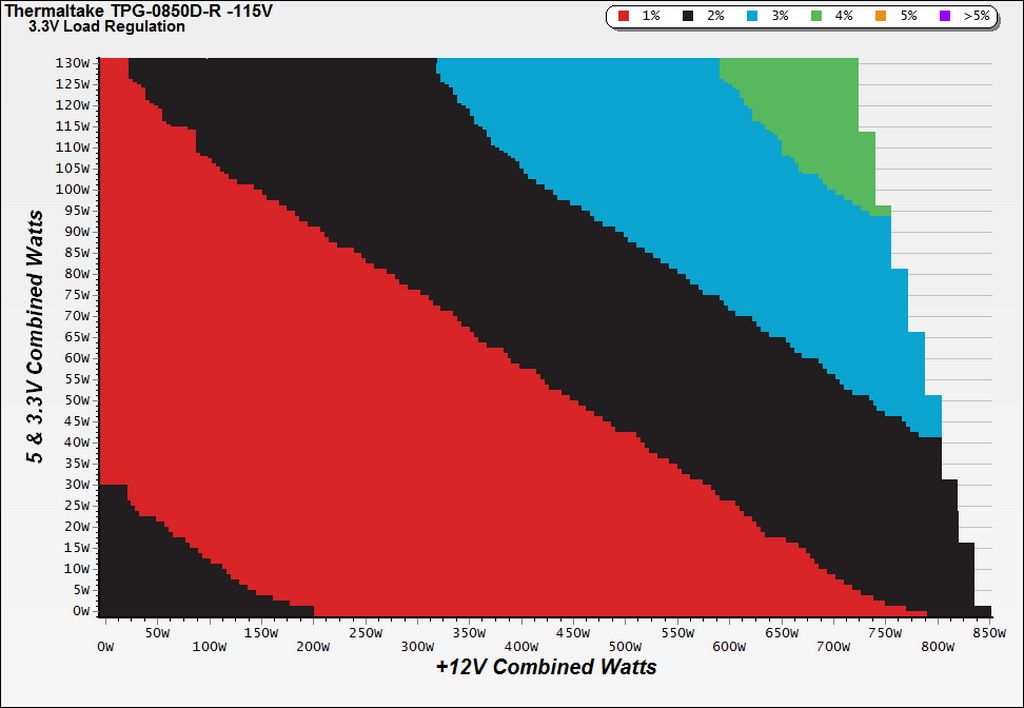

  • CL_33V

Efficiency Chart

The unit's efficiency falls within the 90-92% region from around 160 to 590W, with load on the minor rails staying lower than 75W. This is a decent performance, but definitely not a top-notch one. And in this price segment, the competition is ruthless.

Ripple Charts

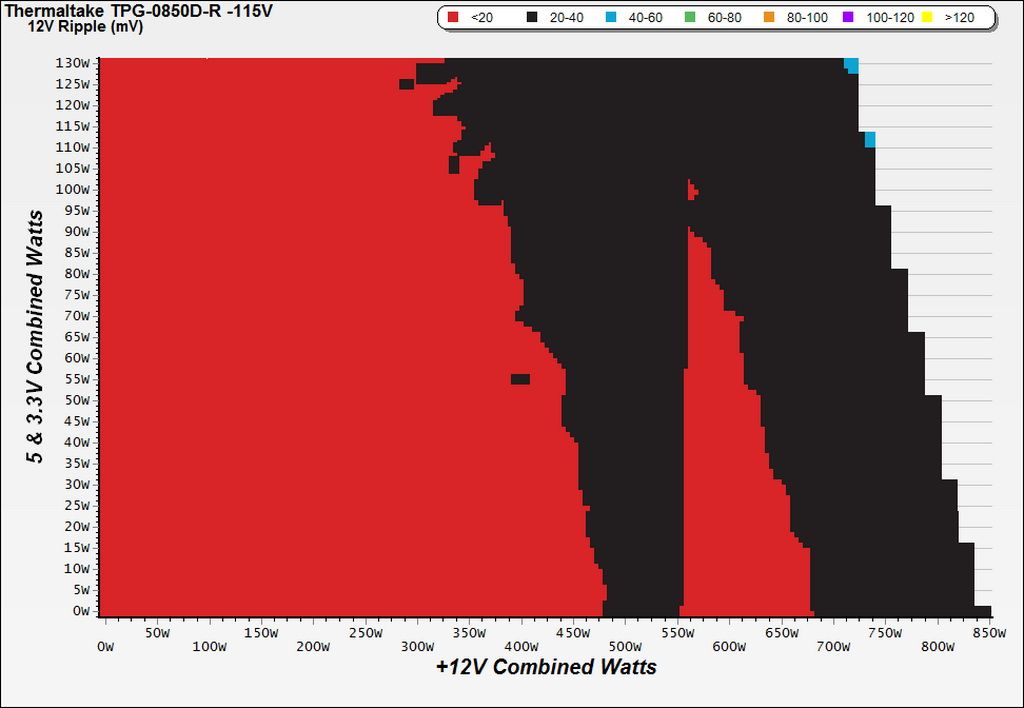

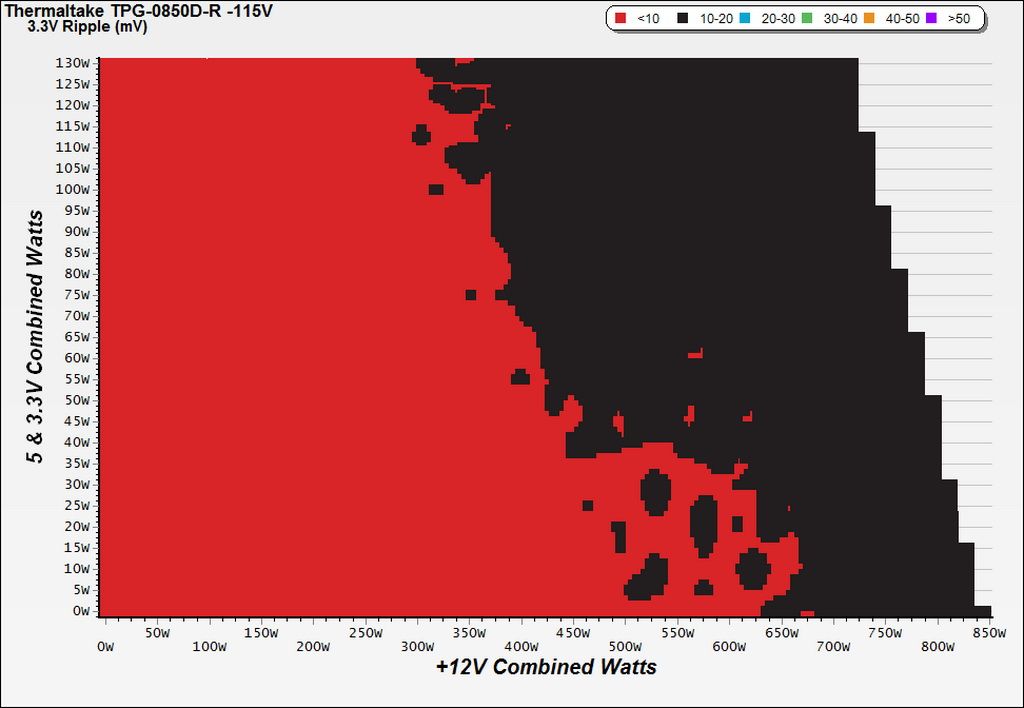

  • CL_ripple_12V1
  • CL_ripple_5V

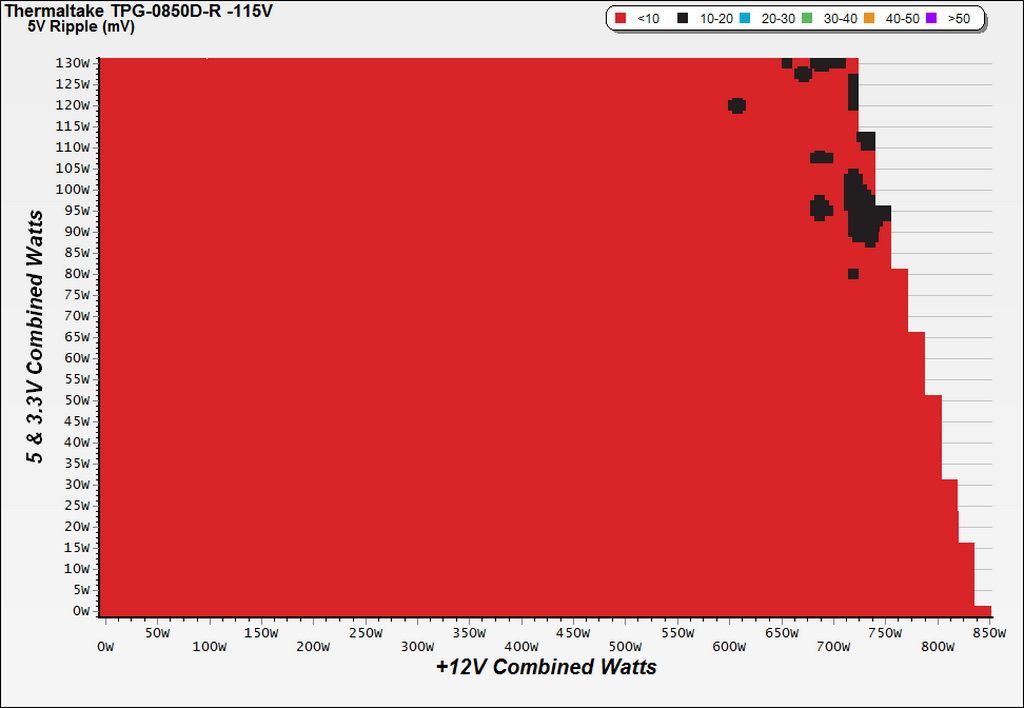

  • CL_ripple_33V

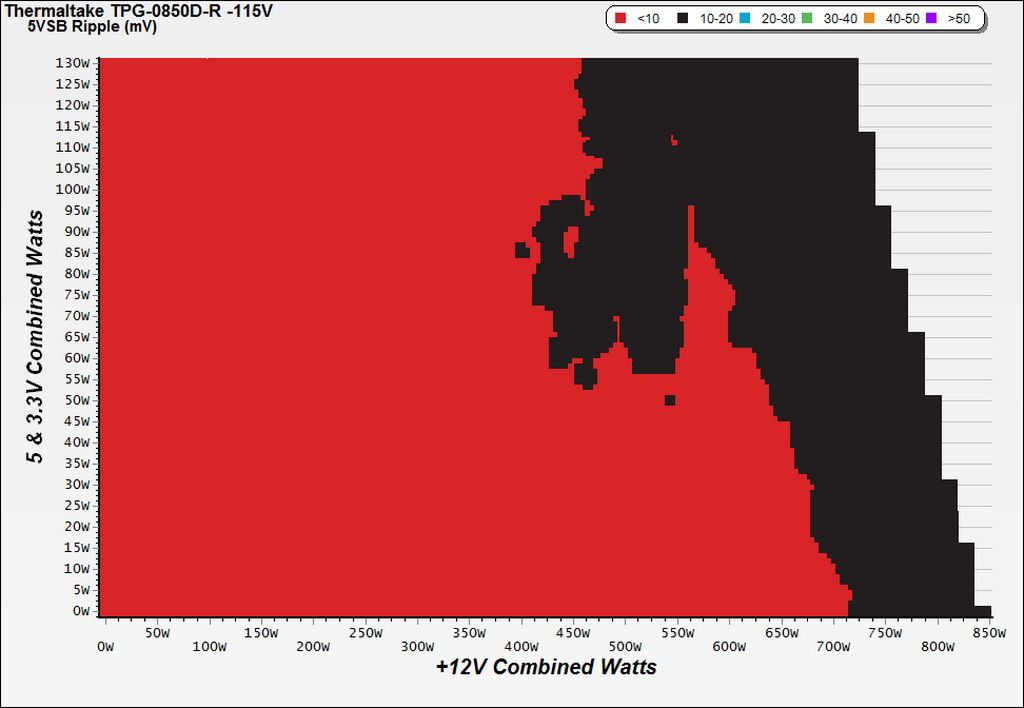

  • CL_ripple_5VSB

Infrared Images

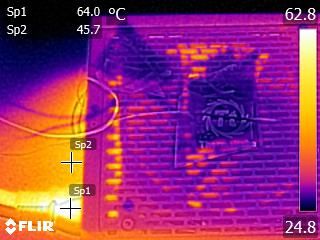

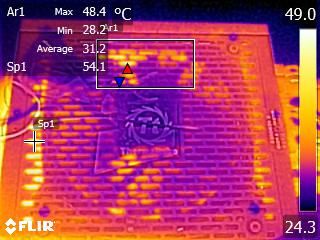

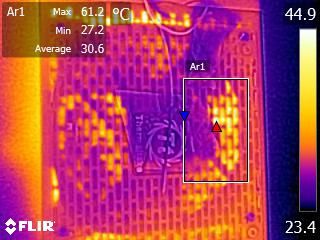

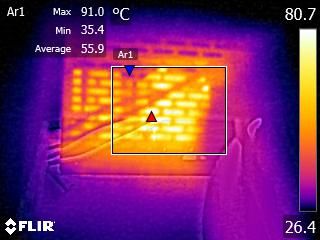

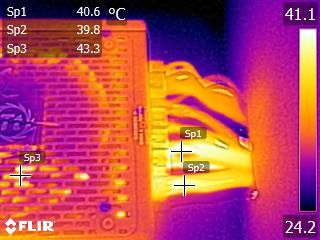

Toward the end of the cross-load tests, we took some photos of the PSU with our modified FLIR E4 camera that delivers 320x240 IR resolution (76,800 pixels).

  • FLIR0918
  • FLIR0919
  • FLIR0920
  • FLIR0922
  • FLIR0926

Temperatures inside of the PSU are low given the conditions and loads that we apply.

Thermaltake TPG-0850D-R
-

Previous Next
Summary
  1. TPG-0850D-R Power Supply Review
  2. Packaging, Contents, Exterior, And Cabling
  3. A Look Inside And Component Analysis
  4. Load Regulation, Hold-Up Time, And Inrush Current
  5. Efficiency, Temperature, And Noise
  6. Protection Features, Evaluated
  7. Cross-Load Tests And Infrared Images
  8. Transient Response Tests
  9. Ripple Measurements
  10. Performance, Performance Per Dollar, Noise, And Efficiency Ratings
  11. Pros, Cons, And Final Verdict
About the author
Aris Mpitziopoulos

Aris Mpitziopoulos is a Contributing Editor at Tom's Hardware US, covering PSUs.
