Thermaltake Toughpower Grand RGB 1200W Platinum PSU Review
Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.
Ripple Measurements
To learn how we measure ripple, please click here.
The following table includes the ripple levels we measured on the TPG-1200F1FAP's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V, and 5VSB).
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
|---|---|---|---|---|---|
| 10% Load | 10.3mV | 4.3mV | 3.6mV | 3.9mV | Pass |
| 20% Load | 14.3mV | 4.8mV | 4.0mV | 4.5mV | Pass |
| 30% Load | 16.4mV | 5.2mV | 4.6mV | 5.2mV | Pass |
| 40% Load | 15.8mV | 10.3mV | 7.9mV | 10.1mV | Pass |
| 50% Load | 19.4mV | 8.0mV | 9.2mV | 7.6mV | Pass |
| 60% Load | 17.0mV | 6.5mV | 6.5mV | 5.9mV | Pass |
| 70% Load | 16.8mV | 9.5mV | 7.4mV | 8.6mV | Pass |
| 80% Load | 18.9mV | 10.8mV | 9.3mV | 10.4mV | Pass |
| 90% Load | 18.5mV | 9.4mV | 9.0mV | 9.0mV | Pass |
| 100% Load | 20.4mV | 13.2mV | 11.5mV | 10.3mV | Pass |
| 110% Load | 23.0mV | 25.1mV | 22.2mV | 23.2mV | Pass |
| Cross-Load 1 | 10.4mV | 5.3mV | 4.9mV | 3.1mV | Pass |
| Cross-Load 2 | 22.5mV | 13.1mV | 11.5mV | 10.2mV | Pass |
View Original
View Original
View Original
View Original

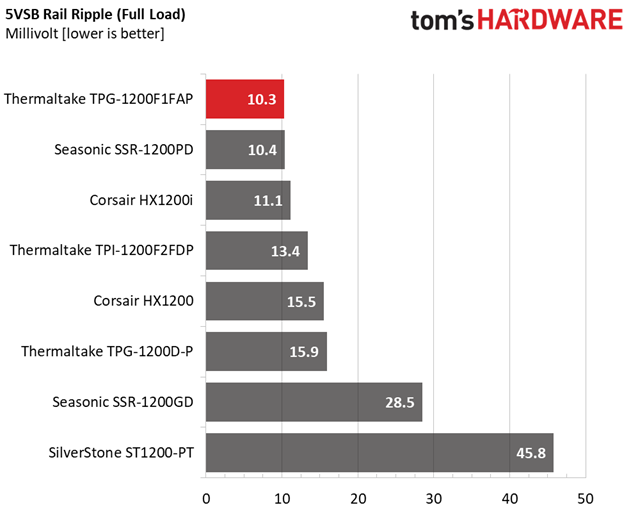

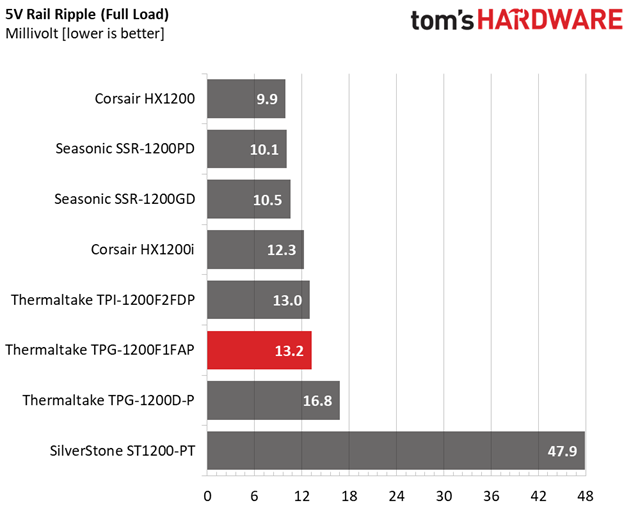

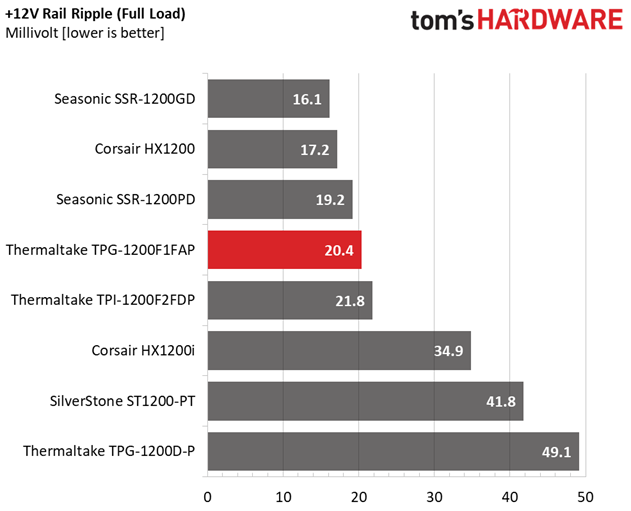

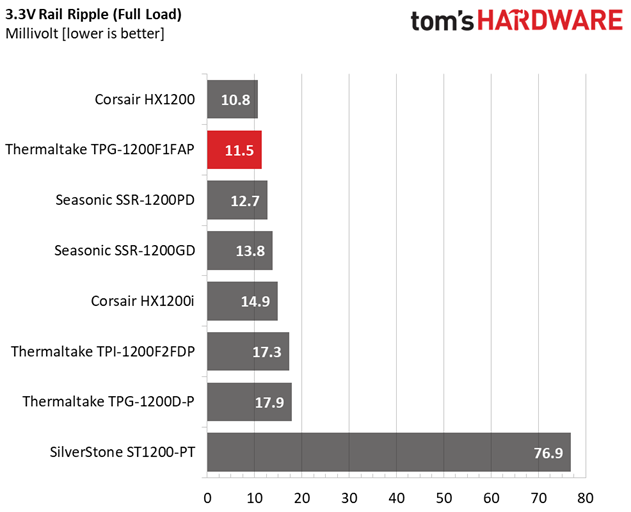

This platform's ripple suppression is really good, and that's without using in-cable capacitors.
With 110% load, we notice more ripple on the minor rails, which shows how hard we push the platform during our overload test.
Ripple Oscilloscope Screenshots

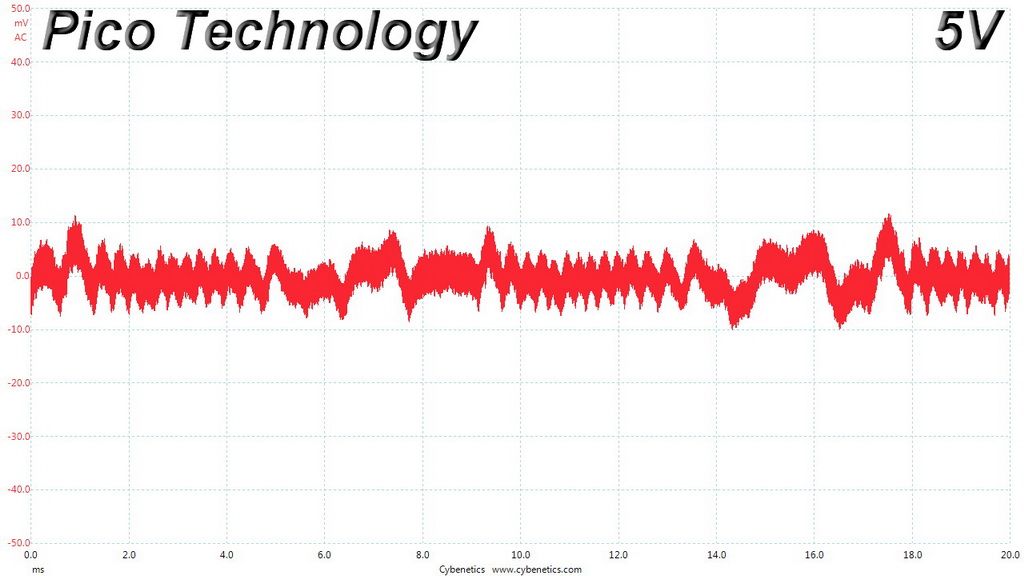

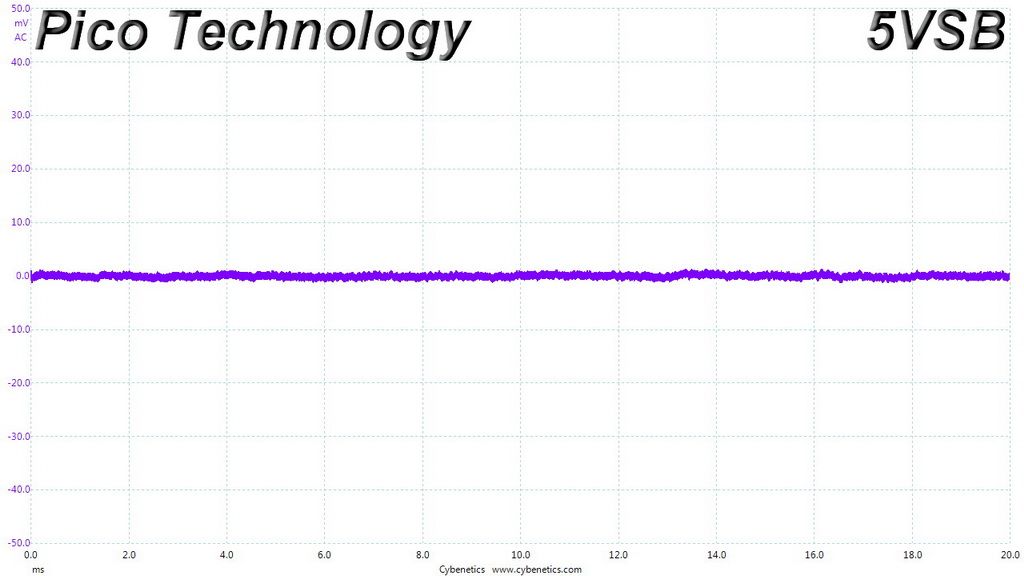

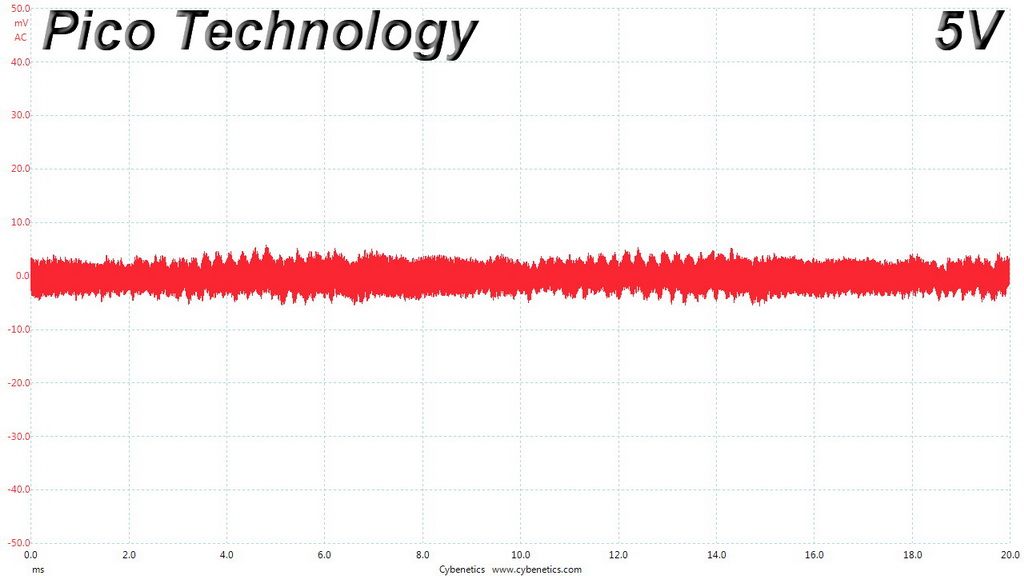

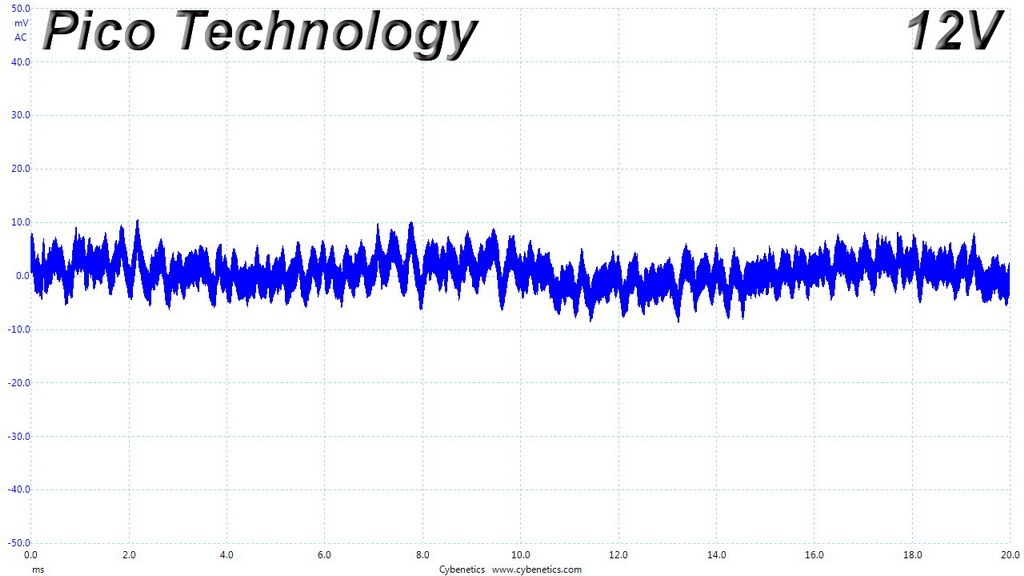

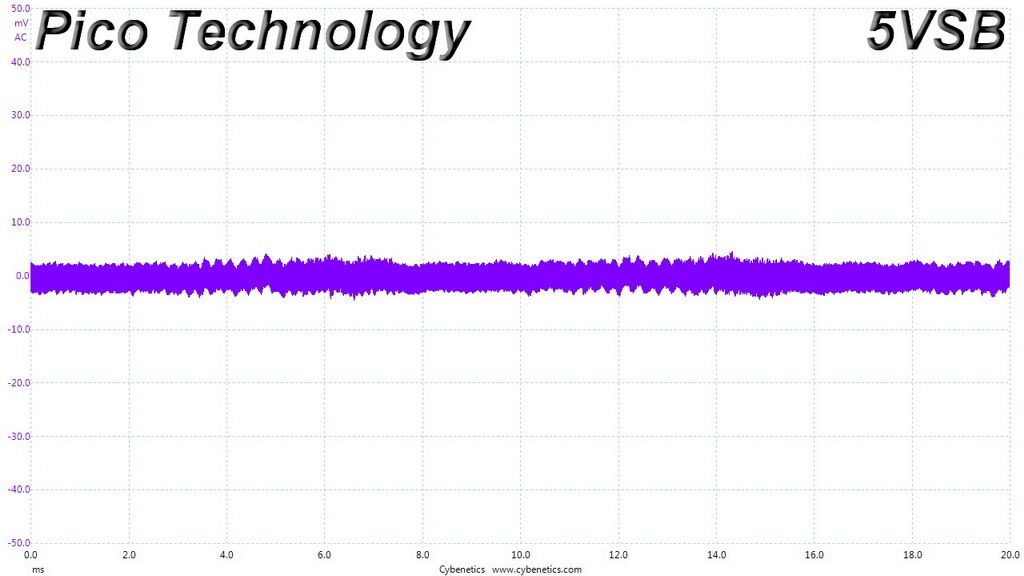

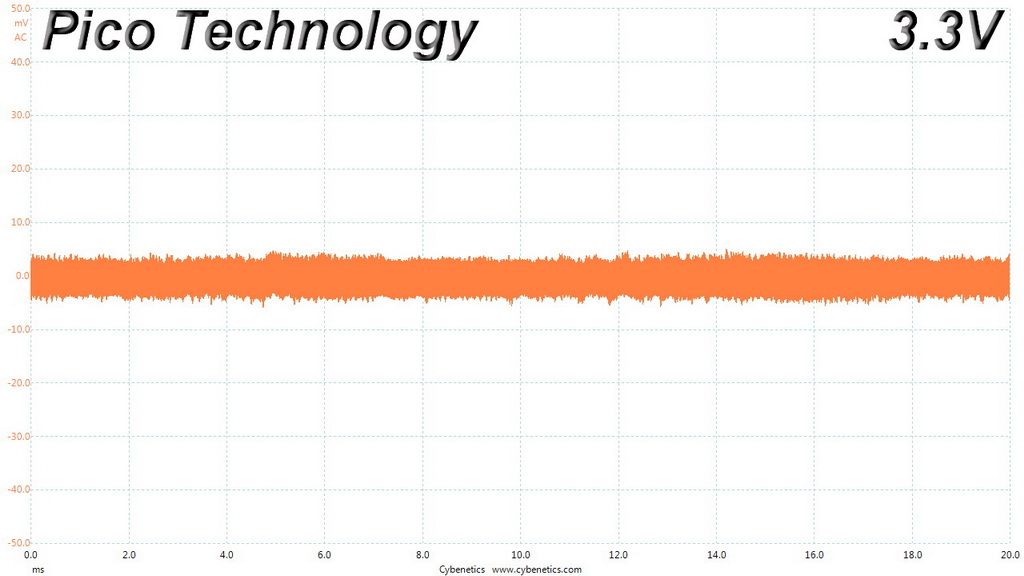

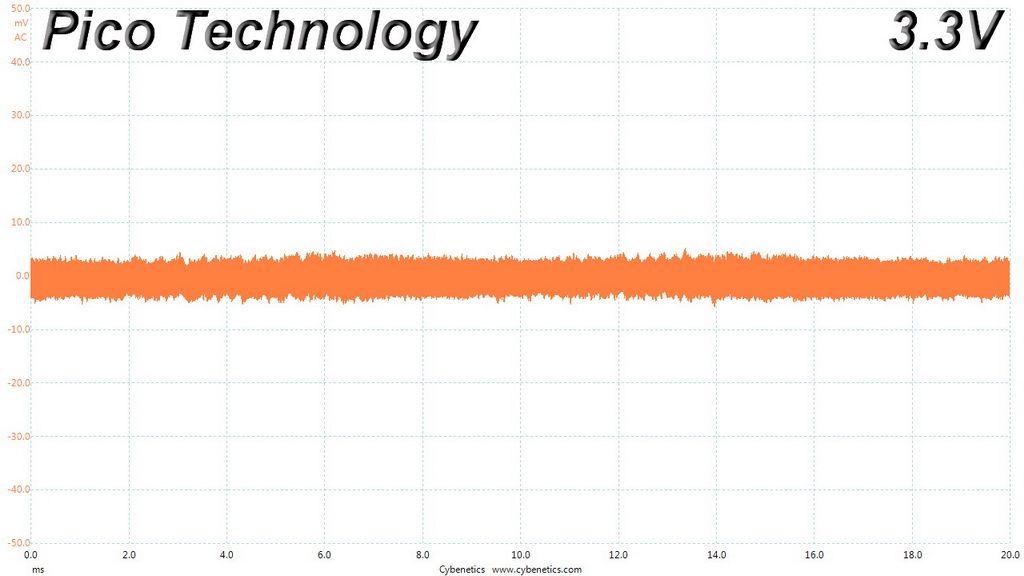

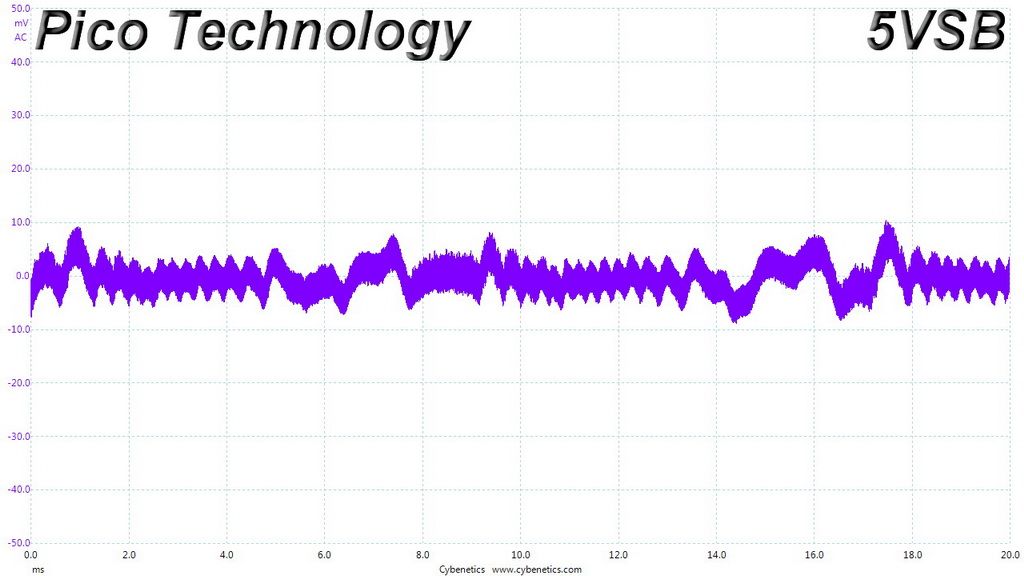

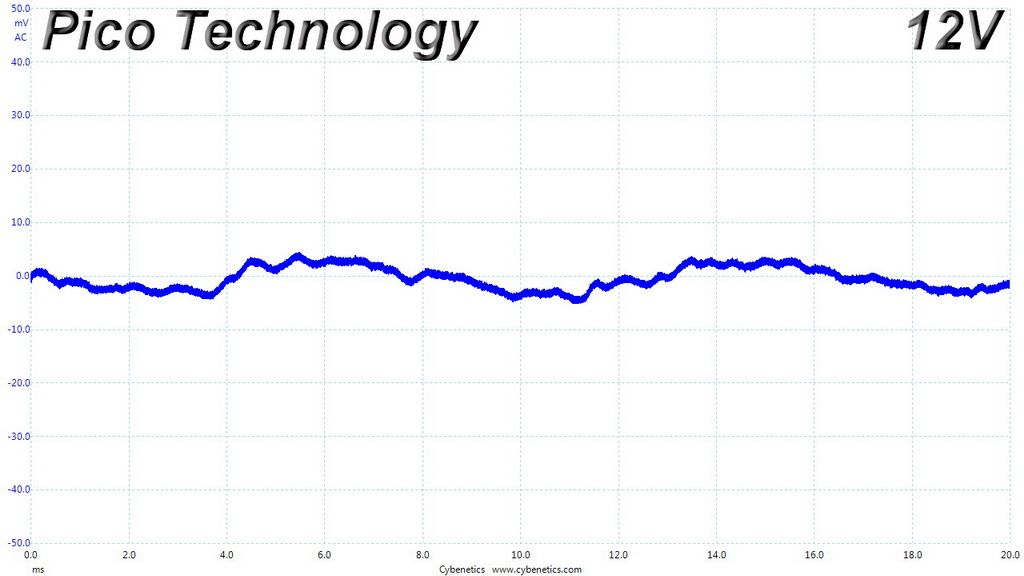

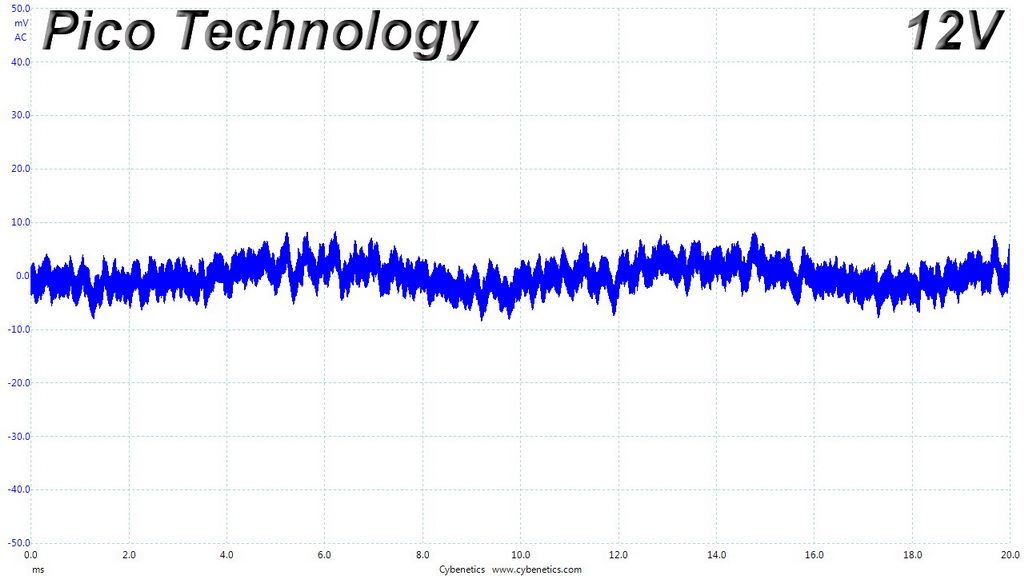

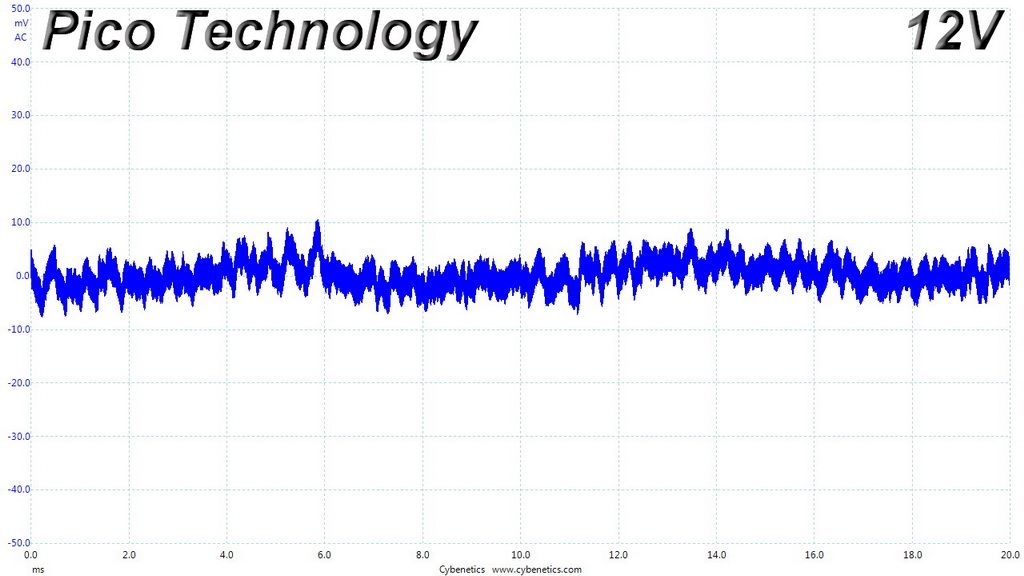

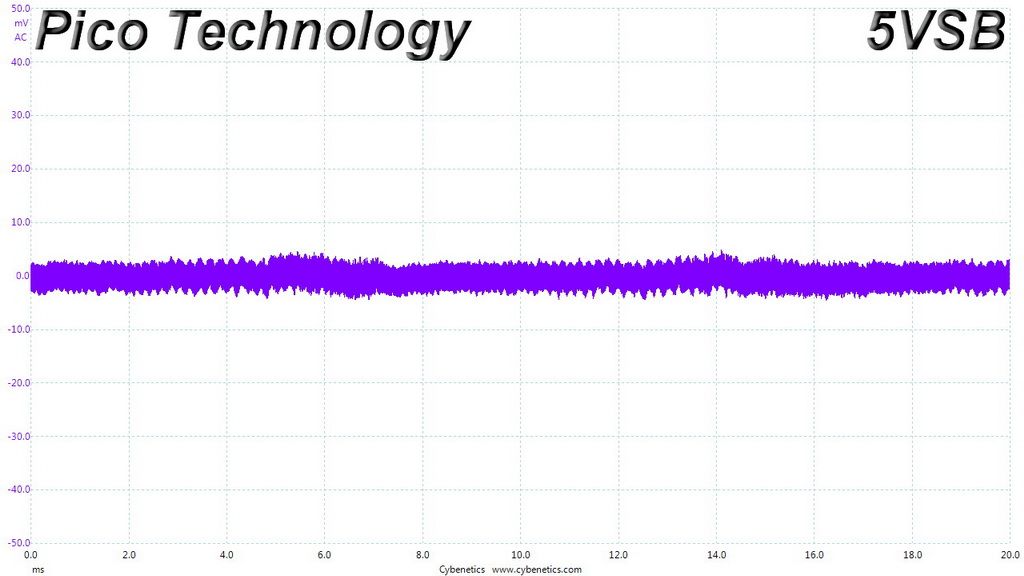

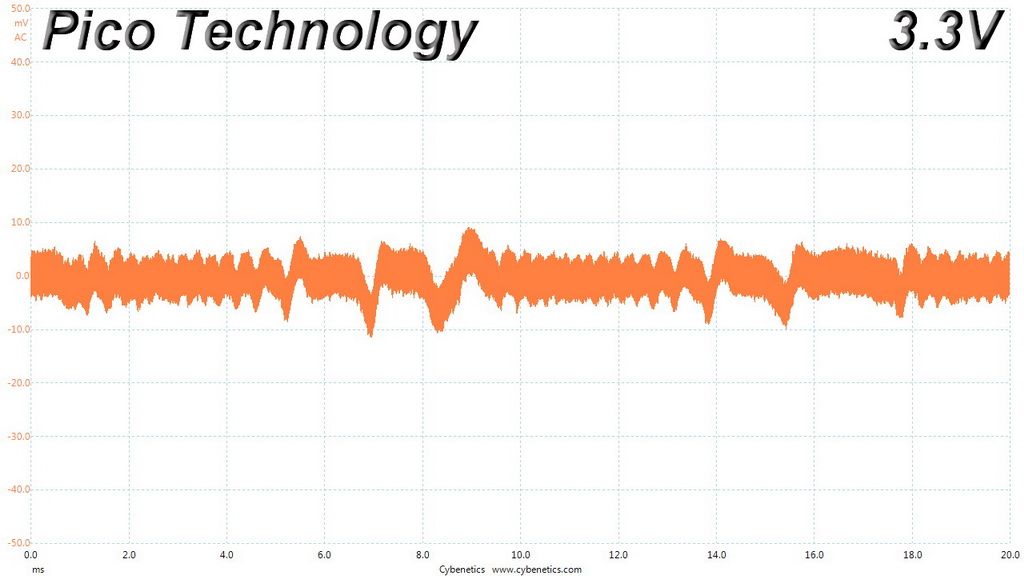

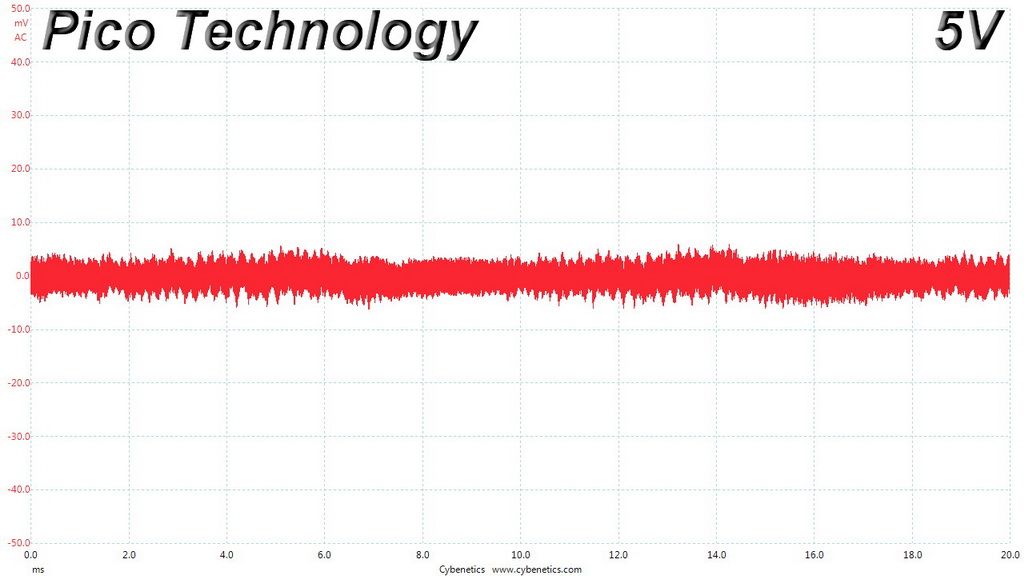

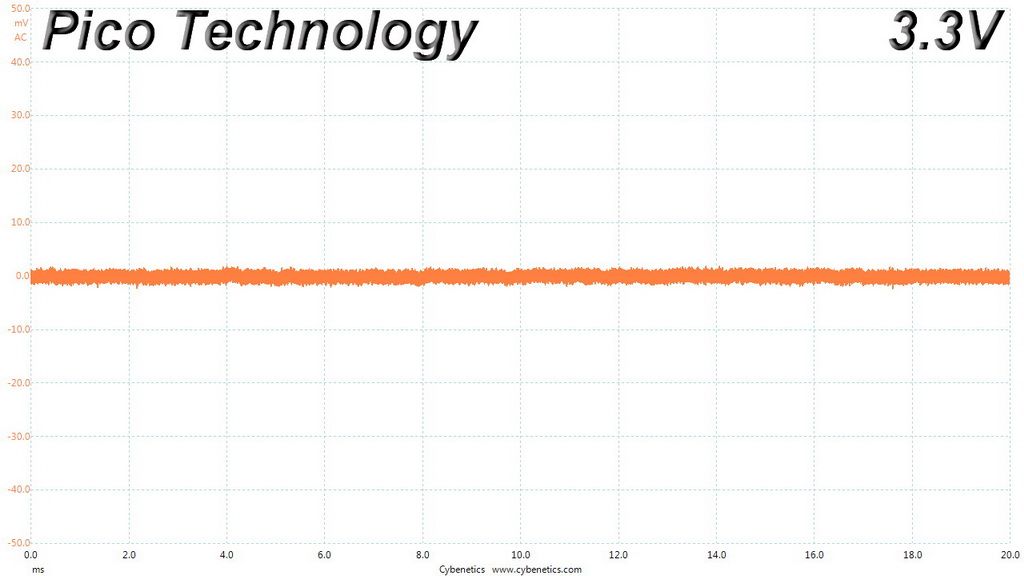

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

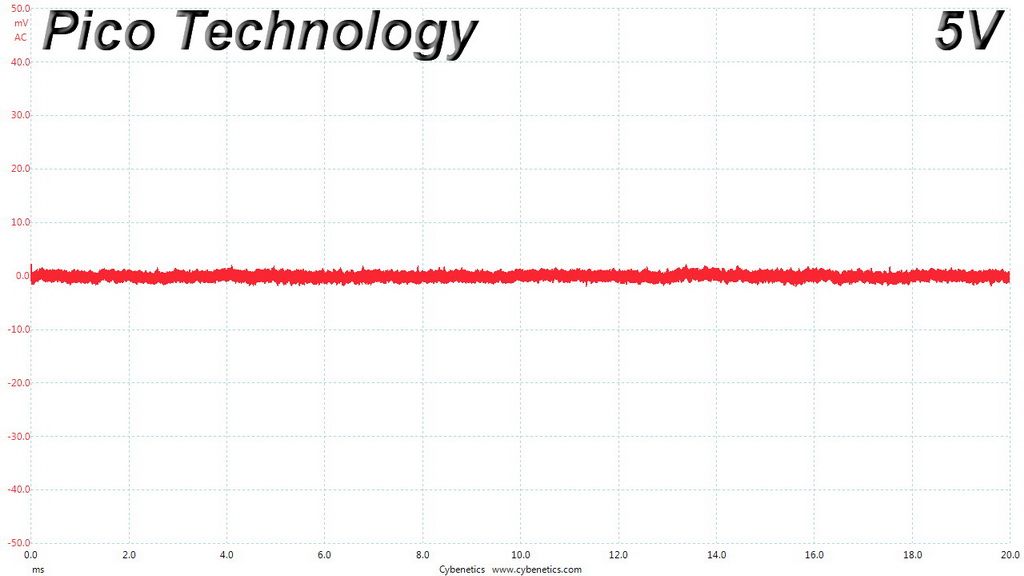

Ripple At Full Load
View Original
View Original
View Original
View Original
Ripple At 110-Percent Load
View Original
View Original
View Original
View Original
Ripple At Cross-Load 1
View Original
View Original
View Original
View Original
Ripple At Cross-Load 2
View Original
View Original
View Original
View Original
