Storage Performance In Entertainment And Content Creation

By Andrew Ku
published

A number of metrics are used to quantify storage performance. If you're a content creator, you have to be wondering how such dry terminology can apply to your video projects. Rather than telling you, we're going to dissect several media-oriented tasks.

Exporting In Adobe Premiere Pro

Swipe to scroll horizontally
Overall StatisticsPremiere Pro, Exporting
Elapsed Time16:28
Read Operations140 861
Write Operations31 081
Data Read17.04 MB
Data Written3.08 GB
Disk Busy Time49.45 s
Average Data Rate416.53 MB/s

Exporting is expectedly all 128 KB sequential writes. However, there are a few surprises. Even though you're combining several files, the majority of operations are not queued one deep, because this workload isn't only comprised of writing one video file. Instead, the encoder has to work ahead to combine video and audio tracks, while adding effects midstream.

Our specific workload involves exporting to Blu-ray-compliant .M2V and .WAV file formats. Since we're compressing, we're able to shrink four video files totaling 16 GB to a more manageable 2.41 GB. Interestingly, our trace indicates that we've written as much as 3.0 GB.

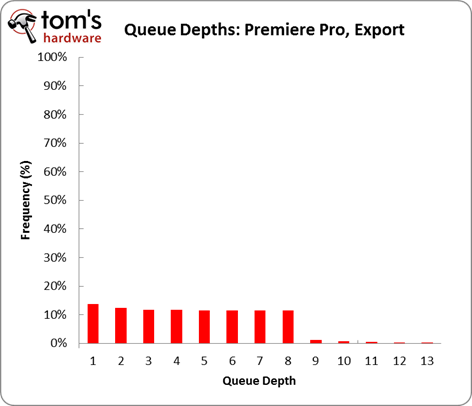

I/O Trends:

  • 14% of all operations occur at a queue depth of one
  • 36% of all operations occur at queue depths of two and four
  • 46% of all operations occur at queue depths of five and eight
  • 91% of all data transferred is sequential
  • 95% of all operations are 128 KB in transfer size
