Adata Legend 960 Max SSD Review: Now With Extra Toppings

A better Legend 960, thanks to the heatsink

Adata Legend 960 Max
(Image: © Tom's Hardware)

Tom's Hardware Verdict

The Adata Legend 960 Max is yet another high-end PCIe 4.0 NVMe SSD, set apart by its strong sustained performance. The addition of a heatsink to the original 960 is a nice option as the drive runs cool even under heavy workloads. It’s perfectly suitable for a laptop or PS5.

Pros

  • +

    Good sustained performance

  • +

    No throttling, runs cool

Cons

  • -

    Mediocre performance

  • -

    Lackluster power efficiency

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

The Adata Legend 960 Max is another common PCIe 4.0 NVMe SSD for your PS5 or desktop PC, with the added advantage of a heatsink to keep things cool. Overall, it’s a Legend 960 in disguise, simply with an added heatsink, but this works well with the drive’s chemistry. Although it sets no real records, the ability to write for a long time while keeping cool could make this drive interesting for some uses. However, it faces stiff competition, so it has to be priced right to be meaningful.

Specifications

Swipe to scroll horizontally
Product1TB2TB4TB
Pricing $84.99 $169.99 $369.99
Form FactorM.2 2280M.2 2280M.2 2280
Interface / ProtocolPCIe 4.0 x4PCIe 4.0 x4PCIe 4.0 x4
ControllerSM2264SM2264SM2264
DRAMDDR4DDR4DDR4
Flash Memory176-Layer Micron TLC176-Layer Micron TLC176-Layer Micron TLC
Sequential Read7,400 MBps7,400 MBps7,400 MBps
Sequential Write6,000 MBps6,800 MBps6,800 MBps
Random Read730K750K700K
Random Write610K630K550K
SecurityN/AN/AN/A
Endurance (TBW)780TB1560TB3120TB
Part NumberALEG-960M-1TCSALEG-960M-2TCSALEG-960M-4TCS
Warranty5-Year5-Year5-Year

The Adata Legend 960 Max, as with the original Legend 960, comes in 1TB, 2TB, or 4TB flavors. During the time of review the prices dropped on these to $84.99, $169.99, and $369.99, respectively. This pricing feels a bit high at 1TB with heatsinked drives like the Lexar Professional NM800 Pro around and there’s fair competition at 2TB, too. At 4TB the Legend 960 Max is reasonable for a high-end PCIe 4.0 SSD if you want a svelte heatsink, possibly for PlayStation 5 use, but the WD Black SN850X is otherwise attractive.

The Legend 960 Max reaches up to 7,400 MBps / 6,800 MBps for sequential reads and writes and up to 750,000 / 630,000 IOPS for random reads and rights. TBW is at 780TB per TB of capacity and the drive is backed by a five-year warranty.

Software and Accessories

Adata provides a download for its SSD Toolbox software package. This application has drive information, diagnostics, cloning, TRIM optimization, a firmware updater, and the ability to perform a secure erase.

A Closer Look

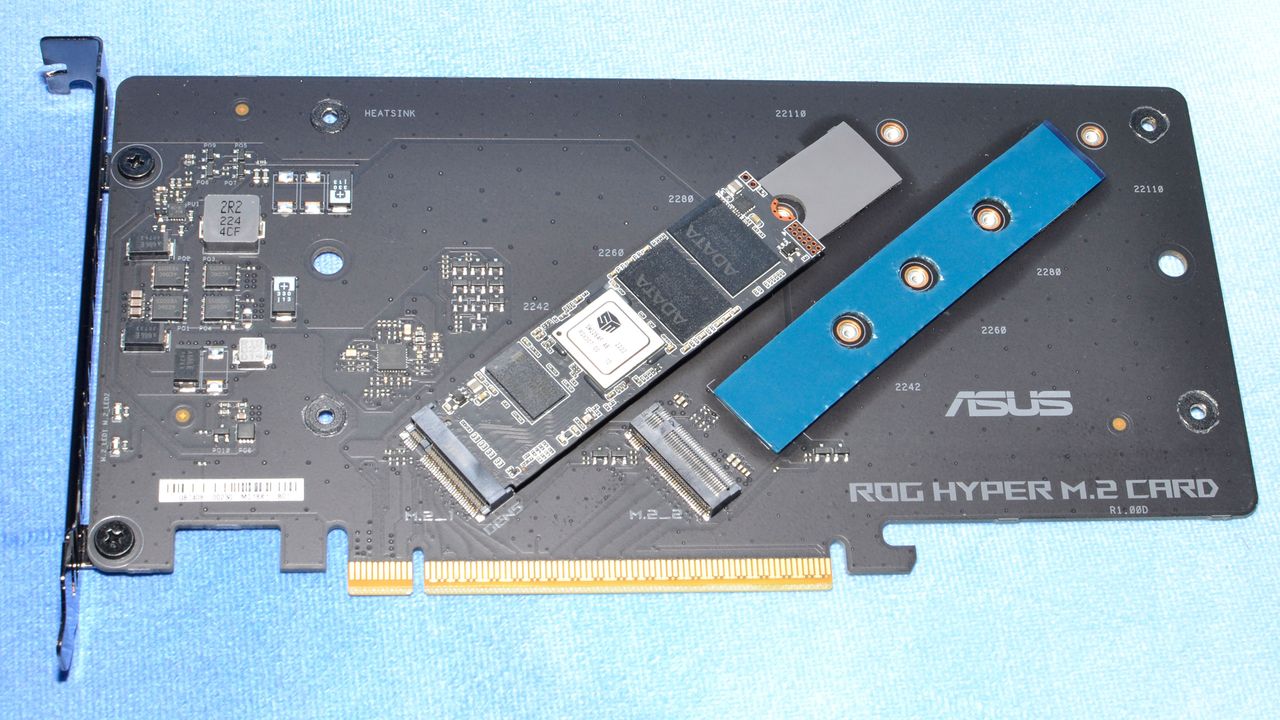

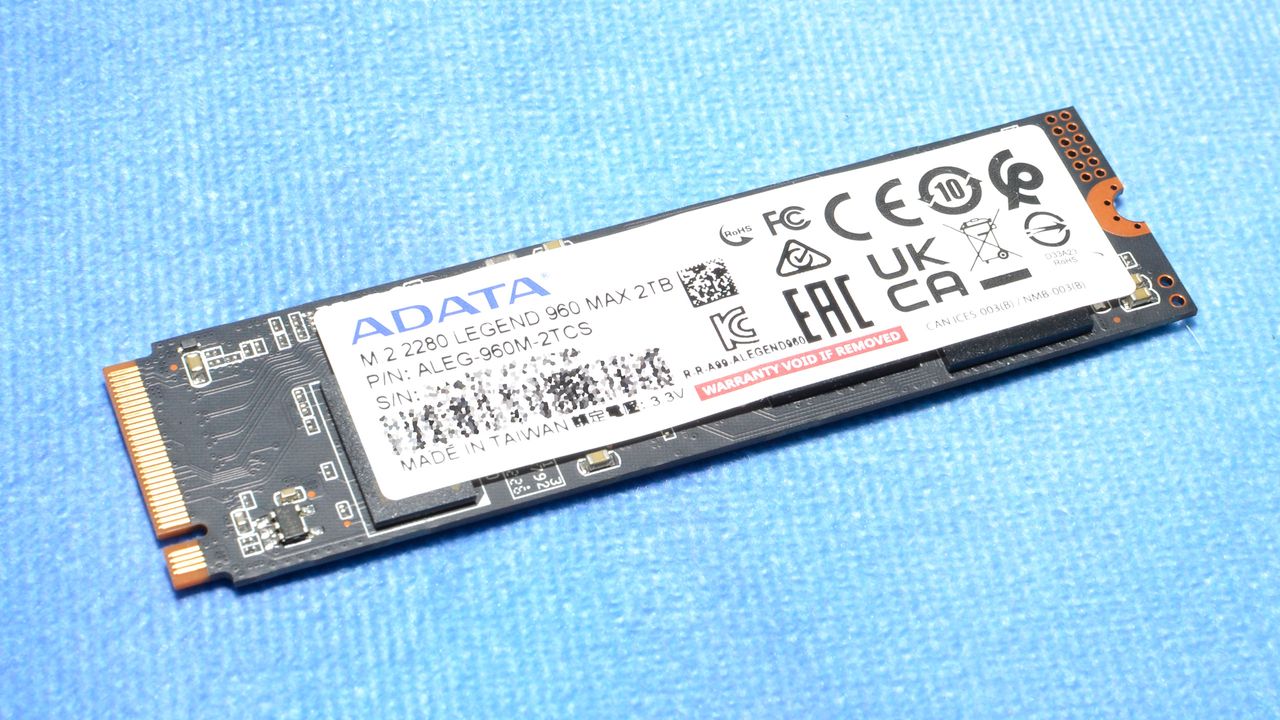

The Legend 960 Max is quite similar to the original Legend 960 with the primary change being the addition of a full-fledged heatsink. This is a nice addition as the original drive could get quite hot during sustained workloads. It’s possible to add your own heatsink or to use a motherboard heatsink on the original, although currently these drives are priced similarly. What we spot otherwise is a double-sided drive with one DRAM and two NAND packages on either side, with the controller centralized on the top side.

(Image credit: Tom's Hardware)

 The Legend 960 Max uses the same controller and DDR4 as the Legend 960. There’s plenty of DRAM and the controller has proven itself capable, but not exceptional. SMI was a little late to the market this time around.

(Image credit: Tom's Hardware)

The flash is Micron’s ubiquitous 176-Layer TLC, or B47R. In time we expect Micron’s 232-Layer design to become more common, particularly on higher-end drives. This includes a range of upcoming PCIe 5.0 SSDs. That flash has twice the typical density of B47R, which promises to help kick capacity up a notch.

MORE: Best SSDs

MORE: Best External SSDs and Hard Drives

MORE: How We Test HDDs And SSDs

MORE: All SSD Content

Shane Downing
Freelance Reviewer

Shane Downing is a Freelance Reviewer for Tom’s Hardware US, covering consumer storage hardware.
