Corsair SF450 PSU Review

Reviews
By
published

Corsair enters the SFX PSU market with its new SF series consisting of two models at 450W and 600W capacities. Both power supplies are fully modular, promise high performance and come with 92mm fans to minimize noise output.

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Ripple Measurements

To learn how we measure ripple, please click here.

The following table includes the ripple levels we measured on the SF450's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V and 5VSB).

Swipe to scroll horizontally
Test12V5V3.3V5VSBPass/Fail
10% Load19.1mV5.9mV6.5mV5.4mVPass
20% Load28.0mV6.1mV6.7mV5.2mVPass
30% Load26.9mV6.4mV7.5mV5.6mVPass
40% Load24.9mV6.7mV8.3mV5.6mVPass
50% Load23.3mV7.1mV8.4mV5.6mVPass
60% Load24.4mV7.5mV8.7mV5.8mVPass
70% Load25.3mV9.7mV9.5mV6.4mVPass
80% Load25.7mV10.3mV10.8mV6.5mVPass
90% Load26.7mV10.8mV12.4mV7.0mVPass
100% Load27.8mV11.5mV16.6mV7.7mVPass
110% Load28.5mV11.7mV17.1mV7.9mVPass
Cross-Load 131.2mV9.9mV13.7mV8.0mVPass
Cross-Load 226.6mV8.8mV13.6mV7.0mVPass

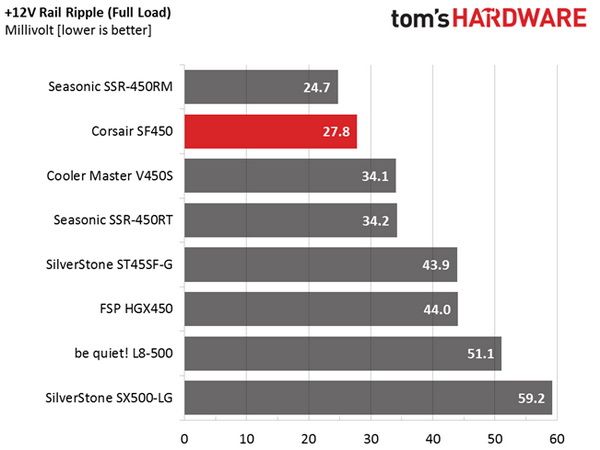

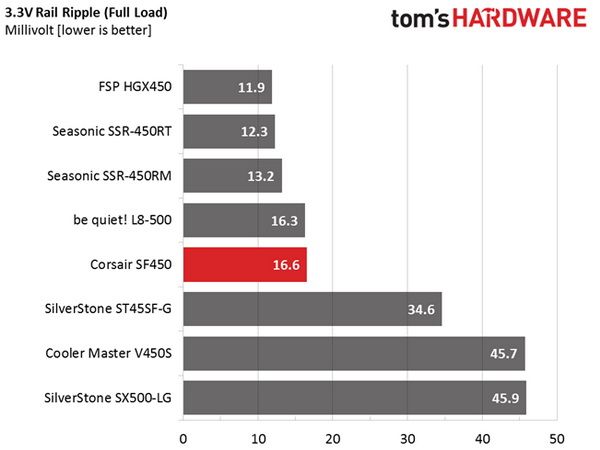

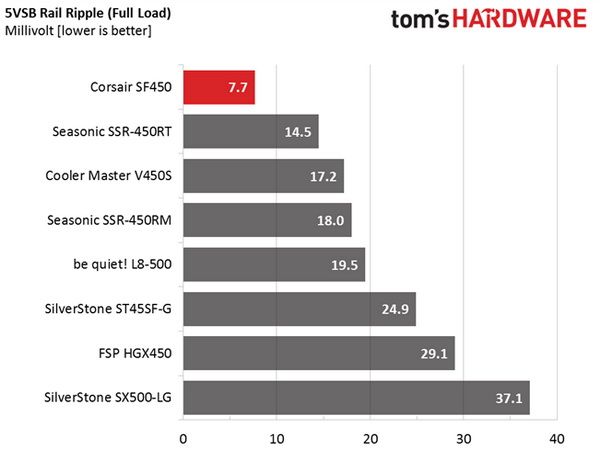

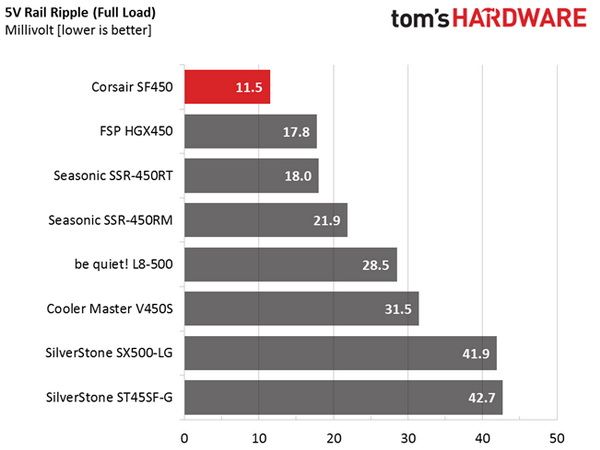

Image 1 of 4

Ripple suppression is excellent on all rails. This PSU doesn't stop impressing us! And the best part is that, with such high-quality caps, these performance levels will last a long time.

Ripple Oscilloscope Screenshots

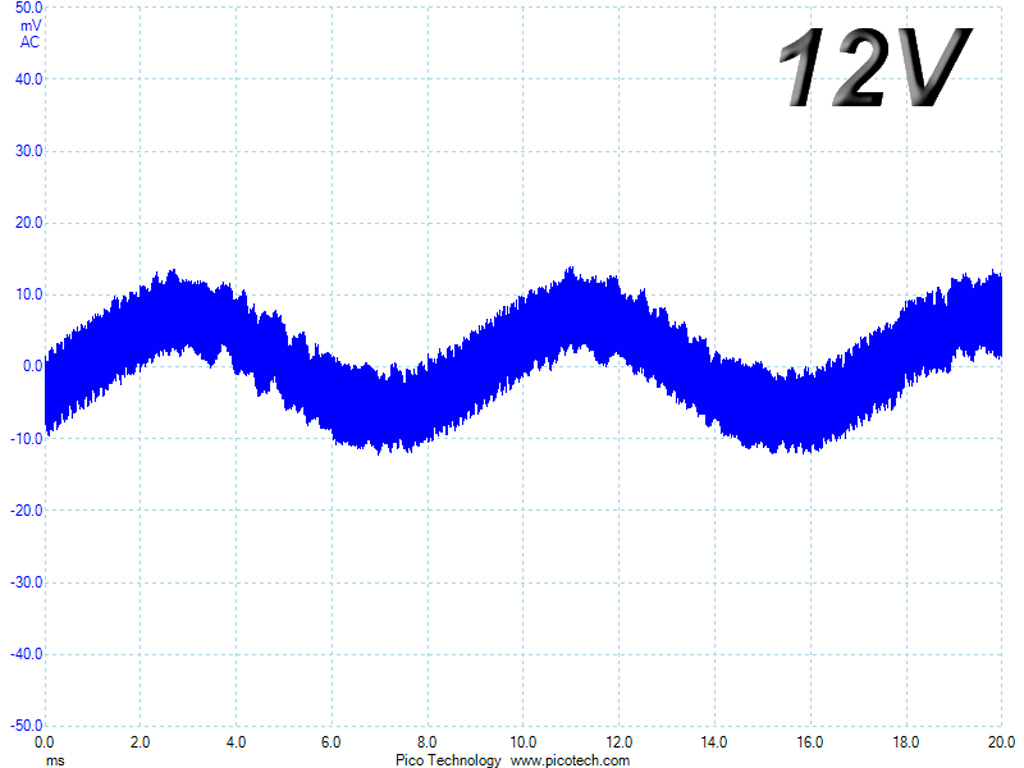

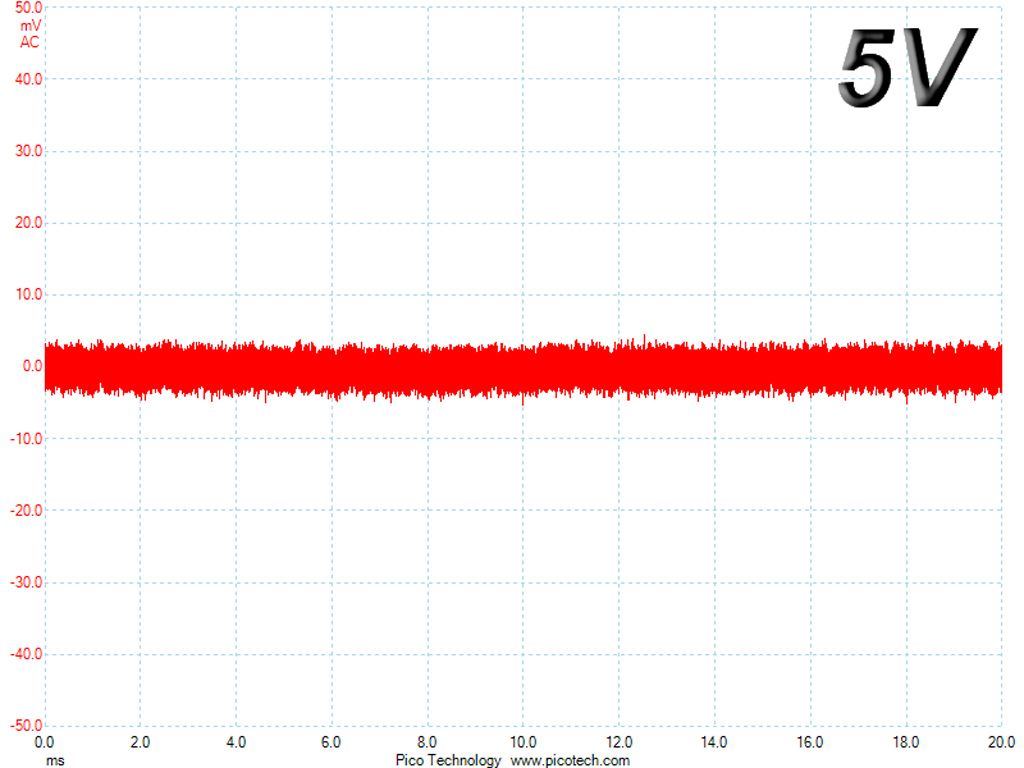

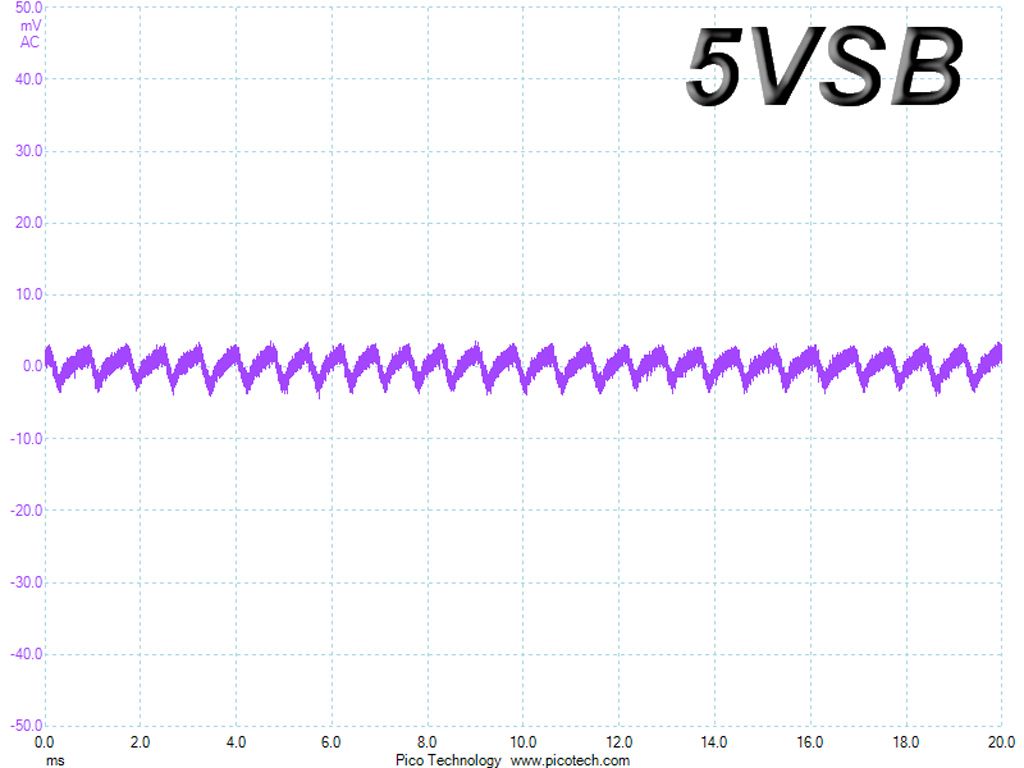

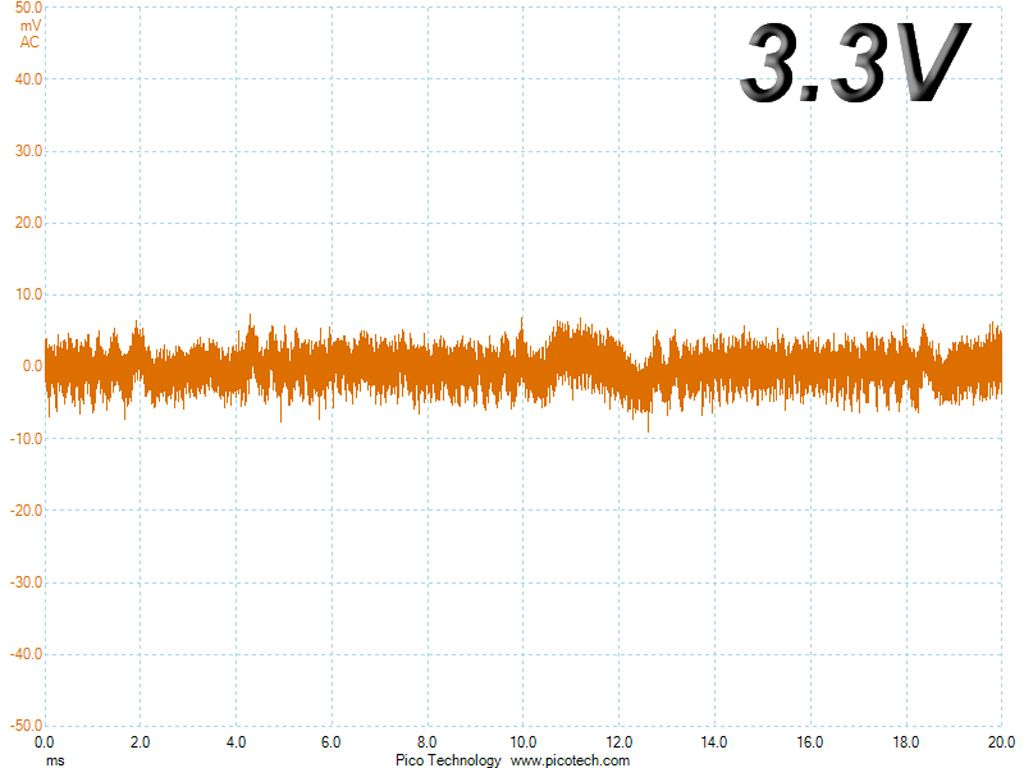

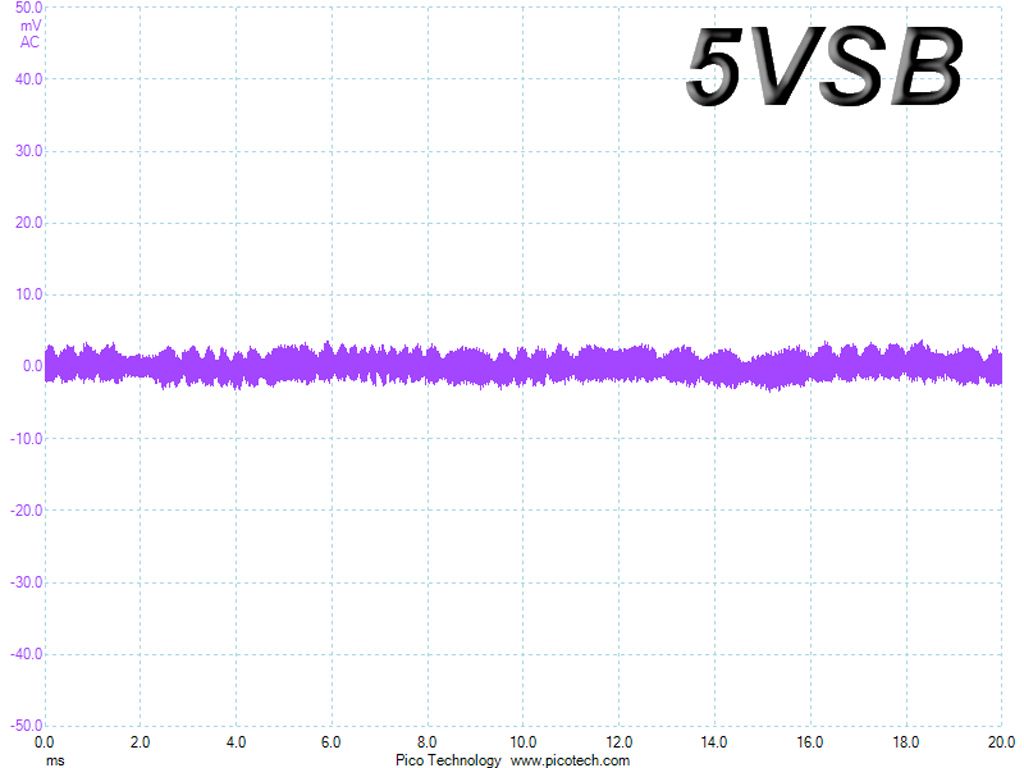

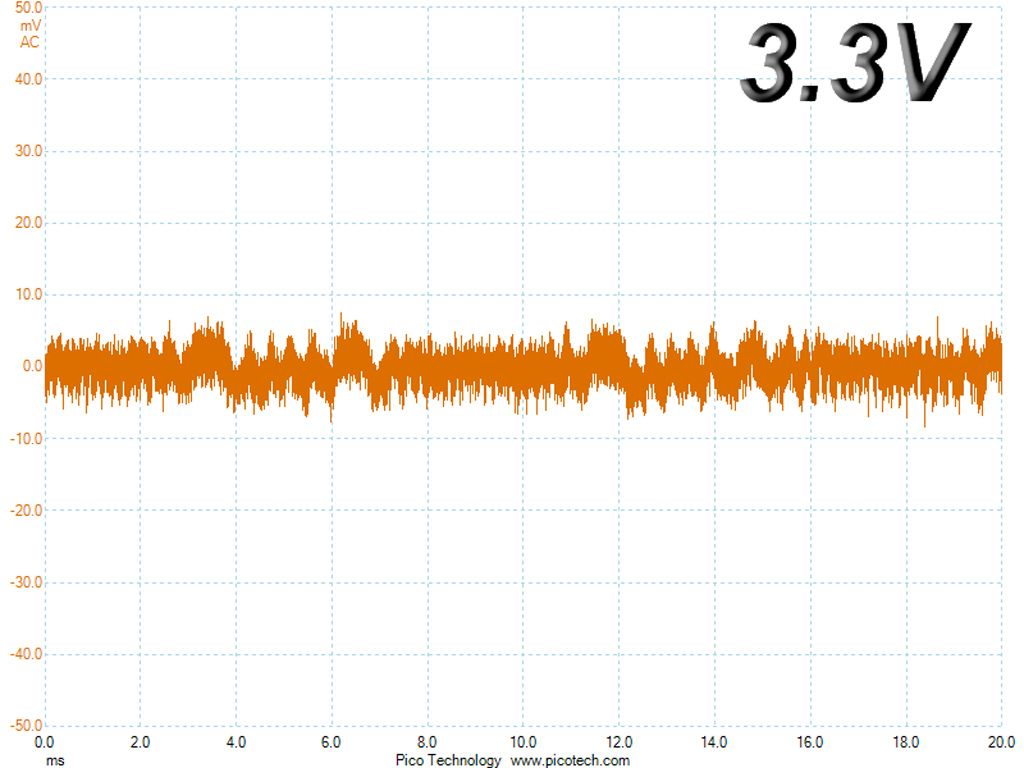

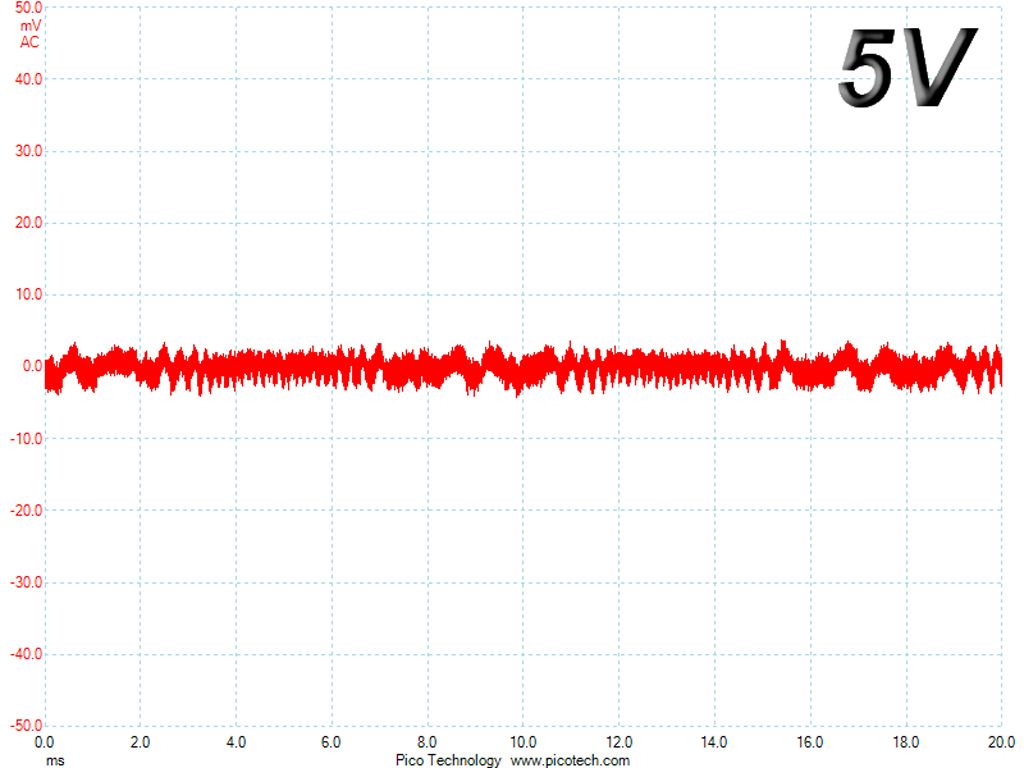

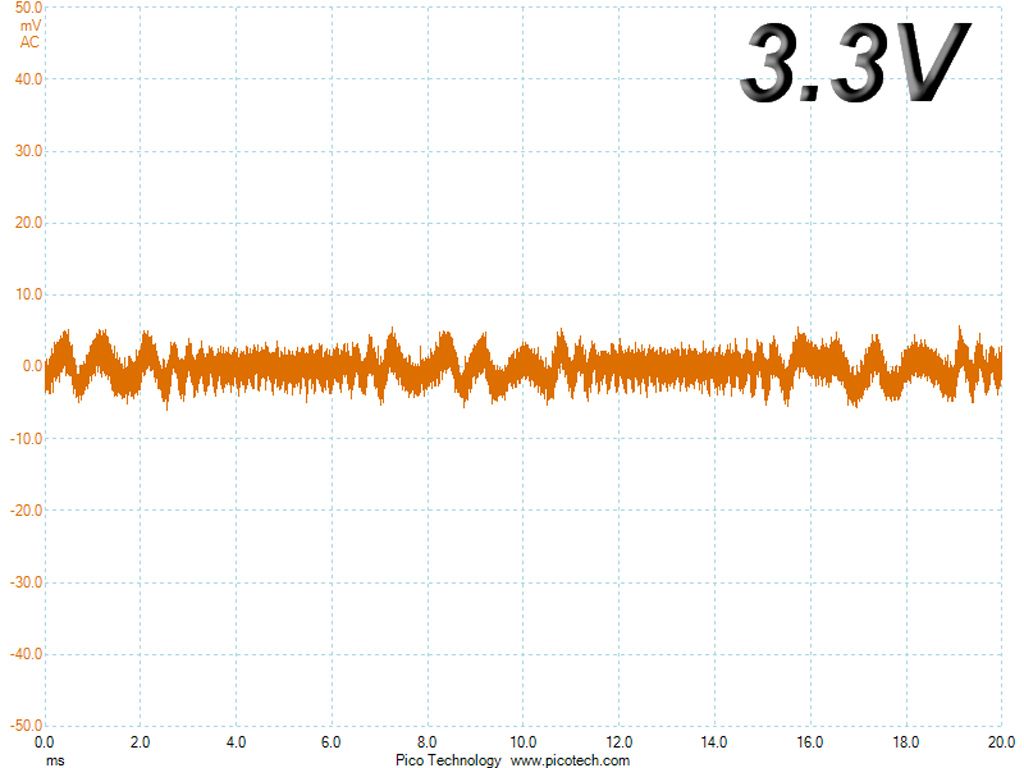

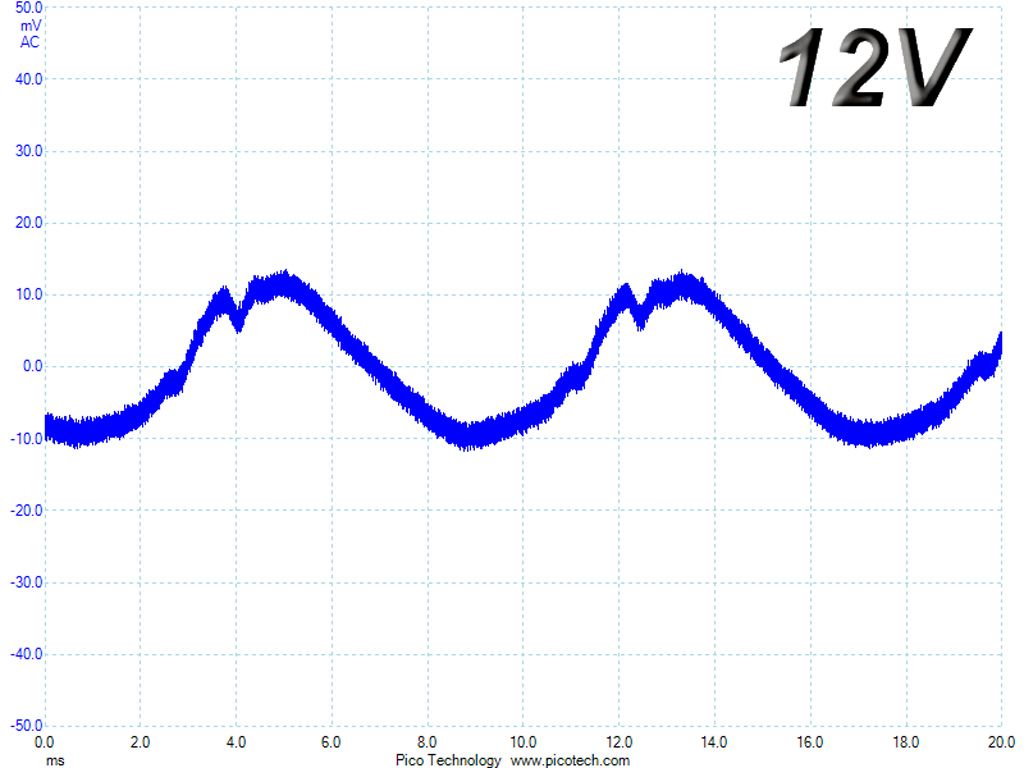

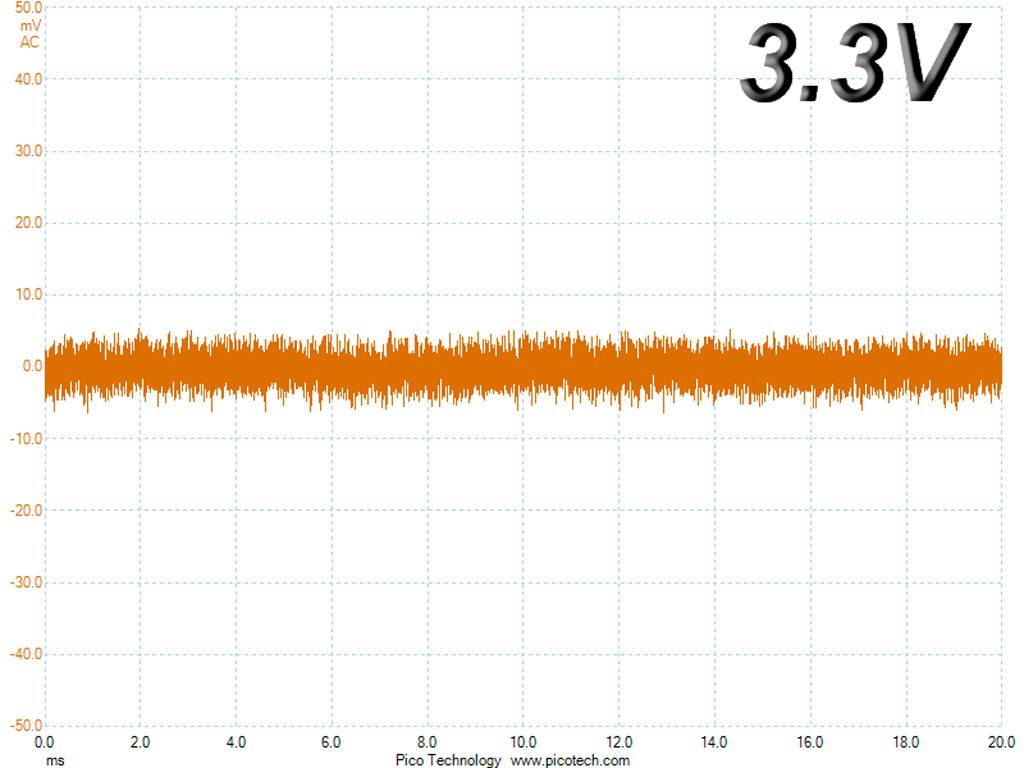

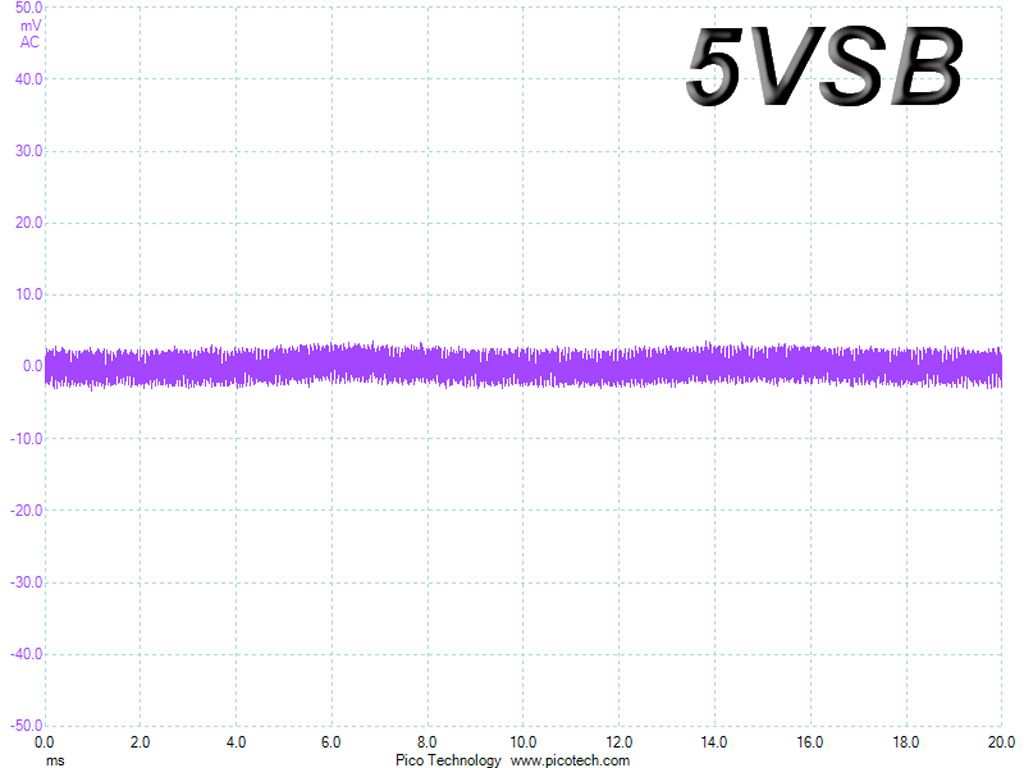

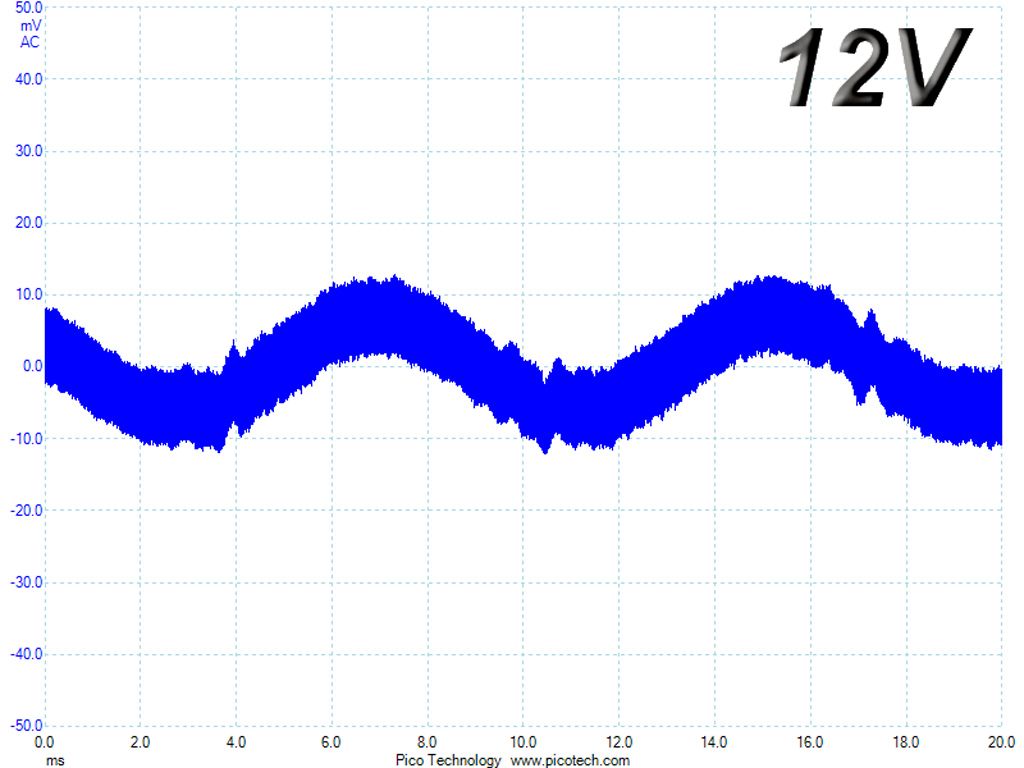

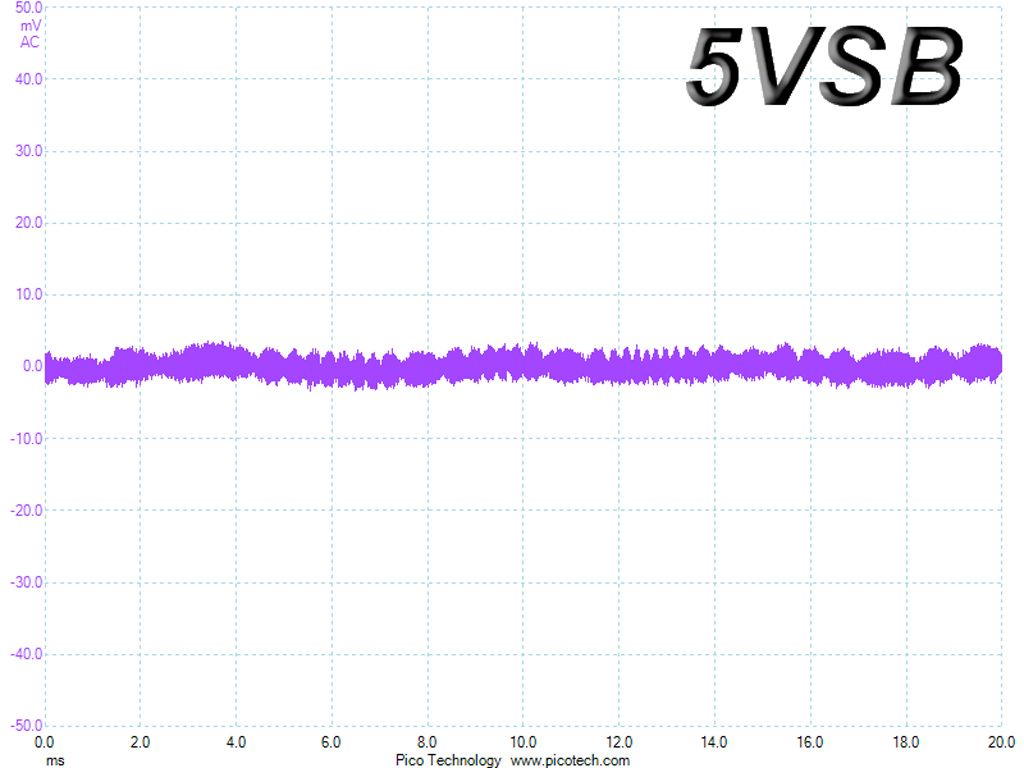

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

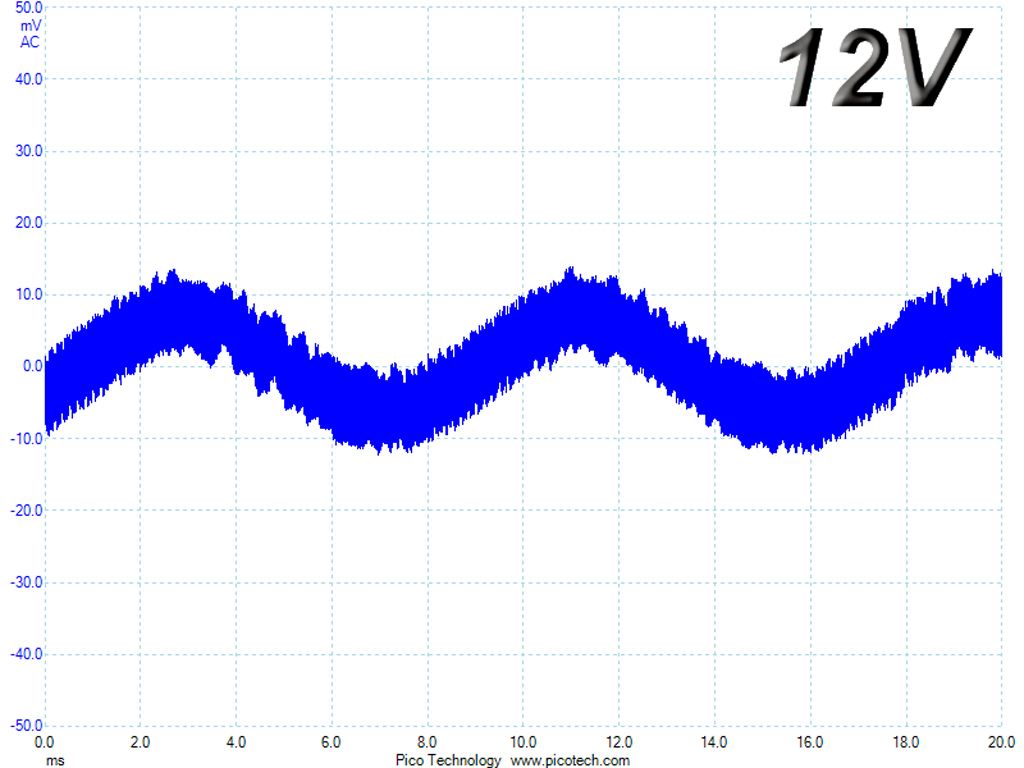

Ripple At Full Load

Image 1 of 4

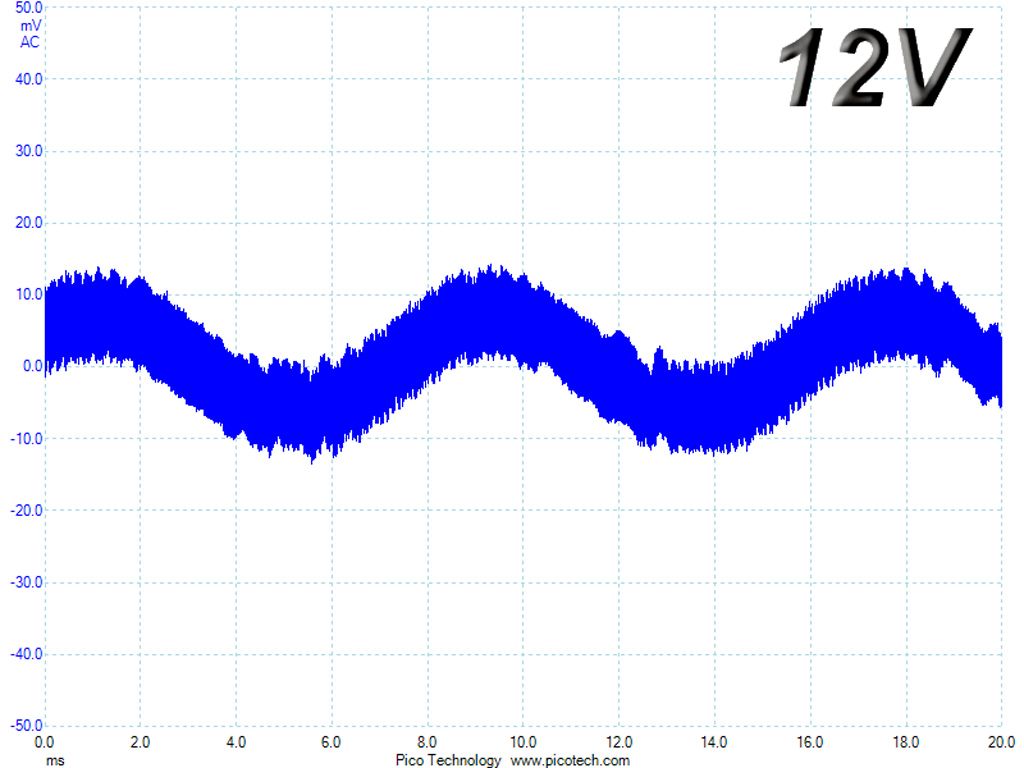

Ripple At 110-Percent Load

Image 1 of 4

Ripple At Cross-Load 1

Image 1 of 4

Ripple At Cross-Load 2

Image 1 of 4
See more Power Supplies Reviews
Aris Mpitziopoulos
Aris Mpitziopoulos
Contributing Editor

Aris Mpitziopoulos is a contributing editor at Tom's Hardware, covering PSUs.
