Corsair TX650M Power Supply Review: Quietly Good

A quiet and decent-performing PSU

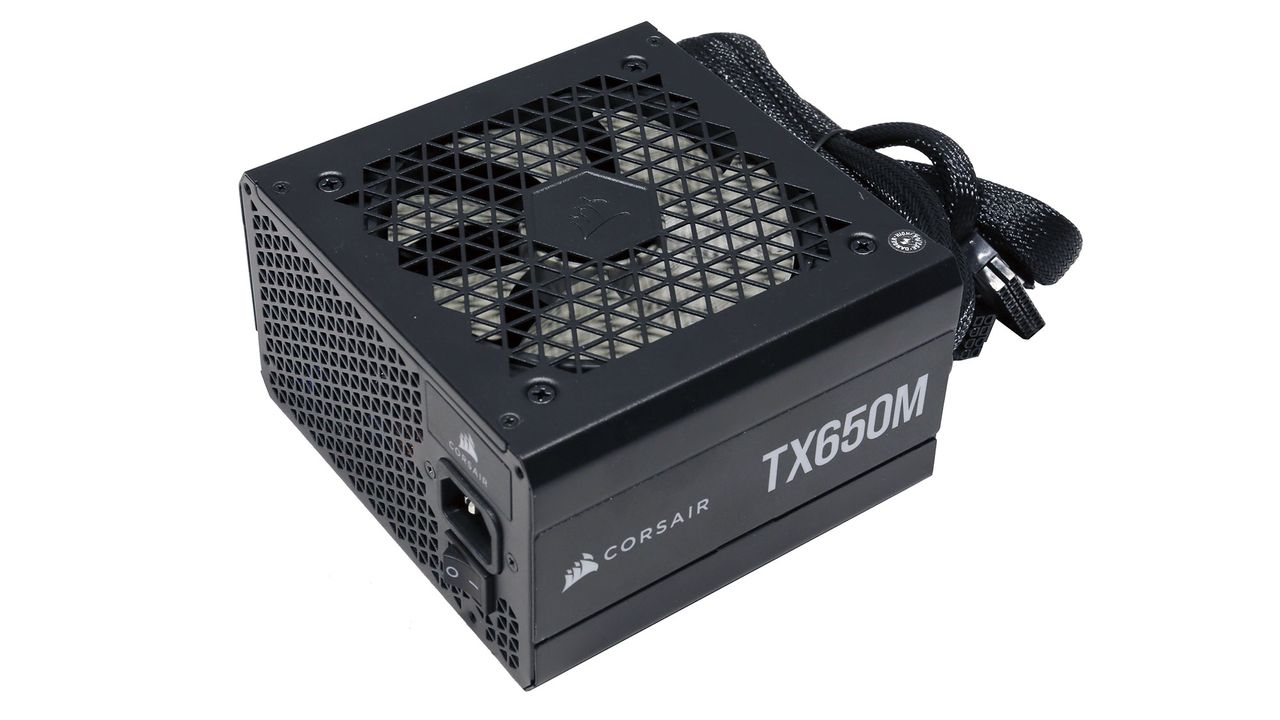

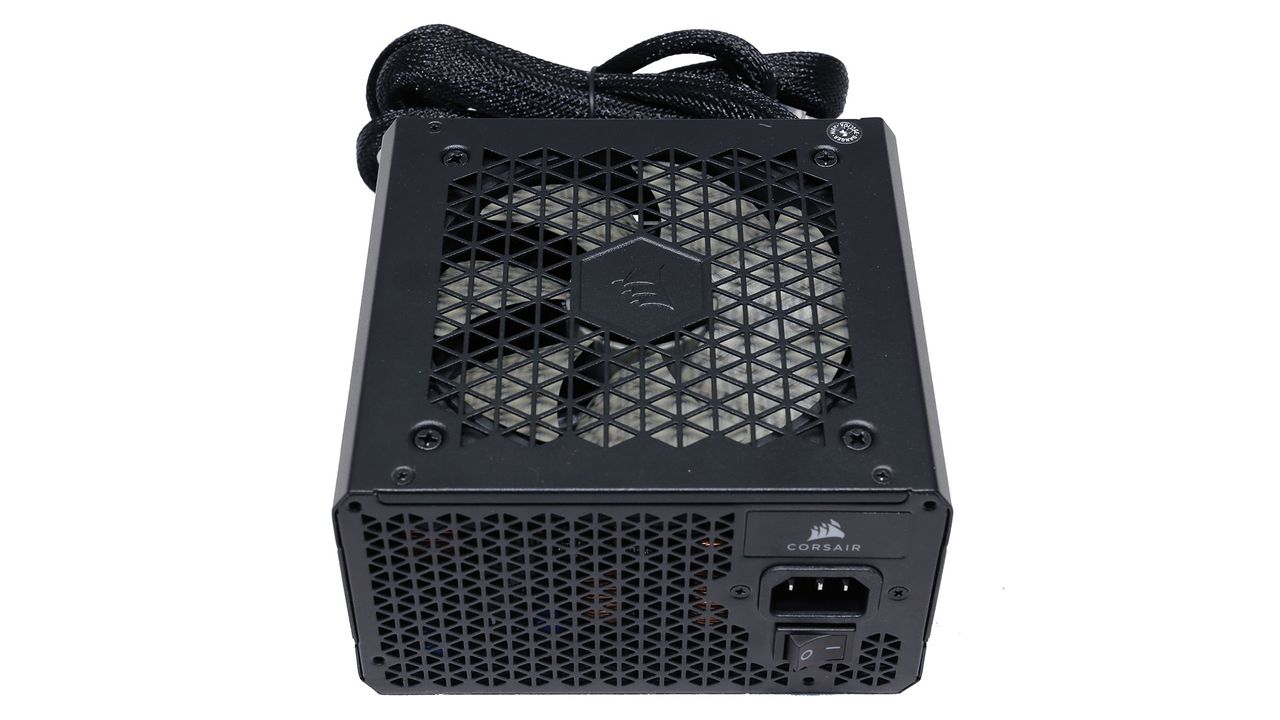

Corsair TX650M
(Image: © Tom's Hardware)

Tom's Hardware Verdict

The Corsair TX650M is a high-quality PSU with satisfactory performance and silent operation, sold at a fair price.

Pros

  • +

    + Full power at 47 degrees Celsius

  • +

    + Good build quality and fair price

  • +

    + Quiet and compact

  • +

    + Within 1% load regulation on all rails

  • +

    + Efficient at super-light loads

  • +

    + Highly efficient 5VSB rail

  • +

    + Long-enough hold-up time

  • +

    + Low EMI emissions

  • +

    + Compatible with alternative sleep mode

  • +

    + Two EPS and four PCIe connectors

  • +

    + 7-year warranty

Cons

  • -

    Average performance needs a boost

  • -

    Transient response needs improvement (especially at 3.3V)

  • -

    Not fully modular

  • -

    Inrush currents could be lower

  • -

    Small distance between SATA, Molex connectors

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

The Corsair TX650M features a semi-modular cable design to save some money, but the company didn't make any compromises with its internals. Corsair used high-quality parts, and the build quality is superb. With a bit higher overall performance, this unit would deserve a spot on our best PSUs page. If you need a fully modular cable design, look at the Corsair RM650x, which costs a little more.

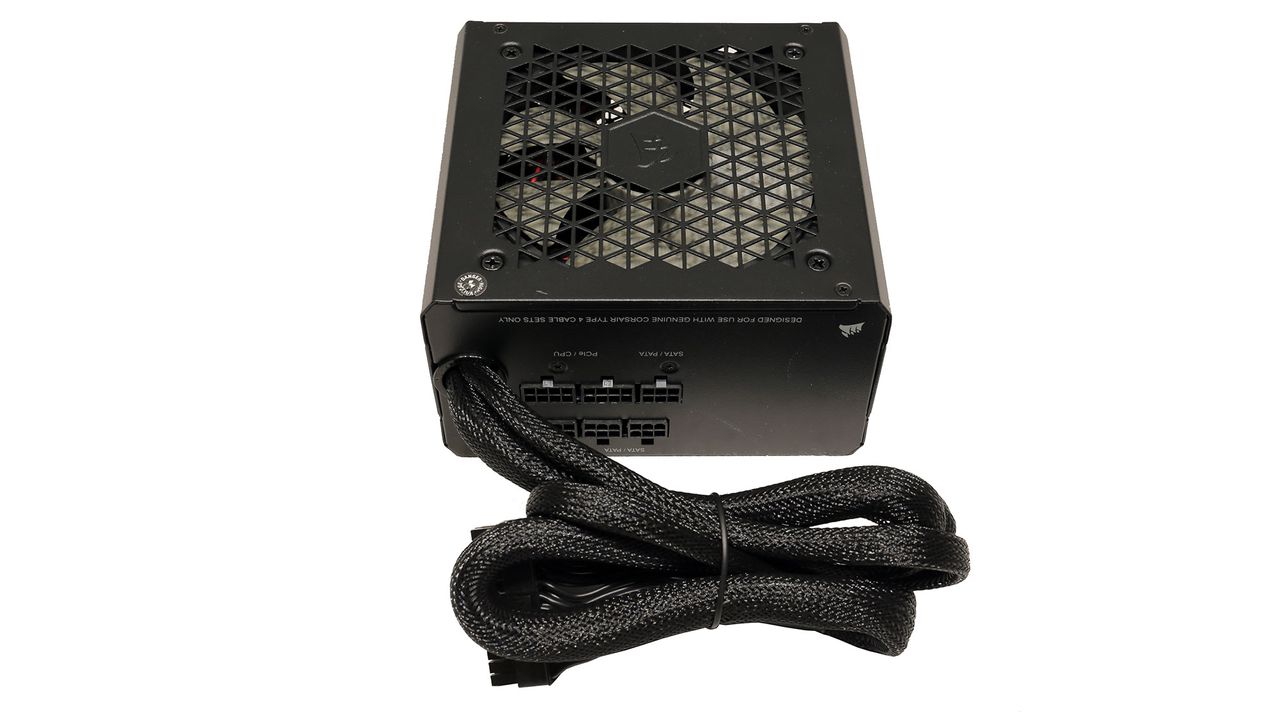

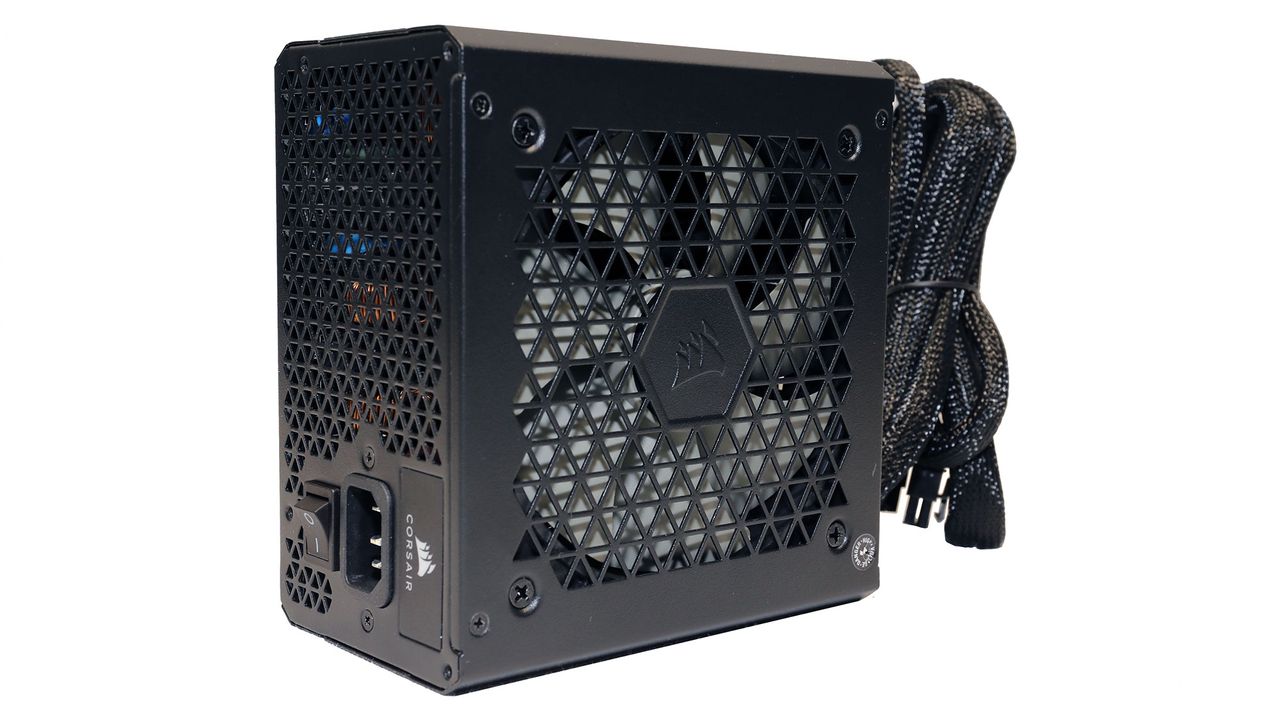

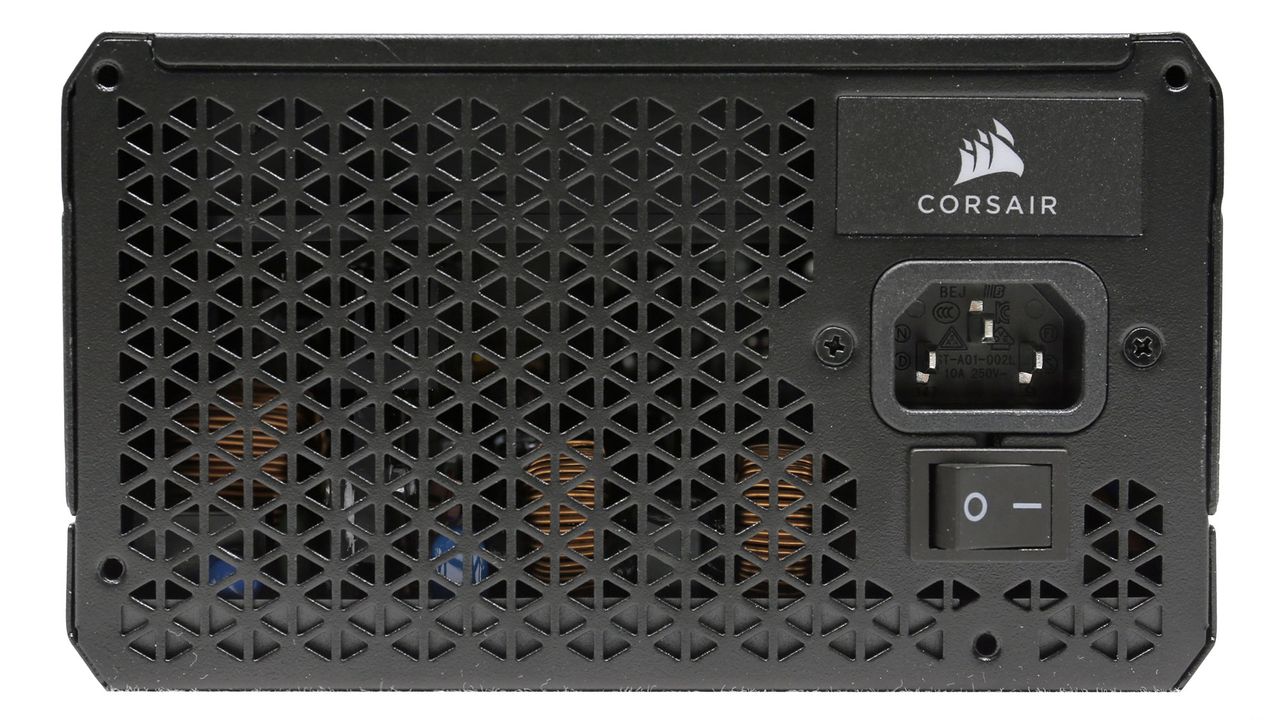

Corsair new TX-M PSU line, for some reason, hasn't gotten much attention yet. So several weeks after its release, we are still among the first to take a look at them. The line consists of three models, with capacities ranging from 550W to 750W. We will evaluate the middle member with 650W max power. With only 140mm depth, all TX-M units have super-compact dimensions. Finally, all are rated as Gold by 80 PLUS and Cybenetics, and the TX650M has an A- noise rating.

Because of the compact dimensions, a 120mm fan had to be used with the TX650M. To keep costs low, it uses a rifle bearing instead of a fluid-dynamic spinner. According to Corsair, all protection features are correctly set, and we will confirm this during our test sessions. Lastly, PSUs with modern platforms like the TX650M usually deliver full power at 12V, but this is not the case here, because the rail is limited to 612W.

Specifications

Swipe to scroll horizontally
Manufacturer (OEM)Great Wall
Max. DC Output650W
Efficiency80 PLUS Gold, Cybenetics Gold (87-89%)
NoiseCybenetics A- (25-30 dB[A])
Modular✓ (semi)
Intel C6/C7 Power State Support
Operating Temperature (Continuous Full Load)0 - 40°C
Over Voltage Protection
Under Voltage Protection
Over Power Protection
Over Current (+12V) Protection
Over Temperature Protection
Short Circuit Protection
Surge Protection
Inrush Current Protection
Fan Failure Protection
No Load Operation
Cooling120mm Rifle Bearing Fan (NR120L)
Semi-Passive Operation
Dimensions (W x H x D)150 x 85 x 140mm
Weight1.57 kg (3.46 lb)
Form FactorATX12V v2.52, EPS 2.92
Warranty7 Years

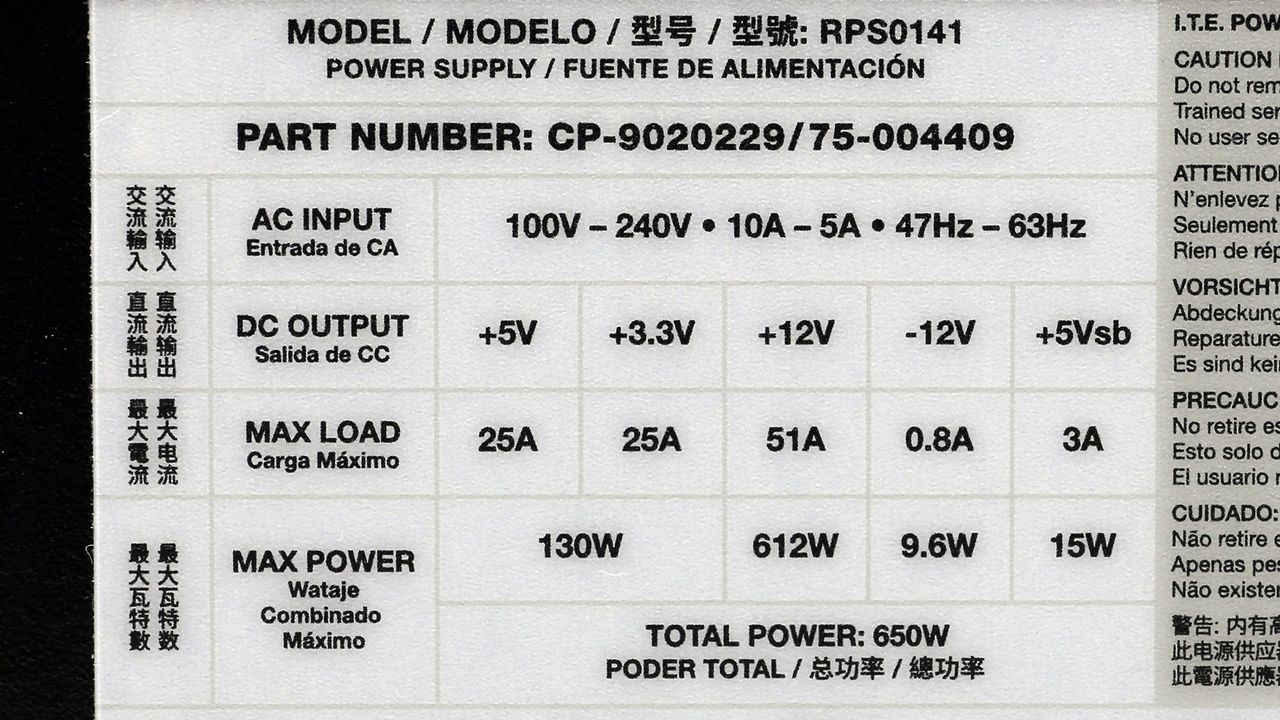

Power Specifications

Swipe to scroll horizontally

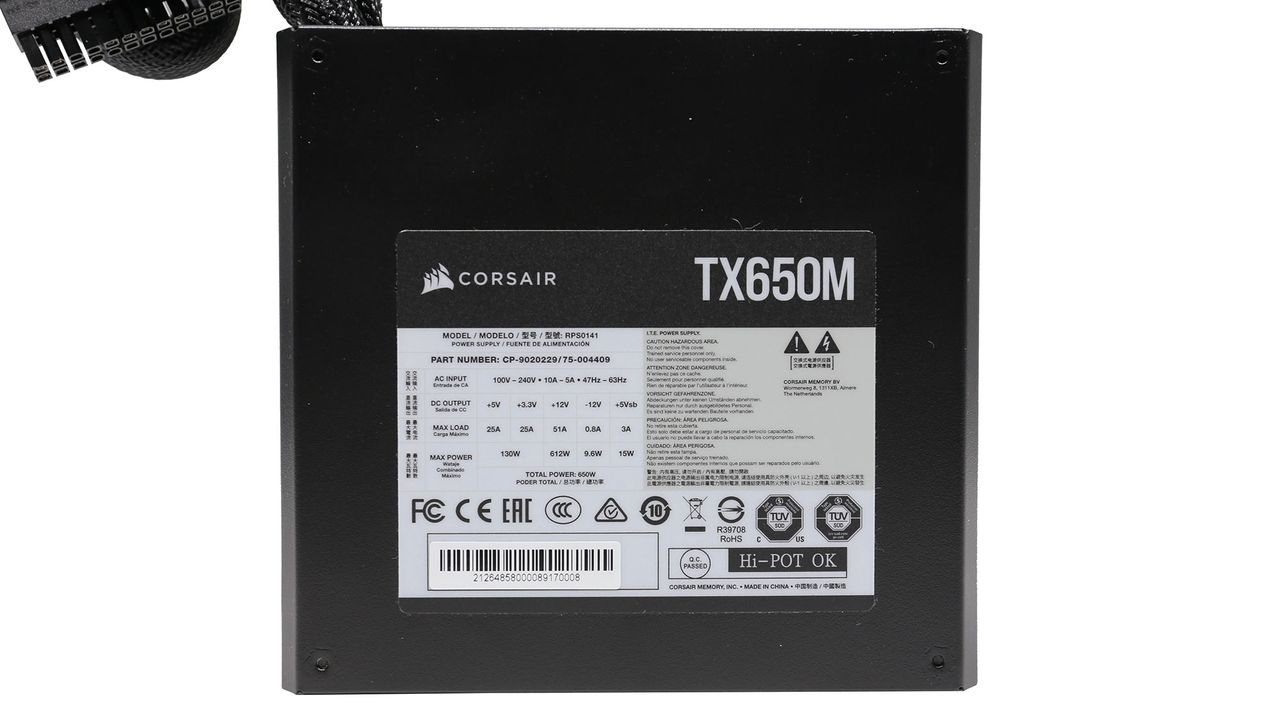

Rail 3.3V5V12V5VSB-12V
Max. PowerAmps25255130.8
 Watts 130612159.6
Total Max. Power (W)650

Cables and Connectors

Swipe to scroll horizontally
Native CablesRow 0 - Cell 1 Row 0 - Cell 2 Row 0 - Cell 3
DescriptionCable CountConnector Count (Total)Gauge

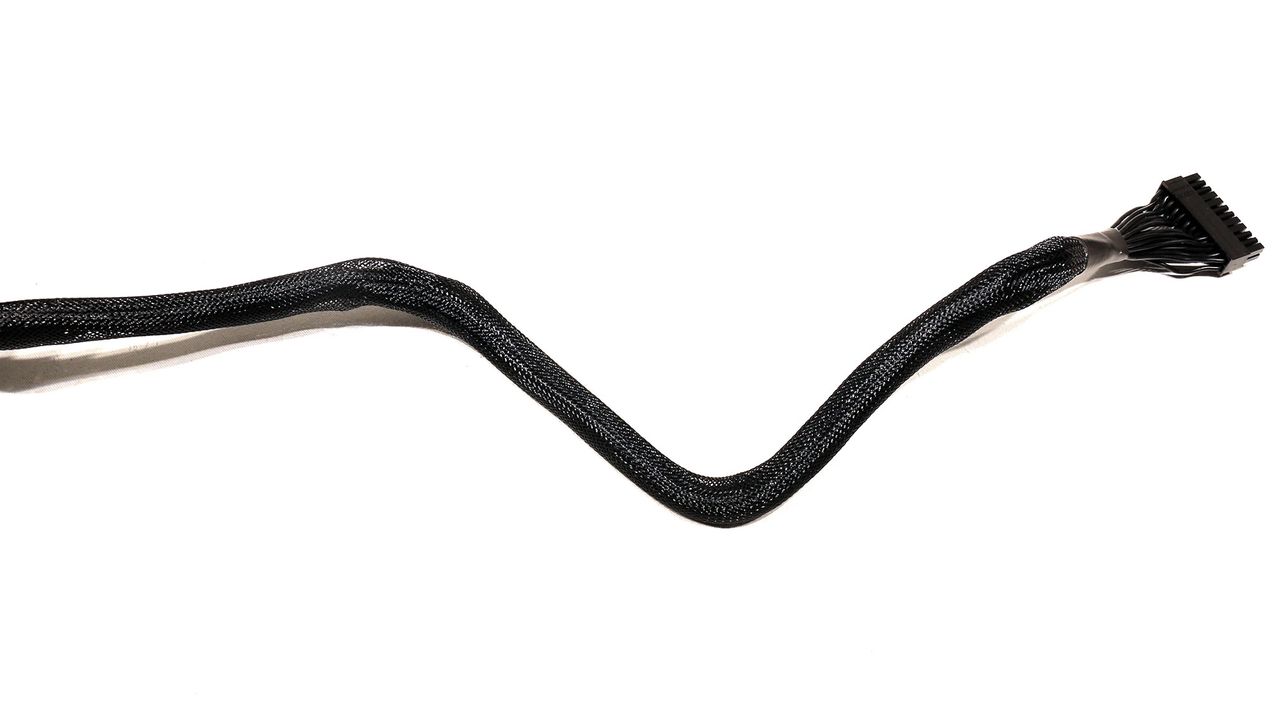

ATX connector 20+4 pin (610mm)1118-20AWG
4+4 pin EPS12V (650mm)1118AWG
Modular CablesRow 4 - Cell 1 Row 4 - Cell 2 Row 4 - Cell 3

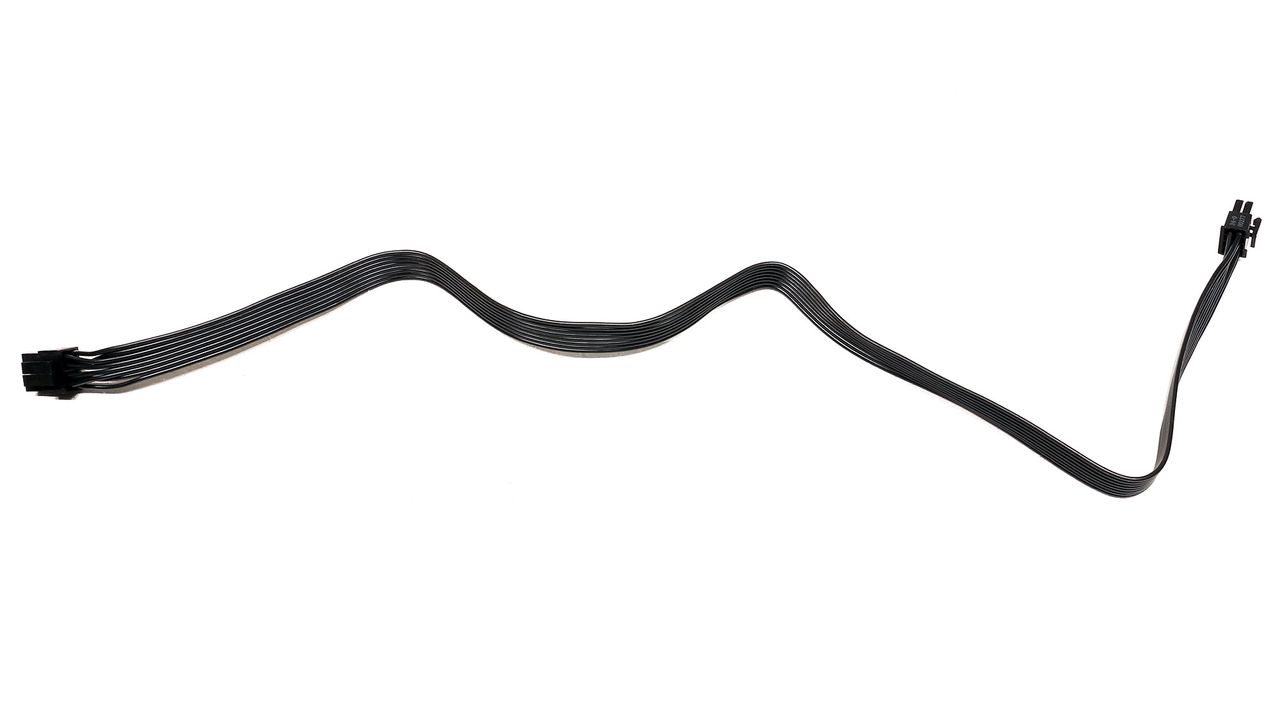

4+4 pin EPS12V (650mm)1118AWG

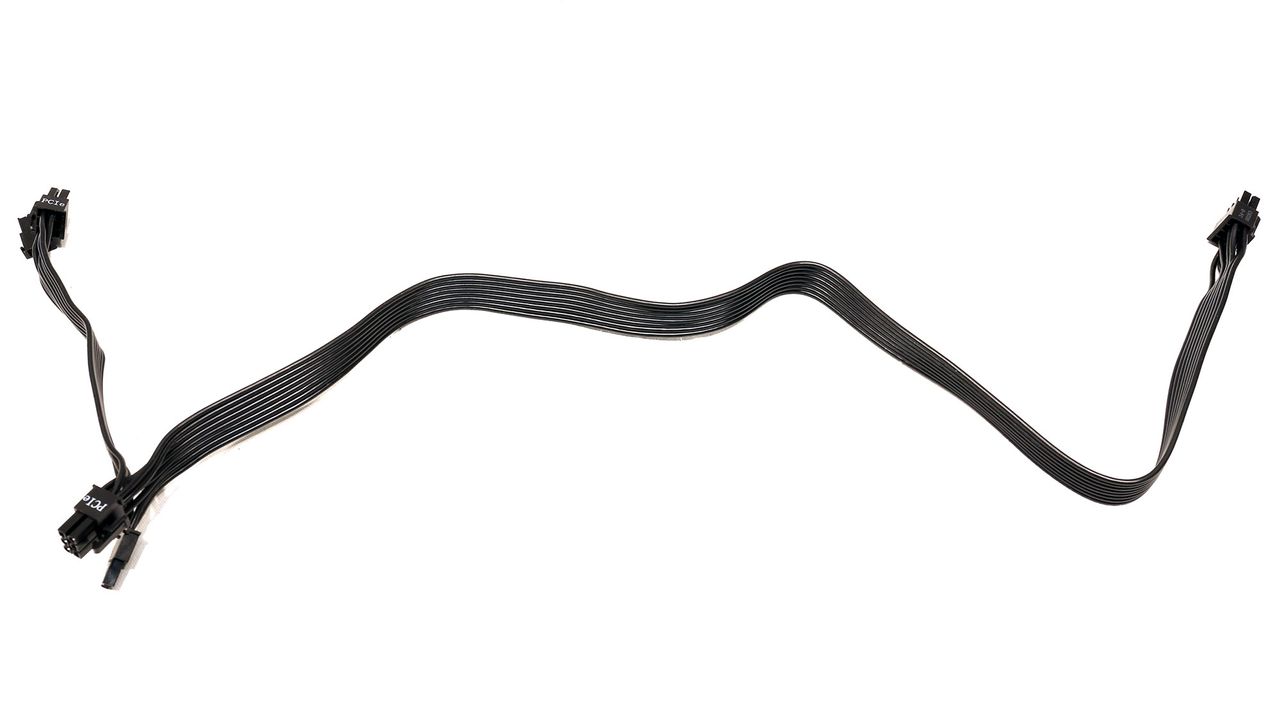

6+2 pin PCIe (600mm+150mm)2416-18AWG

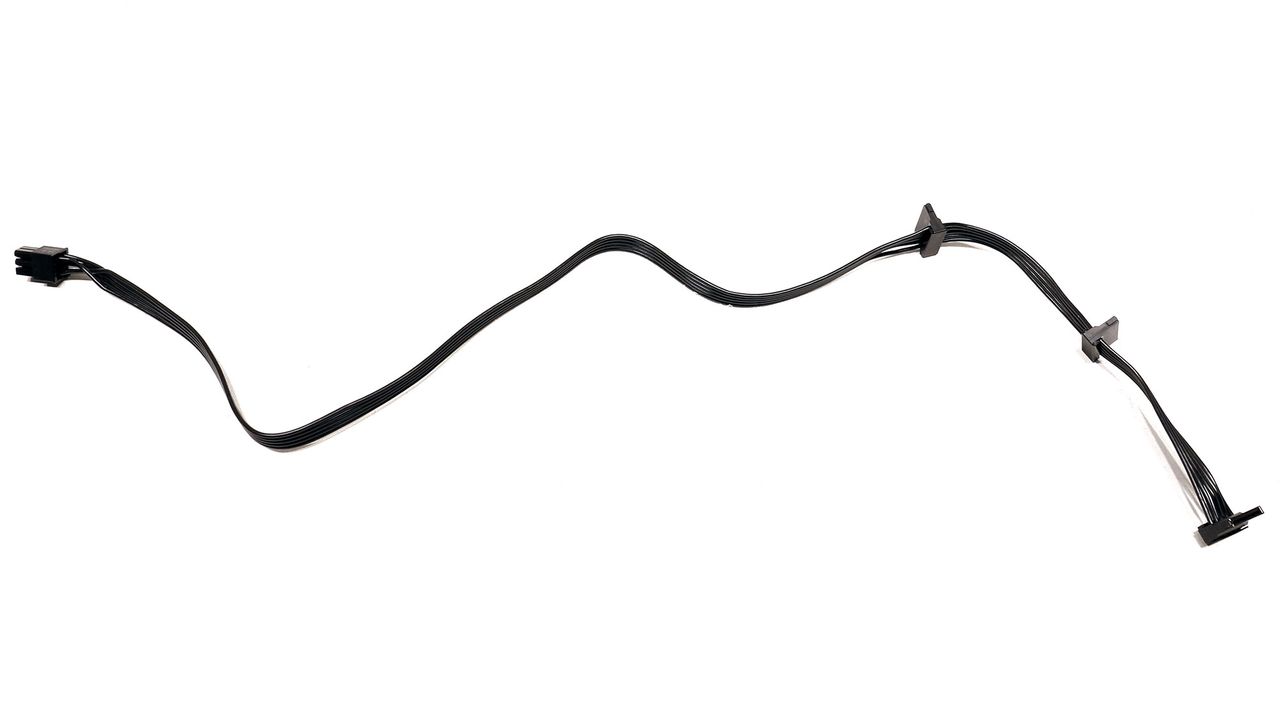

SATA (500mm+95mm+95mm)2618AWG
4 pin Molex (450mm+100mm+100mm+100mm)1418AWG

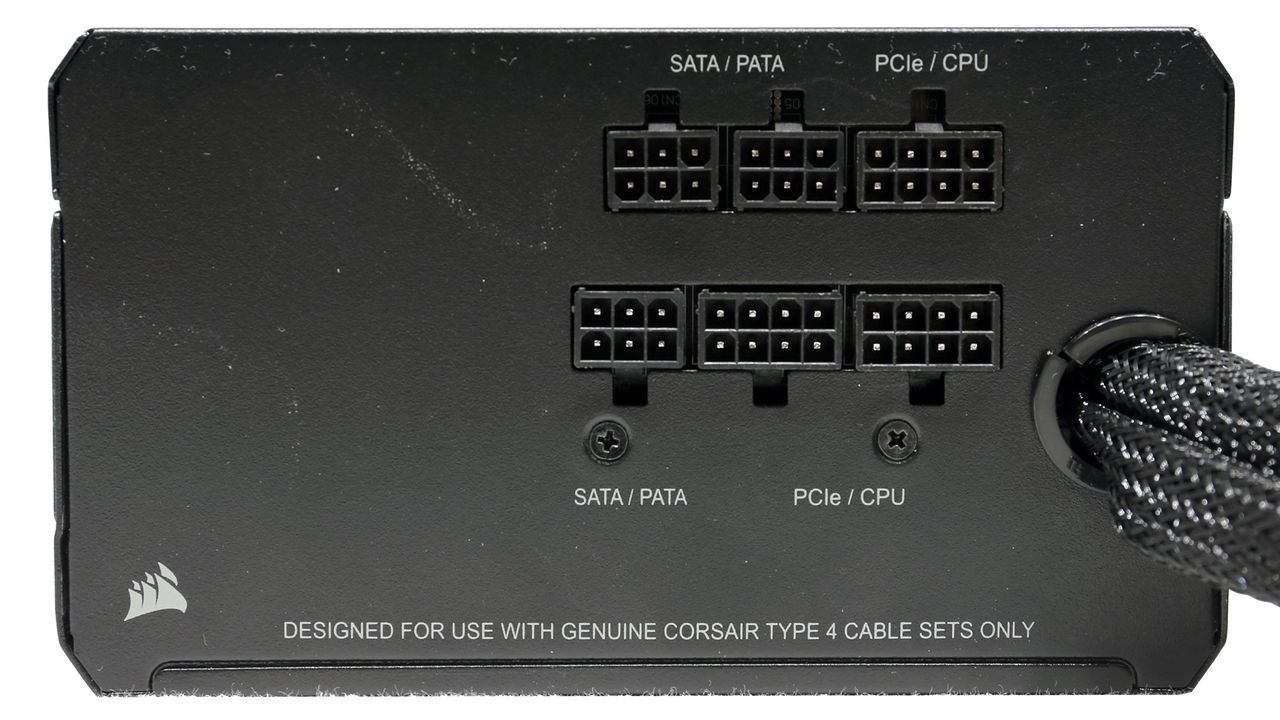

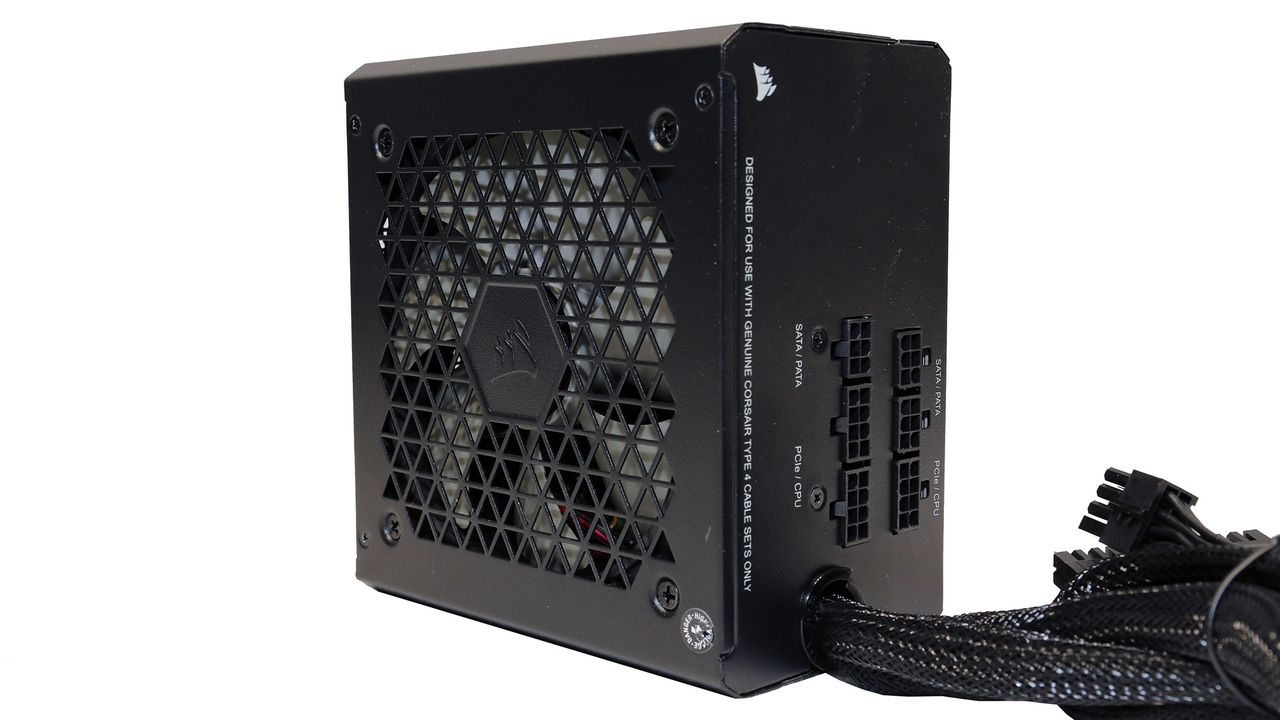

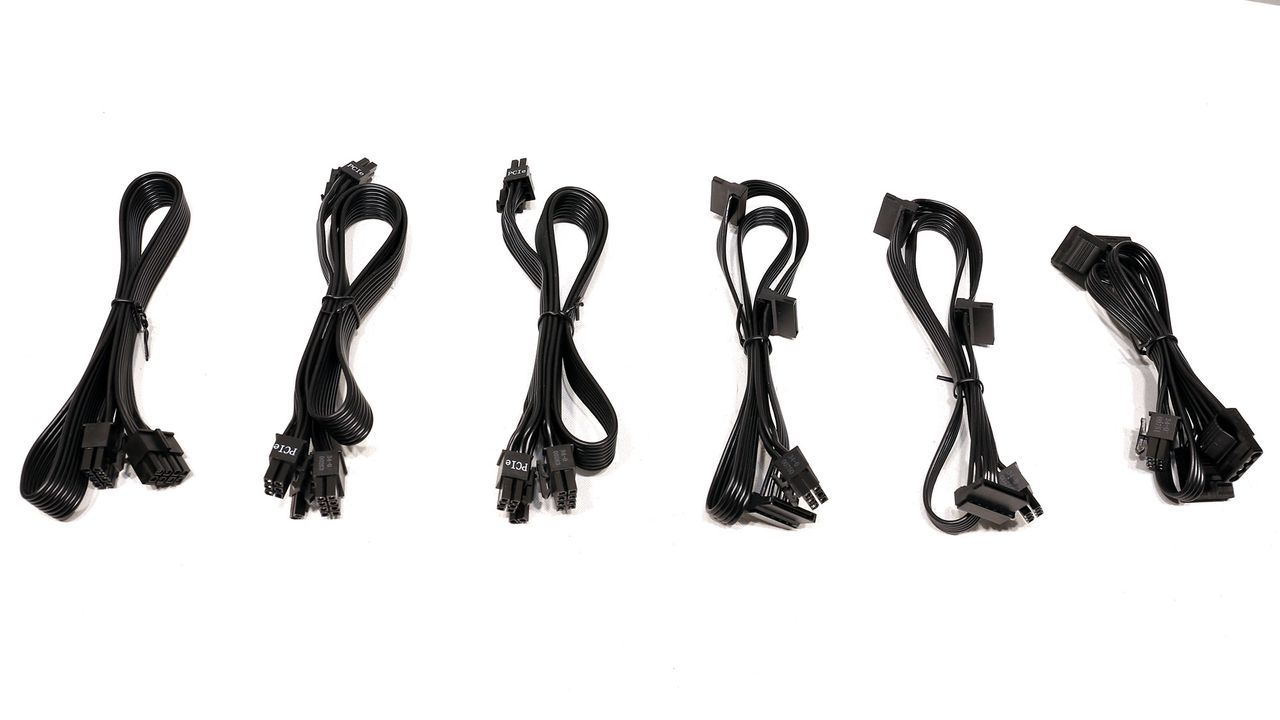

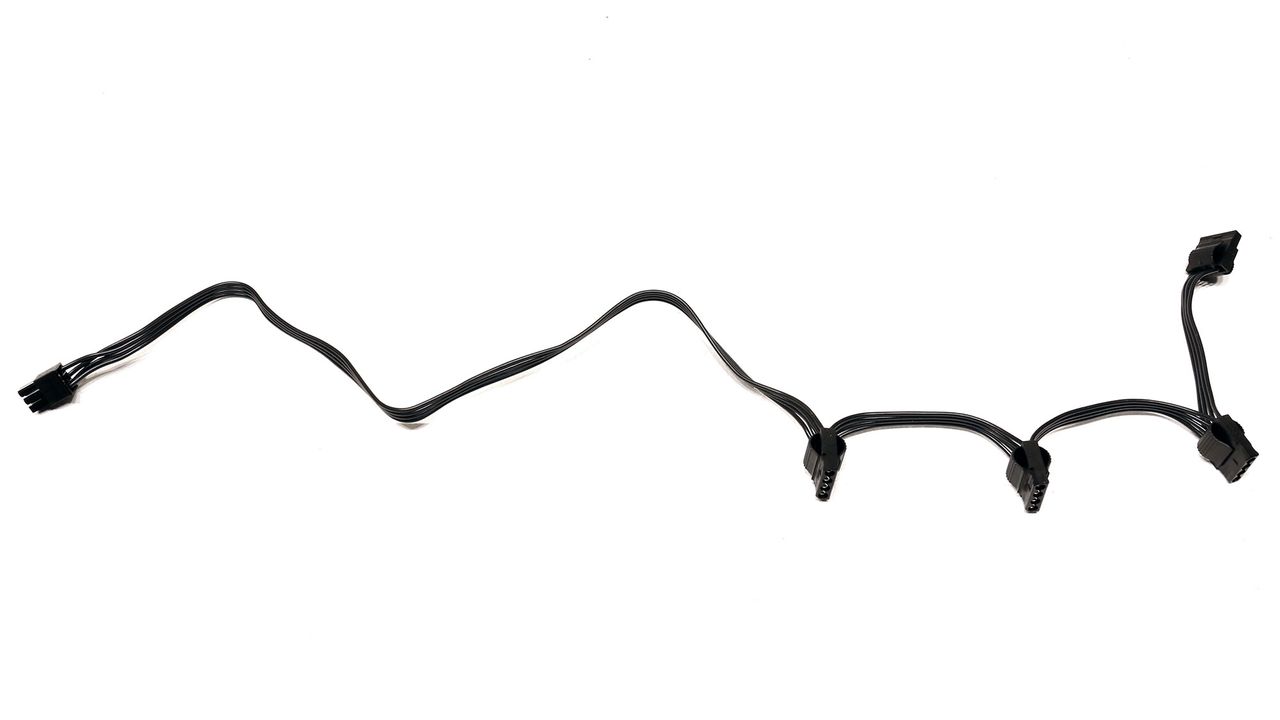

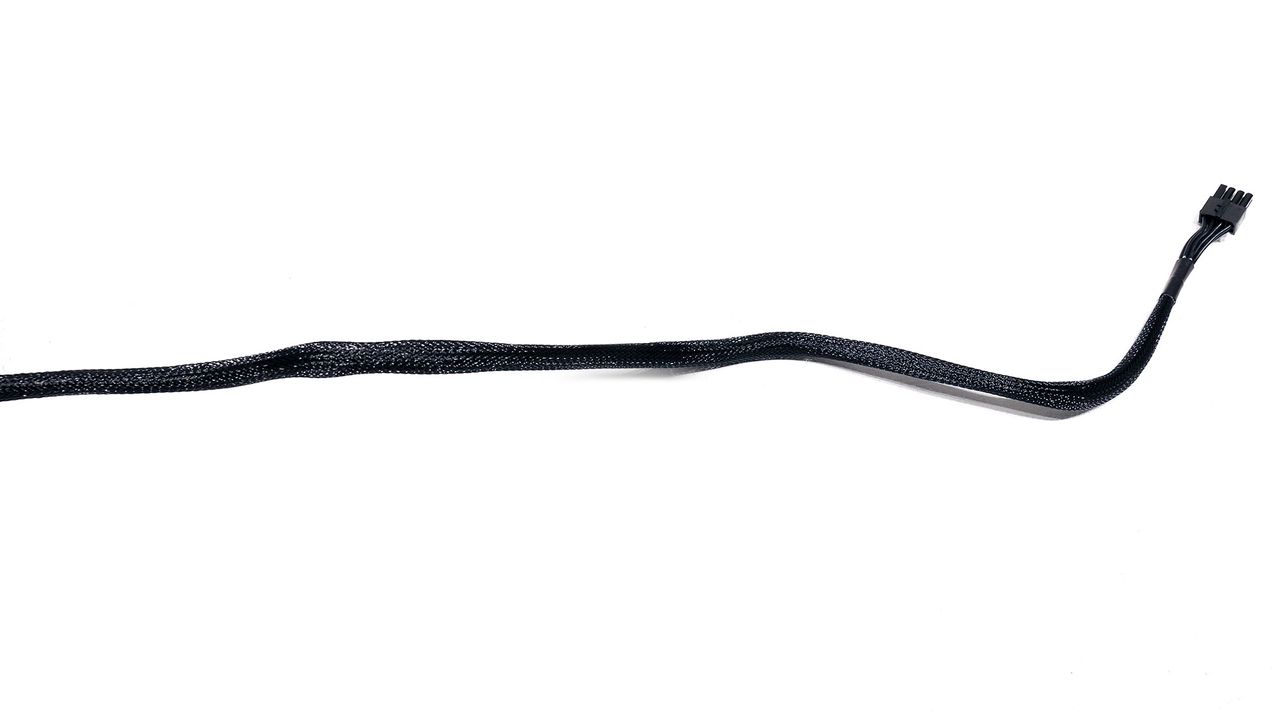

The only fixed cables on the TX650M are the essential ones. Still, it would be nice to see only modular cables. Corsair equipped this unit with two EPS and four PCIe connectors, which are more than enough for its capacity. The amount of SATA connectors looks low, but it should suffice for any mid-level system, while the number of 4-pin Molex connectors is adequate. Lastly, there are in-cable caps, which help with ripple suppression and transient response but make cable management and routing tougher.

Component Analysis

We strongly encourage you to have a look at our PSUs 101 article, which provides valuable information about PSUs and their operation, allowing you to better understand the components we're about to discuss.

Swipe to scroll horizontally
General Data-
Manufacturer (OEM)Great Wall
PCB TypeDouble Sided
Primary Side-
Transient Filter4x Y caps, 2x X caps, 3x CM chokes, 1x MOV
Inrush ProtectionNTC Thermistor SCK-2R58 (2.5Ohm) & Relay
Bridge Rectifier(s) 1x GBU25KH (800V, 22.5A @ 100°C)
APFC MOSFETs 2x Advanced Power Electronics AP30SL60WL (650V, 16.5A @ 100°C, Rds(on): 0.13Ohm)
APFC Boost Diode 1x CREE C3D04060A (600V, 4A @ 155°C)
Bulk Cap(s) 2x Rubycon (450V, 270uF each or 540uF combined, 3,000h @ 105°C, MXG)
Main Switchers 2x Advanced Power Electronics AP65SL130DI (650V, 16.5A @ 100°C, Rds(on): 0.13Ohm)
APFC Controller Champion CM6500UNX & Champion CM03AX
Resonant ControllerChampion CU6901VPA
Topology Primary side: APFC, Half-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side-
+12V MOSFETs4x Advanced Power Electronics AP4N1R8CMT-A (45V, 180A, Rds(on): 1.8mOhm)

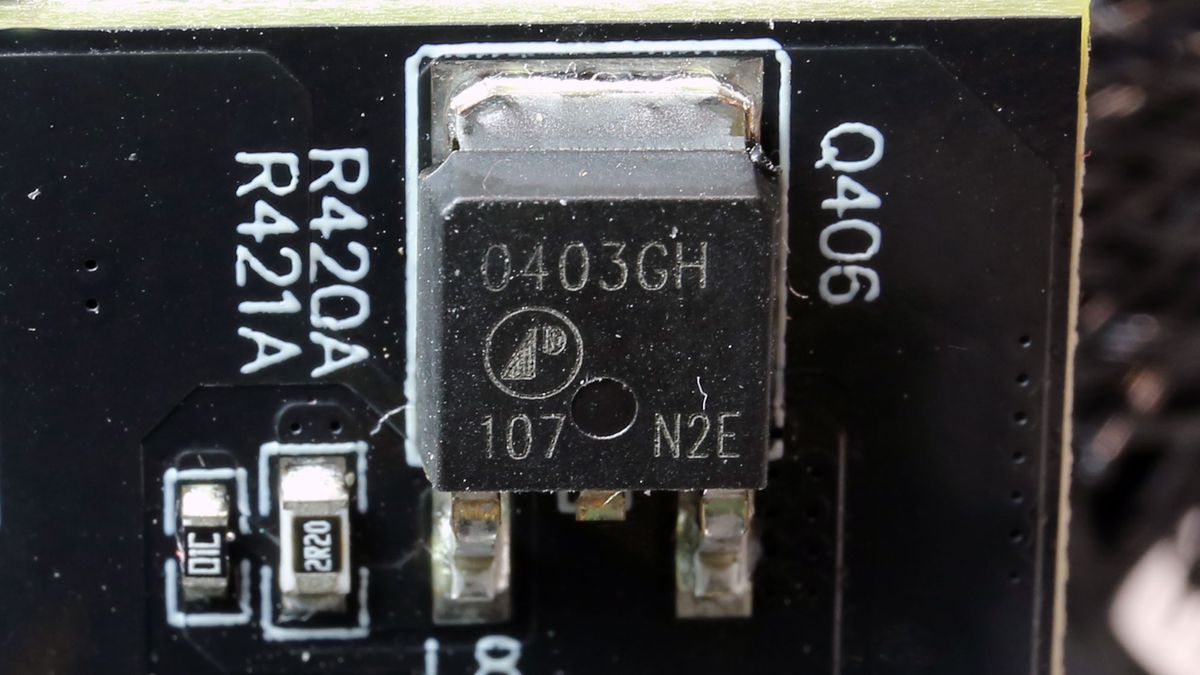

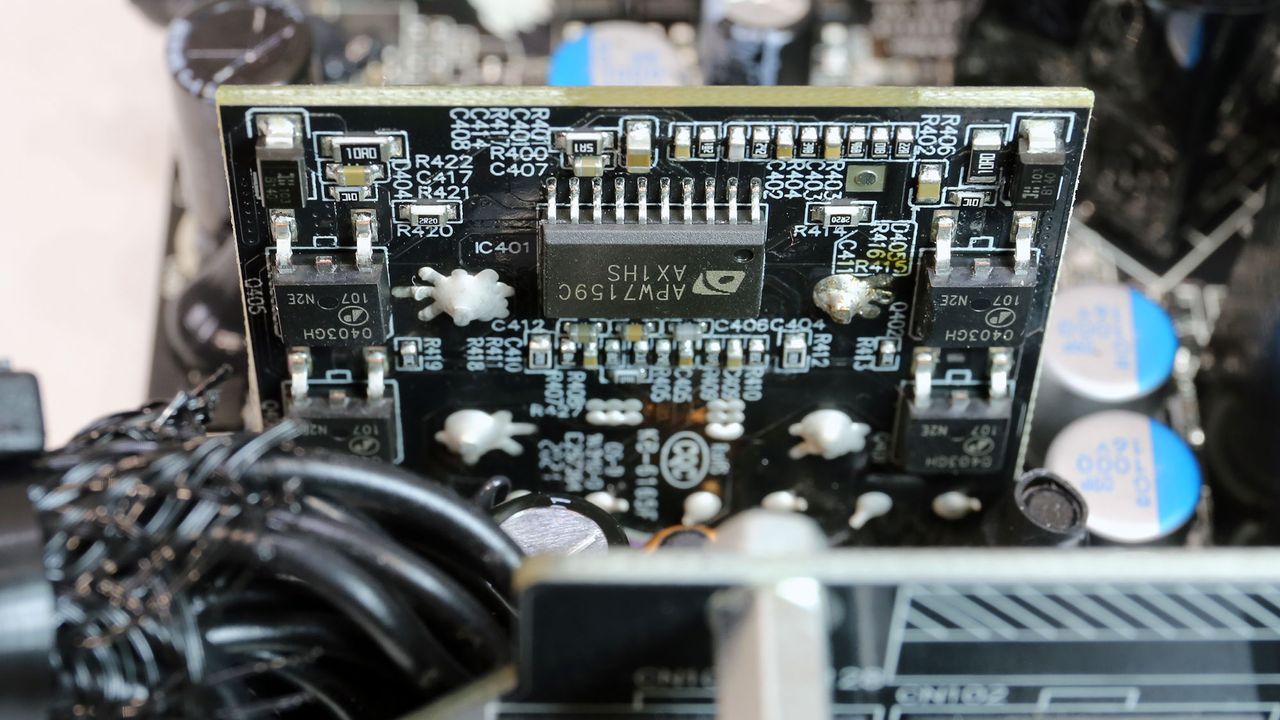

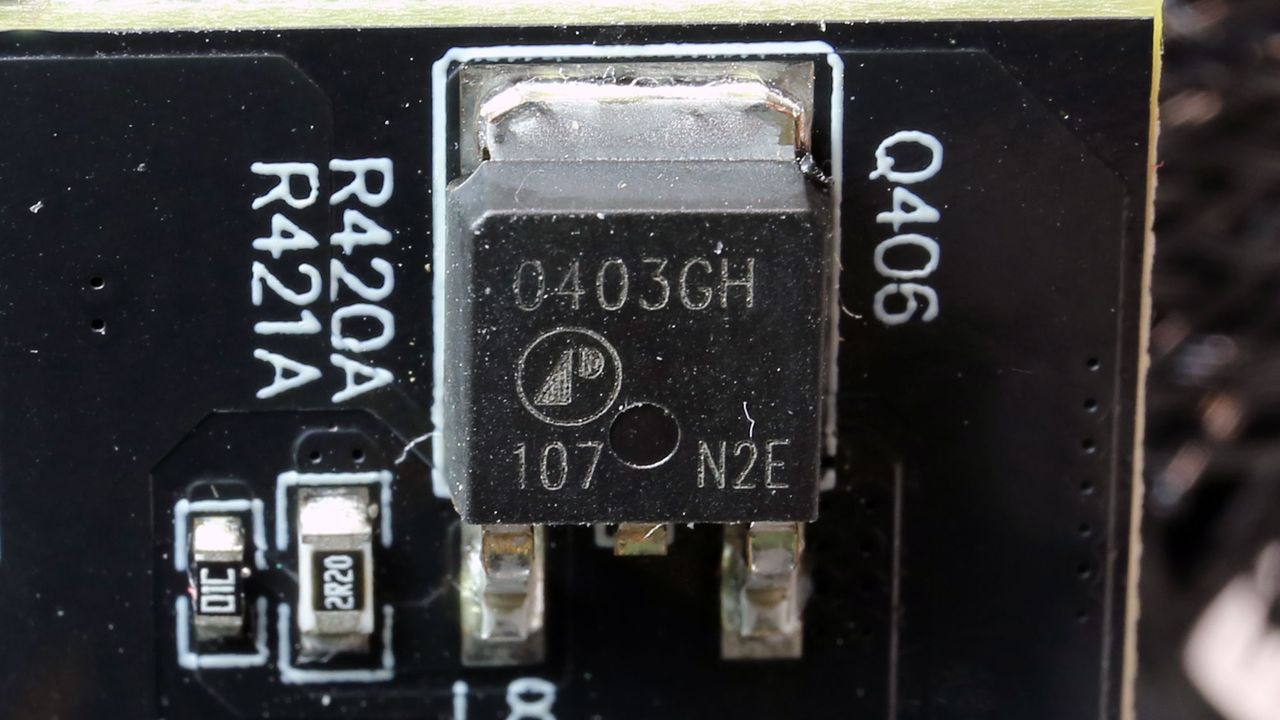

5V & 3.3VDC-DC Converters: 6x Advanced Power Electronics AP0403GH (30V, 50A @ 100°C, Rds(on): 4.5mOhm) PWM Controllers: ANPEC APW7159C
Filtering Capacitors

Electrolytic: 1x Rubycon (6-10,000h @ 105°C, ZLH), 5x Rubycon (4-10,000h @ 105°C, YXJ), 1x Rubycon (3-6,000h @ 105°C, YXG), 1x Nippon Chemi-Con (4-10,000h @ 105°C, KY) Polymer: 10x Nippon Chemi-Con, 4x FPCAP

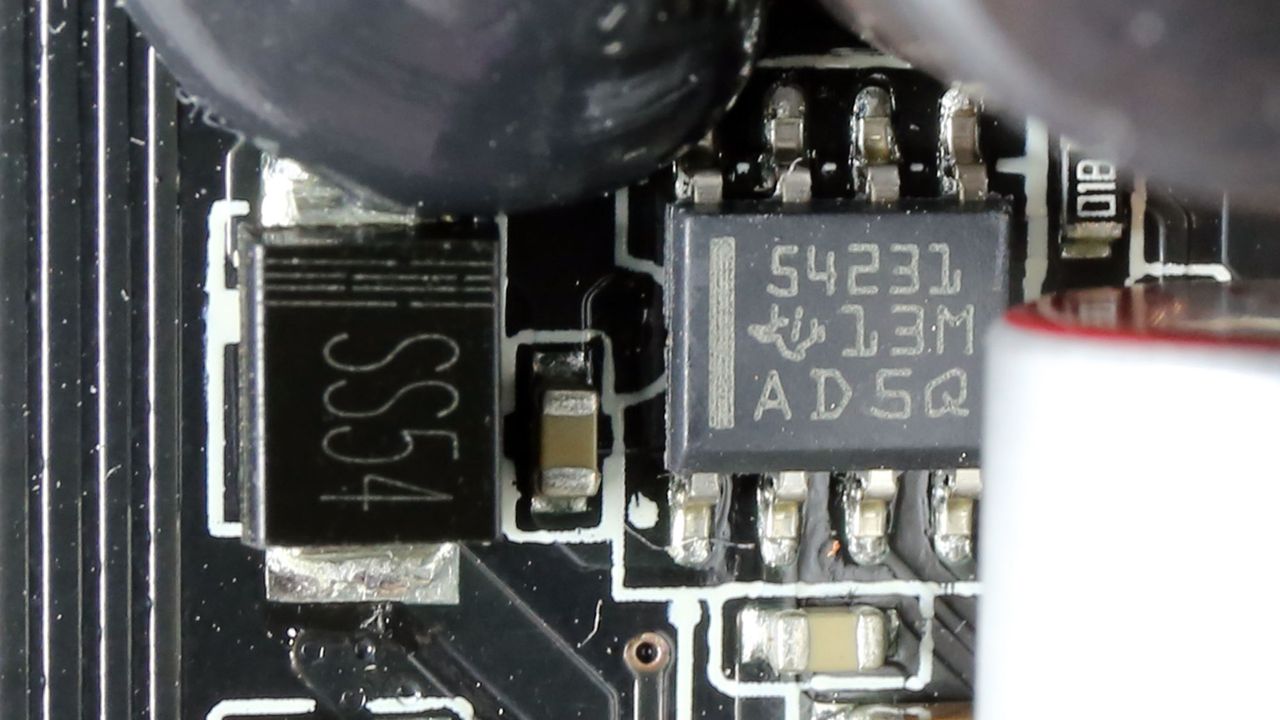

Step-Down DC-DC ConverterTexas Instruments TPS54231
Supervisor ICIN1S429I-SCG (OVP, UVP, OCP, SG, PGO)
Fan ModelCorsair NR120L (120mm, 12V, 0.22A, Rifle Bearing Fan)
5VSB Circuit-
Rectifier 1x Diodes Incorporated SBR10E45P5 SBR (45V, 10A)
Standby PWM ControllerPower Integrations TNY278GN

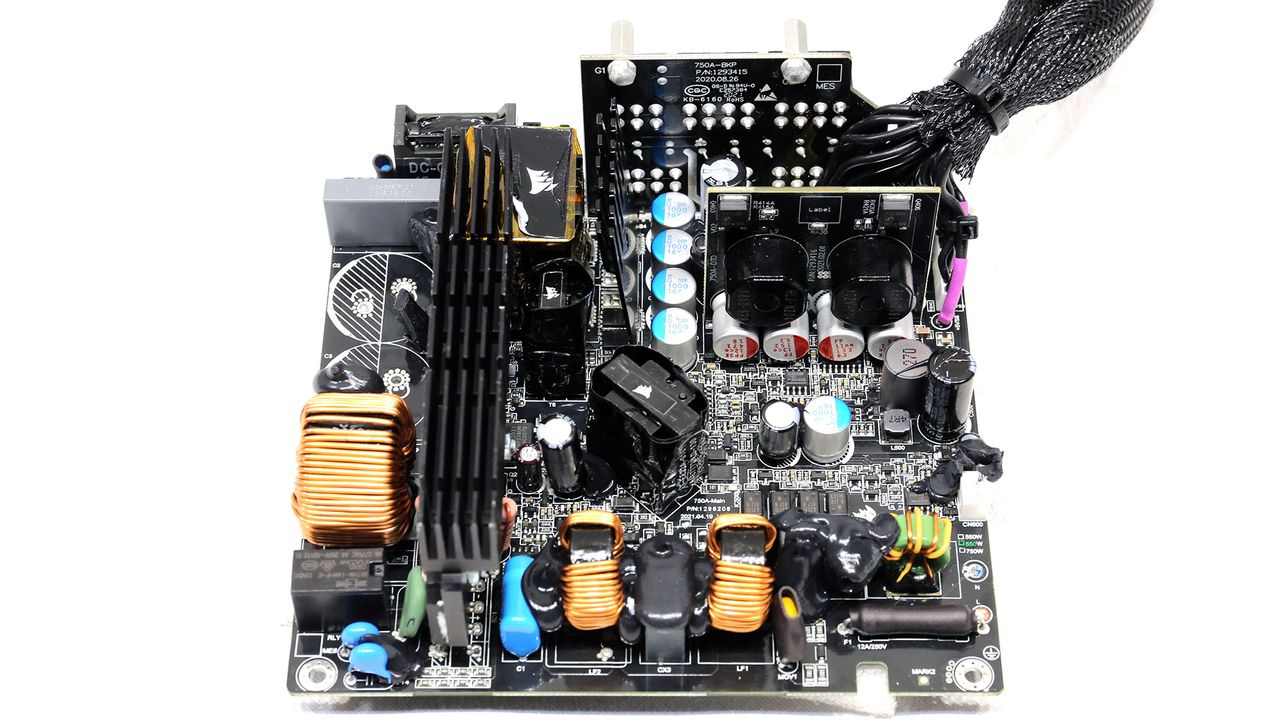

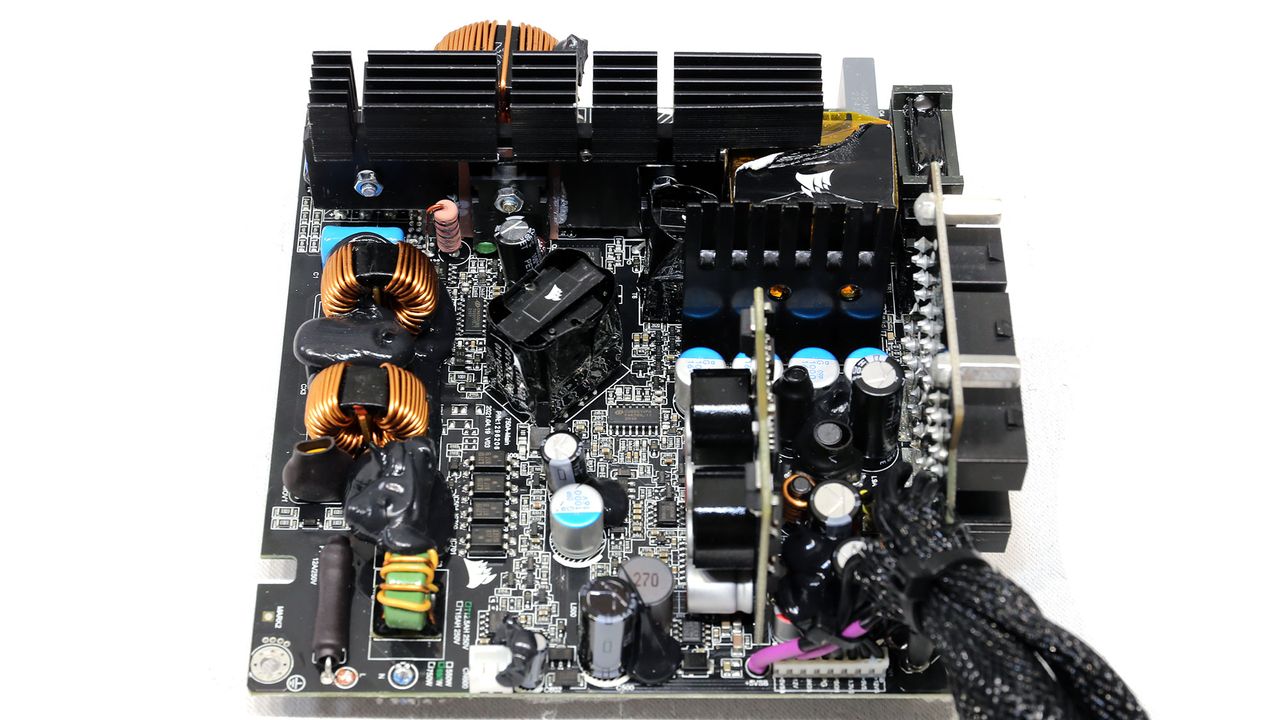

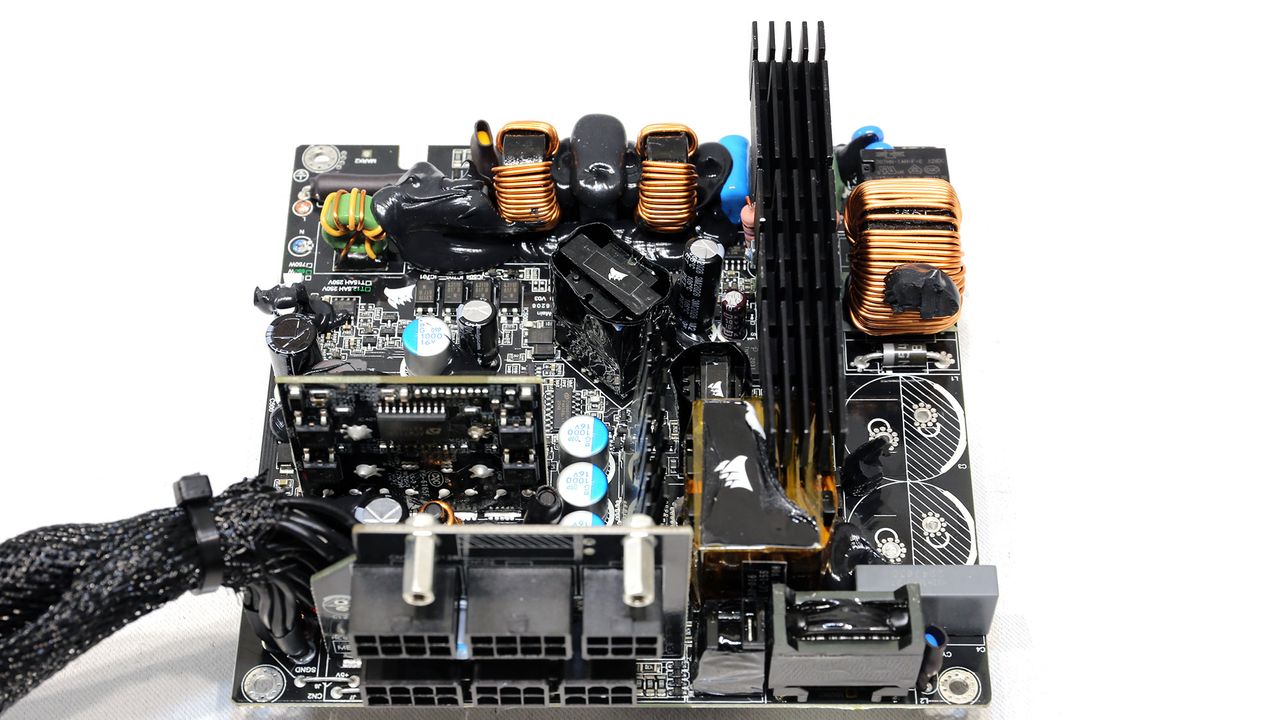

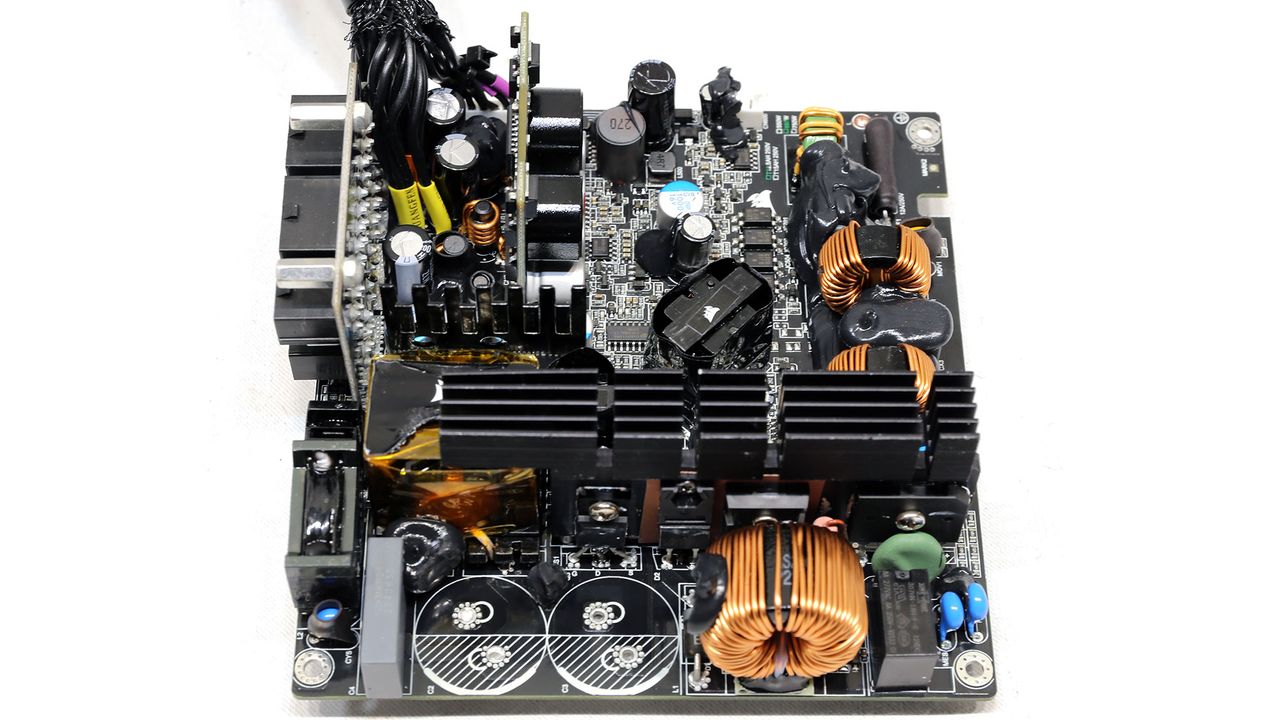

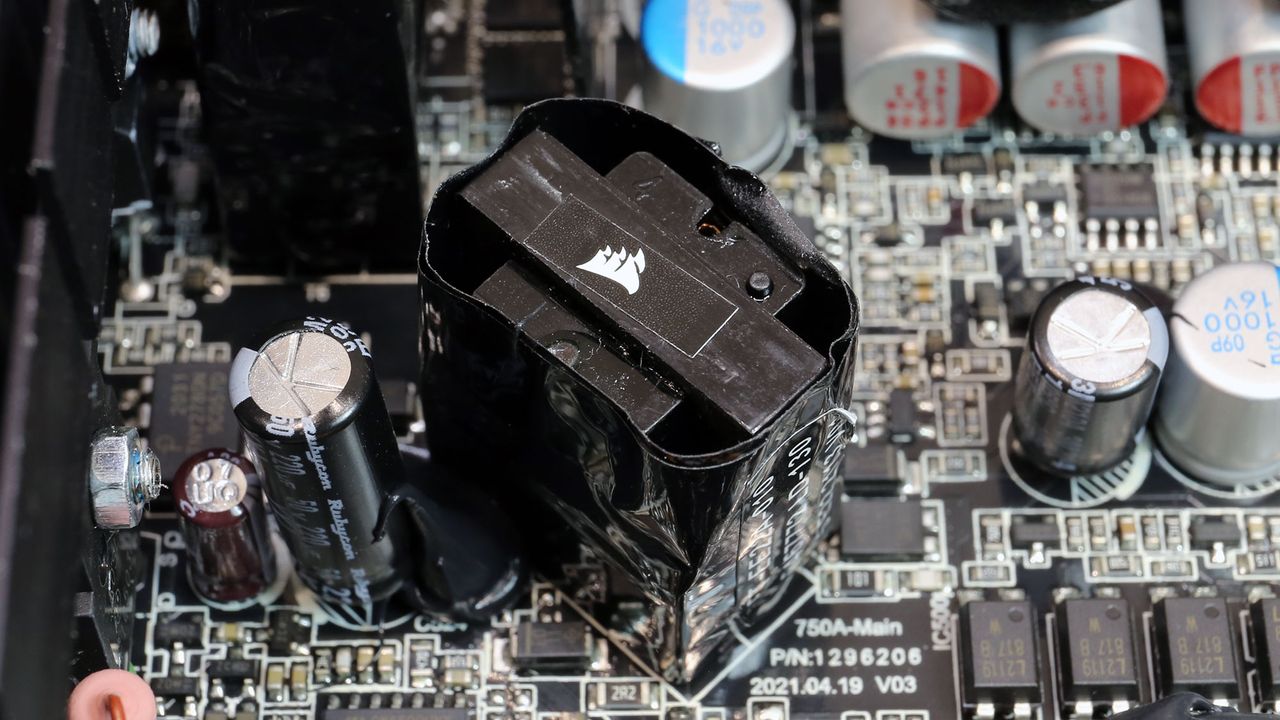

Although the PCB inside this PSU is small, it is still underpopulated, leaving lots of clearance for increased airflow. This platform is made by Great Wall (GW), and the build quality is superb. Moreover, Corsair used high-quality parts, making us wonder why the warranty isn't as long as in the RMx models. Possibly Corsair didn't want to create internal competition between these two lines. The only thing that looks weird is the number of fixed wires installed. They're on a corner of the PCB though, so they don't notably affect airflow to the close-by electrolytic caps.

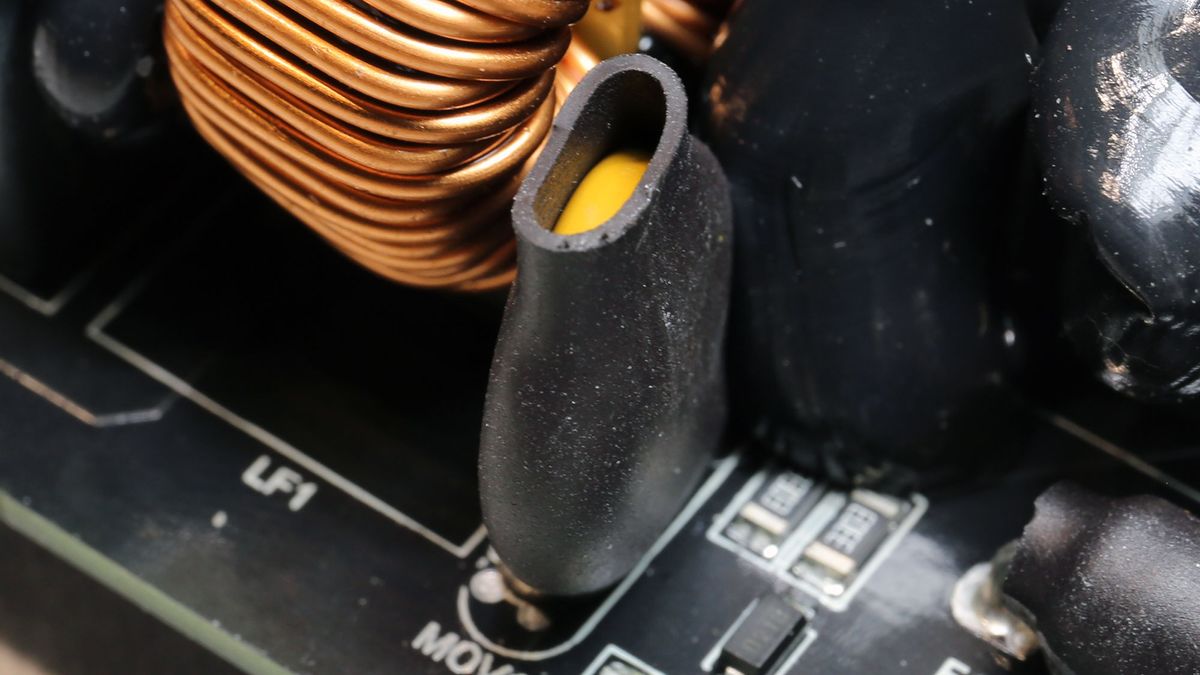

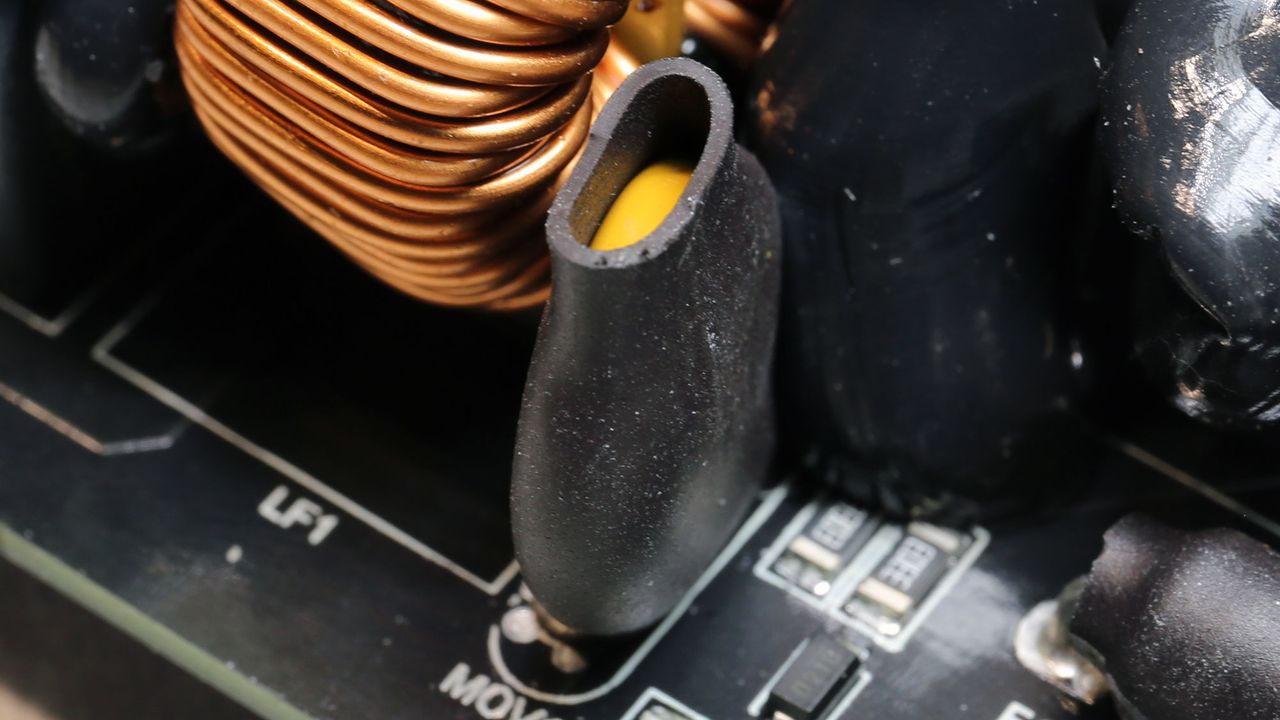

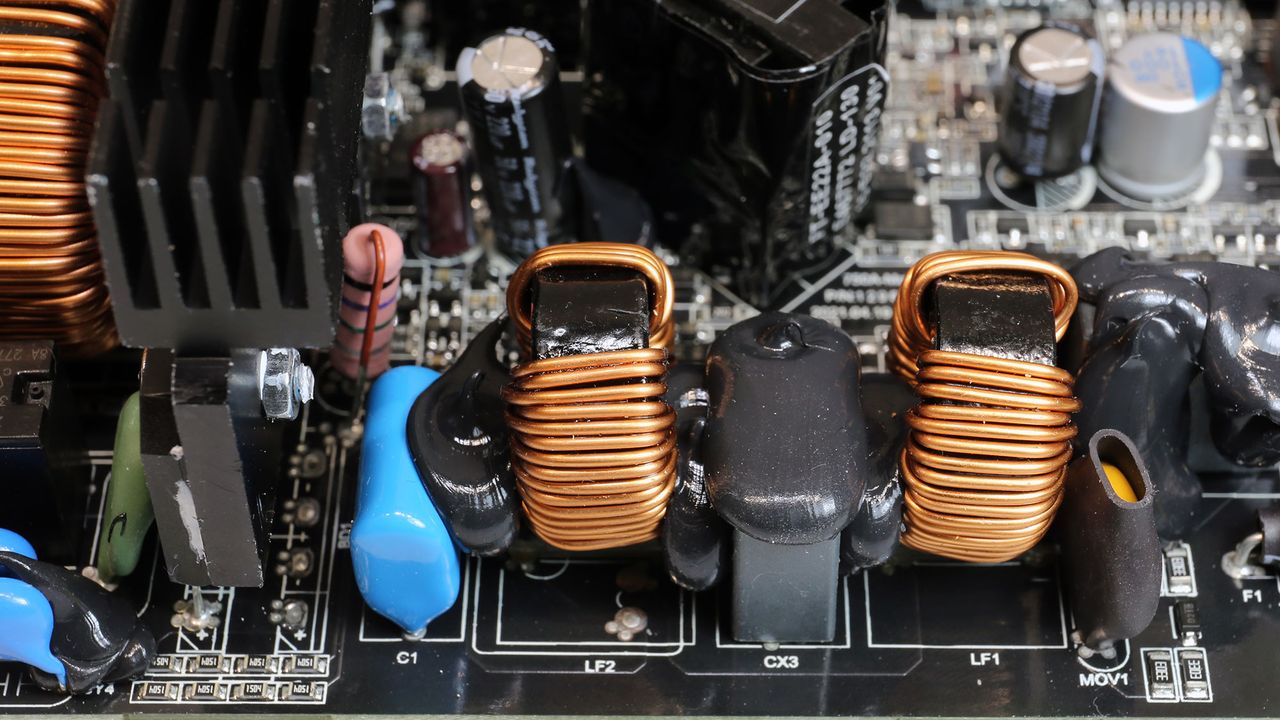

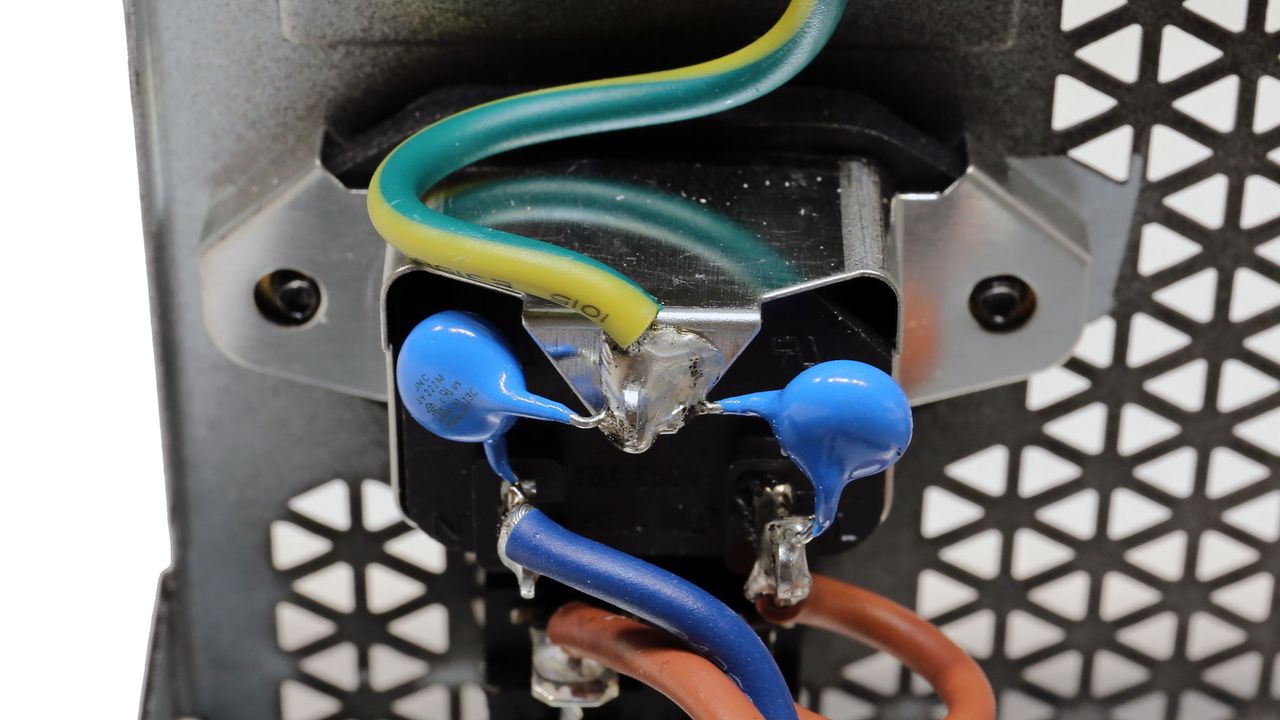

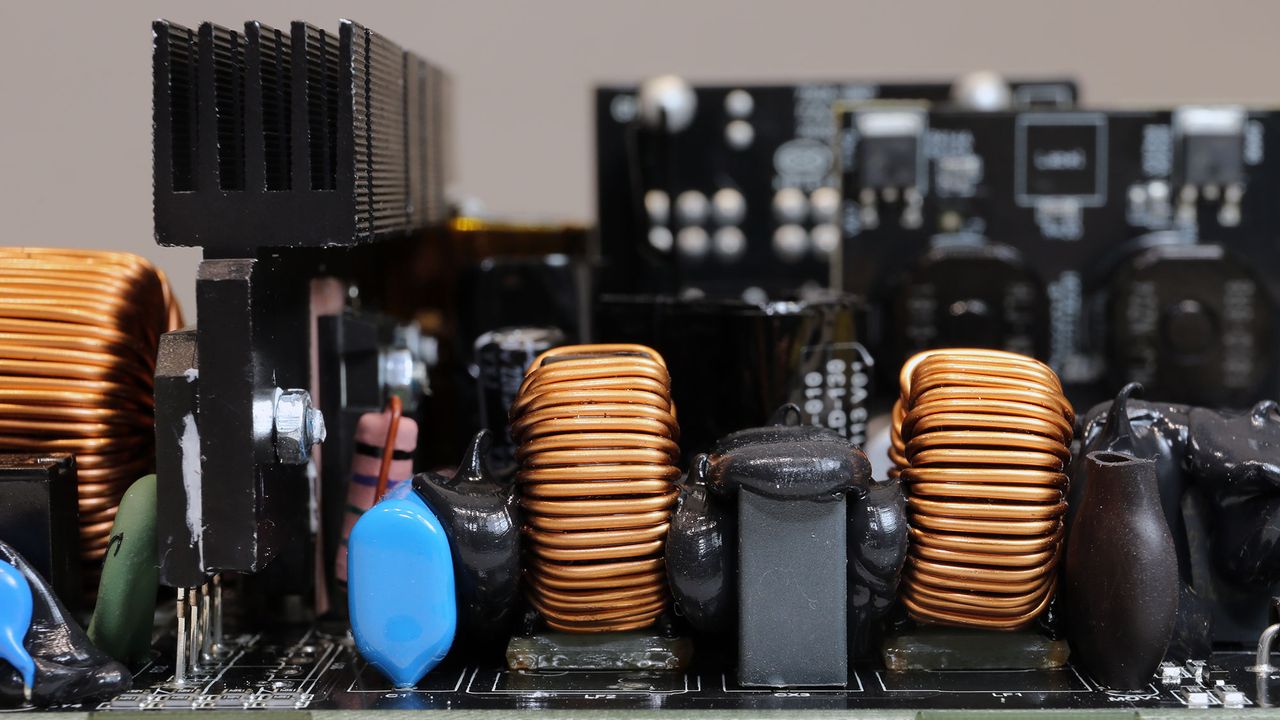

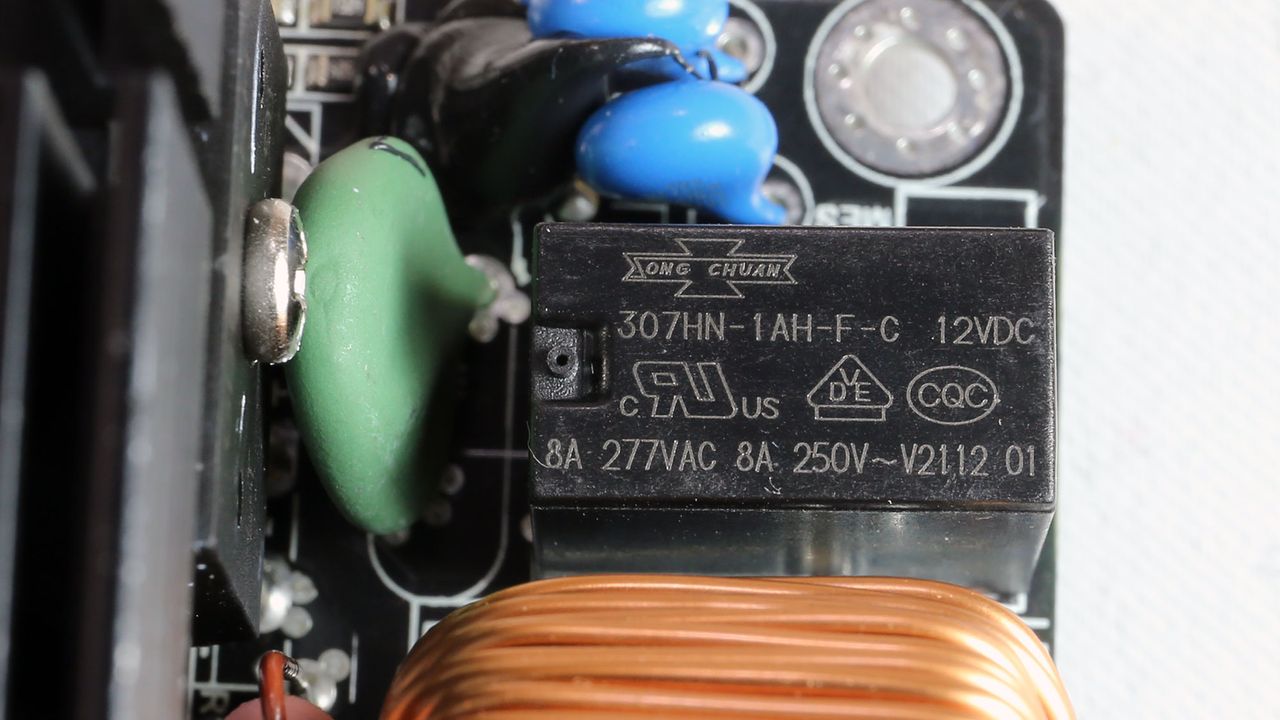

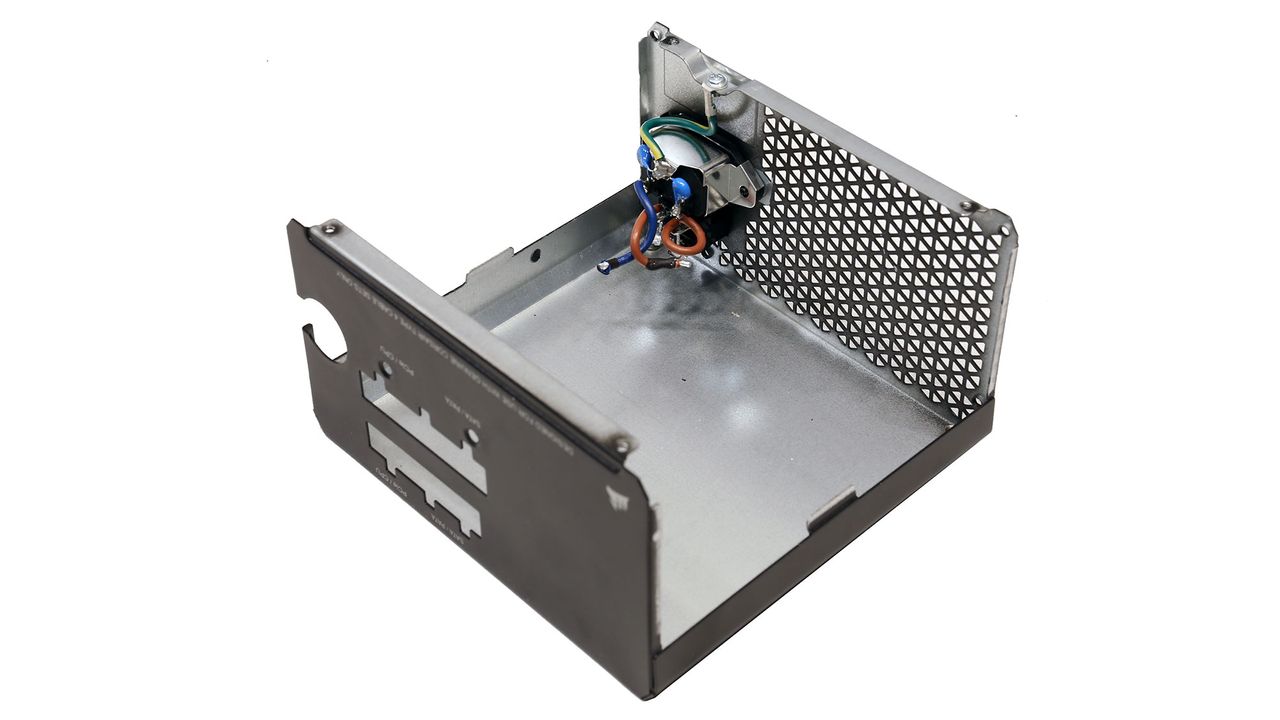

The transient/EMI filter has all necessary parts, with an additional CM choke, and it does a great job in suppressing incoming and outgoing EMI emissions. There is also an MOV and an NTC thermistor and bypass relay combo, for protecting against voltage surges and large inrush currents.

Corsair TX650M

(Image credit: Tom's Hardware)

The single bridge rectifier can handle up to 22.5A of current at 100 degrees Celsius, so it will easily meet this PSU's demands.

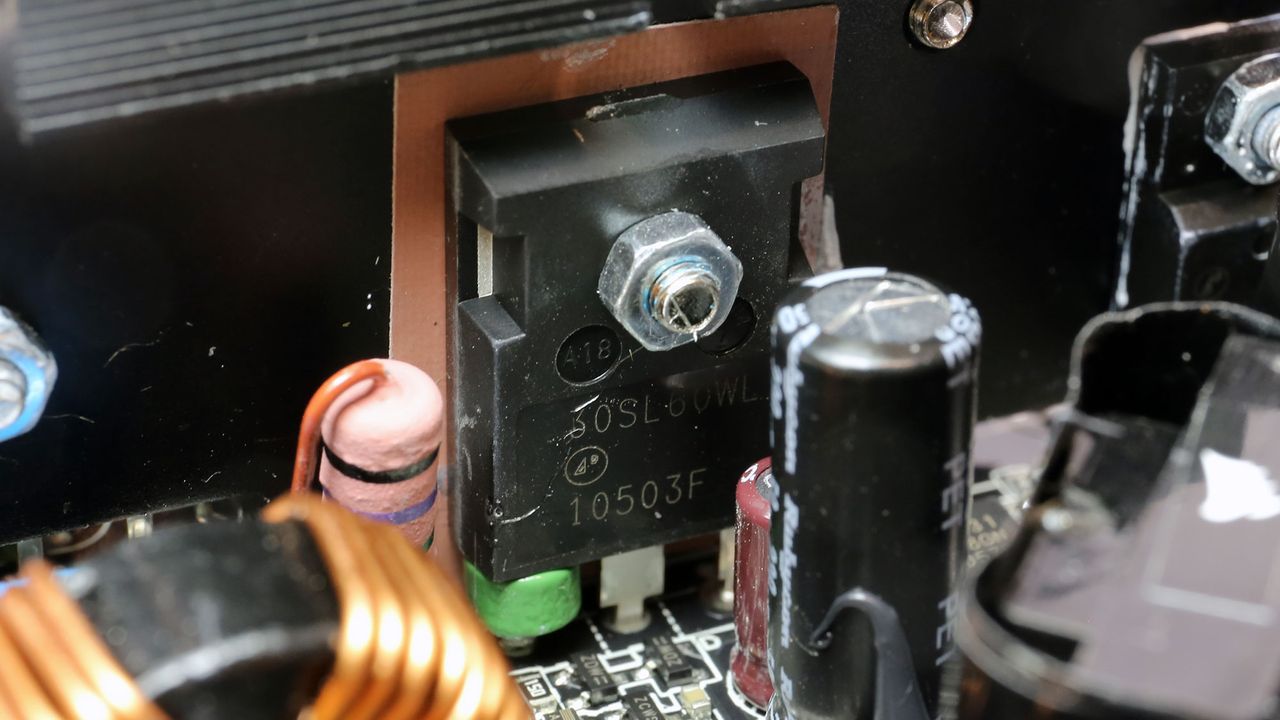

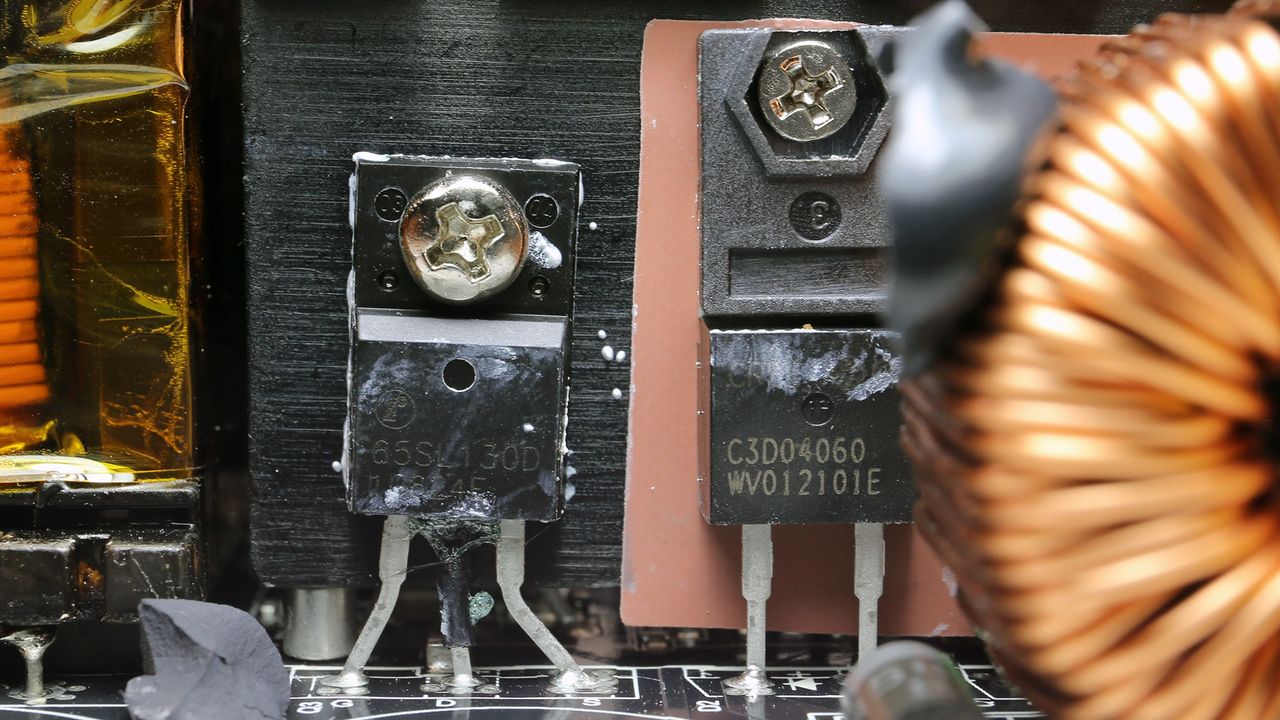

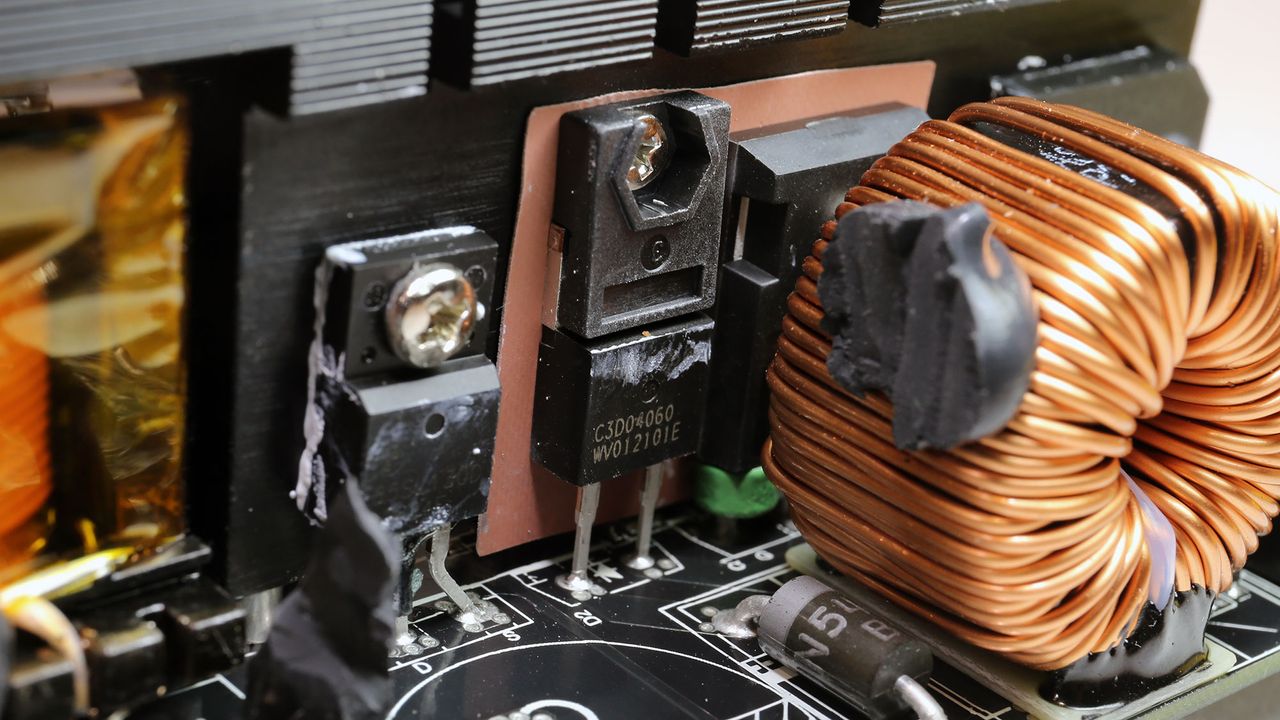

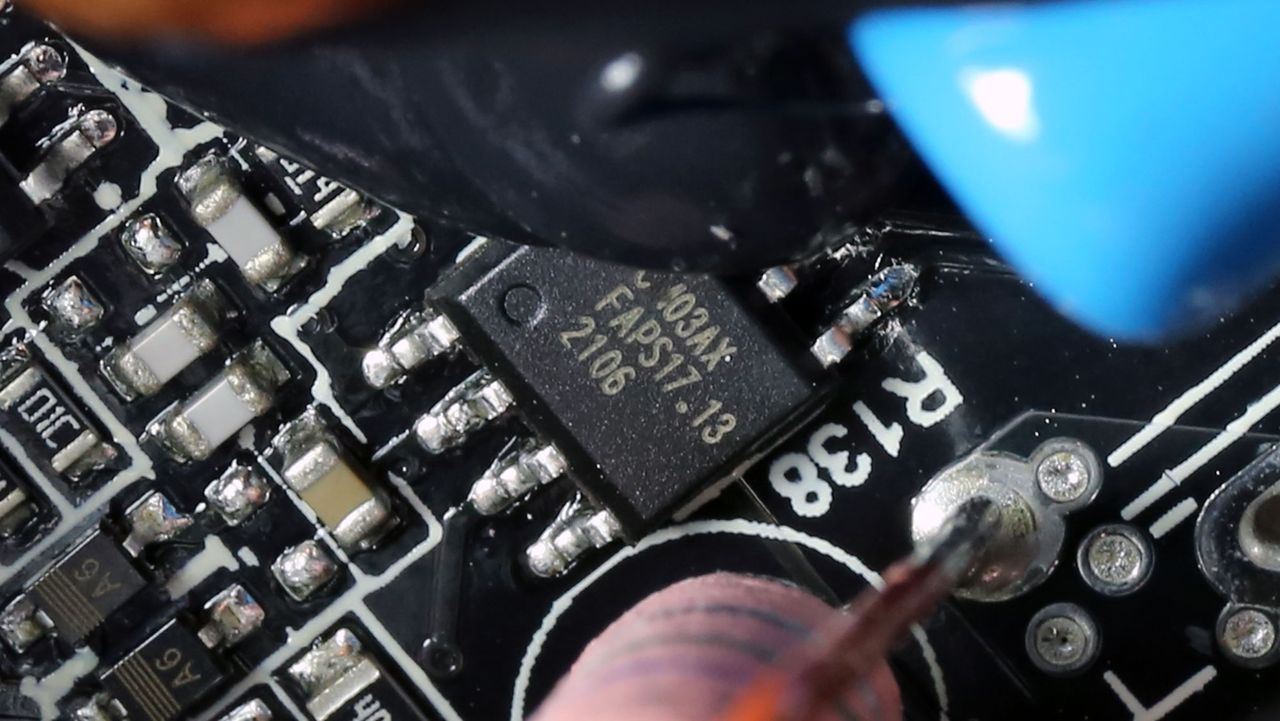

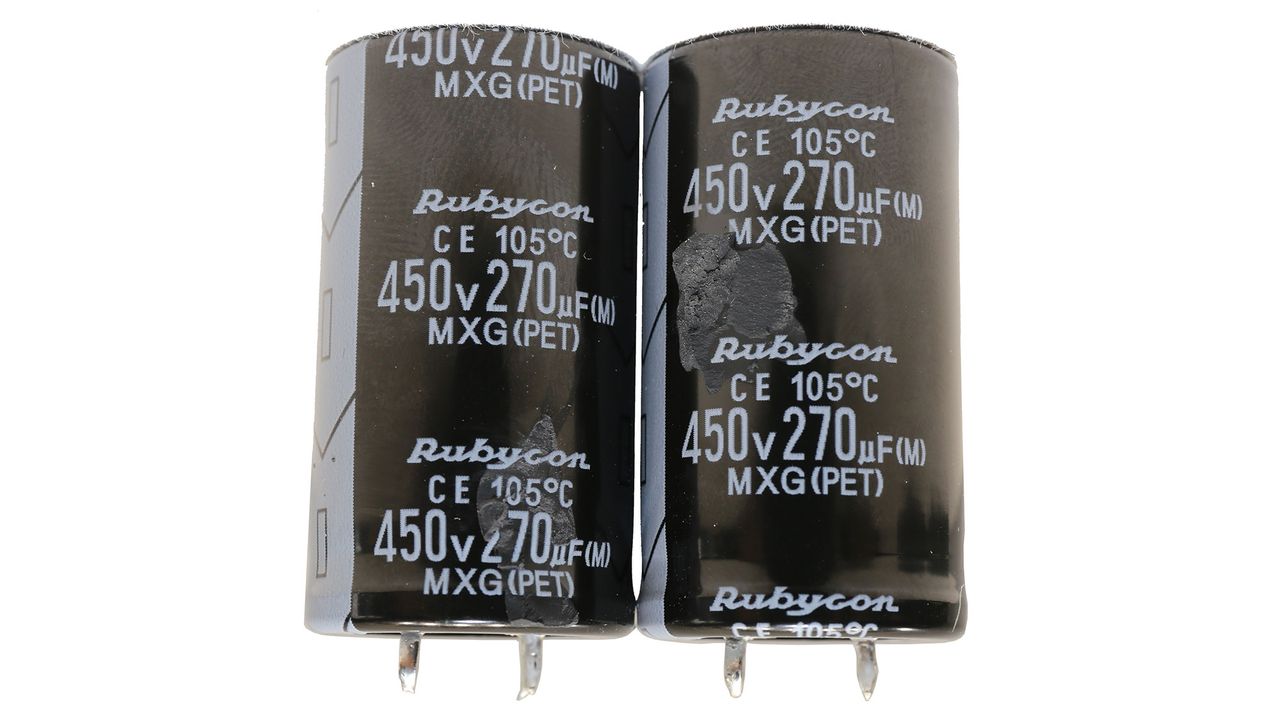

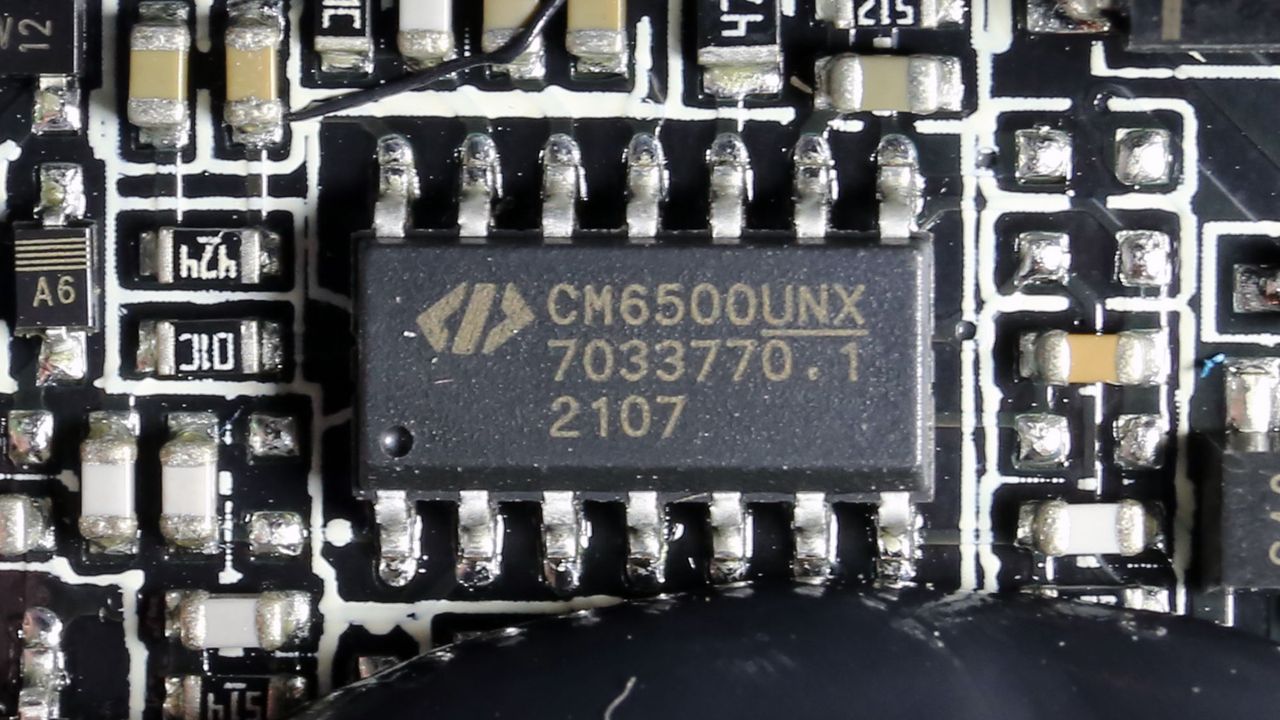

The APFC converter uses two FETs and a single CREE diode, which could be stronger. The bulk caps are of high quality since they are provided by Rubycon, while the APFC controller is a Champion CM6500, supported by a CM03AX.

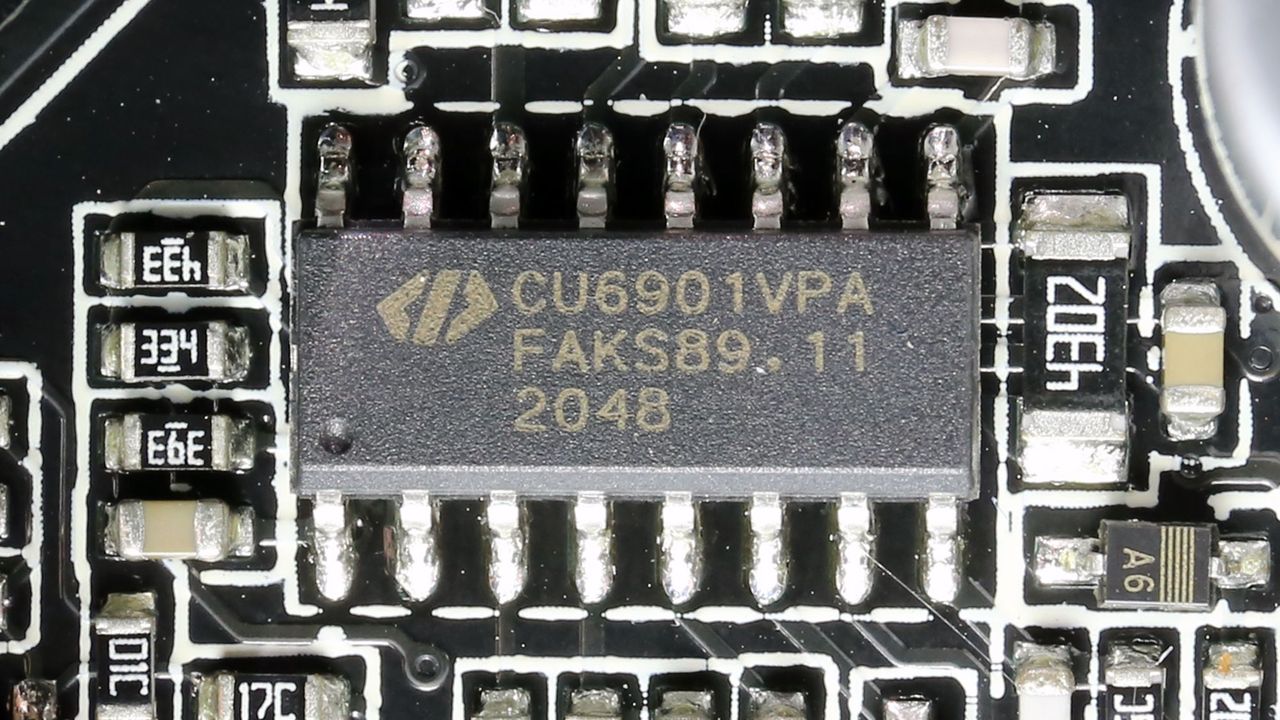

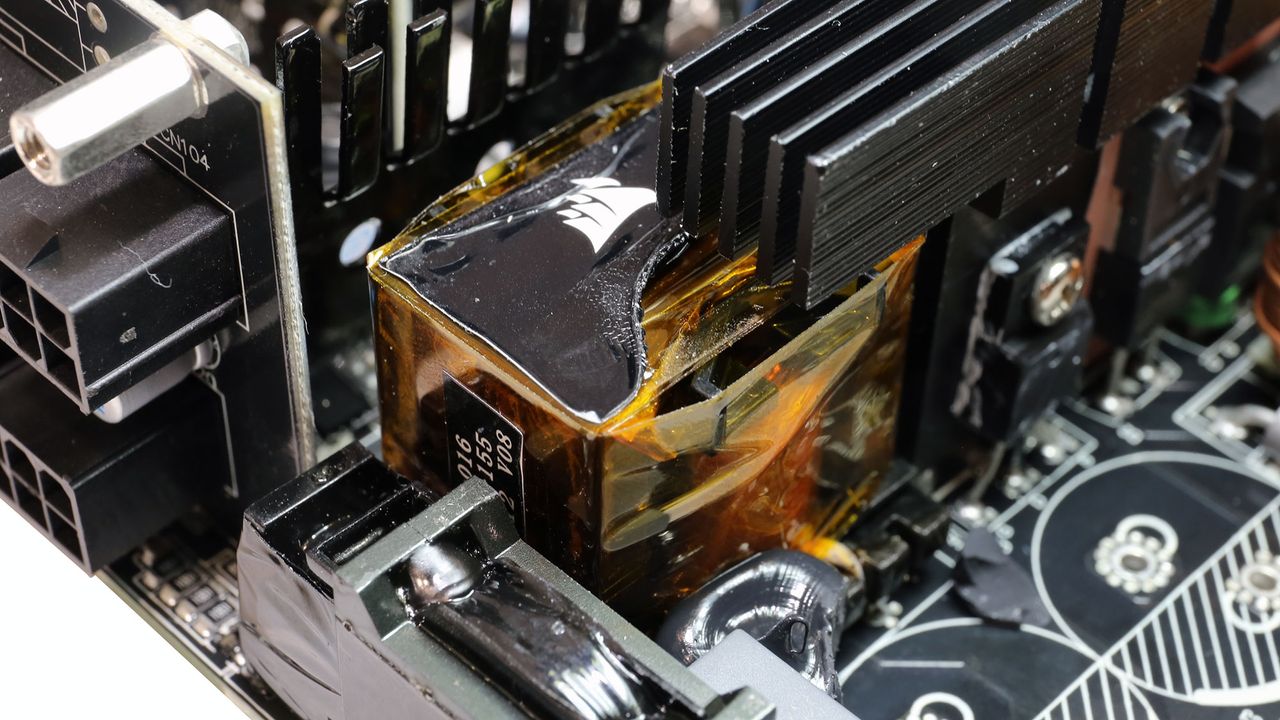

The main FETs are by Advanced Power Electronics, which also provides the APFC FETs, and are installed into a half-bridge topology. Typically, there is an LLC resonant converter to boost efficiency. The resonant controller is a Champion CM6901.

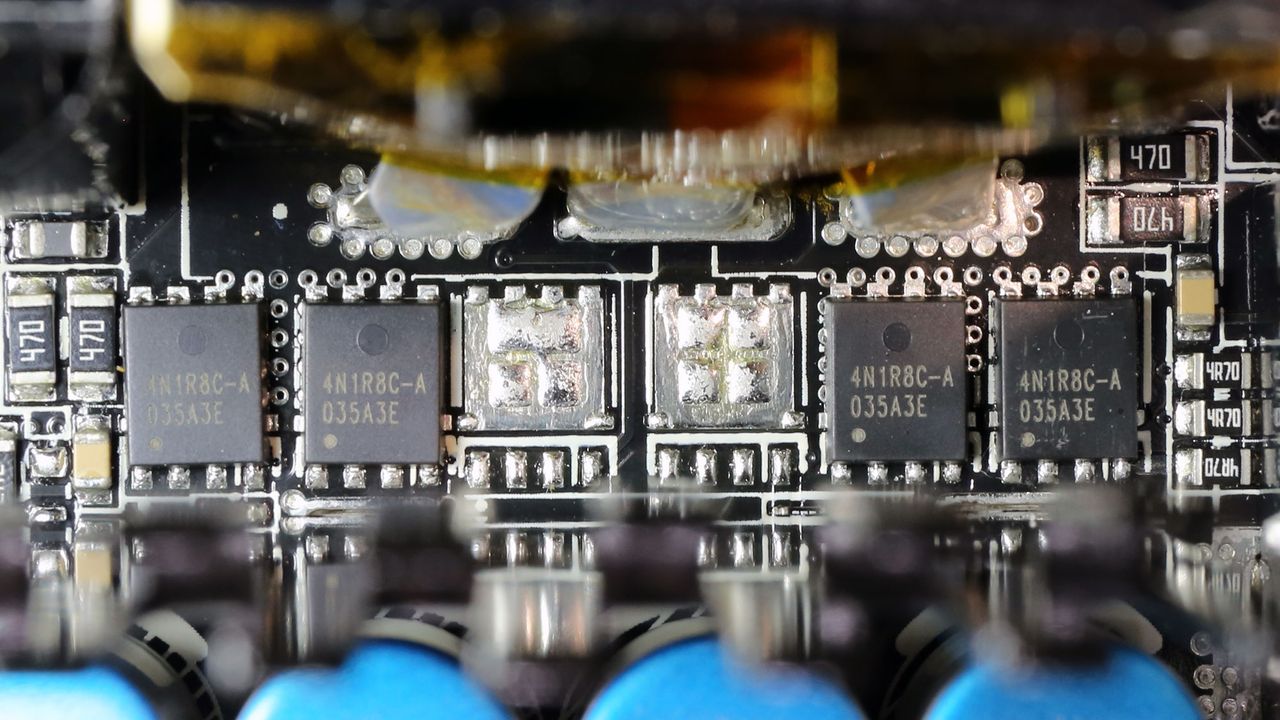

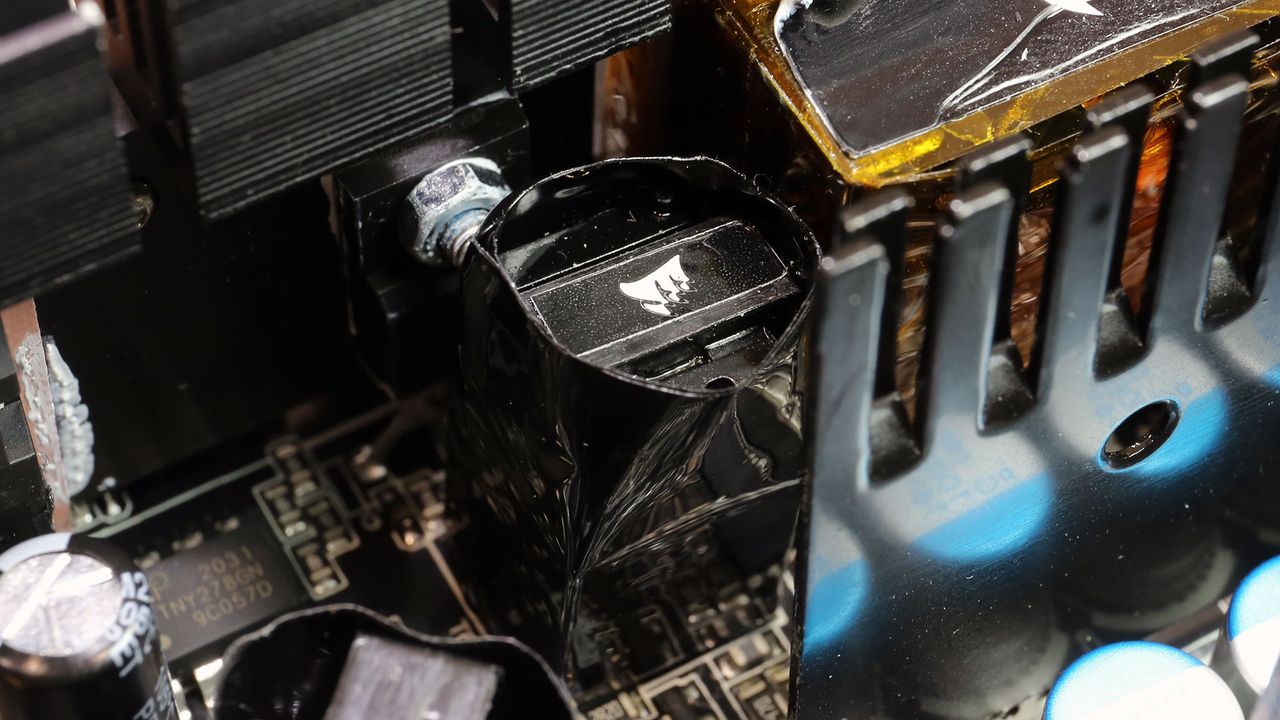

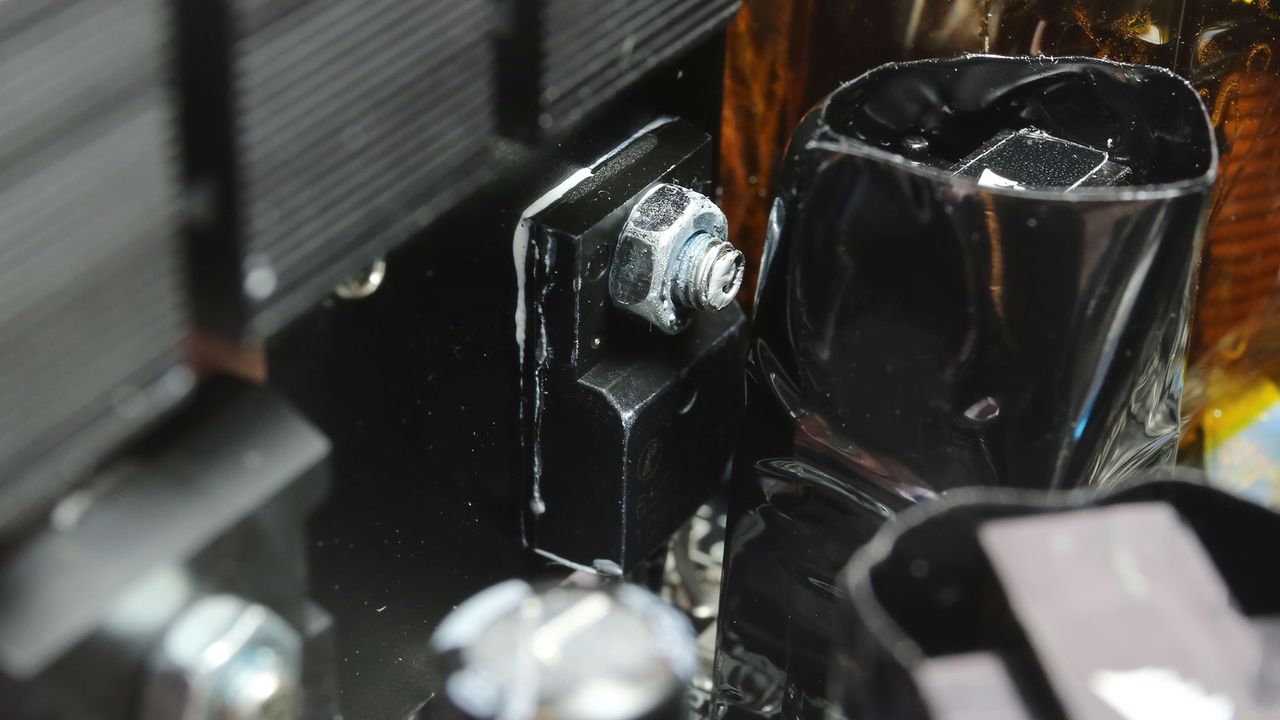

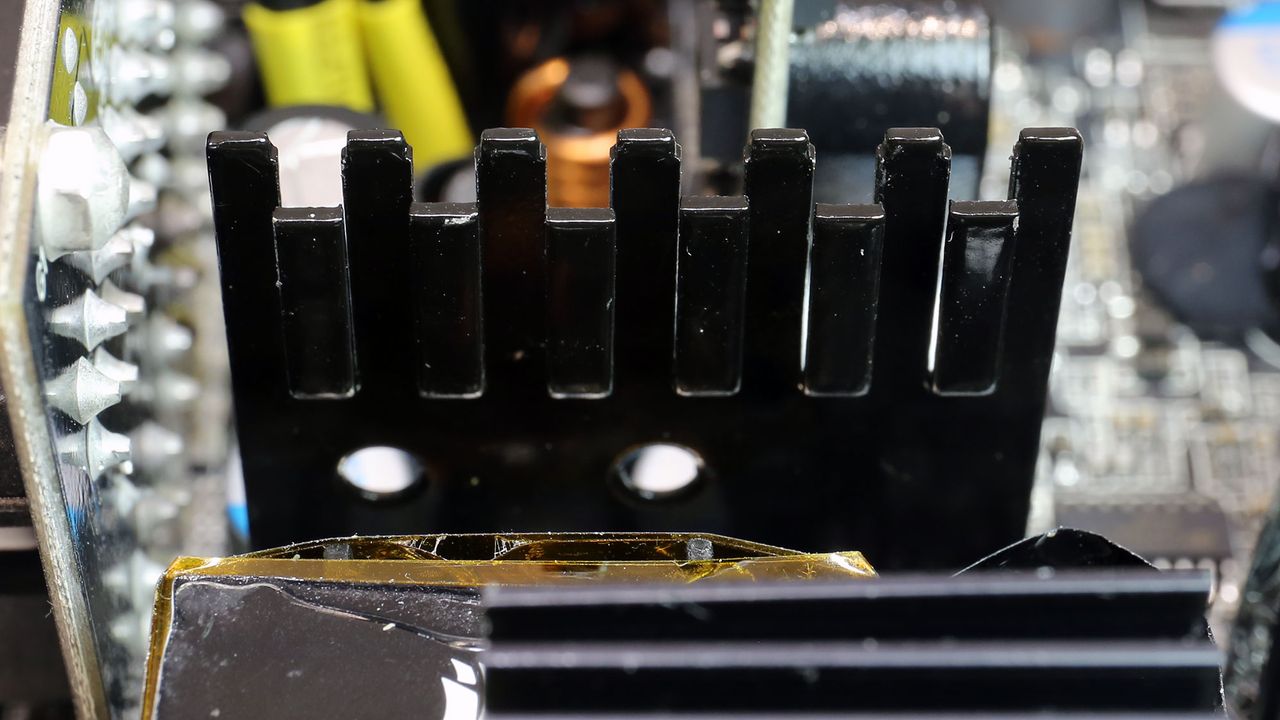

Four FETs regulate the 12V rail. There is room for two more, which the stronger TXM models utilize. A small heatsink right beside the FETs helps them cool down.

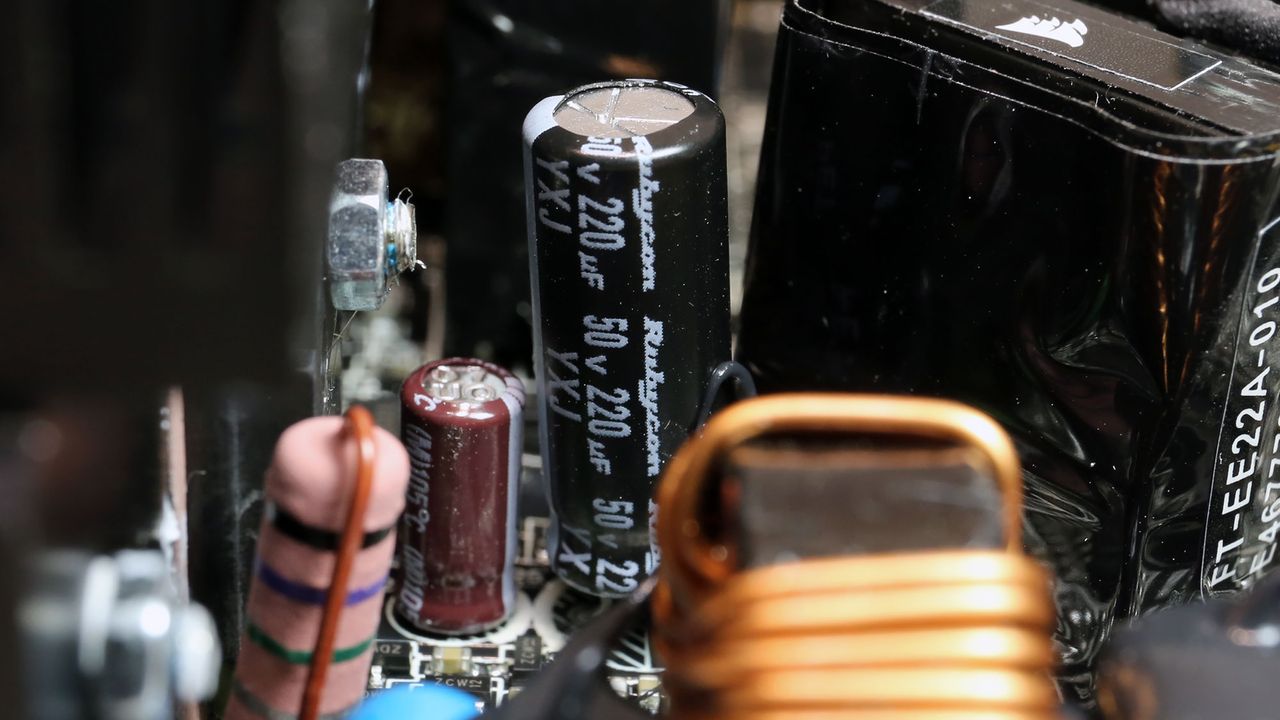

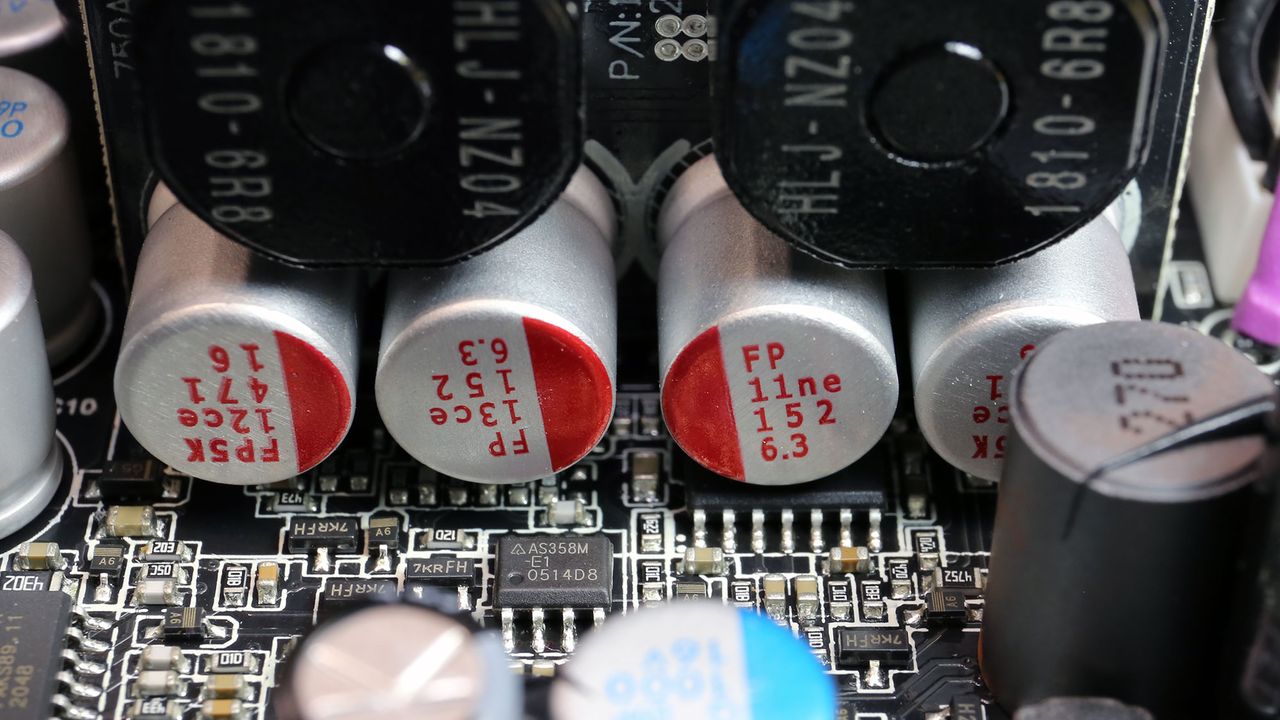

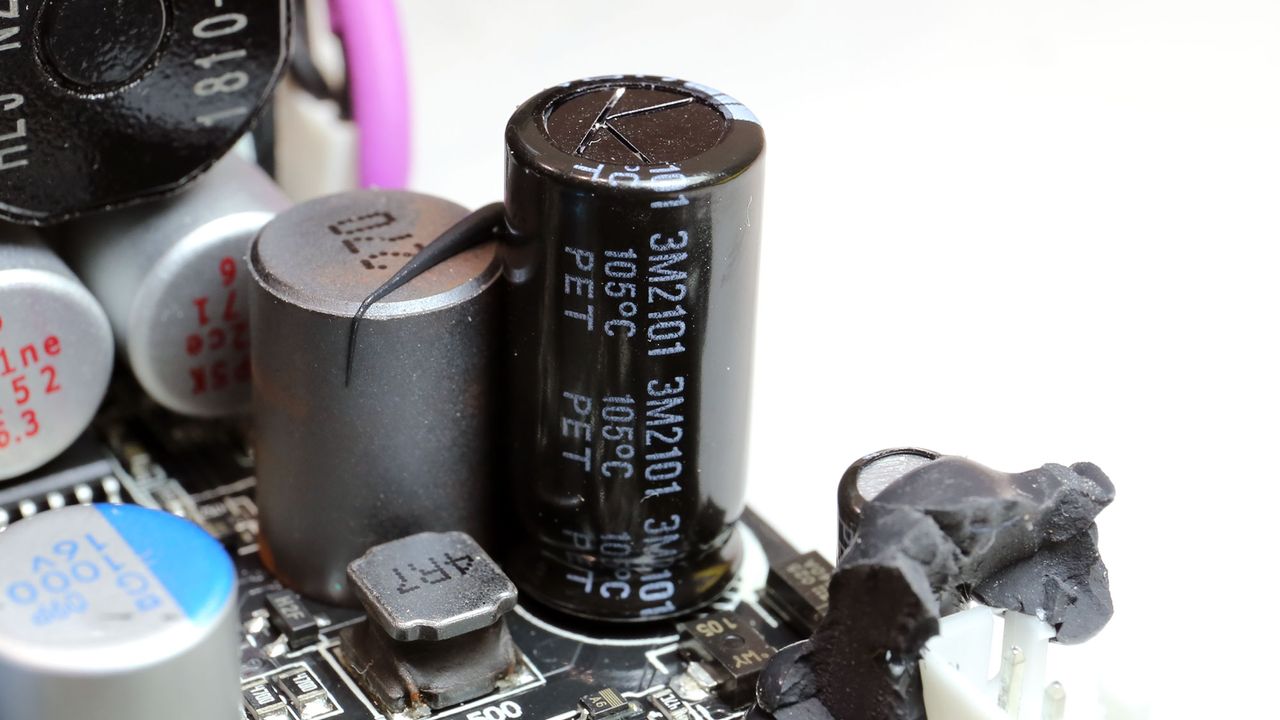

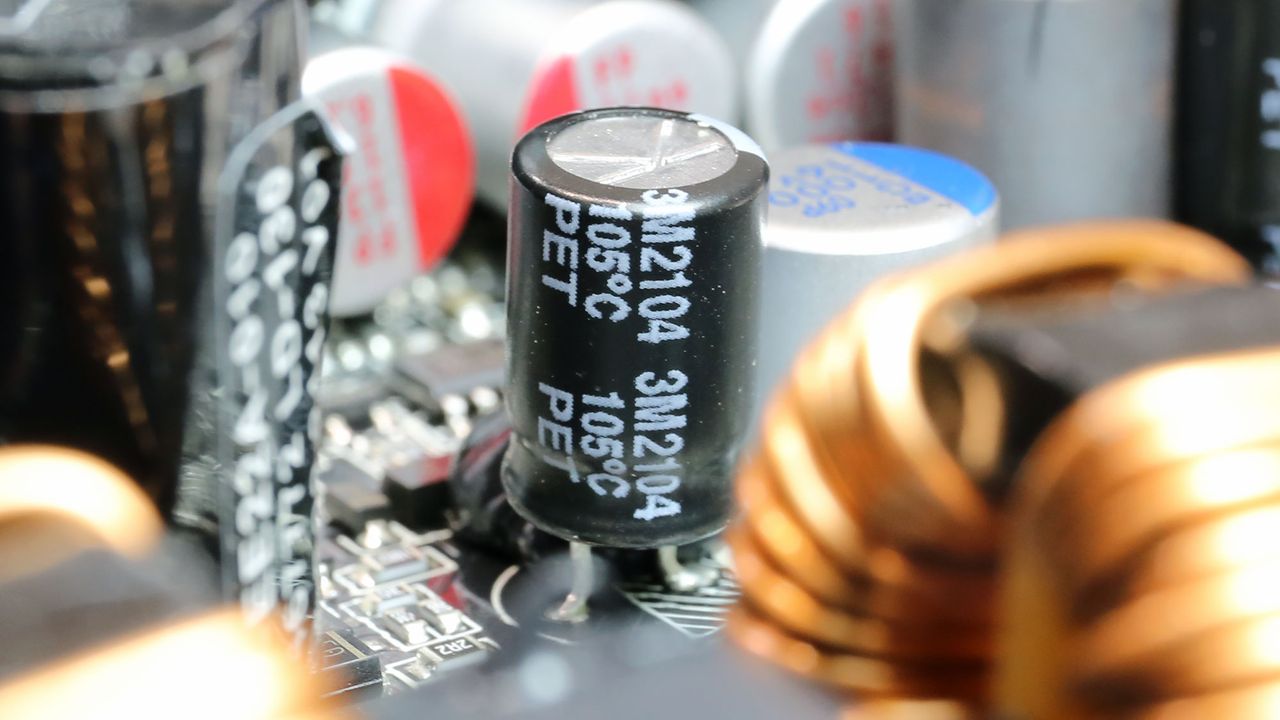

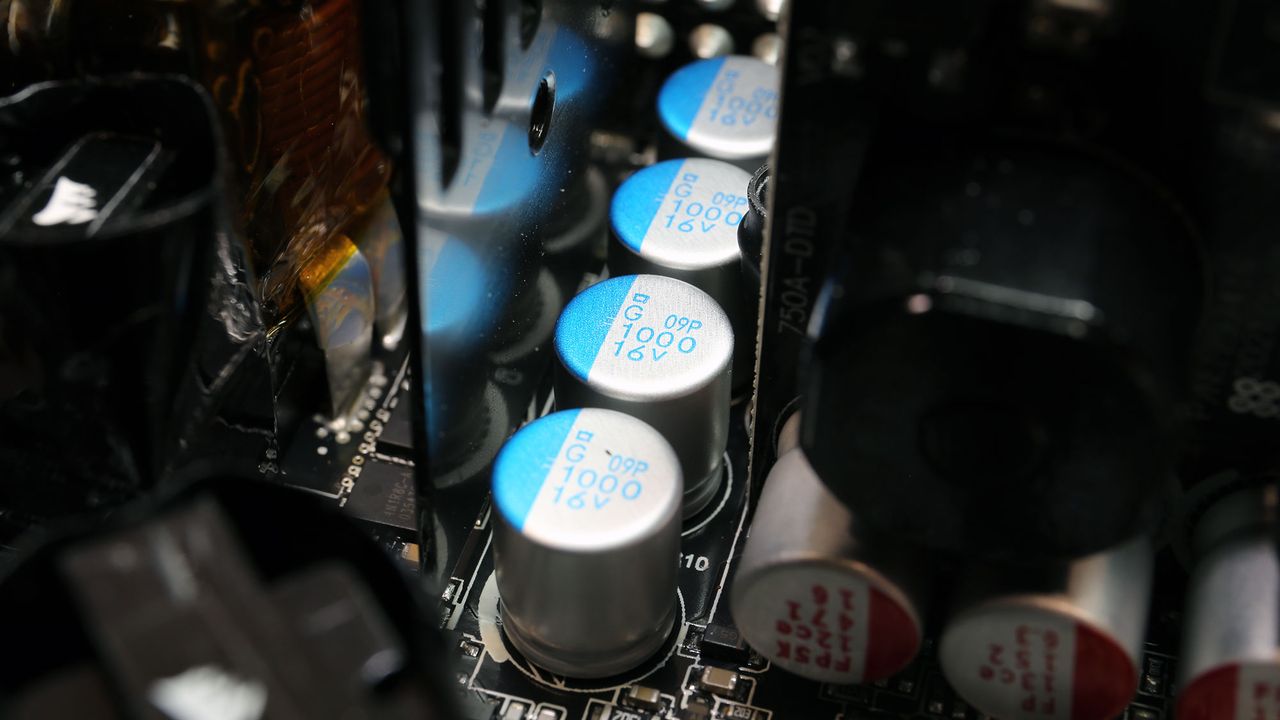

There are few electrolytic caps, but they are of high quality. Like the electrolytic ones, all the polymer caps are made by Japanese manufacturers.

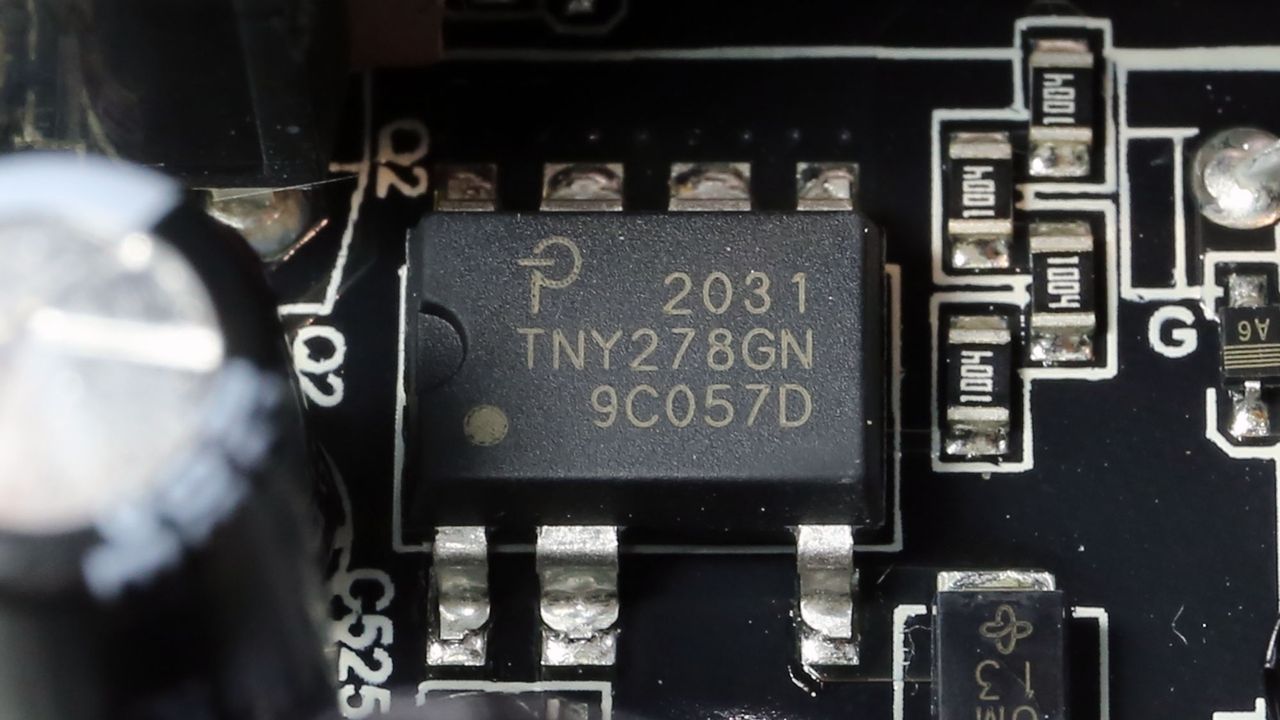

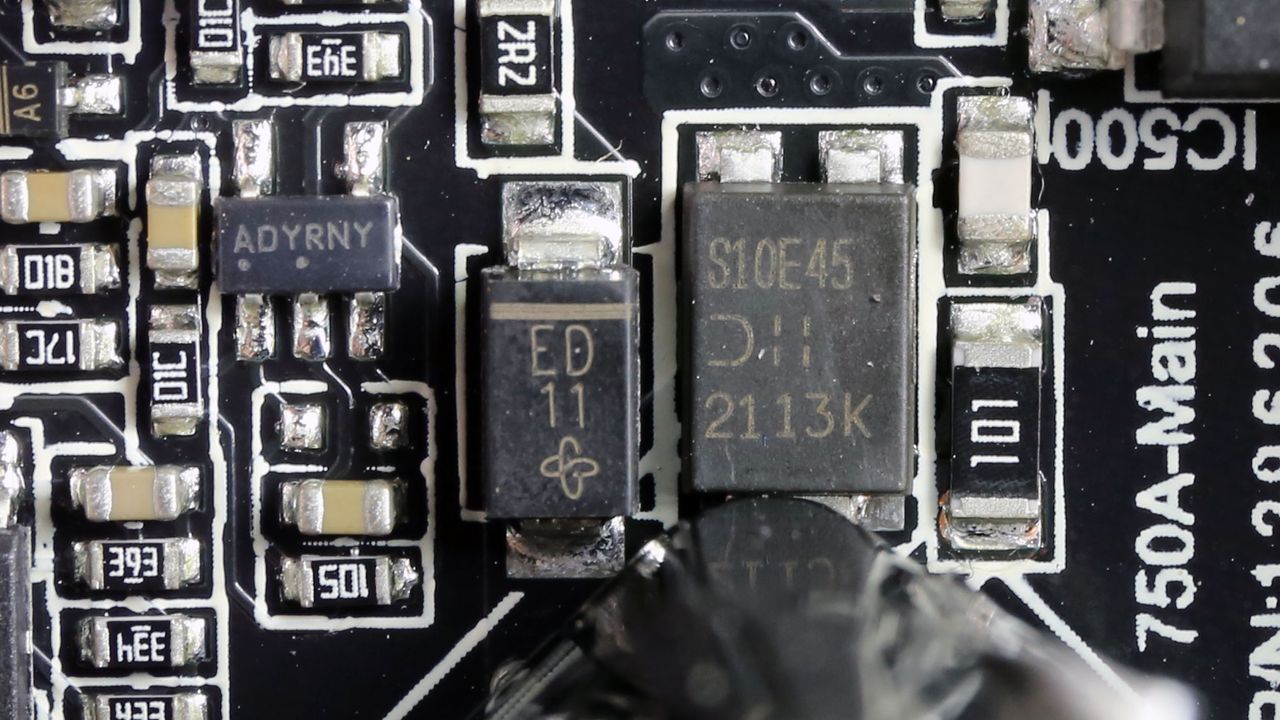

The standby PWM controller is a Power Integrations TNY278GN and the 5VSB rectifier on the secondary side is an SBR, by Diodes Incorporated.

Corsair TX650M

(Image credit: Tom's Hardware)

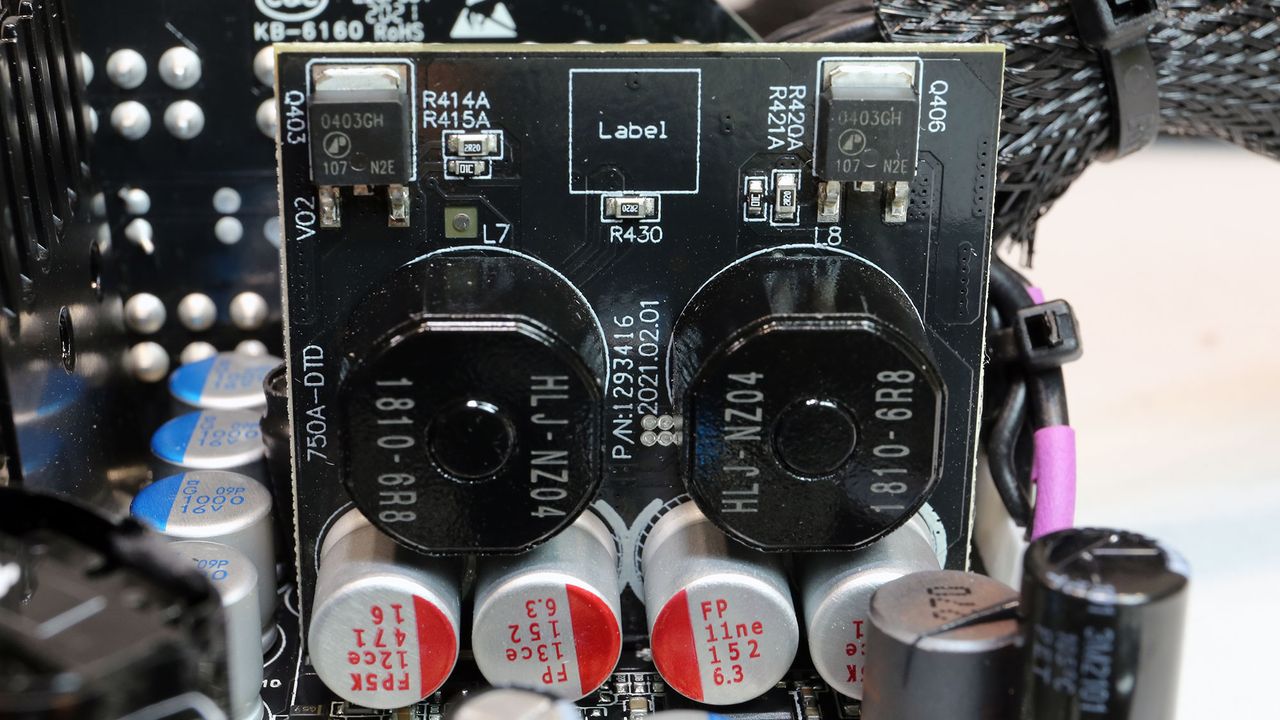

The small modular board has several polymer caps for better ripple suppression.

Corsair TX650M

(Image credit: Tom's Hardware)

The main supervisor IC is a IN1S429I-SCG, which supports all essential protection features by OTP. The latter is provided through another circuit, as usual.

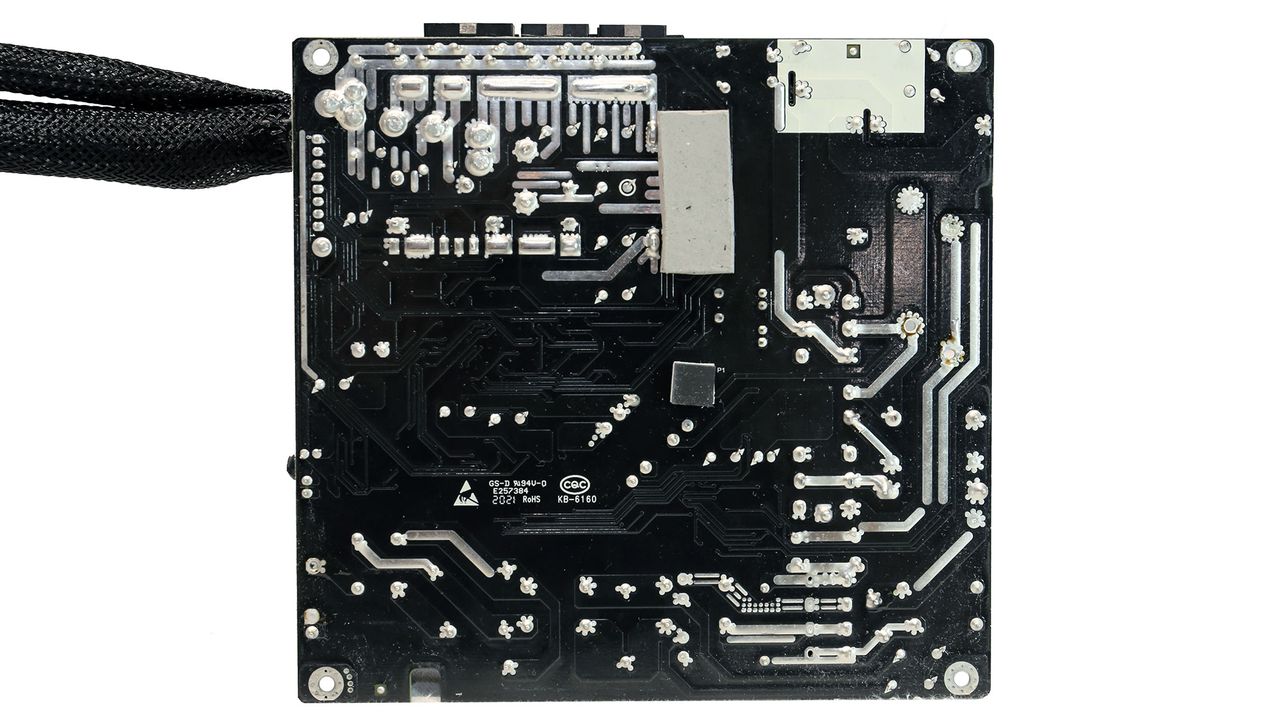

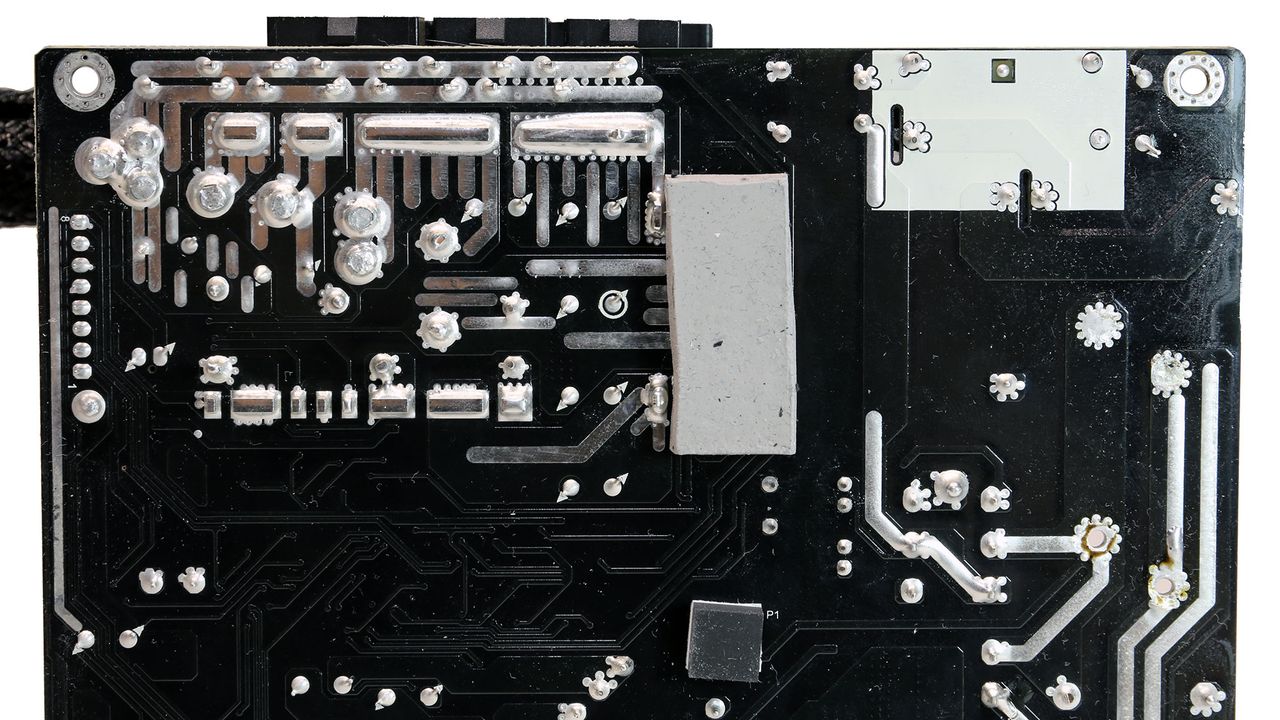

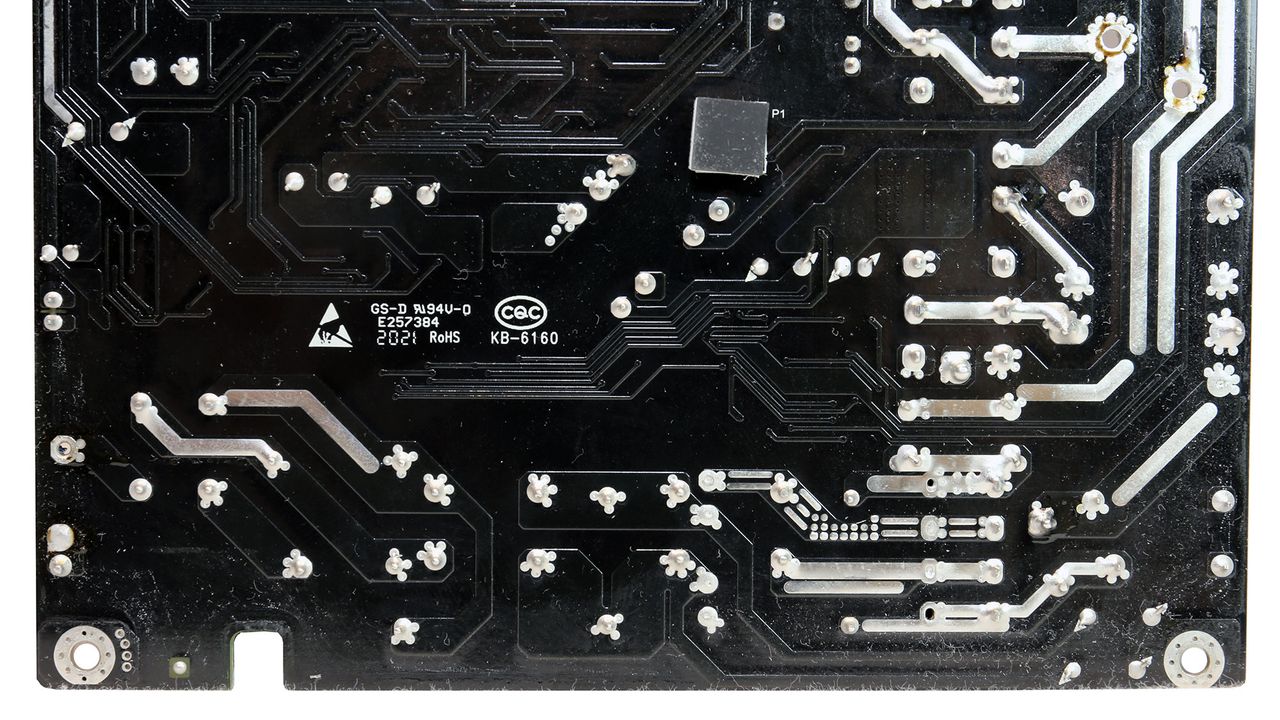

There is not much to see on the solder side of the PCB. Nonetheless, soldering quality is great.

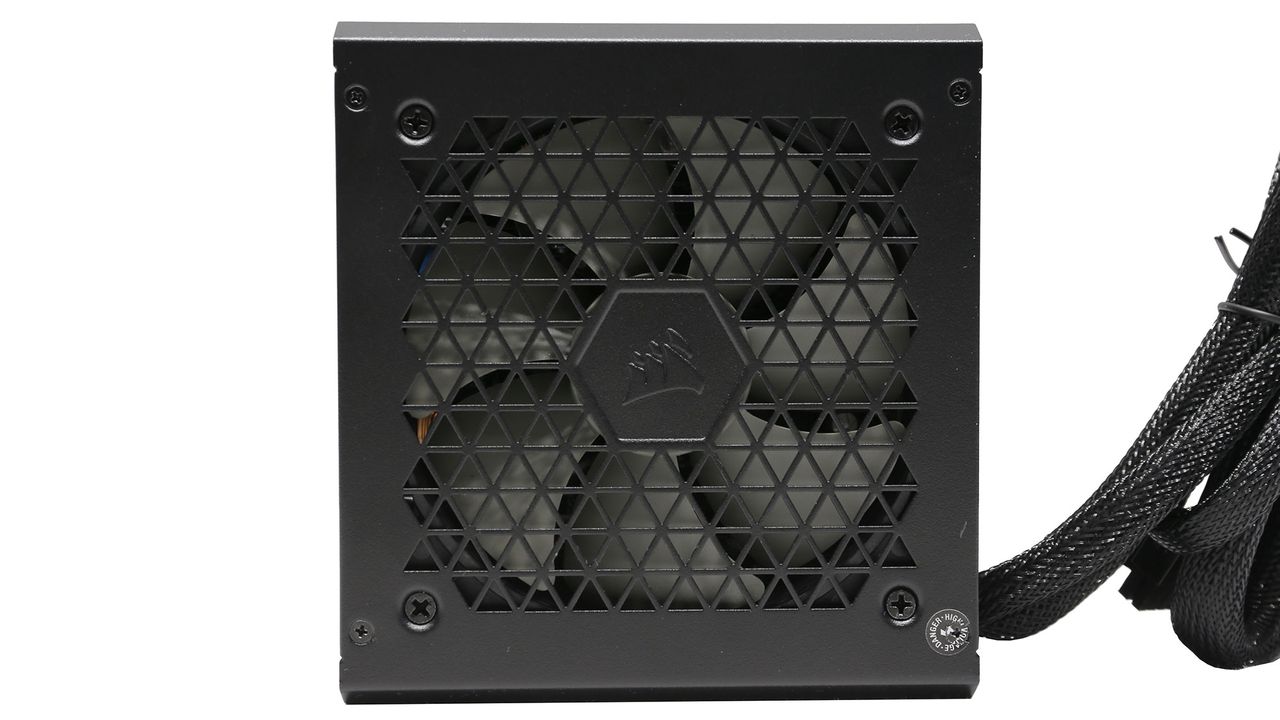

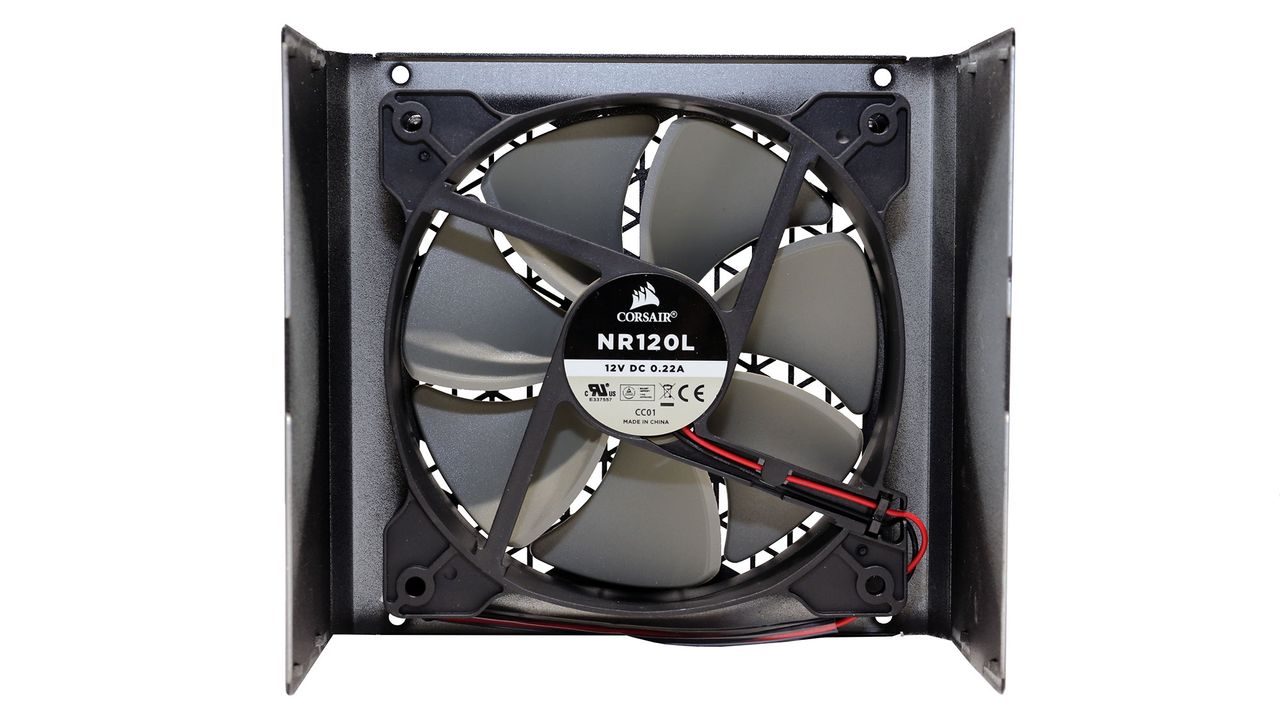

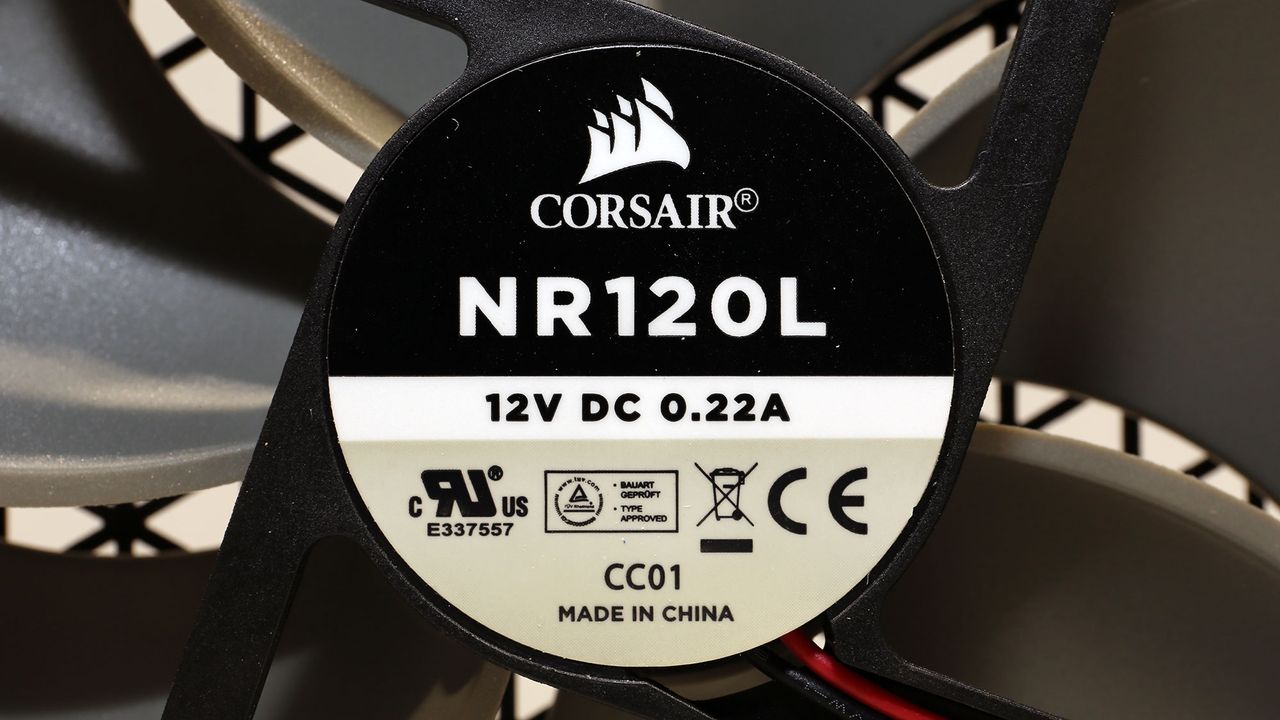

The NR120L fan uses a rifle bearing, which sits between sleeve- and fluid-dynamic bearings in terms of reliability. Given that Corsair pays extra attention to the fans it uses in its PSU products, the NR120L will likely outlive the warranty.
