Gigabyte Z370N WiFi Motherboard Review

How We Test

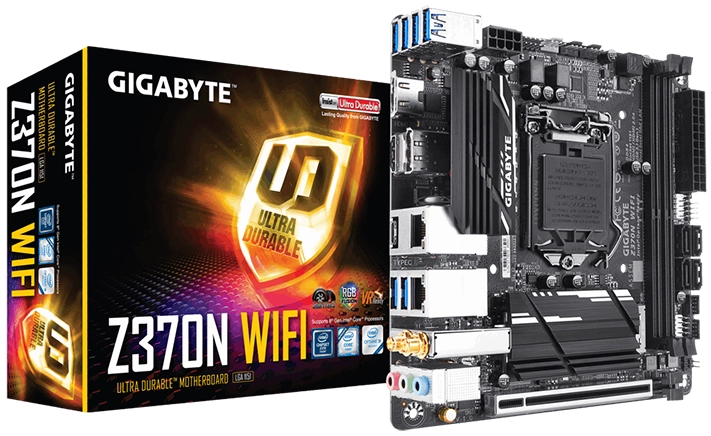

The first Mini-ITX motherboard in our Z370 review series, Gigabyte’s Z370N WiFi is forced to compete against its larger counterparts in both performance and overclocking. Fortunately, the smaller board also has a lower price that could give it a value lead.

SoundIntegrated HD Audio
NetworkIntegrated Gigabit Networking
Graphics DriverGeForce 382.53

Back during the X299 launch, we upgraded our test bed to handle the tremendous heat produced by the Core i9-7900X. Our award-winning Fractal Design S24 liquid cooler system sample serves the same purpose for the newer, lower heat Core i7-8700K. Cooler Master’s HAF-XB provides an optimal layout to blow the Celsius S24’s fans sufficiently over each motherboard’s voltage regulator.

Comparison Products

Benchmark Settings

Synthetic Benchmarks and Settings
PCMark 8Version 2.7.613Home, Creative, Work, Storage, Applications (Adobe & Microsoft)
3DMark 13Version 4.47.597.0Skydiver, Firestrike, Firestrike Extreme Default Presets
SiSoftware SandraVersion 2016.03.22.21CPU Arithmetic, Multimedia, Cryptography, Memory Bandwidth
DiskSPD4k Random Read, 4k Random Write128k Sequential Read, 128k Sequential Write
Cinebench R15Build RC83328DEMOOpenGL Benchmark
CompuBenchVersion 1.5.8Face Detection, Optical Flow, Ocean Surface, Ray Tracing
Application Tests and Settings
LAME MP3Version 3.98.3Mixed 271MB WAV to mp3: Command: -b 160 --nores (160 Kb/s)
HandBrake CLIVersion: 0.9.9Sintel Open Movie Project: 4.19 GB 4k mkv to x265 mp4
BlenderVersion 2.68aBMW 27 CPU Render Benchmark, BMW 27 GPU Render Benchmark
7-ZipVersion 16.02THG-Workload (7.6 GB) to .7z, command line switches "a -t7z -r -m0=LZMA2 -mx=9"
Adobe After Effects CCRelease 2015.3.0, Version 13.8.0.144PCMark driven routine
Adobe Photoshop CCRelease 2015.5.0. 20160603.r.88 x64PCMark driven routine (light and heavy)
Adobe InDesign CCRelease 2015.4, Build 11.4.0.90 x64PCMark driven routine
Adobe IllustratorRelease 2015.3.0, Version 20.0.0 (64-bit)PCMark driven routine
Game Tests and Settings
Ashes of SingularityVersion 1.31.21360High Preset - 1920x1080, Mid Shadow Quality, 1x MSAACrazy Preset - 1920x1090, High Shadow Quality, 2x MSAA
F1 20152015 Season, Abu Dhabi Track, RainMedium Preset, No AFxUltra High Preset, 16x AF
Metro Last Light ReduxVersion 3.00 x64High Quality, 1920x1080, High Tesselation, 16x AFVery High Quality, 1920x1080, Very High Tesselation, 16x AF
The Talos PrincipleVersion 267252Medium Preset, High Quality, High Tesselation, 4x AFUltra Preset, VeryHigh Quality, VeryHigh Tesselation, 16x AF

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: All Motherboard Content
