Phanteks AMP Series 650W Power Supply Review

The Phanteks AMP Series model with 650W capacity offers high enough performance and features quiet operation.

Phanteks AMP Series 650W
(Image: © Tom's Hardware)

Advanced Transient Response Tests

For details about our transient response testing, please click here.

In the real world, power supplies are always working with loads that change. It's of immense importance, then, for the PSU to keep its rails within the ATX specification's defined ranges. The smaller the deviations, the more stable your PC will be with less stress applied to its components.

We should note that the ATX spec requires capacitive loading during the transient rests, but in our methodology, we also choose to apply a worst case scenario with no additional capacitance on the rails.

Advanced Transient Response at 20% – 200ms

VoltageBeforeAfterChangePass/Fail
12V12.162V12.055V0.88%Pass
5V4.973V4.870V2.07%Pass
3.3V3.303V3.159V4.36%Pass
5VSB5.088V5.031V1.12%Pass

Advanced Transient Response at 20% – 20ms

VoltageBeforeAfterChangePass/Fail
12V12.163V12.011V1.25%Pass
5V4.973V4.849V2.49%Pass
3.3V3.303V3.134V5.12%Fail
5VSB5.088V5.036V1.02%Pass

Advanced Transient Response at 20% – 1ms

VoltageBeforeAfterChangePass/Fail
12V12.162V12.012V1.23%Pass
5V4.973V4.853V2.41%Pass
3.3V3.303V3.135V5.09%Fail
5VSB5.088V5.045V0.85%Pass

Advanced Transient Response at 50% – 200ms

VoltageBeforeAfterChangePass/Fail
12V12.151V12.054V0.80%Pass
5V4.964V4.857V2.16%Pass
3.3V3.297V3.147V4.55%Pass
5VSB5.050V4.991V1.17%Pass

Advanced Transient Response at 50% – 20ms

VoltageBeforeAfterChangePass/Fail
12V12.151V12.001V1.23%Pass
5V4.964V4.838V2.54%Pass
3.3V3.297V3.121V5.34%Fail
5VSB5.050V5.002V0.95%Pass

Advanced Transient Response at 50% – 1ms

VoltageBeforeAfterChangePass/Fail
12V12.151V12.017V1.10%Pass
5V4.964V4.838V2.54%Pass
3.3V3.297V3.118V5.43%Fail
5VSB5.050V5.008V0.83%Pass
Image 1 of 8

(Image credit: Tom's Hardware)
Image 2 of 8

(Image credit: Tom's Hardware)
Image 3 of 8

(Image credit: Tom's Hardware)
Image 4 of 8

(Image credit: Tom's Hardware)
Image 5 of 8

(Image credit: Tom's Hardware)
Image 6 of 8

(Image credit: Tom's Hardware)
Image 7 of 8

(Image credit: Tom's Hardware)

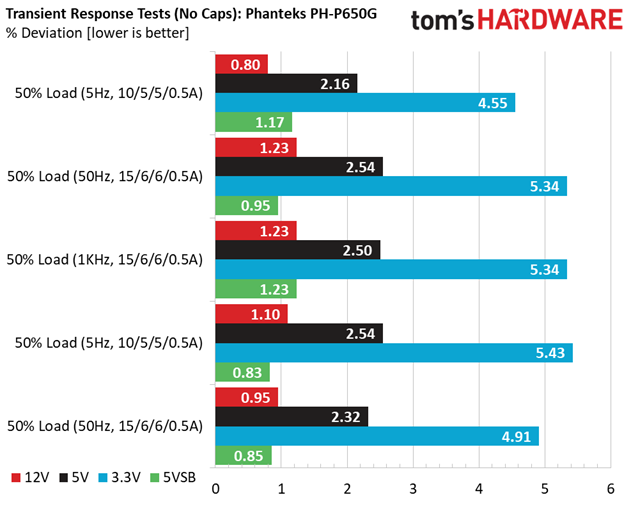

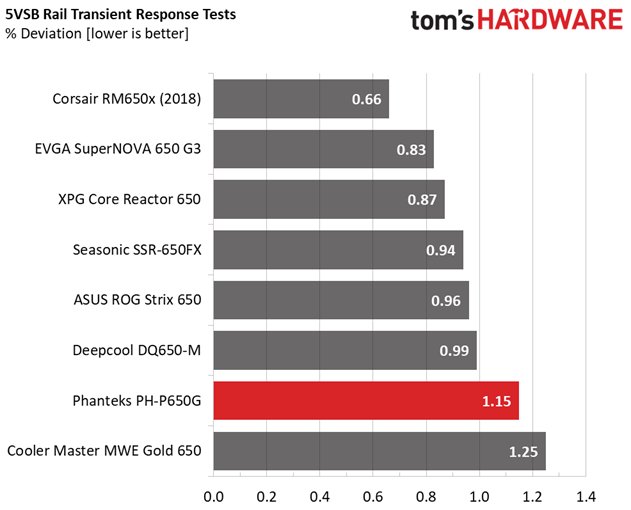

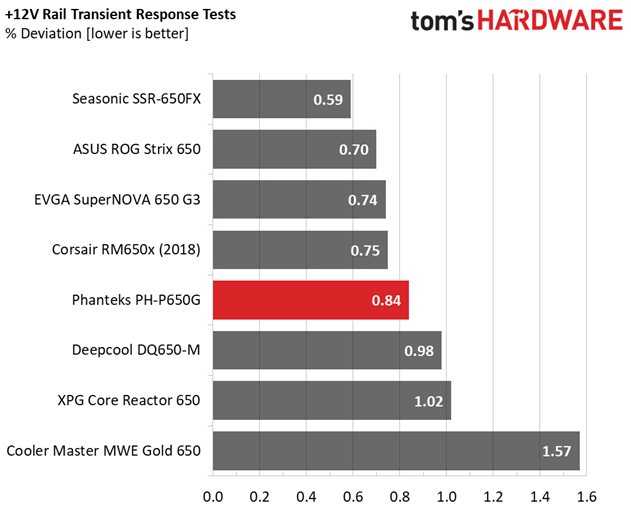

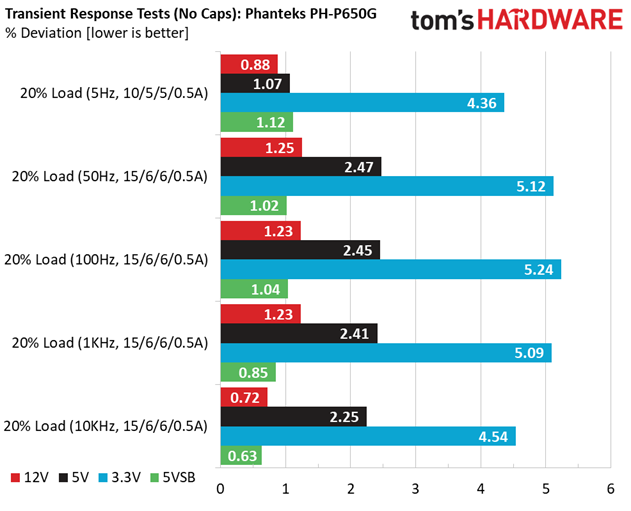

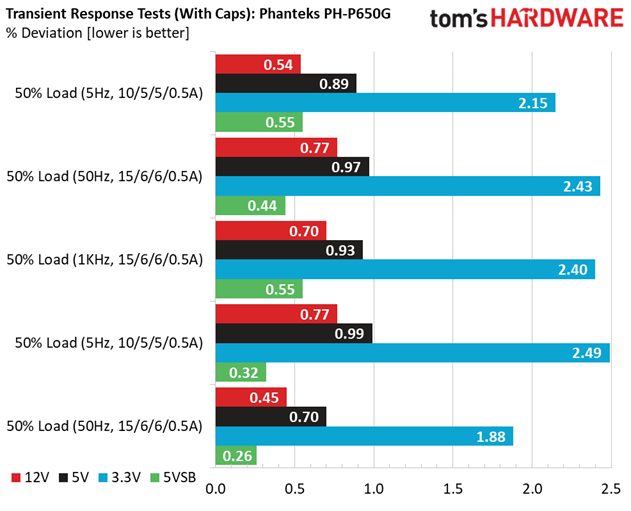

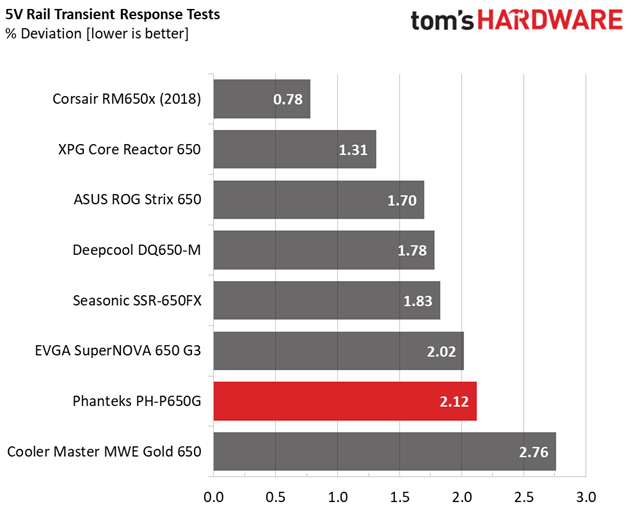

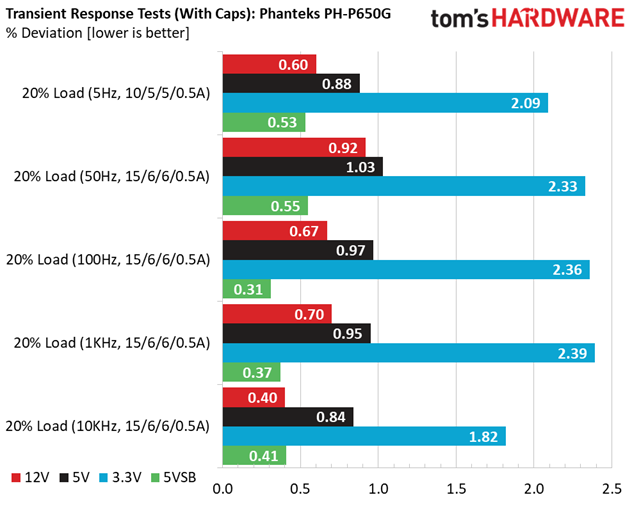

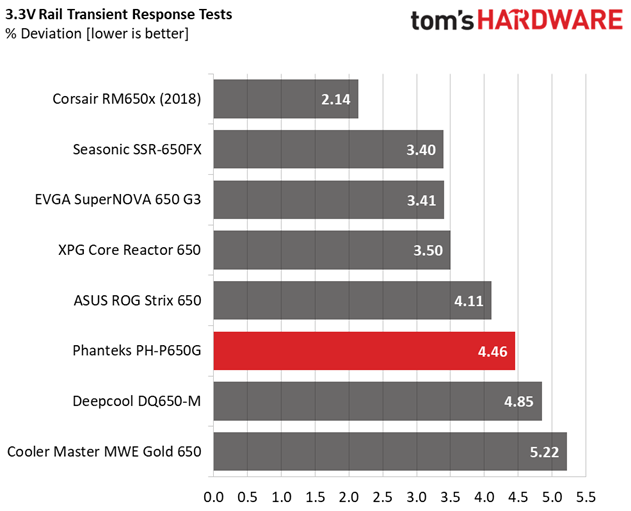

Results 25-29: Transient Response

Image 8 of 8

(Image credit: Tom's Hardware)

The transient response at +12V is good, but the previous generation Focus performs even better here. On the minor rails, 5V and 3.3V, the transient performance is not so impressive. Especially at 3.3V in four tests, the voltage dropped lower than 3.14V, going out of the ATX spec's requirements.

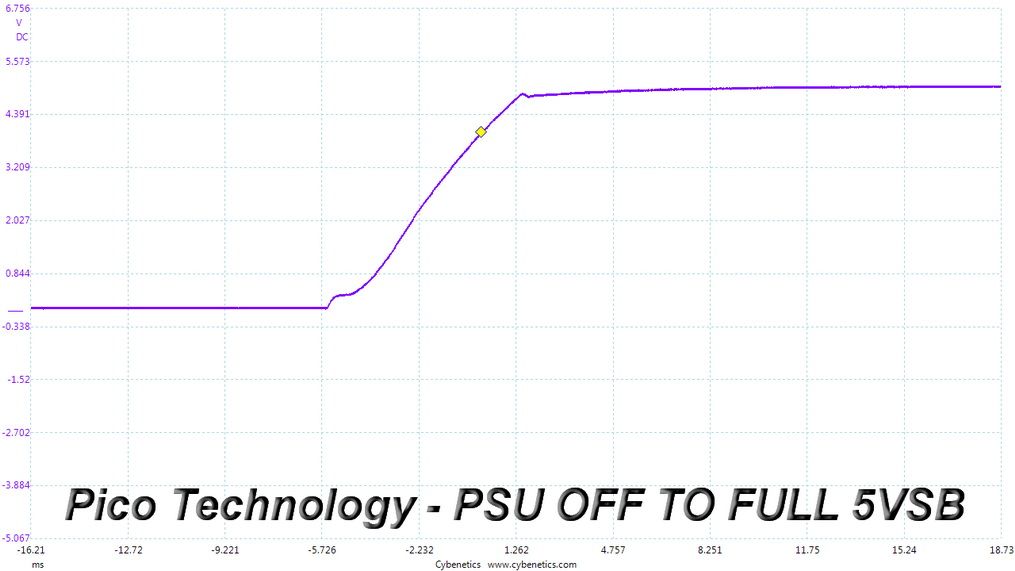

Turn-On Transient Tests

In the next set of tests, we measure the PSU's response in simpler transient load scenarios—during its power-on phase. Ideally, we don't want to see any voltage overshoots or spikes since those put a lot of stress on the DC-DC converters of installed components.

Image 1 of 3

(Image credit: Tom's Hardware)

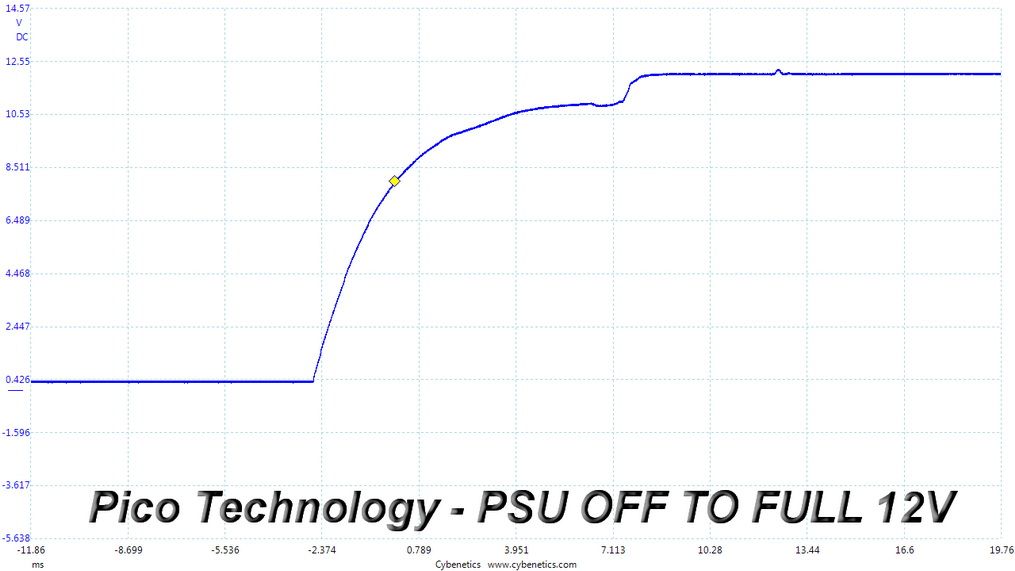

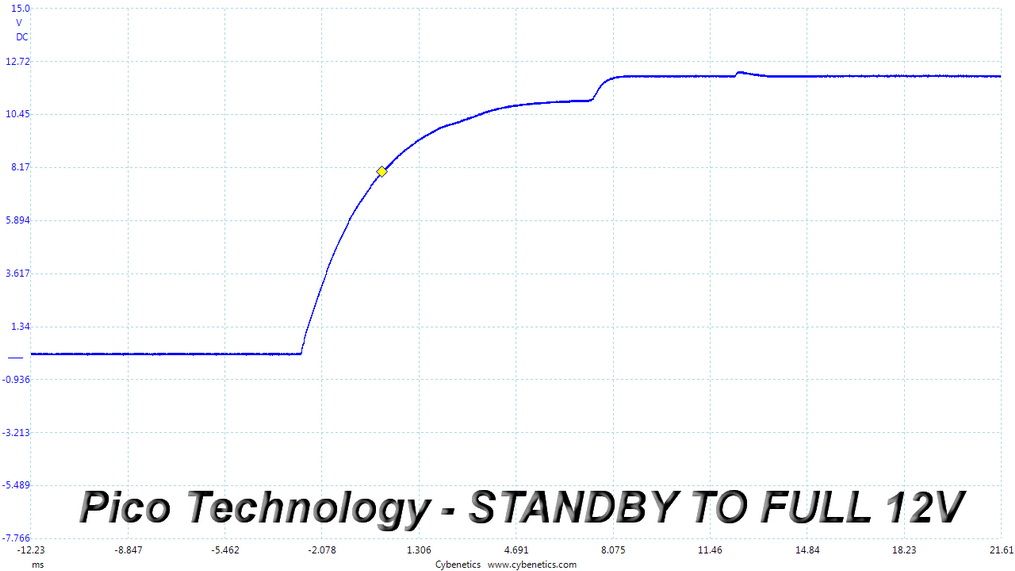

Turn-On Transient Response Scope Shots

Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

The performance is good in the turn-on transient tests. There are no high spikes and voltage overshoots. It just takes a little longer for the +12V rail to increase its level to the nominal voltage.

Power Supply Timing Tests

There are several signals generated by the power supply, which need to be within specified, by the ATX spec, ranges. If they are not, there can be compatibility issues with other system parts, especially mainboards. From year 2020, the PSU's Power-on time (T1) has to be lower than 150ms and the PWR_OK delay (T3) from 100 to 150ms.

PSU Timings Table
T1 (Power-on time) & T3 (PWR_OK delay)
LoadT1T3
20%79ms313ms
50%79ms313ms

The Power-on time is within 100ms, but the power-ok delay is much higher than 150ms, so the PSU does not support the alternative sleep mode, which will be a requirement by the ATX v2.52 from 2020.

Ripple Measurements

Ripple represent the AC fluctuations (periodic) and noise (random) found in the PSU's DC rails. This phenomenon significantly decreases the capacitors' lifespan because it causes them to run hotter. A 10-degree Celsius increase can cut into a cap's useful life by 50%. Ripple also plays an important role in overall system stability, especially when overclocking is involved.

The ripple limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V, and 5VSB).

Test12V5V3.3V5VSBPass/Fail
10% Load9.4 mV7.3 mV11.5 mV8.8 mVPass
20% Load13.9 mV8.0 mV12.4 mV9.4 mVPass
30% Load16.6 mV8.8 mV12.8 mV8.8 mVPass
40% Load19.4 mV9.5 mV14.0 mV9.0 mVPass
50% Load20.5 mV10.0 mV14.7 mV9.1 mVPass
60% Load21.6 mV10.3 mV15.2 mV9.2 mVPass
70% Load21.4 mV10.7 mV15.2 mV9.5 mVPass
80% Load22.2 mV11.6 mV18.1 mV10.0 mVPass
90% Load23.3 mV12.2 mV18.6 mV10.4 mVPass
100% Load34.9 mV14.6 mV19.1 mV12.6 mVPass
110% Load37.6 mV15.0 mV20.0 mV12.9 mVPass
Crossload 115.7 mV11.3 mV18.7 mV9.6 mVPass
Crossload 235.0 mV10.7 mV14.0 mV12.2 mVPass
Image 1 of 4

(Image credit: Tom's Hardware)

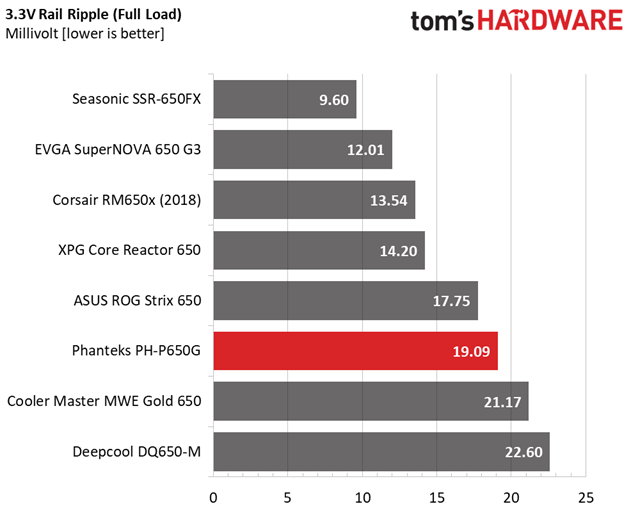

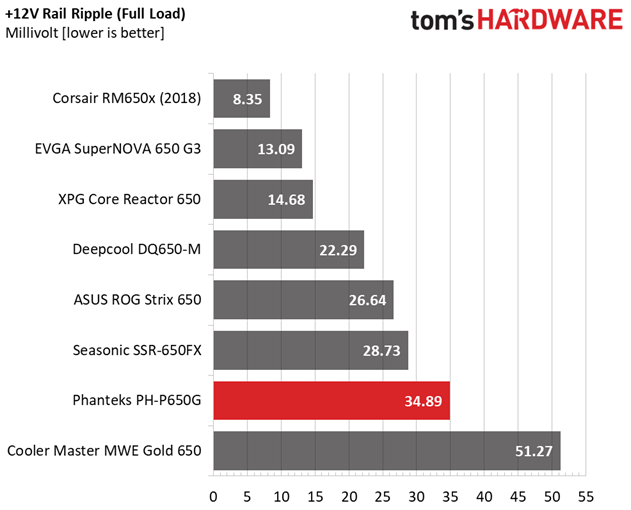

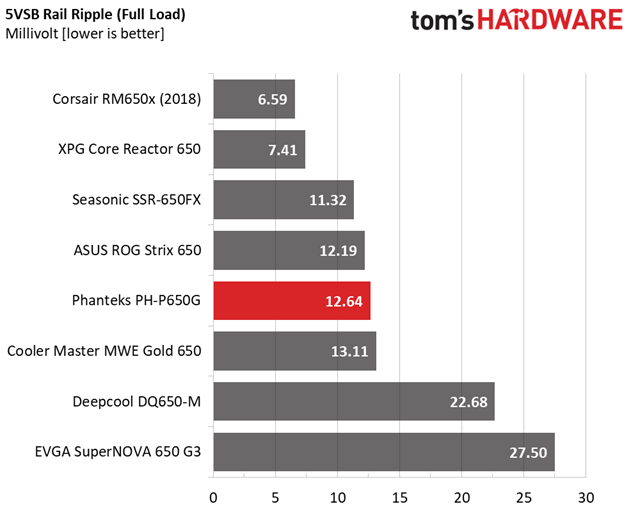

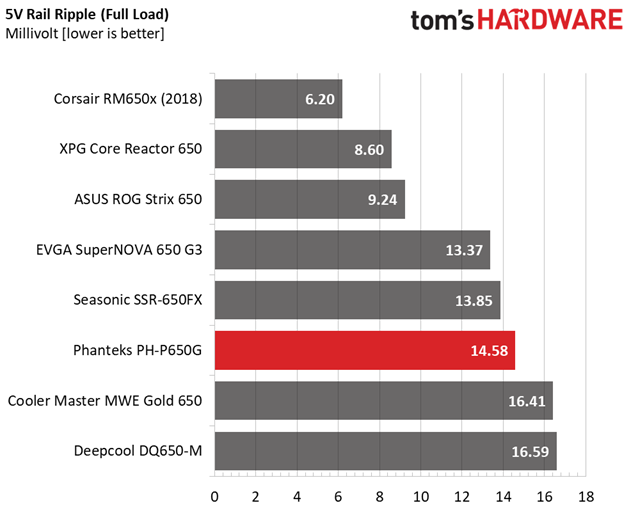

Results 30-33: Ripple Suppression

Image 2 of 4

(Image credit: Tom's Hardware)
Image 3 of 4

(Image credit: Tom's Hardware)
Image 4 of 4

(Image credit: Tom's Hardware)

The ripple suppression is satisfactory, but there is a significant difference between the 90% and 100% load ripple results at +12V.

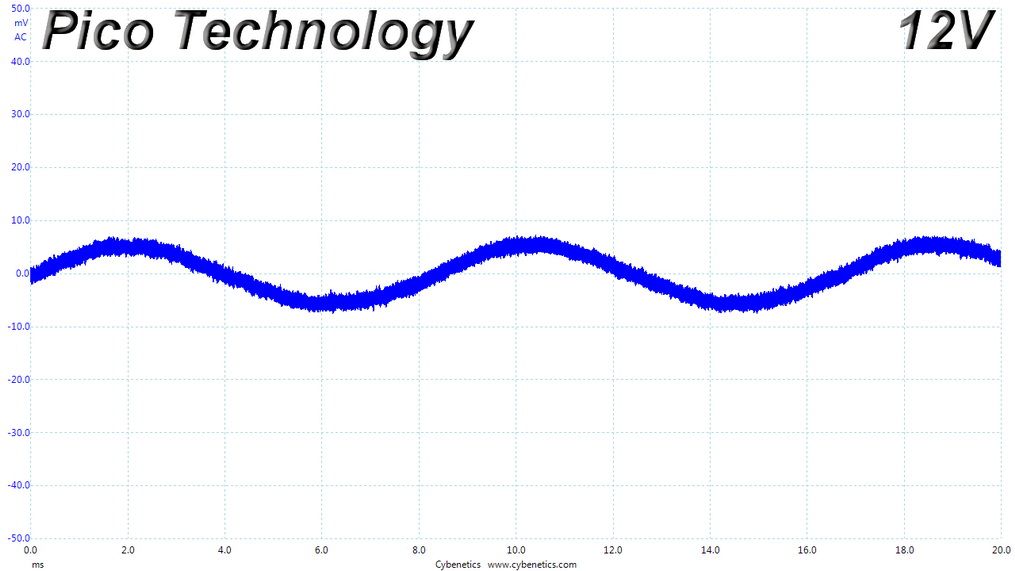

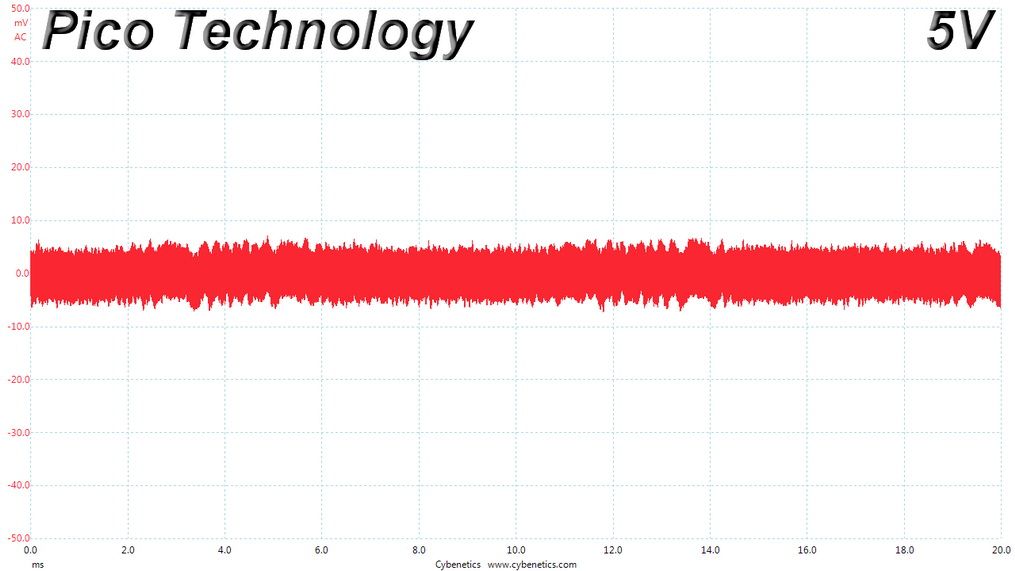

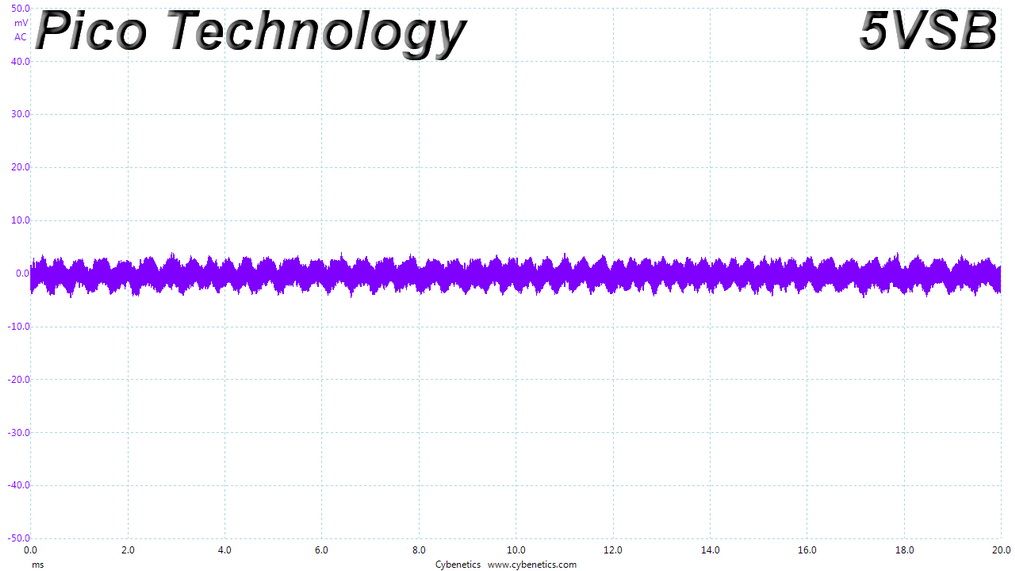

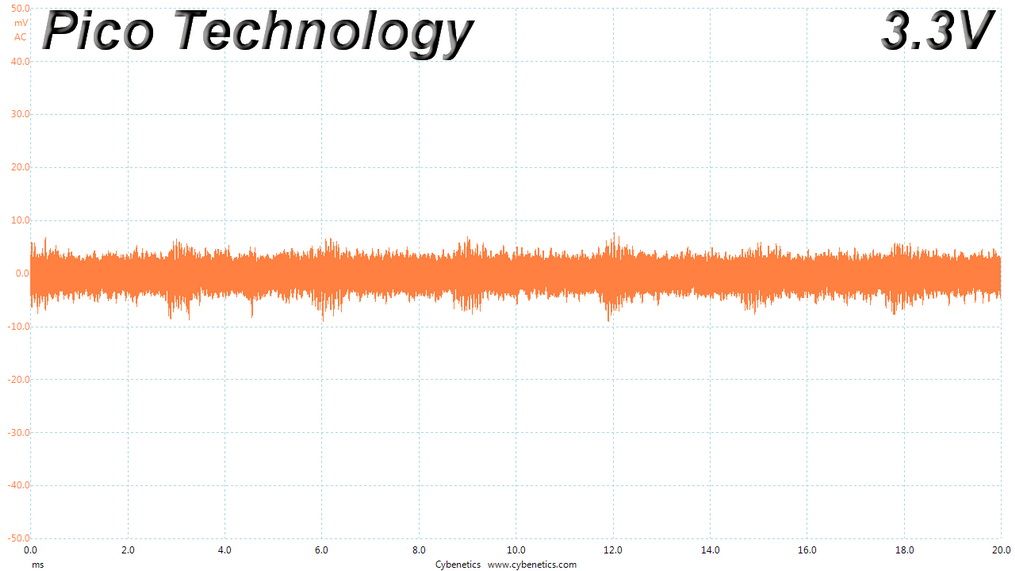

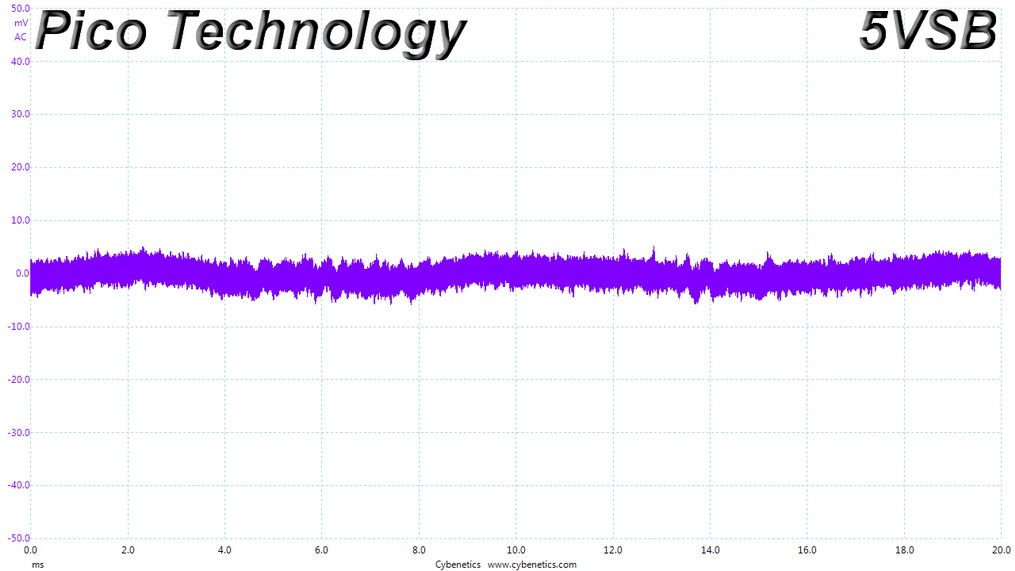

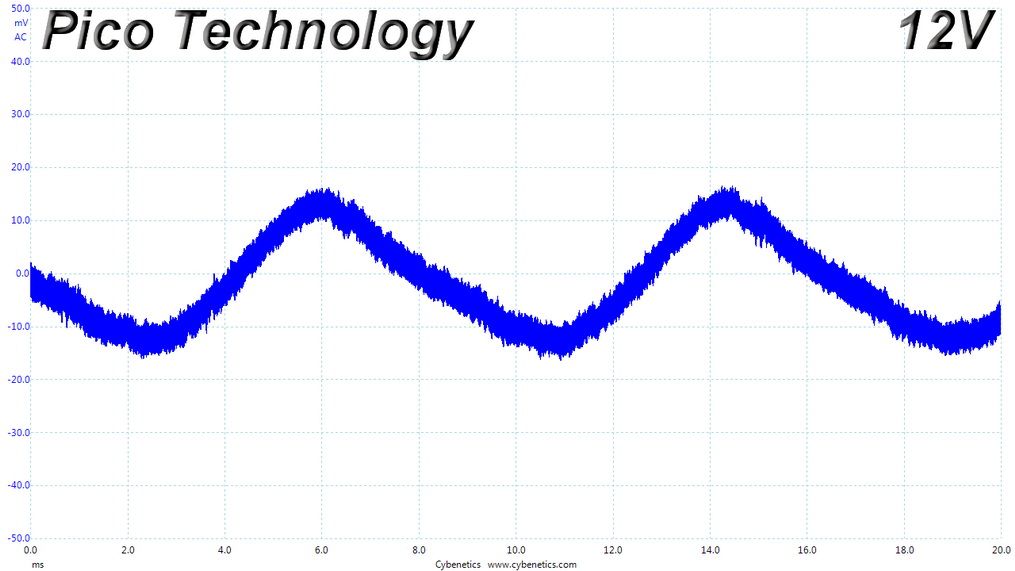

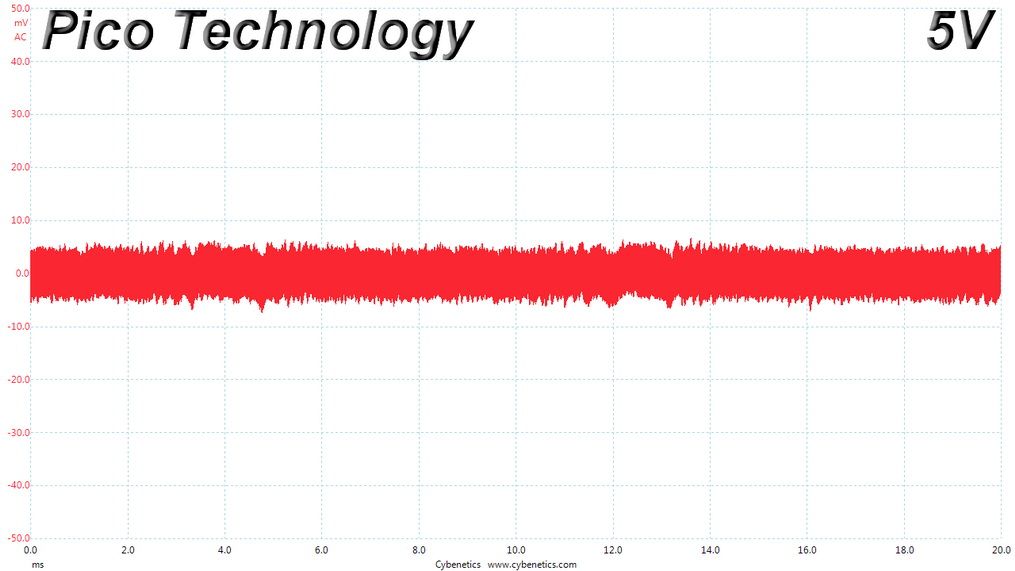

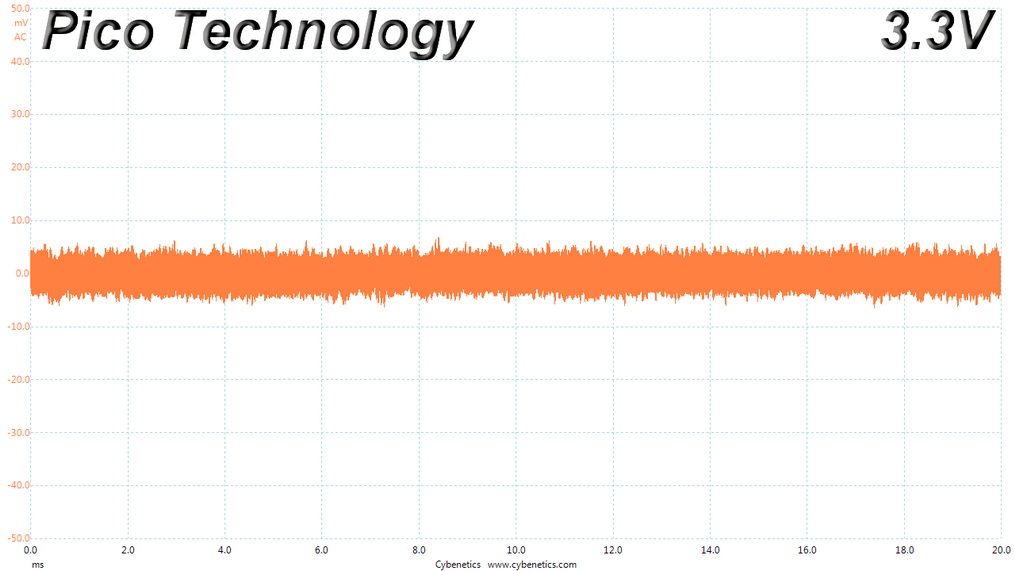

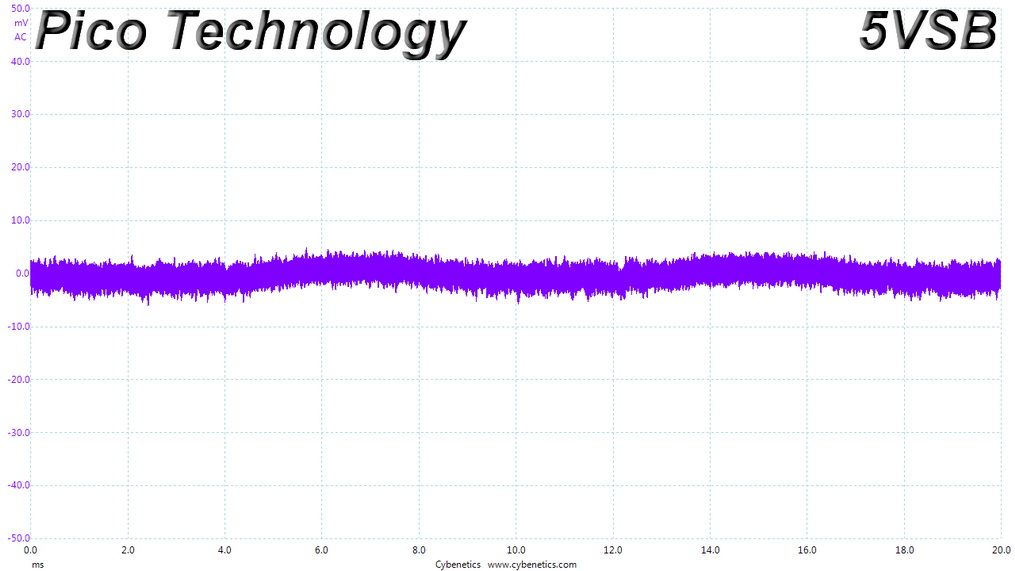

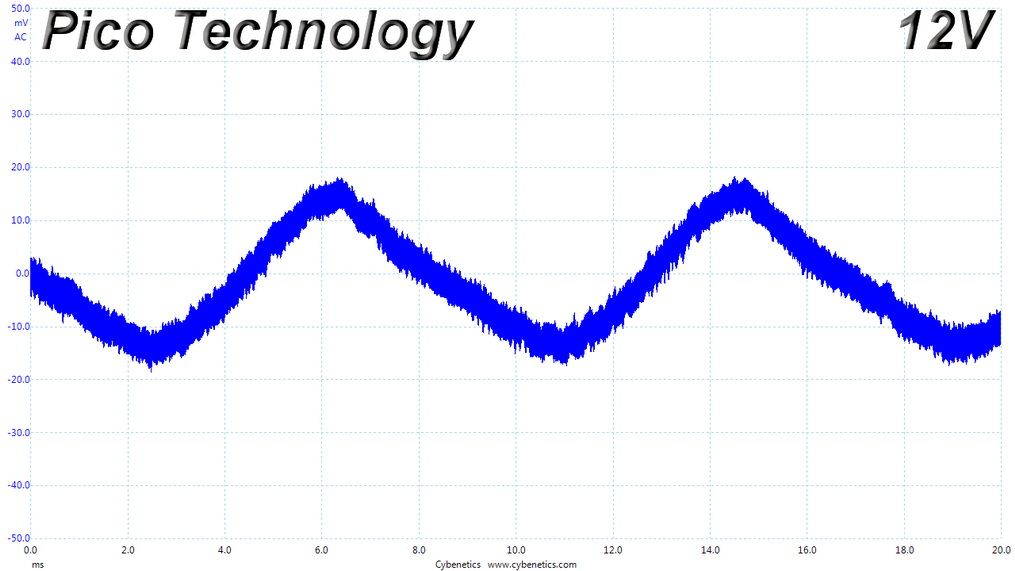

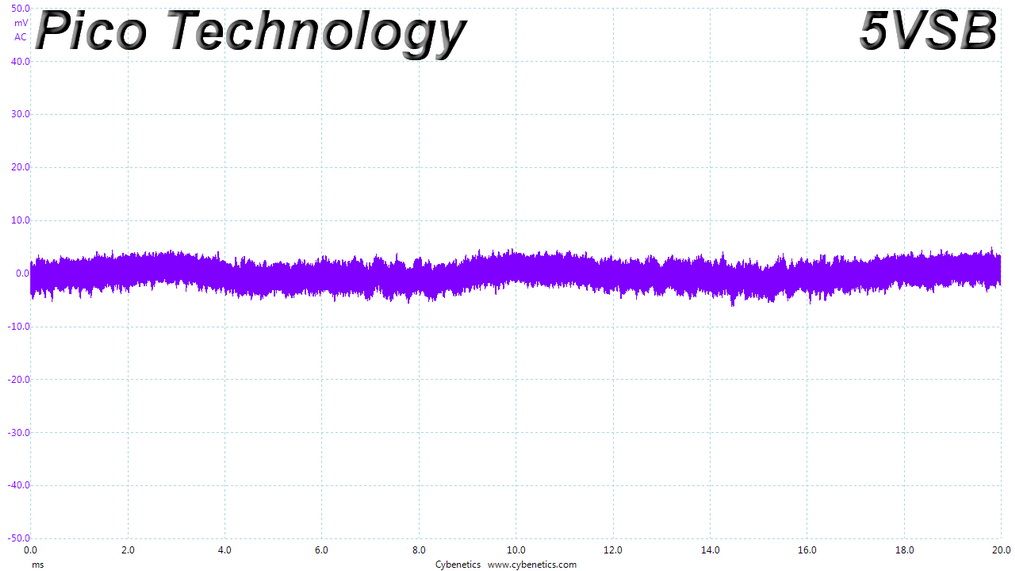

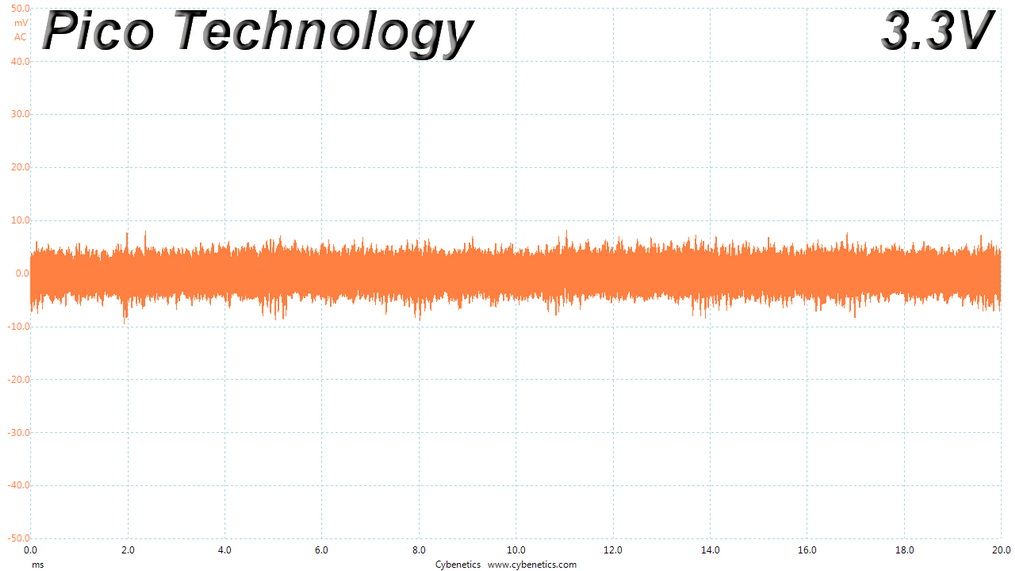

Ripple At Full Load

Image 1 of 4

(Image credit: Tom's Hardware)

Ripple Full Load Scope Shots

Image 2 of 4

(Image credit: Tom's Hardware)
Image 3 of 4

(Image credit: Tom's Hardware)
Image 4 of 4

(Image credit: Tom's Hardware)

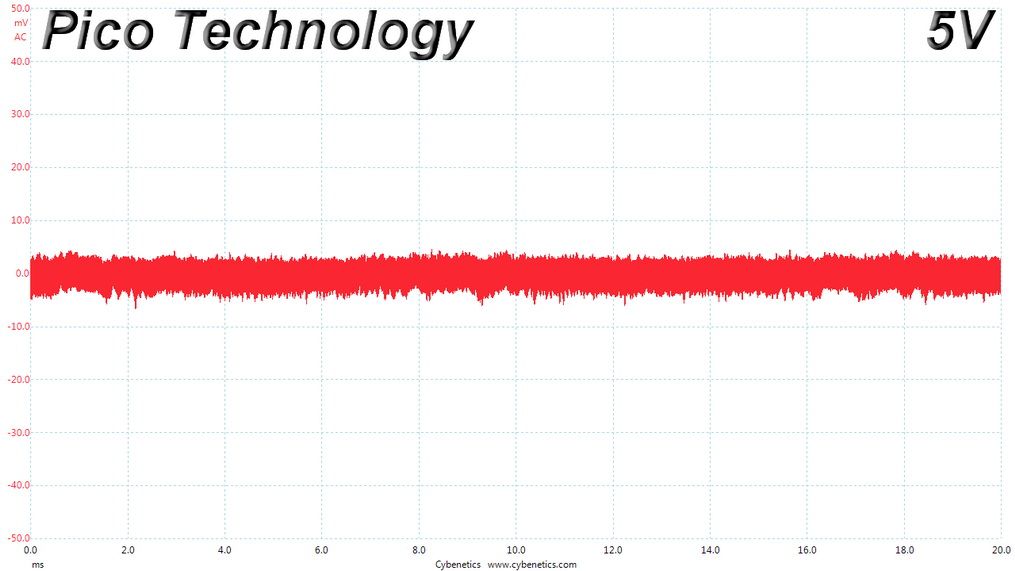

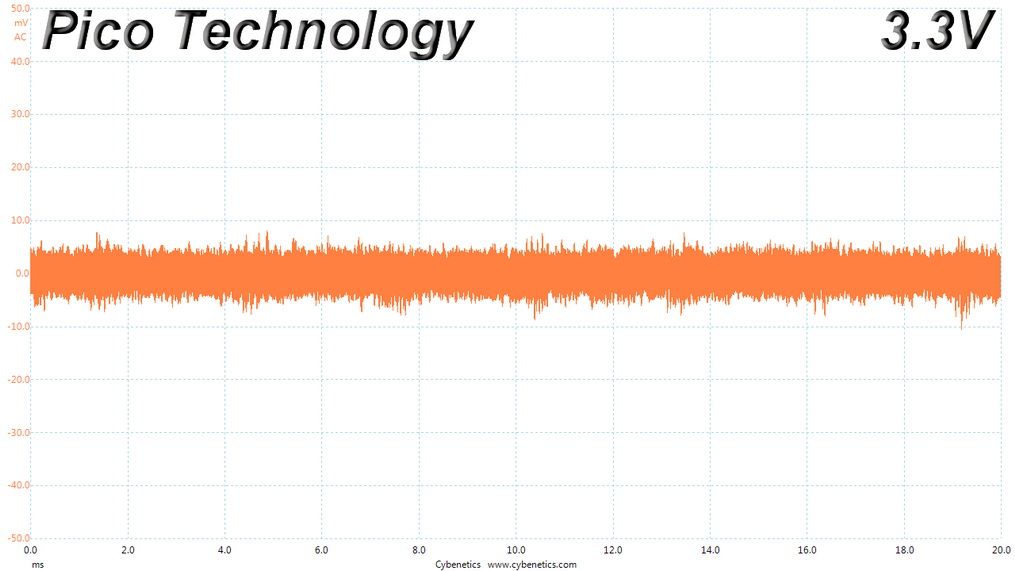

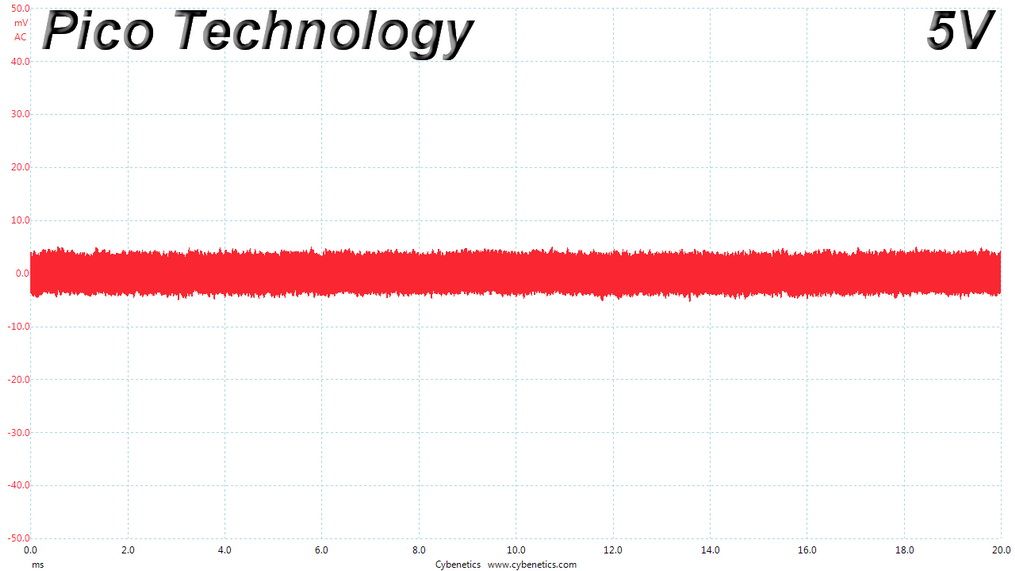

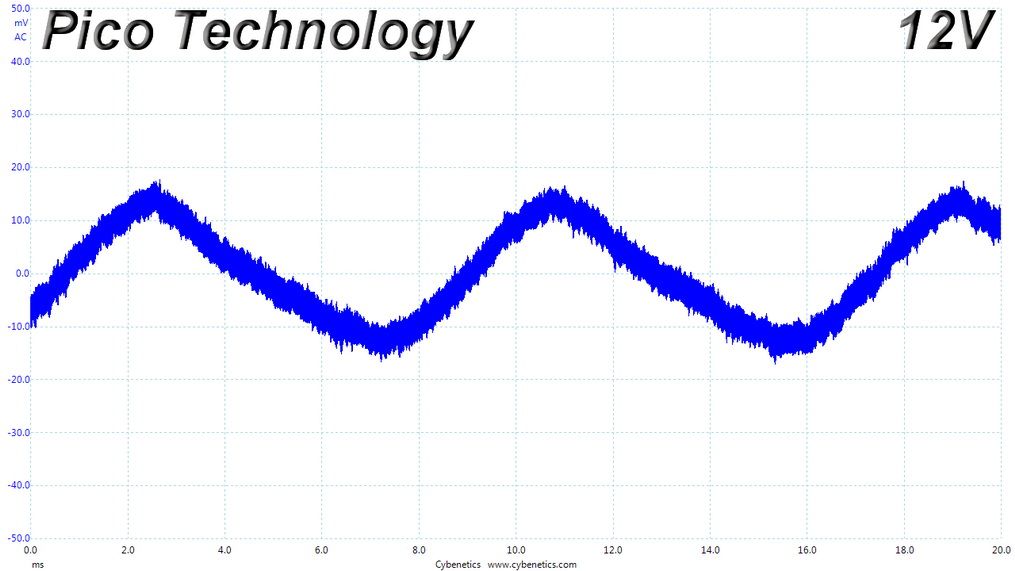

Ripple At 110% Load

Image 1 of 4

(Image credit: Tom's Hardware)

Ripple 110% Load Scope Shots

Image 2 of 4

(Image credit: Tom's Hardware)
Image 3 of 4

(Image credit: Tom's Hardware)
Image 4 of 4

(Image credit: Tom's Hardware)

Ripple At Cross-Load 1

Image 1 of 4

(Image credit: Tom's Hardware)

Ripple CL1 Load Scope Shots

Image 2 of 4

(Image credit: Tom's Hardware)
Image 3 of 4

(Image credit: Tom's Hardware)
Image 4 of 4

(Image credit: Tom's Hardware)

Ripple At Cross-Load 2

Image 1 of 4

(Image credit: Tom's Hardware)

Ripple CL2 Load Scope Shots

Image 2 of 4

(Image credit: Tom's Hardware)
Image 3 of 4

(Image credit: Tom's Hardware)
Image 4 of 4

(Image credit: Tom's Hardware)

EMC Pre-Compliance Testing – Average & Peak EMI Detector Results

Electromagnetic Compatibility (EMC) is the ability of a device to operate properly in its environment without disrupting the proper operation of other close-by devices.

Electromagnetic Interference (EMI) stands for the electromagnetic energy a device emits, and it can cause problems in other close-by devices if too high. For example, it can be the cause of increased static noise in your headphones or/and speakers.

(Image credit: Tom's Hardware)

With the AVG EMI detector, we see two spurs exceeding the corresponding limits, but with the Quasi-Peak detector, everything seems fine. Nonetheless, we would like to see lower EMI emissions with the QP detector below 1MHz.
