Ripple Measurements
To learn how we measure ripple, please click here.
The following table includes the ripple levels we measured on the Enigma 850 's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V, and 5VSB).
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
|---|---|---|---|---|---|
| 10% Load | 22.8mV | 4.1mV | 5.5mV | 10.9mV | Pass |
| 20% Load | 20.5mV | 4.8mV | 5.2mV | 11.6mV | Pass |
| 30% Load | 21.1mV | 5.3mV | 5.6mV | 15.2mV | Pass |
| 40% Load | 23.0mV | 6.3mV | 6.3mV | 15.4mV | Pass |
| 50% Load | 26.9mV | 7.7mV | 7.9mV | 15.4mV | Pass |
| 60% Load | 30.6mV | 8.6mV | 14.3mV | 16.5mV | Pass |
| 70% Load | 34.7mV | 10.3mV | 17.1mV | 17.6mV | Pass |
| 80% Load | 40.2mV | 11.0mV | 16.6mV | 18.7mV | Pass |
| 90% Load | 45.3mV | 11.4mV | 13.9mV | 19.2mV | Pass |
| 100% Load | 52.5mV | 12.7mV | 14.0mV | 23.8mV | Pass |
| 110% Load | 57.5mV | 14.5mV | 14.6mV | 23.2mV | Pass |
| Cross-Load 1 | 25.1mV | 6.9mV | 7.6mV | 11.7mV | Pass |
| Cross-Load 2 | 52.5mV | 12.2mV | 11.7mV | 15.7mV | Pass |

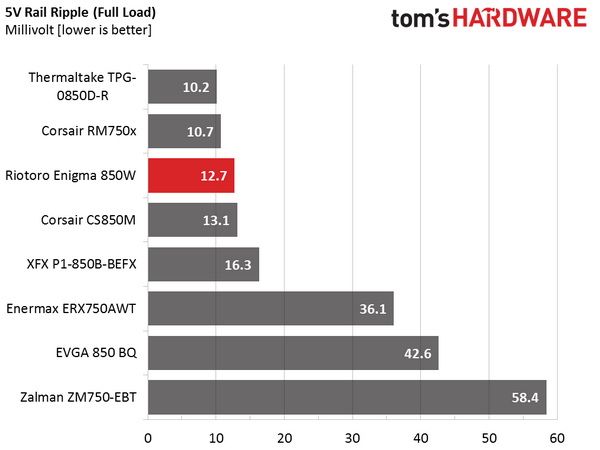

While ripple suppression at +12V is decent, it would be much better if it stayed below 45-50mV under the worst-case scenario. Fortunately, ripple suppression on the minor rails is excellent.
Ripple Oscilloscope Screenshots

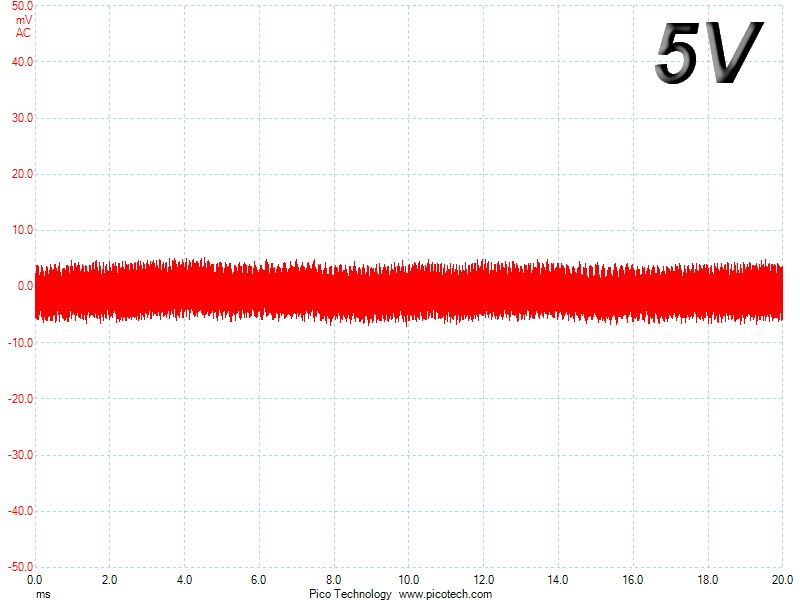

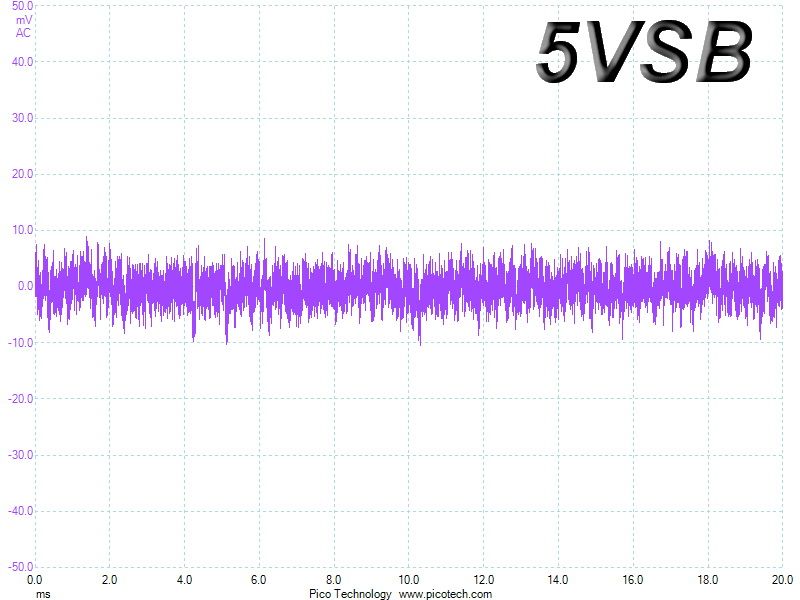

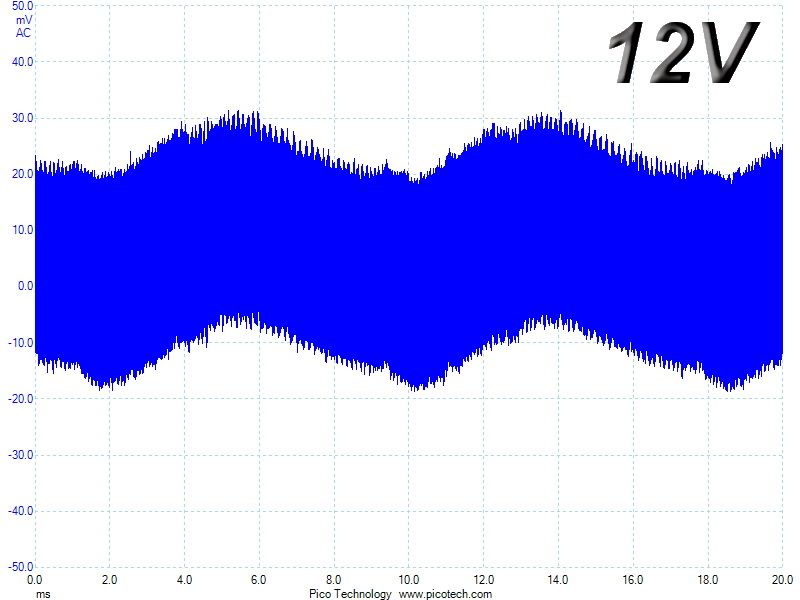

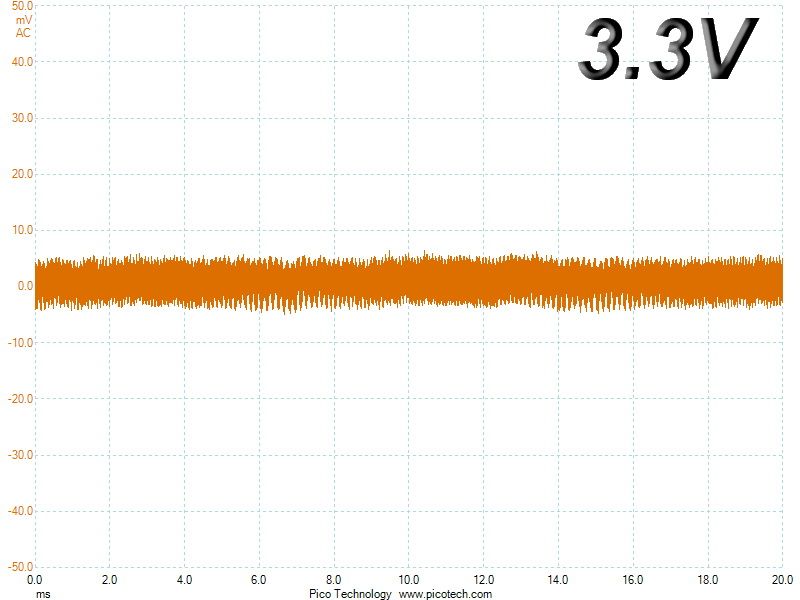

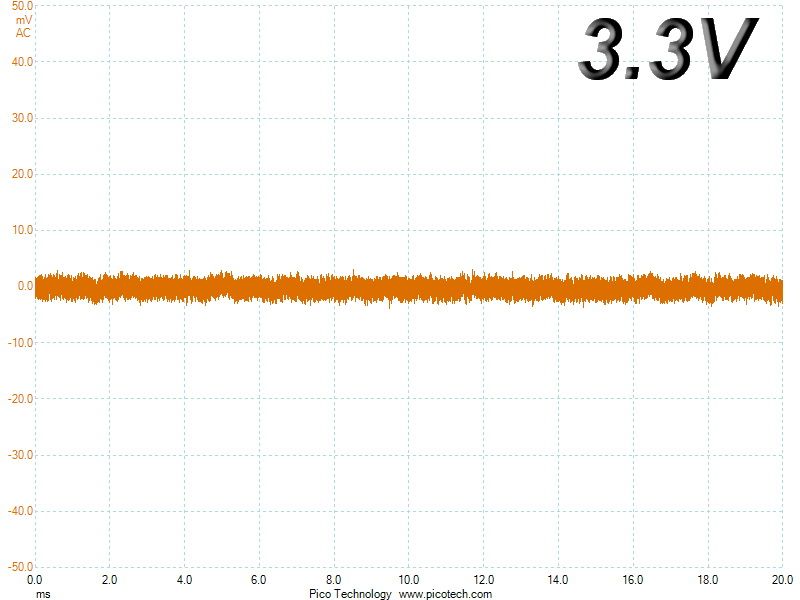

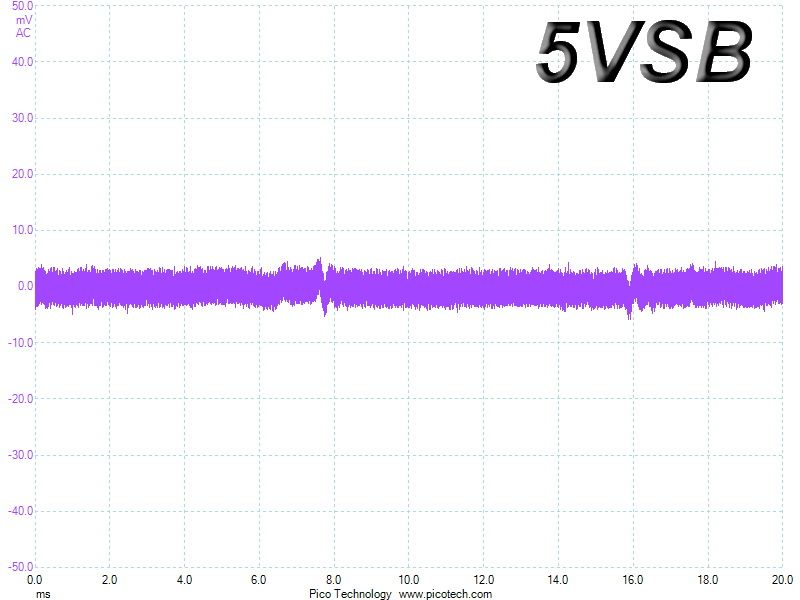

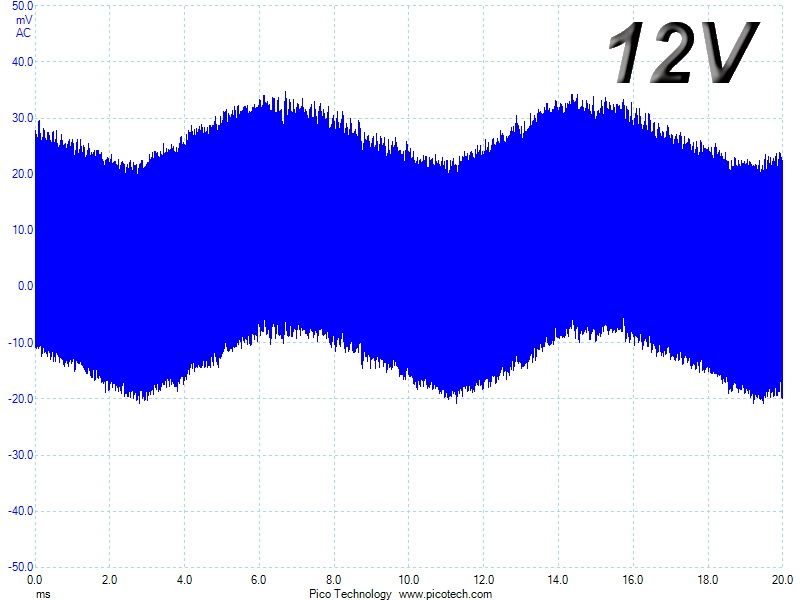

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

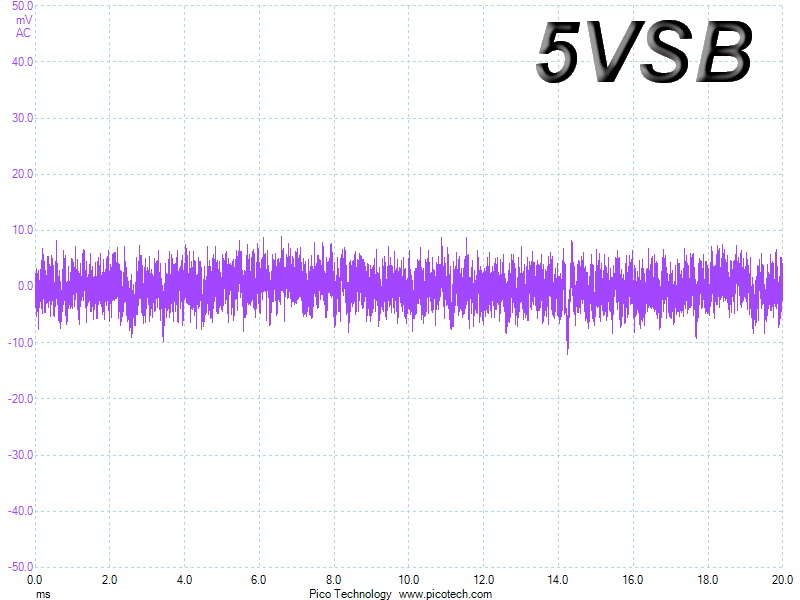

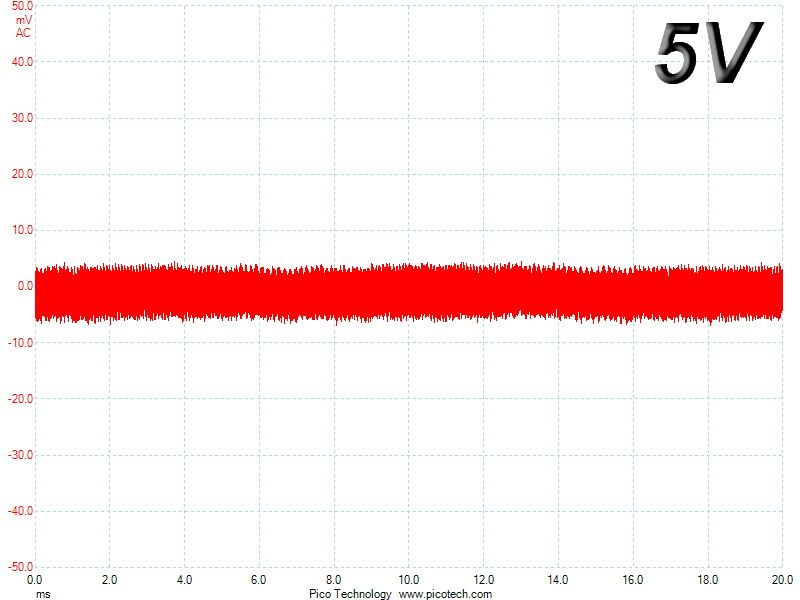

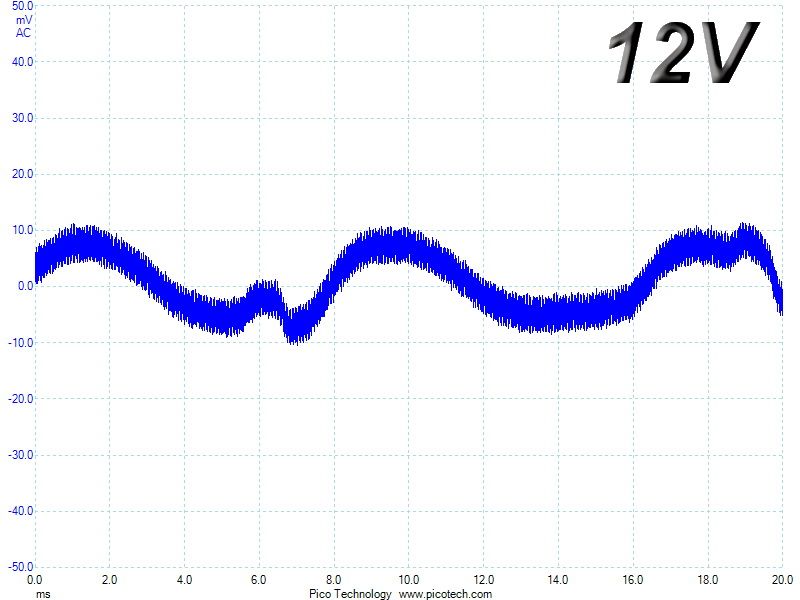

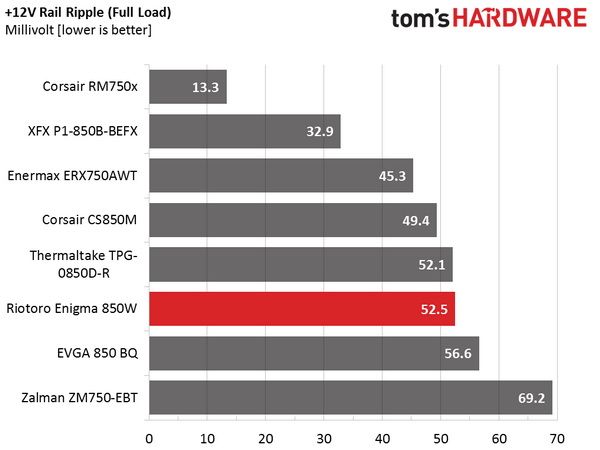

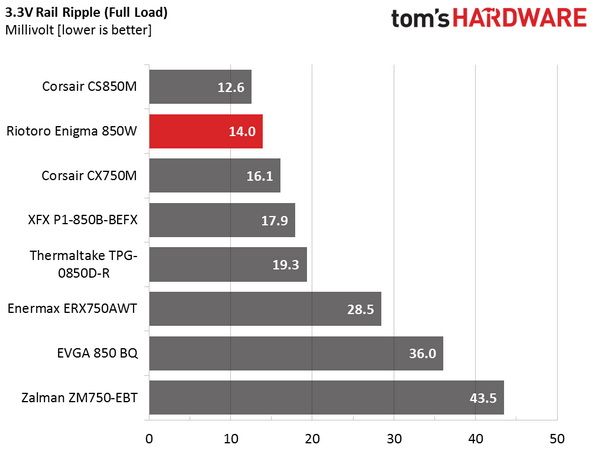

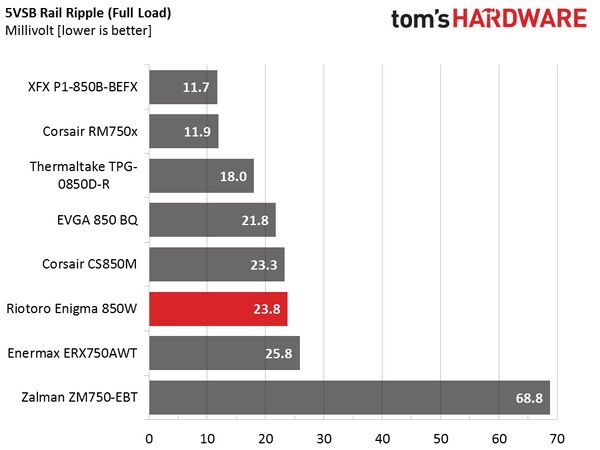

Ripple At Full Load

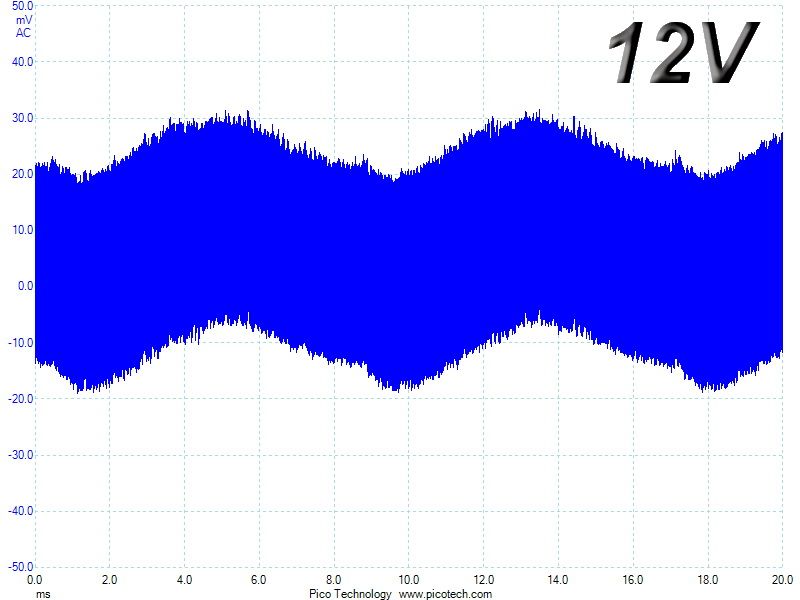

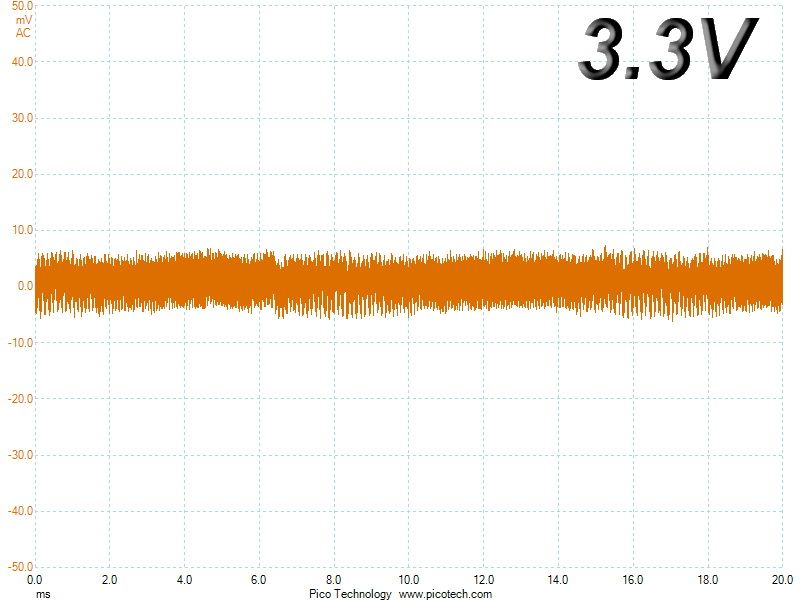

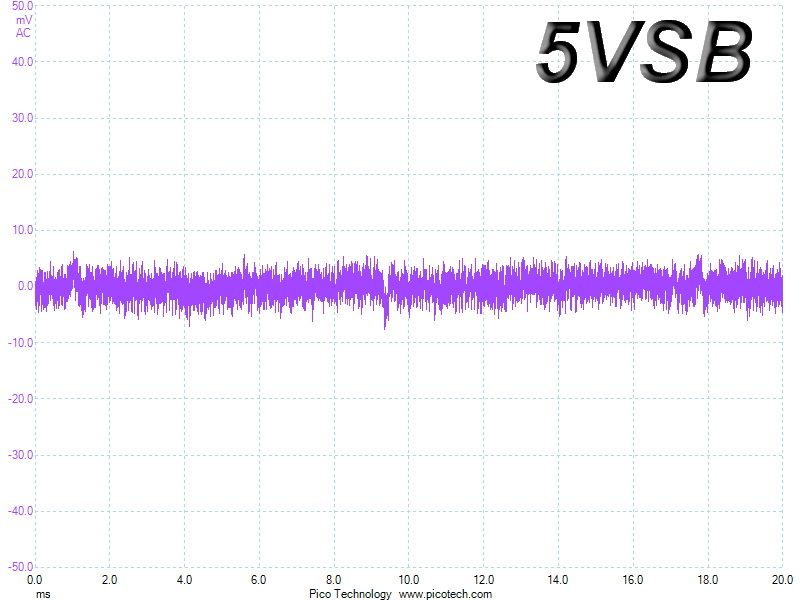

Ripple At 110-Percent Load

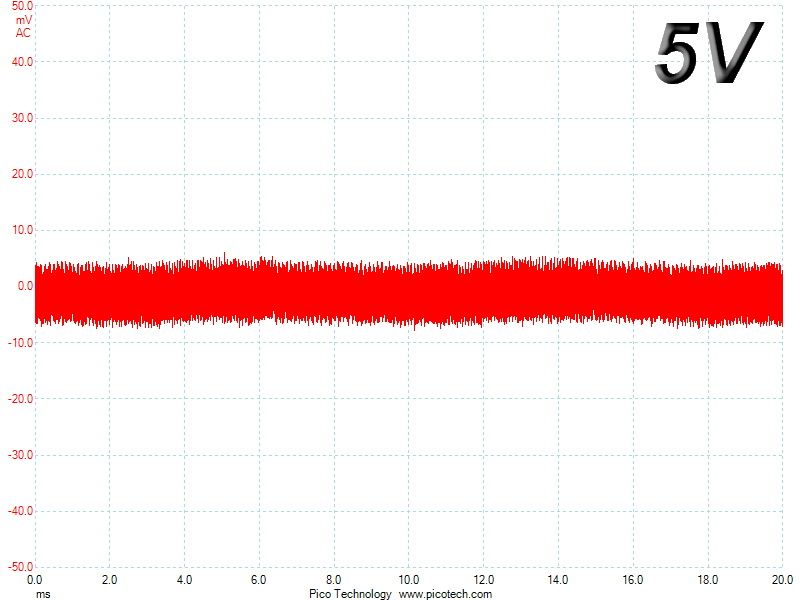

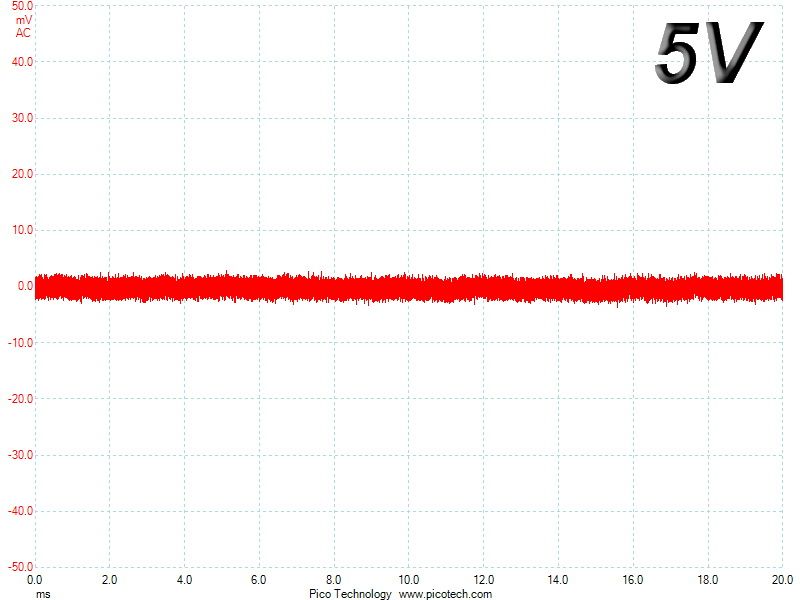

Ripple At Cross-Load 1
