Unmanaged Gigabit Ethernet Switch Round-Up

Round-ups
By Eric Bliss
last updated

We rounded up unmanaged gigabit Ethernet switches from Netgear, Amped Wireless and ZyXEL to see which one deserves a thumbs up.

ZyXEL GS-108B

ZyXEL's GS-108B fits into the company's line-up alongside the GS-108S and the five-port GS-105S.

Features

The GS-108B supports 8000 MAC addresses and has a 128KB memory buffer. It supports 9K jumbo frames, status LEDs for power and link activity, MDI/MDI-X auto crossover, 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3x Full Duplex Flow Control, and 802.3az Energy Efficient Ethernet. The GS-108B is housed in a silver-colored metal housing that should prove durable and help with thermal performance.

Installation

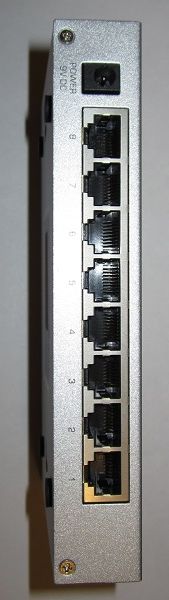

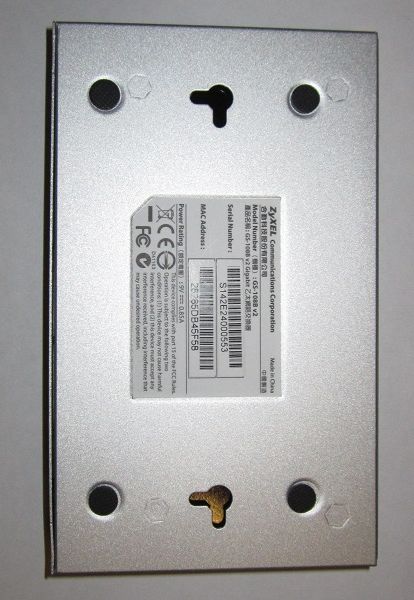

You shouldn't have any trouble installing the compact GS-108B, which measures 6.46 x 3.86 x 1.02 inches. However, the GS-108B's data ports and power connector are located on the back of the switch; as with Amped's G8SW switch, this could be an issue if you want to separate the cables. Four adhesive rubber feet can be securely attached to the bottom of the chassis for a bit of elevation, providing a non-slip base. Wall mounting is also an option, with two notches cut out on the underside of the metal housing. A wall wart adapter supplies 9V/0.85A power.

Image 1 of 2

General Observations

The switch ports fit securely within the case, and we didn't notice any flex after repeatedly inserting and removing cables. Inside, everything looks to be in place. A heat sink tops the unidentified SoC, which, along with the metal enclosure, should help dissipate thermal energy. The housing is built well, though the front is covered with a plastic strip that may become scratched over time and detract from the product's aesthetics.

ZyXEL GS-108B Internal

In The Box

The box contents are packaged securely. Inside, you'll find a smaller box containing four adhesive pads, a basic installation guide, a power adapter and a warranty instruction paper. The installation guide shows an example of how the switch can be connected to other devices.

ZyXEL GS-108B Box Contents

Warranty And Pricing

At the time of writing, the GS-108B is available from online retailers like Newegg and Amazon. The average price is between $35 and $45, depending on where you find it and if it's on sale.

As for warranty coverage, ZyXEL guarantees the hardware for two years. After providing proof of purchase, ZyXEL will, at its discretion, repair or replace the product or components, or it may elect to refund the switch's original purchase price. Repaired or replaced hardware is protected for the remainder of the original warranty period or 60 days, whichever is longer. The purchaser is responsible for all shipping costs associated with the service.

Eric Bliss
54 Comments Comment from the forums
  • dealcorn
    Gigabyte ethernet switches often run 24/7. Power consumption data should have been measured.
    Reply
  • Aslan7
    Useful info to have, but there's a lot more switches out there than this. 8 port switches are only big enough for the living room.

    TV
    Blueray player
    2 consoles
    Streaming media player
    Audio amplifier
    Home theater PC

    8 port barely does it for the living room. We need some reviews of 16 and 24 port gigabit switches for the home, plus I'm sick and tired of gigabit and want 10GBE already, but all of the equipment seems horrifically expensive or has flaky drivers.

    What' is good in 10GBE both adapters and switches?
    Reply
  • CaedenV
    Useful info to have, but there's a lot more switches out there than this. 8 port switches are only big enough for the living room.

    TV
    Blueray player
    2 consoles
    Streaming media player
    Audio amplifier
    Home theater PC

    8 port barely does it for the living room. We need some reviews of 16 and 24 port gigabit switches for the home, plus I'm sick and tired of gigabit and want 10GBE already, but all of the equipment seems horrifically expensive or has flaky drivers.

    What' is good in 10GBE both adapters and switches?
    For 16 and 24 port switches you are going to find the same: Netgear is so far beyond the competition, and so much cheaper than anything out there, that is amazes me that anyone else makes cheap unmanaged switches. Unless you need a cheap managed switch, there just are not any other real options on the market.

    For 10GbE switches, as far as I can tell there aren't any good cheap consumer items on the market yet. There is a flood of 'cheap' used profesional equipment available... but even then you are looking at $1-200 per adapter, and ~$1K for a switch, and typically not in great condition... and because it is pro equipment you have to do a bit of research to get it working properly.
    10GbE 'is coming' but I think we are still a few years out from seeing normal consumer 'plug and play' equipment, and a few more years before it becomes affordable.
    Reply
  • Onus
    This makes me glad I chose a Netgear switch for my motherboard LAN adapter throughput testing. The differences are very small, but might make a difference.
    Reply
  • Rookie_MIB
    Right now you can get 10GbE adapters for your computer for a reasonable price for used equipment ($20-$50), it really is the switches which are ridiculous. Overall though for the most part, it's only some fringe use cases where a home user might need 10GbE ethernet.

    First - unless you have some insane connection to the outside world, the most you can really get right now as far as internet speeds is 1Gb anyhow. That becomes your choke point.

    Next, overall, video is the most demanding when it comes to traffic, and the average bitrate requirement for 4k streaming comes in somewhere around 15Mbit. Doing the math, that means an average 1Gbit connection could support about 60 concurrent streams. Your average home WON'T be doing that. Honestly, a small apartment complex wouldn't even hit that.

    Now, who knows what the future will bring, perhaps some killer app might require that kind of bandwidth, but right now it's not here for the majority of the people. That doesn't mean that we should stop developing and investing in increased bandwidth, but right now 10GbE is a bit over the top for a home network.
    Reply
  • SirGCal
    17330928 said:
    Useful info to have, but there's a lot more switches out there than this. 8 port switches are only big enough for the living room.

    8 port barely does it for the living room. We need some reviews of 16 and 24 port gigabit switches for the home, plus I'm sick and tired of gigabit and want 10GBE already, but all of the equipment seems horrifically expensive or has flaky drivers.

    What' is good in 10GBE both adapters and switches?

    I agree. I personally went with a Cisco SG100-16 for only $109 at the time (Amazon), but it hasn't changed much either. Up now, down later, etc. Like everything on the net.

    I do have some 10G gear myself but it's easier just to do some port ganging, teaming or aggregation. But that requires a different switch yet again. Wee... But then also you'd burn through ports faster.
    Reply
  • InvalidError
    How is the lack of heatsink a 'con' when there is no significant heat even without one? If no heatsink is necessary to keep temperatures reasonable, putting a heatsink in is just a waste of material and an unnecessary cost since it won't improve performance or reliability in any way.
    Reply
  • tsnor
    (1) Good test. Really nice to see data confirming we should just buy whatever switch is on sale.
    (2) would have been nice to see a large file transfer done 3 times using one switch to get the variance and then done for all switches just to confirm that the micro benchmarks (which say we won't see a difference) are accurate.
    (2) I did not see what was measured for response time. Maybe I missed it. Interesting to note most SSDs can deliver 4K of data in roughly the same time as the measured 'response time'
    Reply
  • nukemaster
    How is the lack of heatsink a 'con' when there is no significant heat even without one? If no heatsink is necessary to keep temperatures reasonable, putting a heatsink in is just a waste of material and an unnecessary cost since it won't improve performance or reliability in any way.
    People like heatsinks :)
    Reply
  • firefoxx04
    Would love to see power consumption. I just purchased a TP-LINK TL-SG108 8-Port and could not be happier. I was very skeptical of the cost but it runs great. I still max out my gigabit cards at 100-120MB/s. Power consumption is VERY low and the switch itself is tiny. Very happy for $25 with prime shipping.
    Reply
