Why you can trust Tom's Hardware
The Cooler Master MWE Bronze 650 achieves higher performance since it uses a more advanced platform. This model is usually more expensive than the Pylon 650, however.
The graph below depicts the cooling fan's average noise over the PSU's operating range, with an ambient temperature between 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit).
The average noise output exceeds 30 dBA, so you cannot call this PSU silent. Nonetheless, at light and moderate loads, the fan's speed is kept low.
The following graph shows the PSU's average efficiency throughout its operating range with an ambient temperature close to 30 degrees Celsius.
The platform's average efficiency is at a good level. The Corsair CX650F is notably ahead, though.
Power Factor Rating

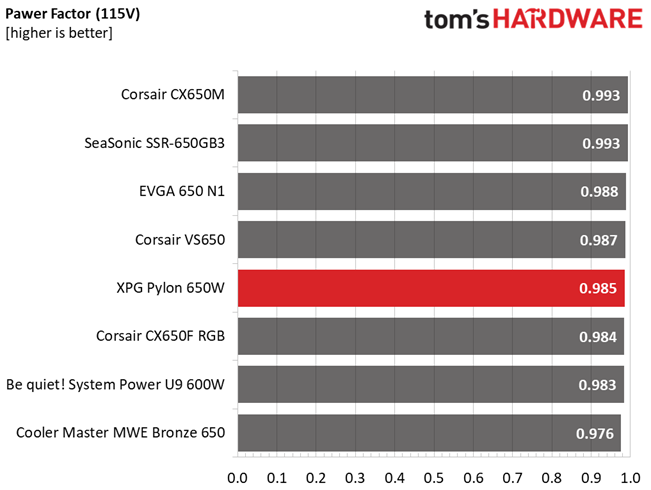

The following graph shows the PSU's average power factor reading throughout its operating range with an ambient temperature close to 30 degrees Celsius.
The APFC converter performs well.
MORE: Best Power Supplies
MORE: All Power Supply Content
Current page: Performance, Noise, Efficiency and Power FactorPrev Page Transient Response Tests, Timing Tests, Ripple Measurements and EMC Pre-Compliance Testing Next Page Bottom Line
Aris Mpitziopoulos is a Contributing Editor at Tom's Hardware US, covering PSUs.
