"When Cool'n'Quiet is deactivated, idle power consumption rises to 51 watts. The jump in power consumption at 2.70 GHz is a direct result of the core voltage increase from 1.250 V to 1.400 V."
And the bars for Phenom 9600 BE and Phenom 9600 BE (CnC) should be switched around.

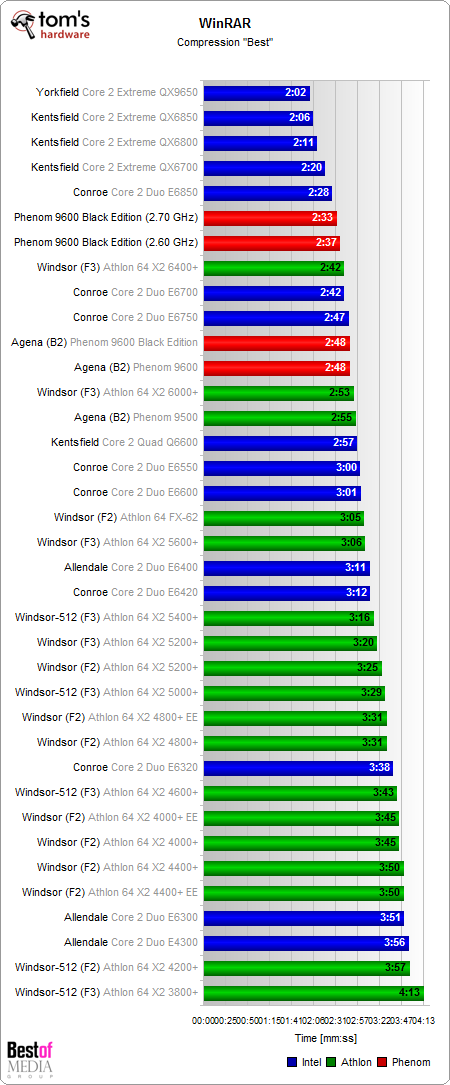

I think it's also important to mention the fact that Vista SP1 includes it's OWN TLB fix which overrides the bios setting of many boards. I used an app that works in conjunction with Crystal CPUID to change the MSR directly to deactivate this secondary TLB fix. It caused a dramatic improvement in performance; the quick and simple WinRAR bench went from 232 to ~1300 after the fix. Just think it's worth mentioning!
I think I may have found a new problem with this bug. I have a Phenom X4 9600, and have tried two different motherboards. The problem occurs when running Windows 7. BSOD with a message stating that the operating system did not receive an clock interupt signal from the second processor. At first I thought it was a bios problem, but have since had to replace the motherboard. Tried Windows 7 again after replacing the motherboard and still having the same problem.
"When Cool'n'Quiet is deactivated, idle power consumption rises to 51 watts. The jump in power consumption at 2.70 GHz is a direct result of the core voltage increase from 1.250 V to 1.400 V."
And the bars for Phenom 9600 BE and Phenom 9600 BE (CnC) should be switched around.
