Corsair RM650x PSU Review

Ripple Measurements

To learn how we measure ripple, please click here.

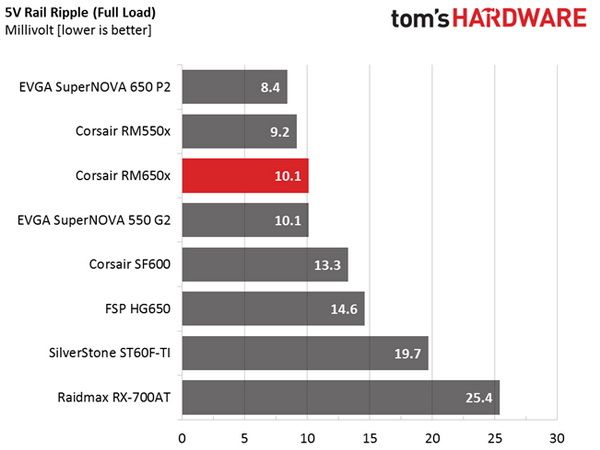

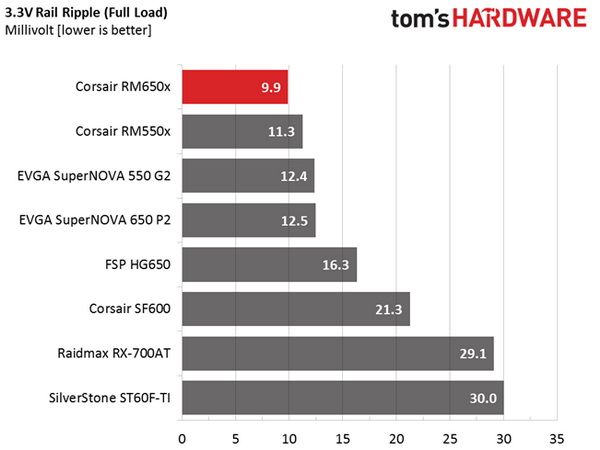

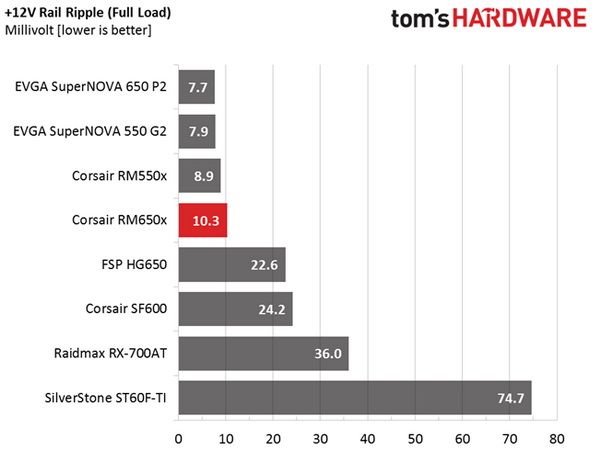

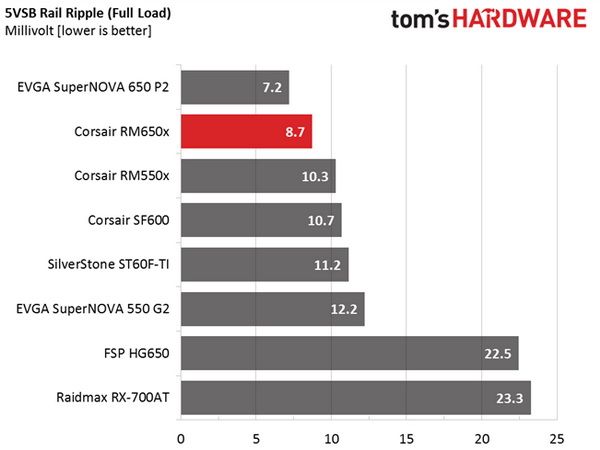

The following table includes the ripple levels we measured on the RM650x's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V and 5VSB).

Test12V5V3.3V5VSBPass/Fail
10% Load3.6mV8.4mV5.2mV5.2mVPass
20% Load5.0mV8.8mV5.7mV5.2mVPass
30% Load5.0mV9.1mV5.2mV5.4mVPass
40% Load5.3mV8.9mV5.5mV6.0mVPass
50% Load6.1mV9.0mV5.9mV5.4mVPass
60% Load6.0mV9.4mV7.7mV6.3mVPass
70% Load6.7mV9.2mV7.5mV6.5mVPass
80% Load7.6mV9.8mV8.3mV7.2mVPass
90% Load9.4mV9.4mV8.7mV7.3mVPass
100% Load10.3mV10.1mV9.9mV8.7mVPass
110% Load11.6mV10.9mV10.6mV9.3mVPass
Cross-Load 16.6mV10.7mV8.7mV7.0mVPass
Cross-Load 29.7mV10.3mV9.6mV7.3mVPass

Corsair's ripple suppression is amazing! This platform is the only one we've seen able to match Super Flower's Leadex design, which is used by EVGA's high-end models. Corsair, enlisting CWT's expertise, managed to build a ripple-proof platform under all operating conditions. There are only a few PSUs out there able to offer similar performance.

Ripple Oscilloscope Screenshots

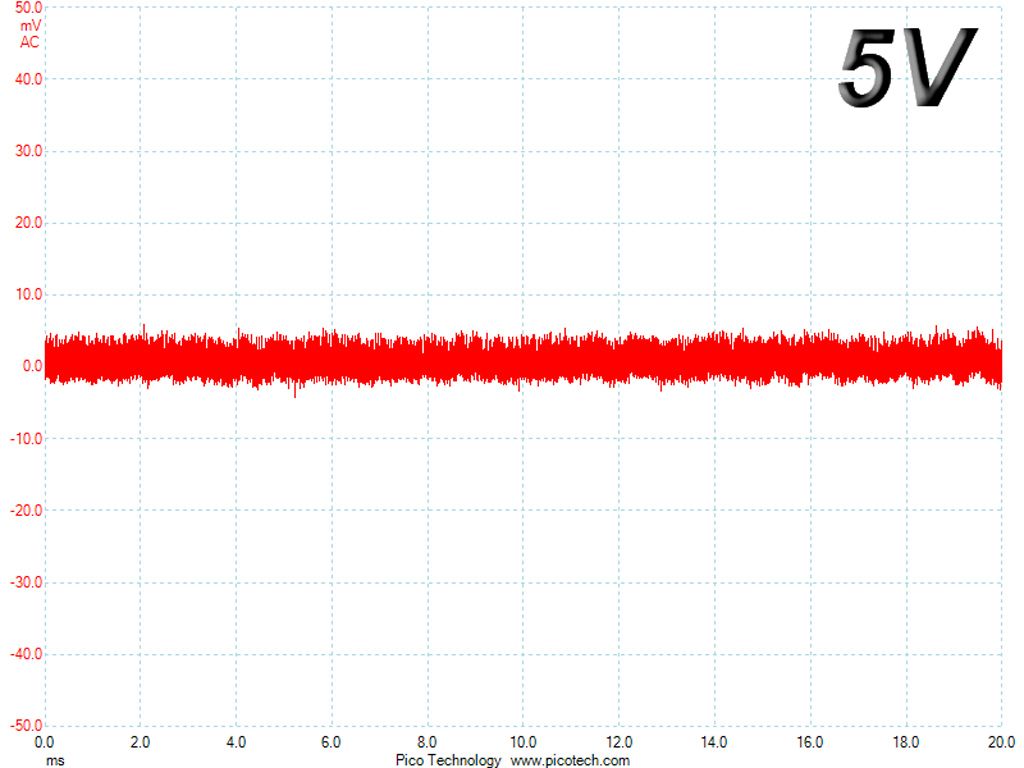

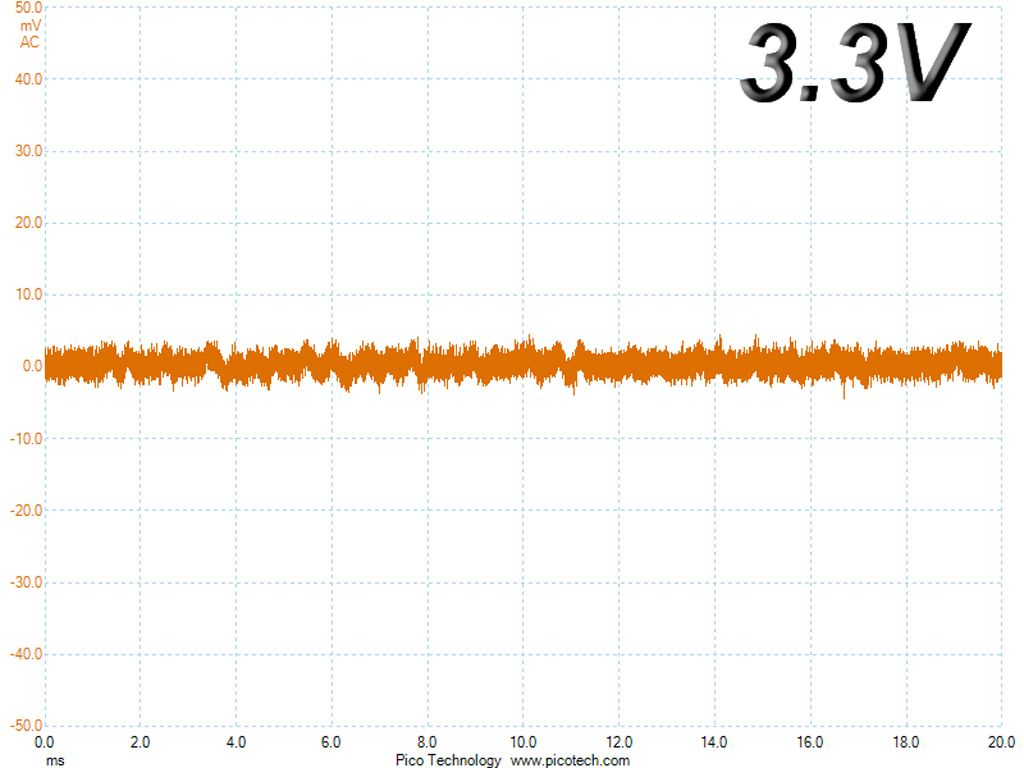

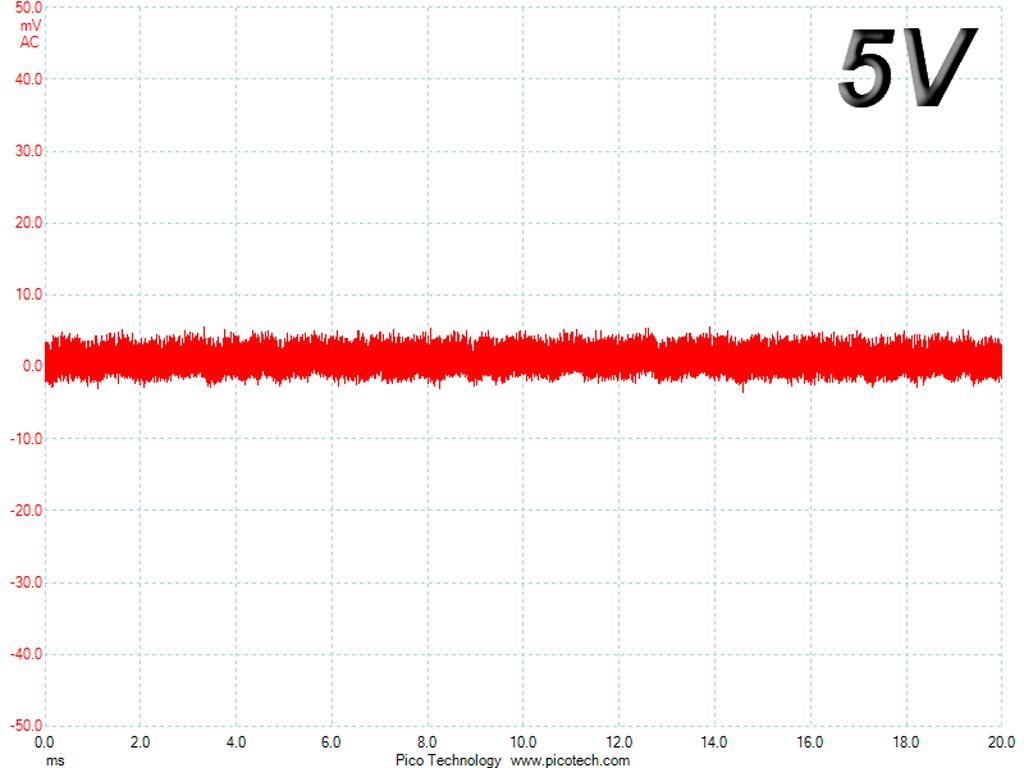

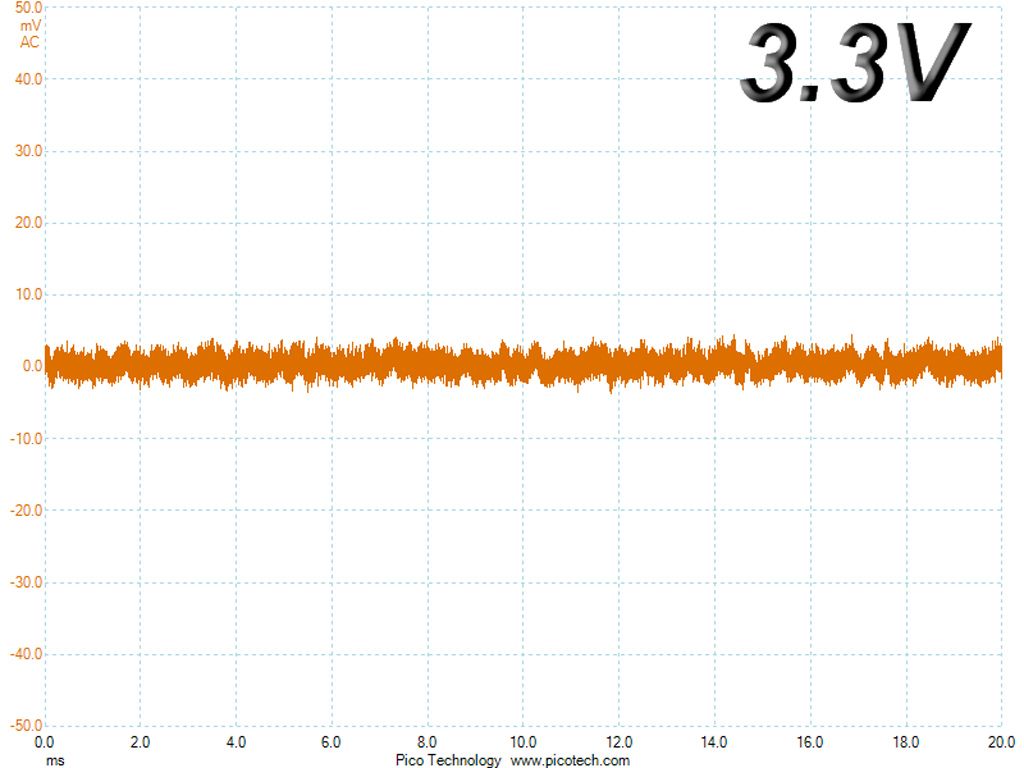

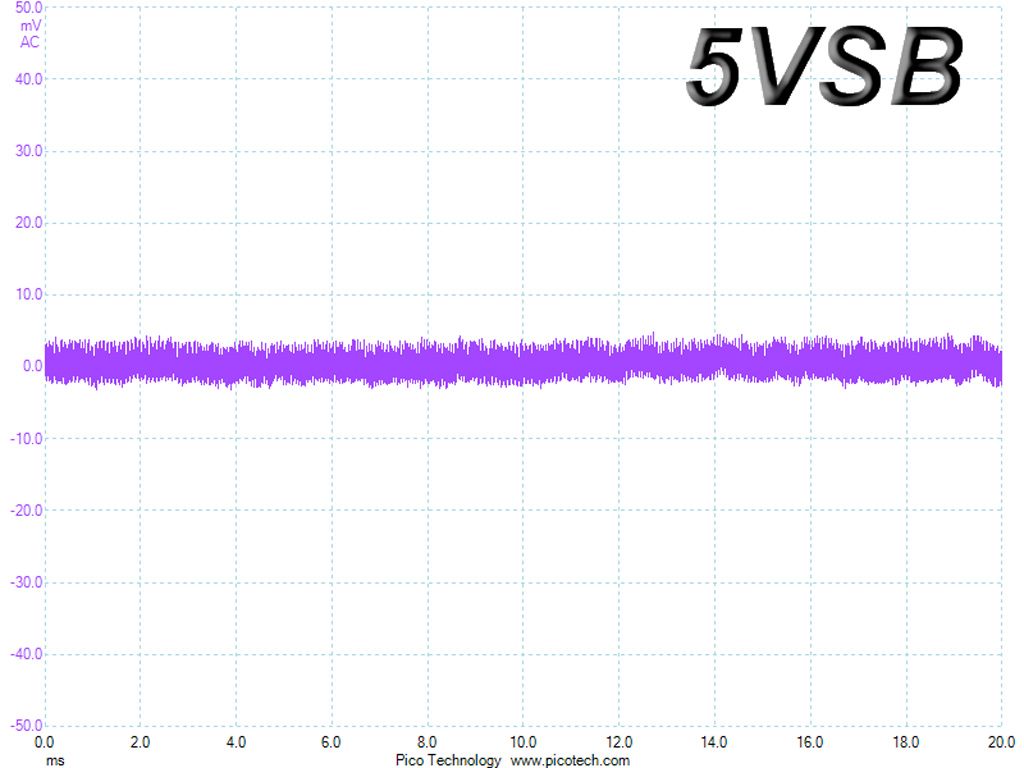

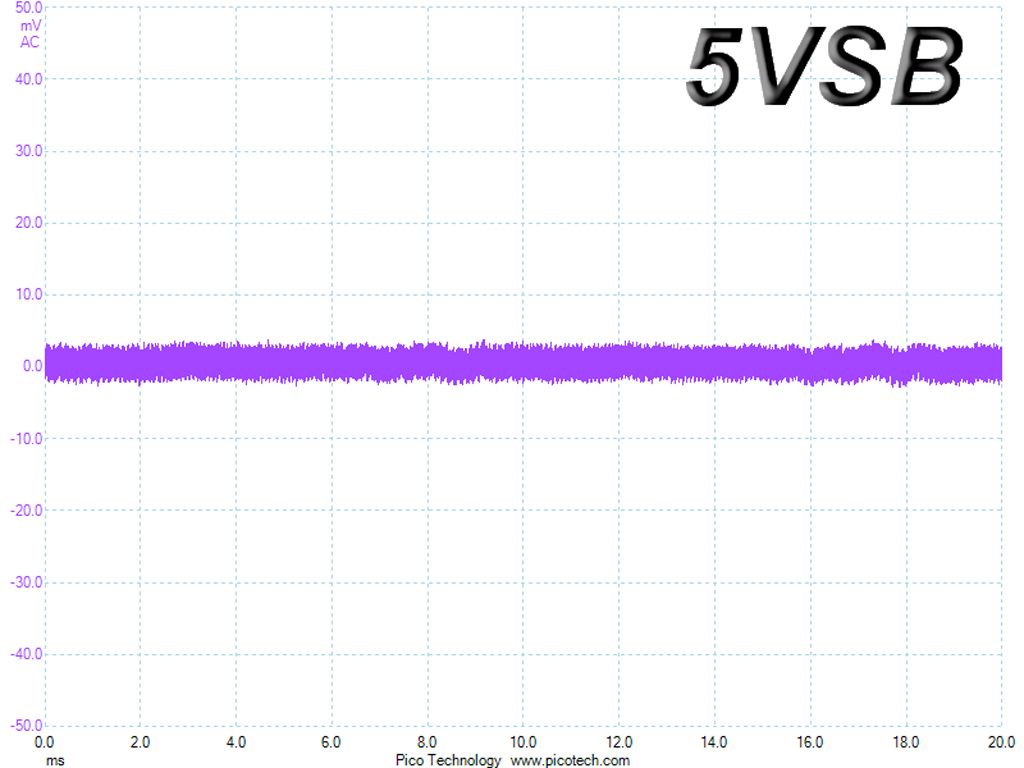

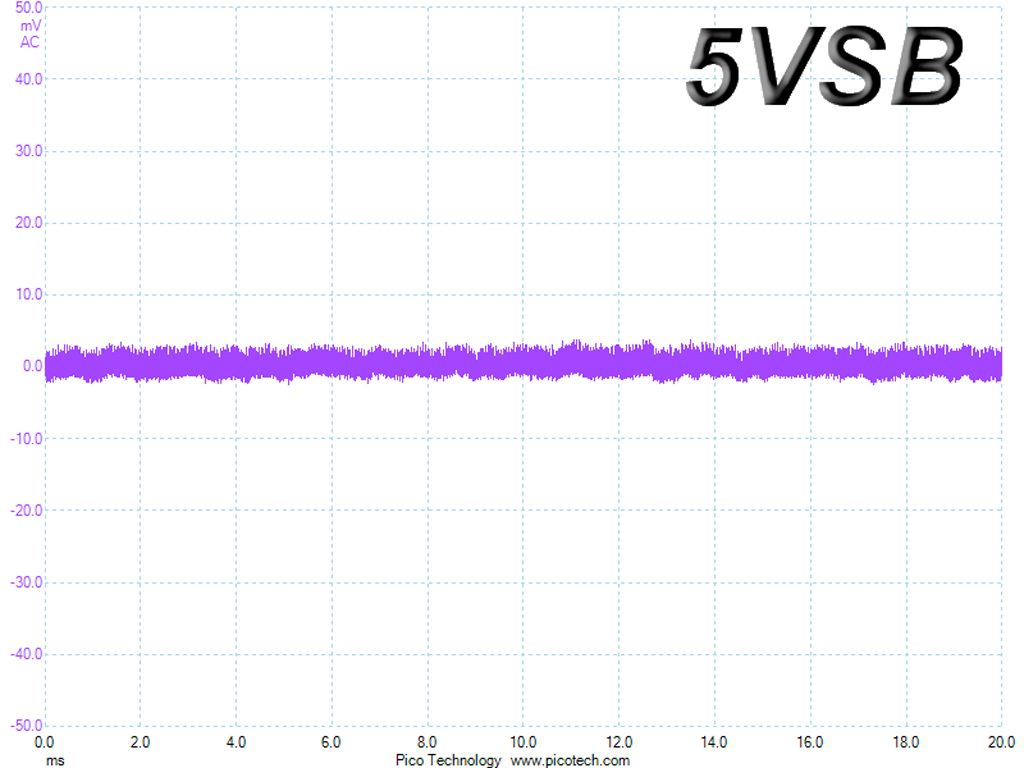

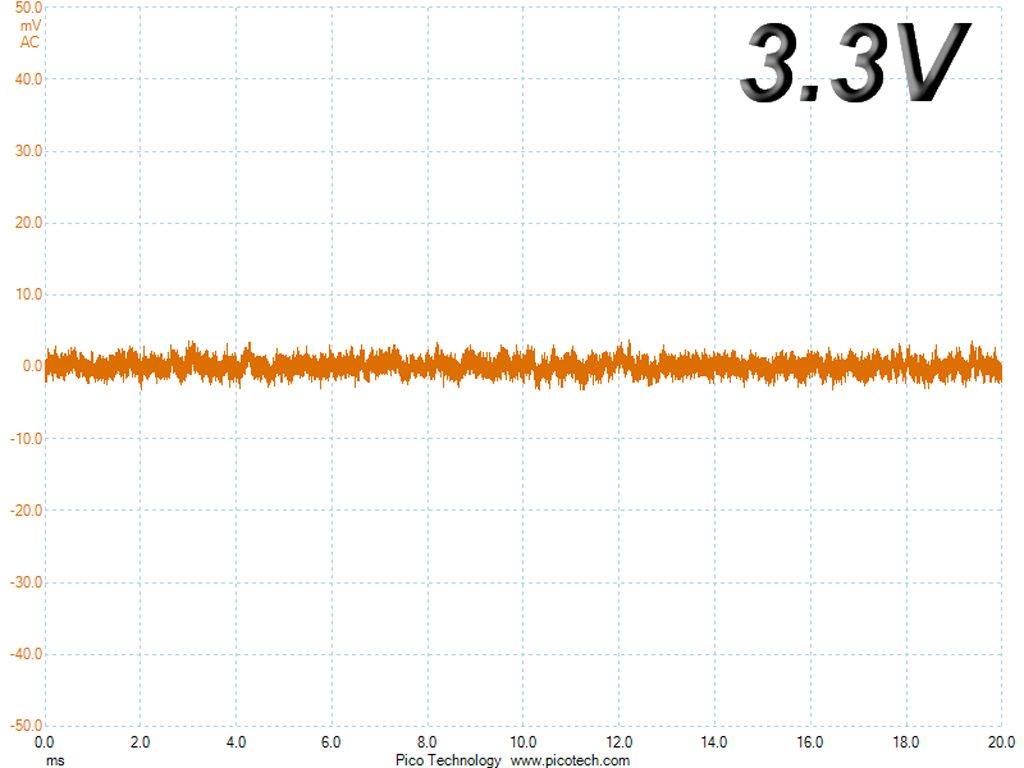

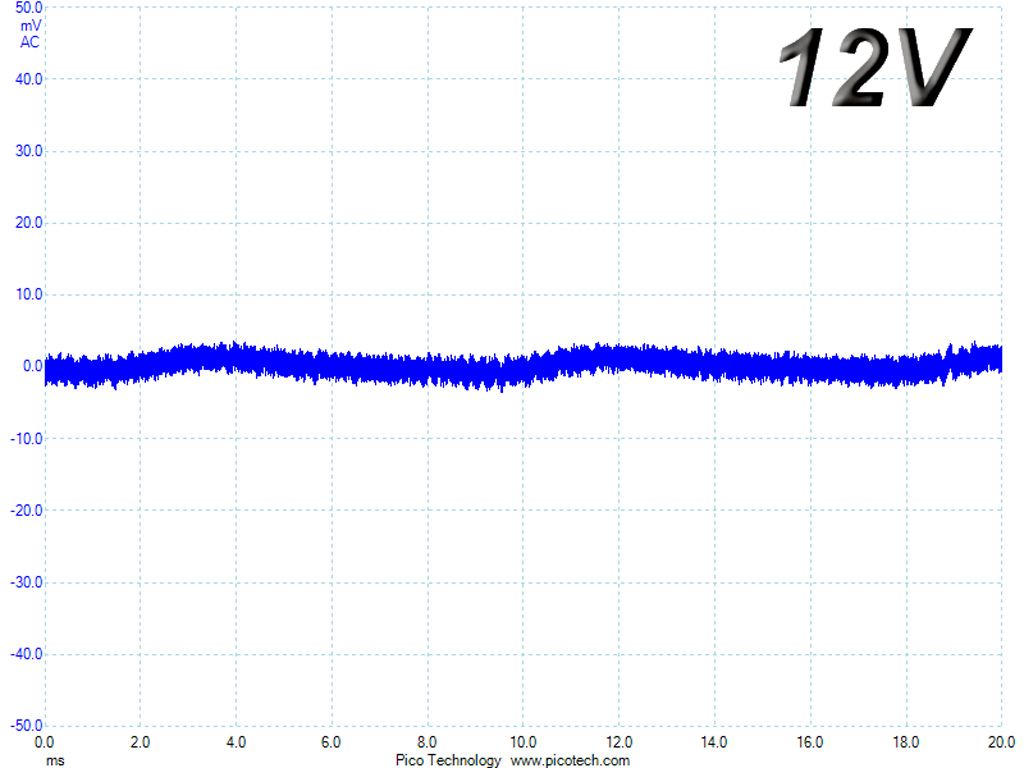

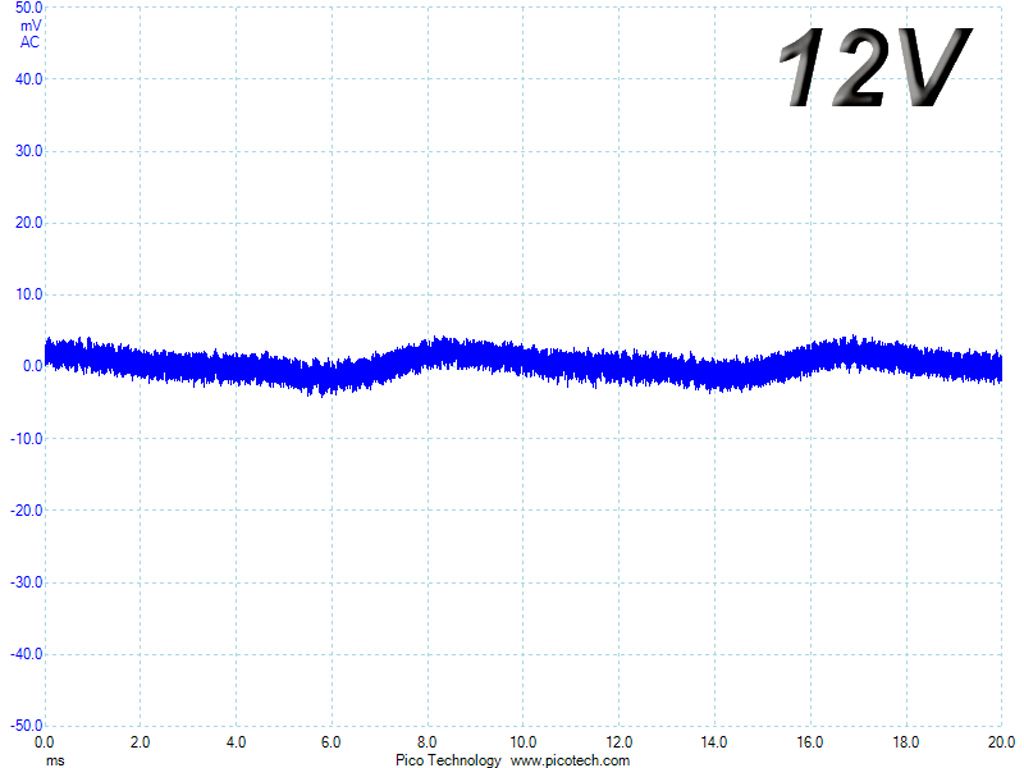

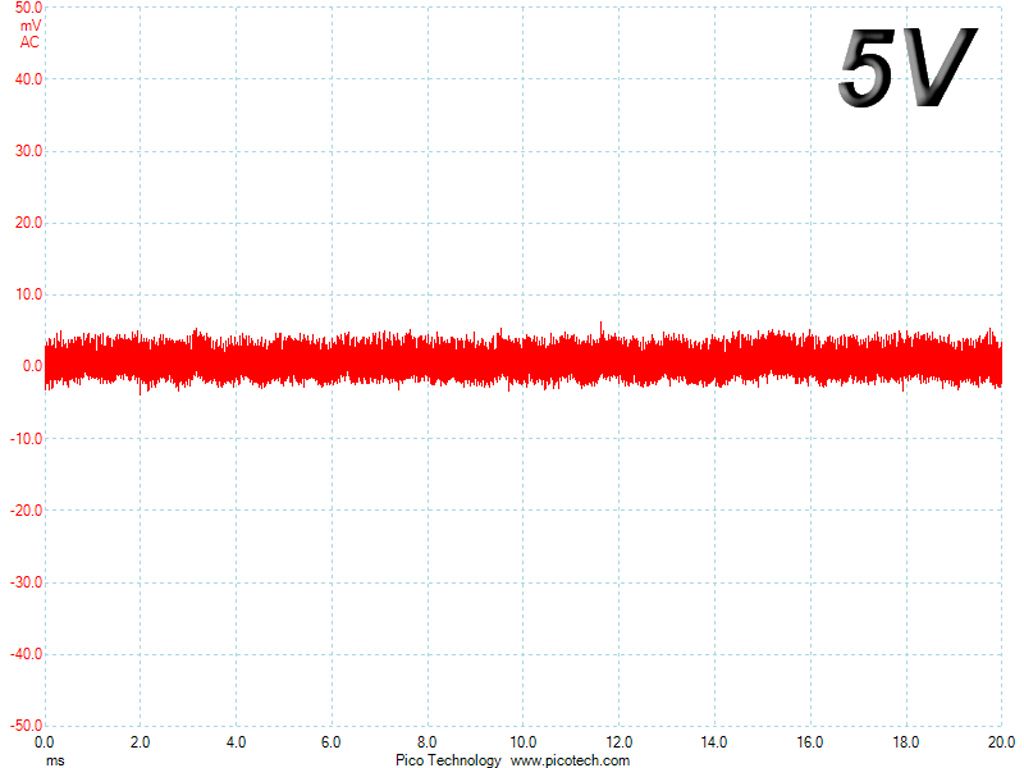

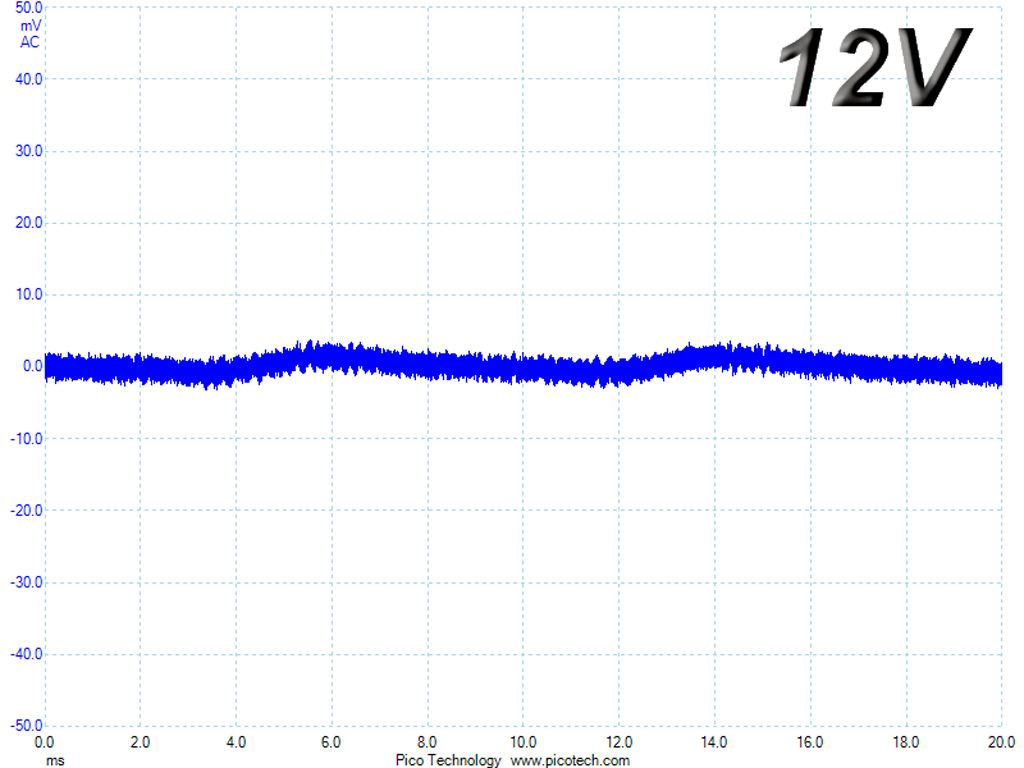

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

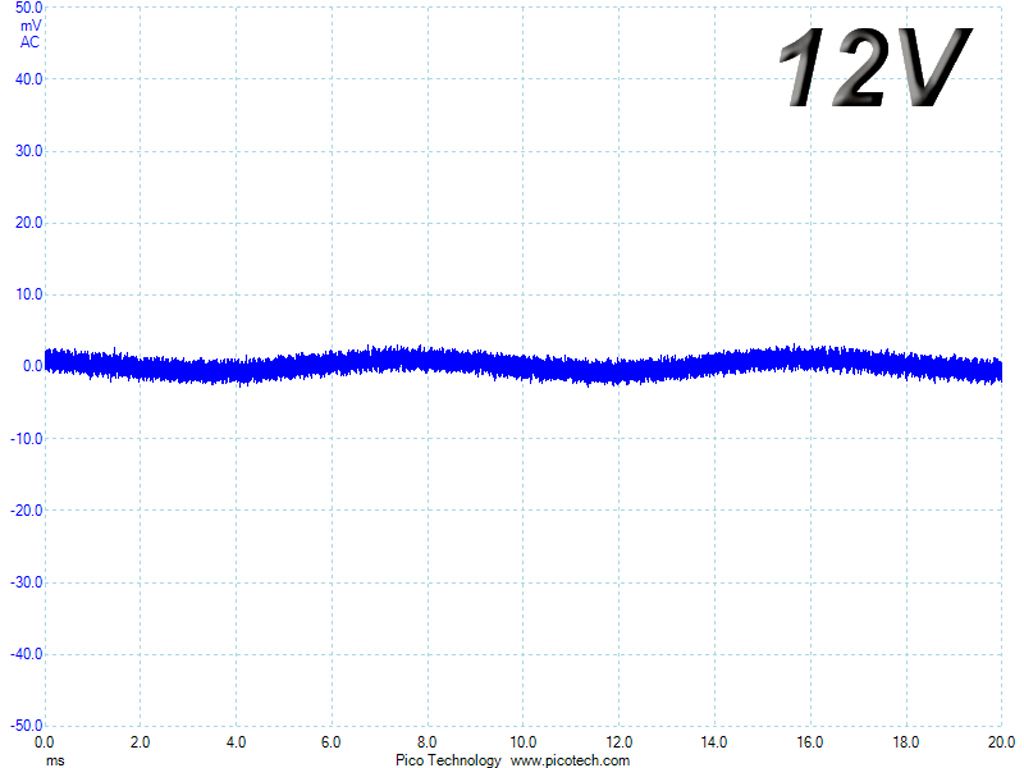

Ripple At Full Load

Ripple At 110-Percent Load

Ripple At Cross-Load 1

Ripple At Cross-Load 2
