Team Group T-Force Delta Max RGB SATA SSD Review: RGB Excellence

The flashiest flash

(Image: © Tom's Hardware)

Our Verdict

While limited by SATA, the Delta Max RGB still delivers responsive performance and unmatched looks. If you're after an eye-catching SSD, Team Group’s latest RGB SSD is hard to beat.

For

  • Gorgeous aesthetics
  • Solid performance

Against

  • Expensive
  • 3-year warranty
  • Lower-than-average endurance

A flashy new PC build wouldn’t be complete without some flash storage to load your favorite software and apps. And with so many components hitting the market with RGB infused into them, wouldn’t it be nice to choose an RGB storage device to match with the rest of your shiny new components?

(Image credit: Tom's Hardware)

Today, we’re going to take a look at the flashiest SSD we have reviewed to date, the Team Group T-Force Delta RGB. If you're searching for some stylish storage, the Delta Max may be the perfect choice for you. Just note that it’s priced higher than most SSDs, both SATA and PCIe alike. The RGB tax is in full effect here.

It’s common to see components with RGB LEDs whenever you look for PC components these days. We've seen RGB SSDs before, including the original Delta from Team Group. But none have been as eye-catching as the Delta Max, which we first saw at Computex 2019. With a gorgeous dark mirror finish that looks great with the lighting off, this drive can become the centerpiece of almost any build. But what really makes it stand out from the rest is the lighting hidden under its shell.

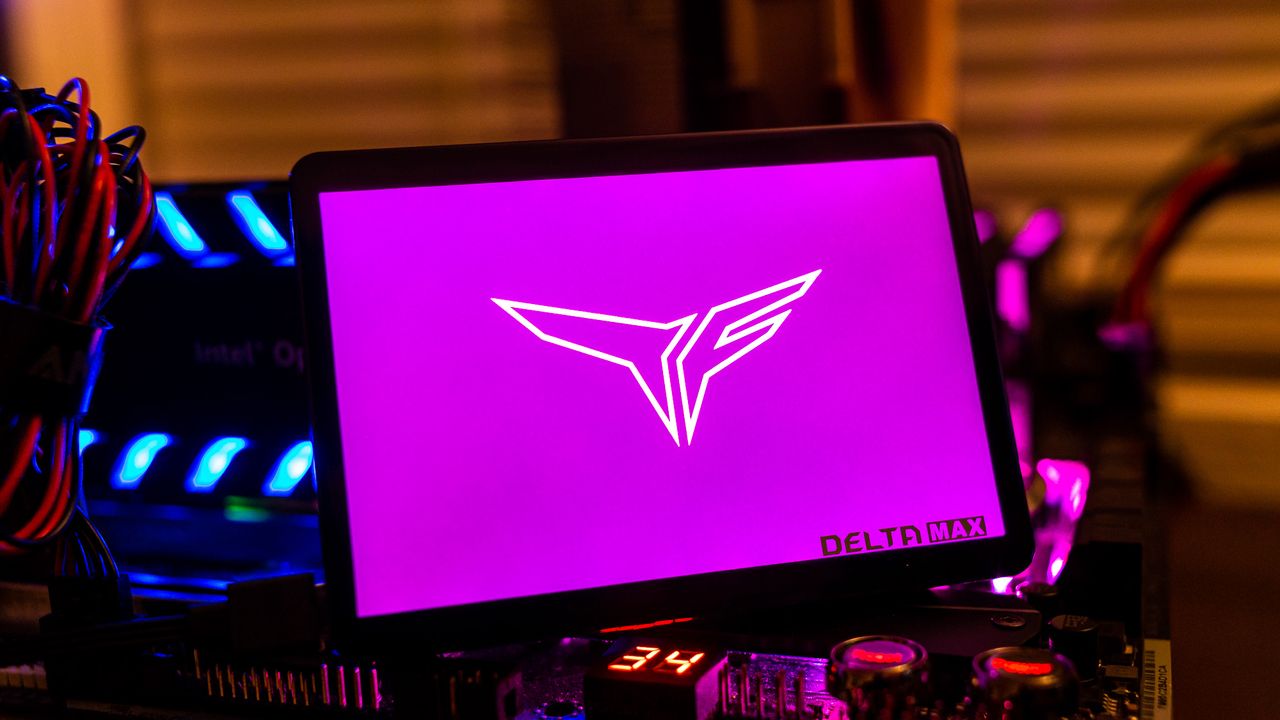

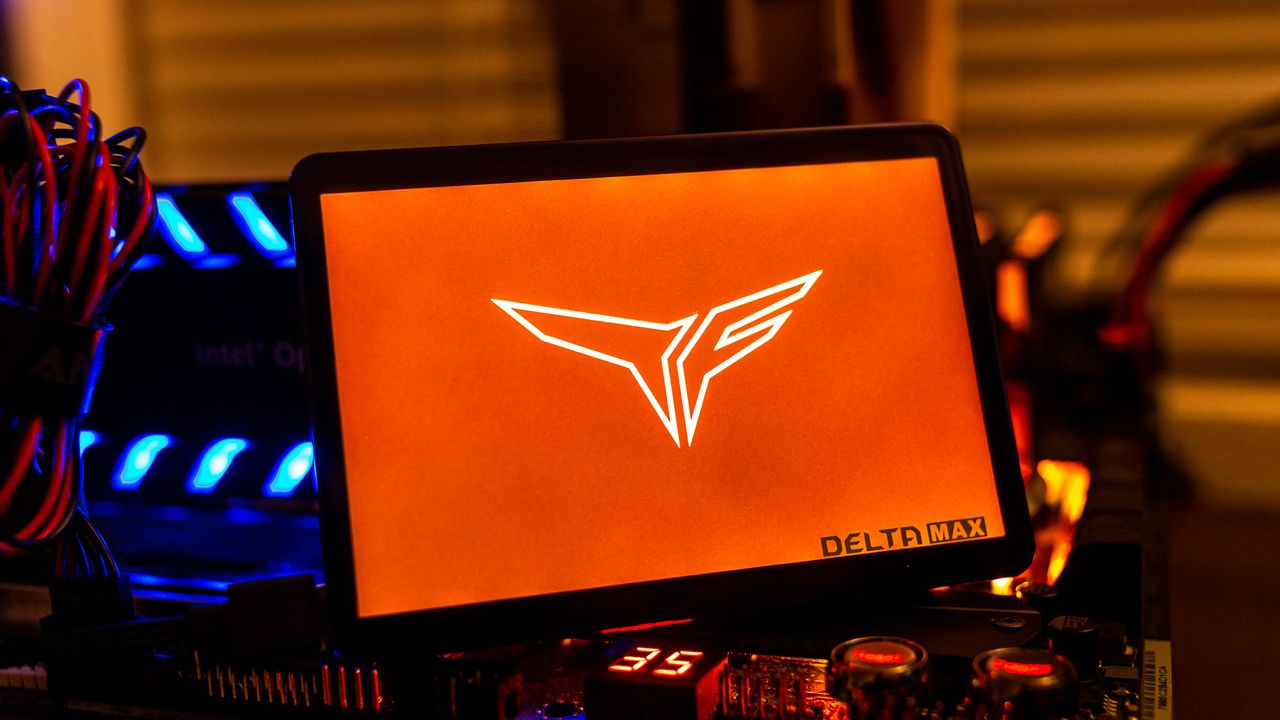

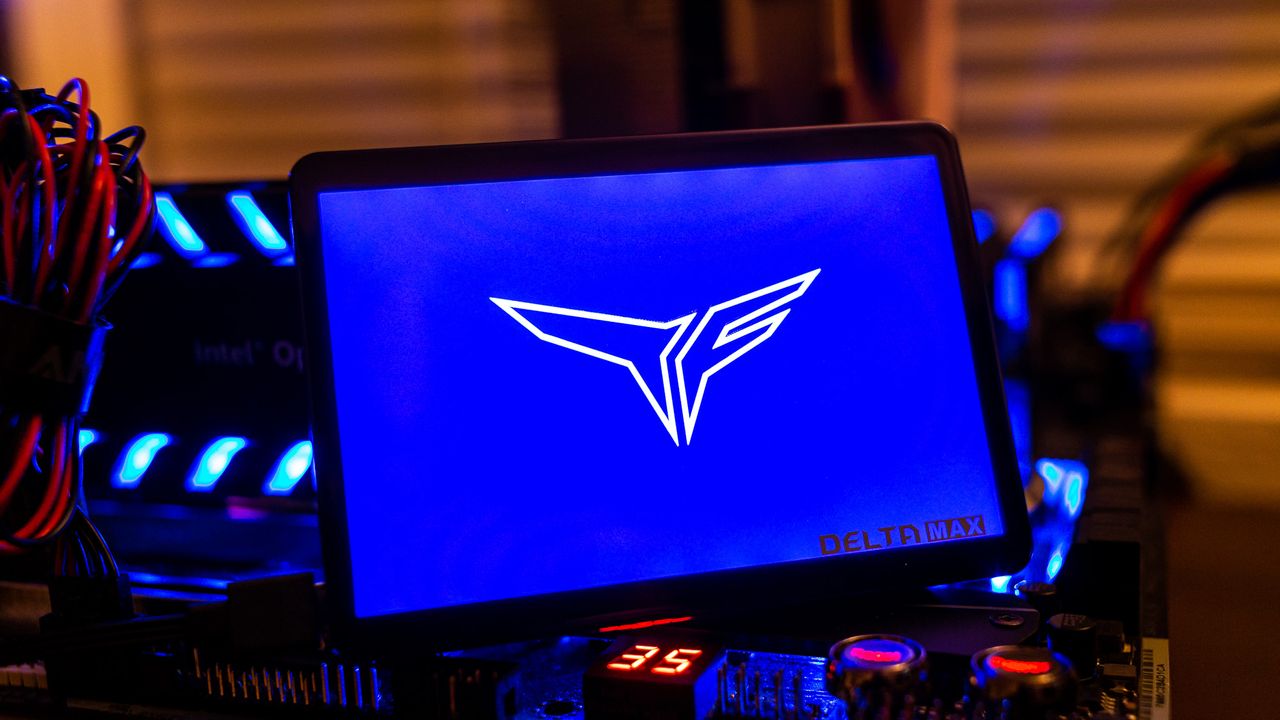

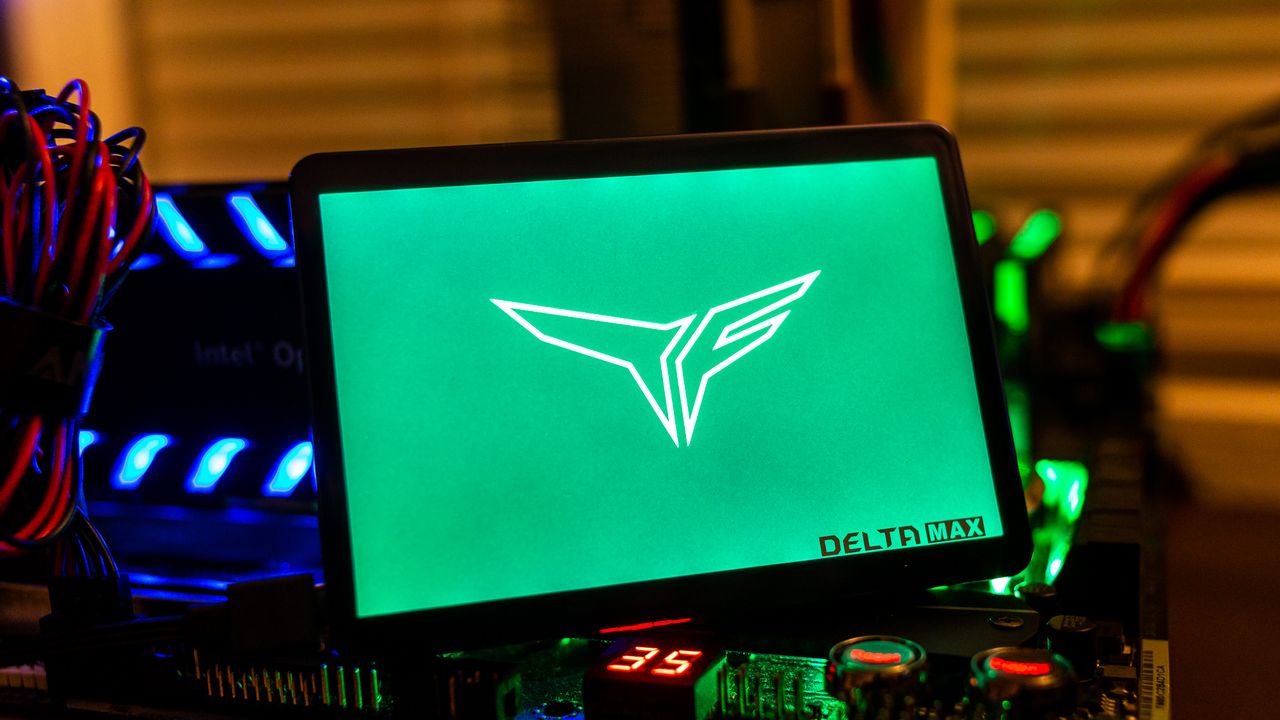

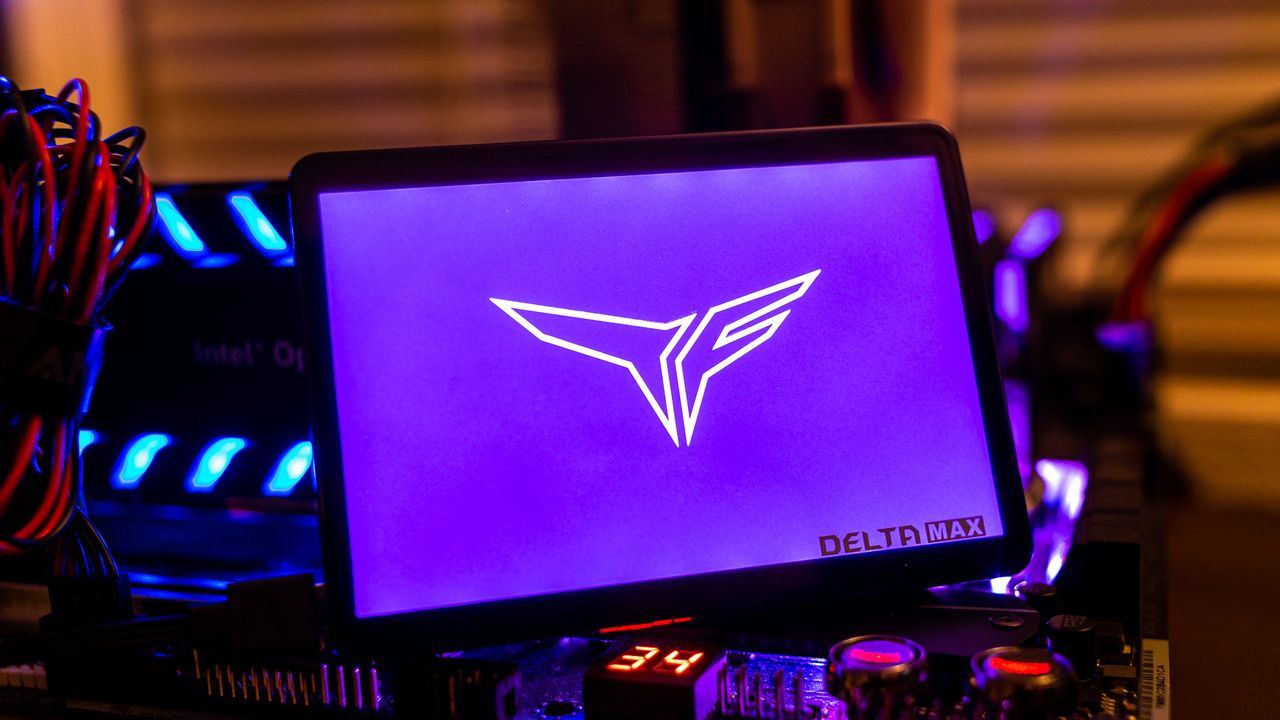

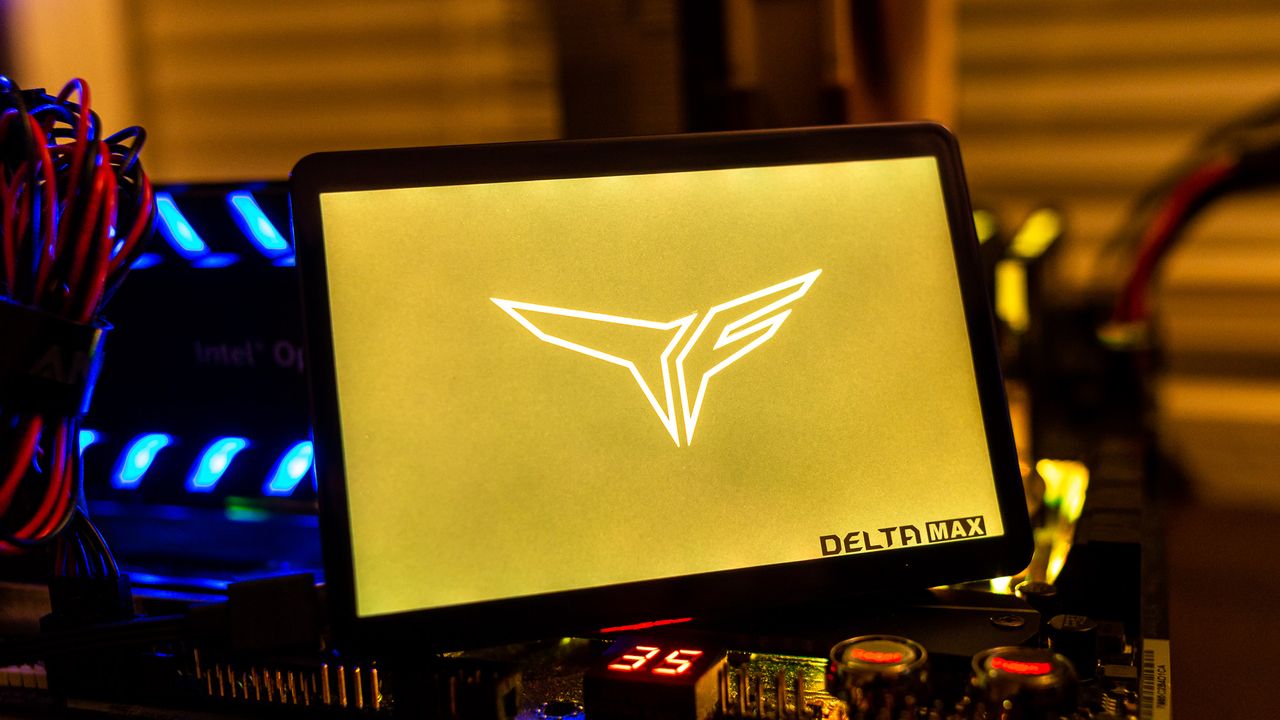

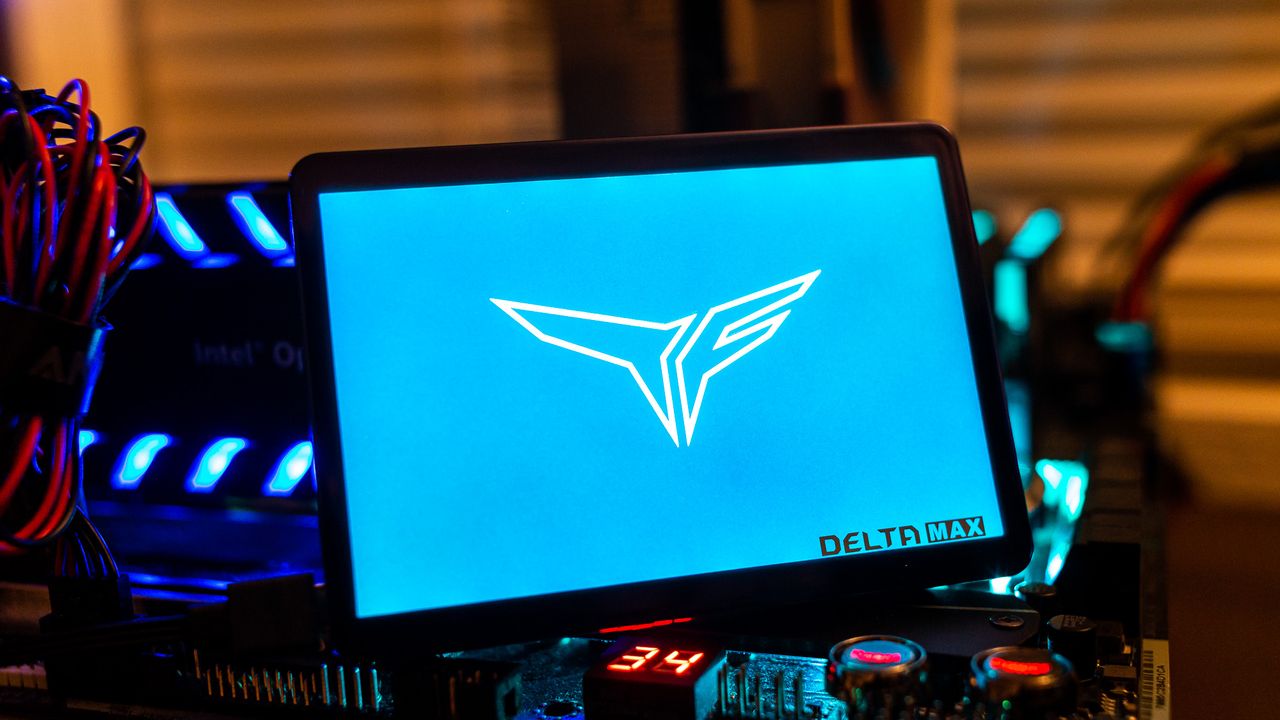

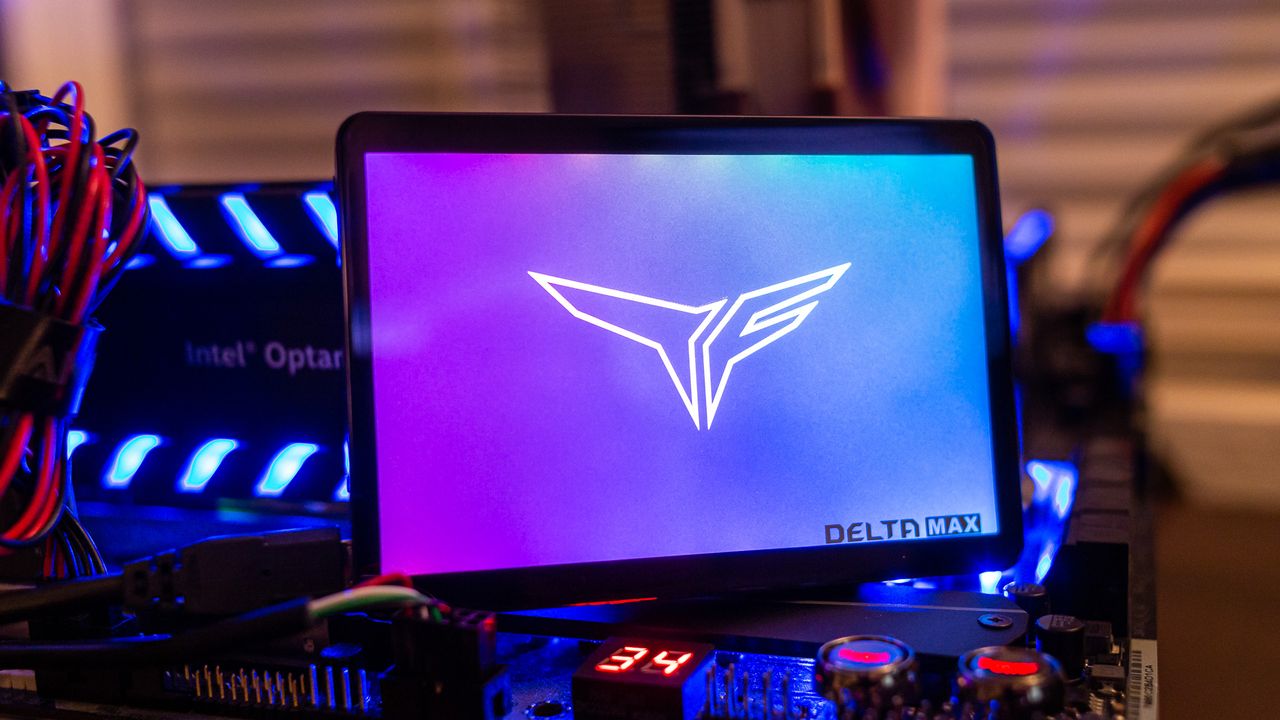

Spanning almost the entire surface of the SSD is an RGB LED module. When used with the USB header adapter cable, it defaults to a mixed color, water-flow-like lighting effect. It also supports motherboards (compatible with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASROCK-Polychrome Sync software) or lighting controllers with a 5V 3pin ARGB Addressable LED header to Micro B USB cable. That means you can sync it up with any of your other components with ease.

Specifications

T-Force Delta Max 250GBT-Force Delta Max 500GBT-Force Delta Max 1TB
Pricing$52.99$83.99$135.99
Capacity (User / Raw)250GB / 256GB500GB / 512GB1000GB / 1024GB
Form Factor2.5" 9.5mm2.5" 9.5mm2.5" 9.5mm
Interface / ProtocolSATA 6GbpsSATA 6GbpsSATA 6Gbps
ControllerSilicon Motion SM2258Silicon Motion SM2258Silicon Motion SM2258
DRAMDDR3DDR3DDR3
MemorySamsung 64L TLCSamsung 64L TLCSamsung 64L TLC
Sequential Read560 MBps560 MBps560 MBps
Sequential Write500 MBps510 MBps510 MBps
Random Read90,000 IOPS90,000 IOPS90,000 IOPS
Random Write75,000 IOPS80,000 IOPS80,000 IOPS
EncryptionN/AN/AN/A
Endurance60 TB120 TB240 TB
Part NumberT253TM250G3C302T253TM500G3C302T253TM001T3C302
Warranty3-Years3-Years3-Years

Team Group’s Delta Max is a SATA 6Gbps SSD, so it is capable of performance figures of up to 560/510 MBps read / write and random performance of up to 90,000 / 80,000 IOPS read/write. It comes in capacities of 250GB, 500GB, and 1TB. With its premium finish comes a premium price. The 250GB model currently sells for $52.99, the 500GB model is $83.99, and the 1TB is $135.99. But, in contrast to its higher-than-average pricing, it comes with lower than average endurance ratings of 60TB, 120TB, and 240TB per respective capacity, and a shorter-than-average 3-year warranty. So if you opt for this drive, you're clearly going to be doing so for its second-to-none aesthetics.

Accessories

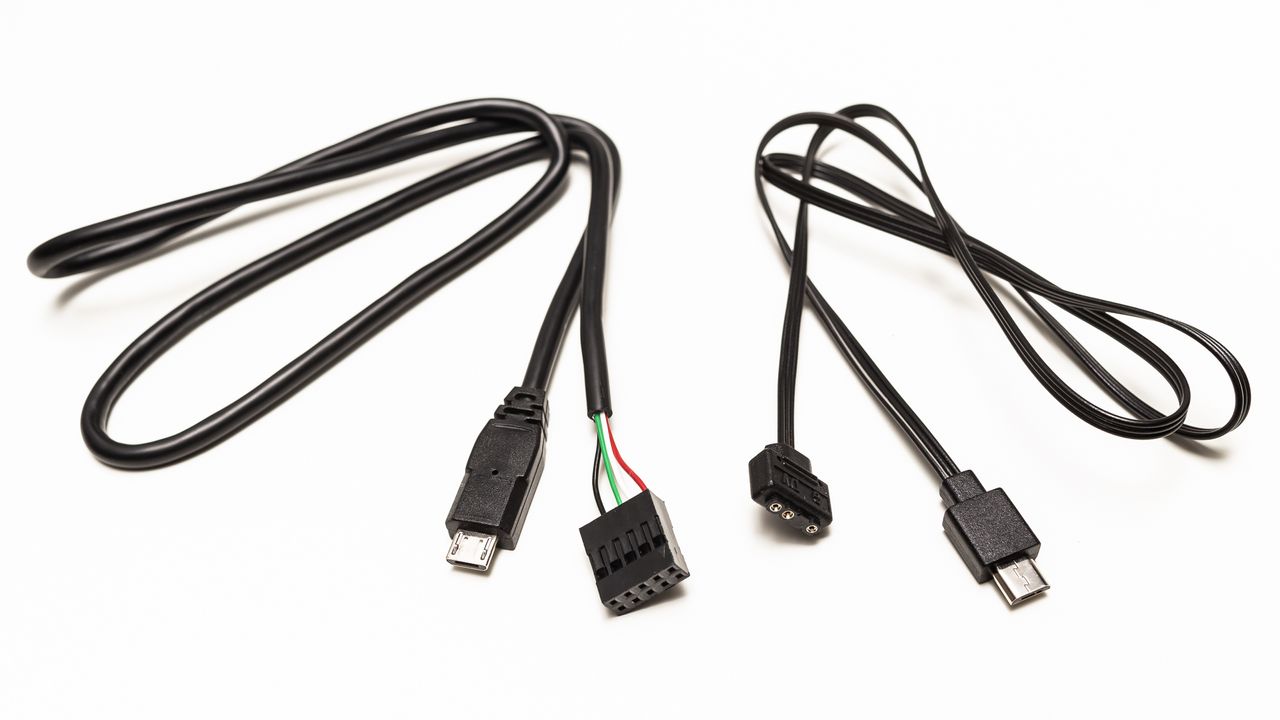

Included with the SSD are a 9-pin USB header to Micro B cable for the rainbow lighting effect, a 5V ARGB 3 pin to Micro B cable for addressable RGB effects, and a microfiber cloth. Yes, this is one SSD that you're probably going to want to polish occasionally.

A Closer Look

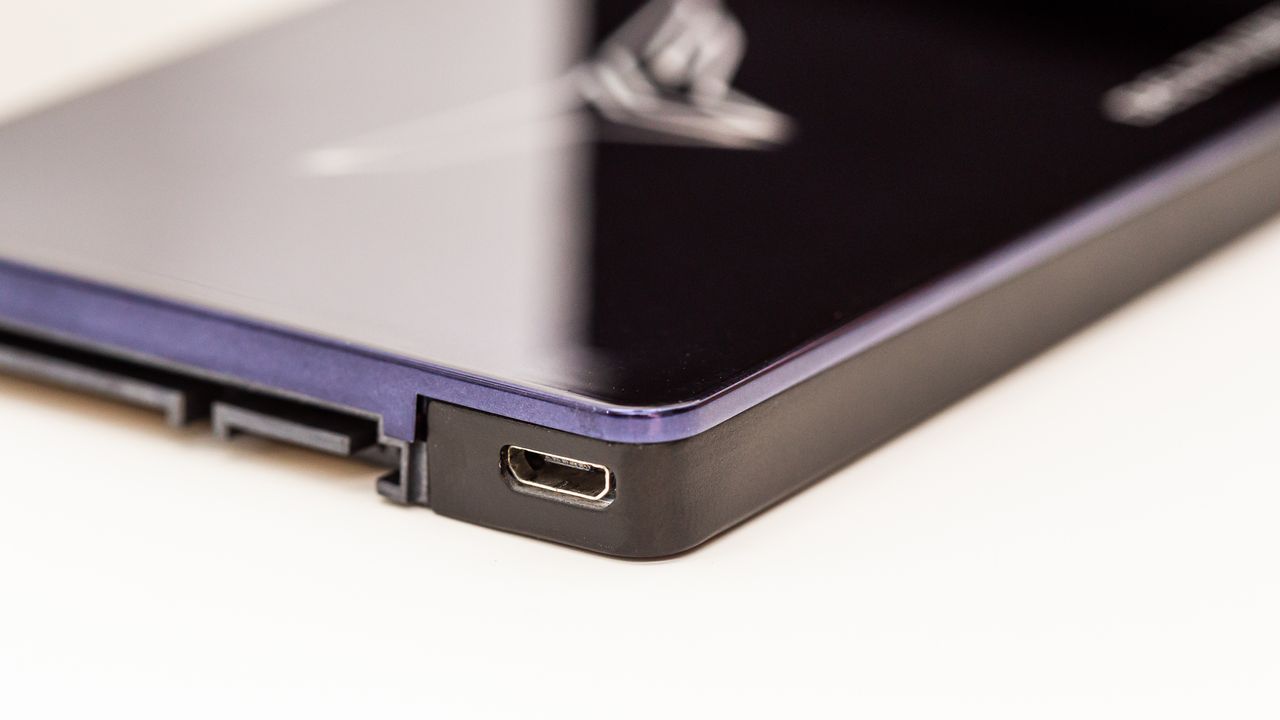

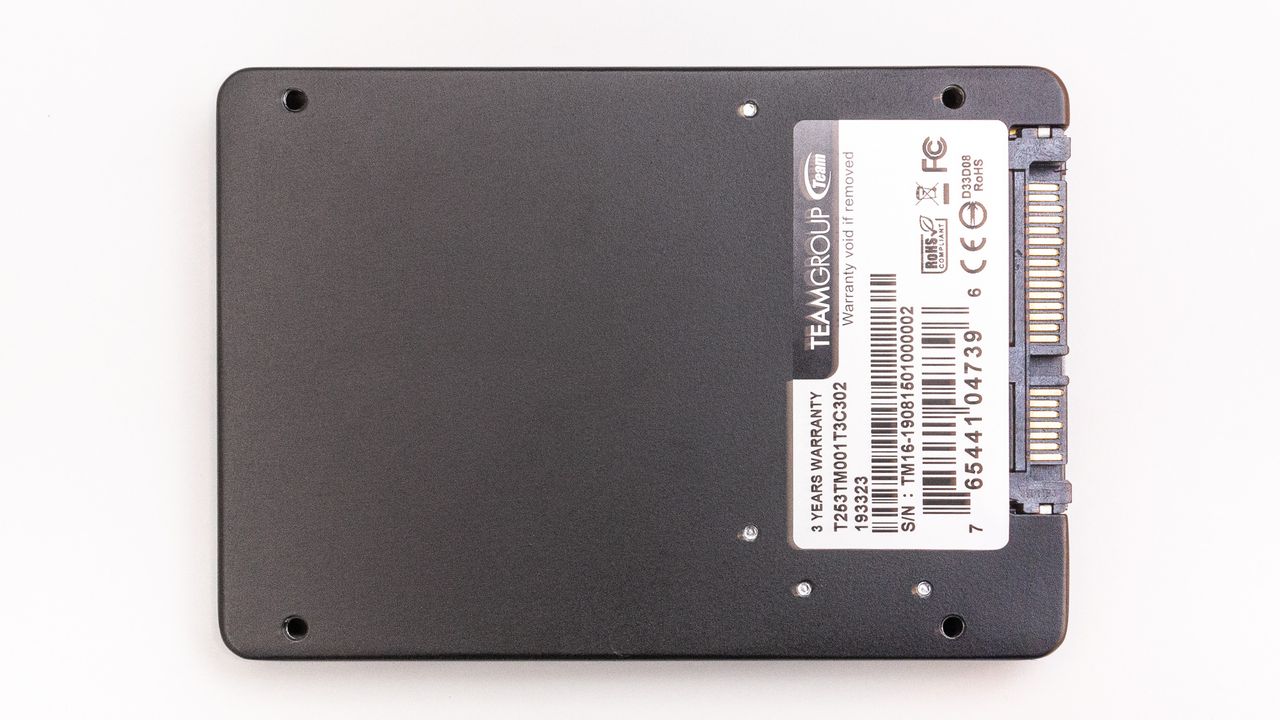

The Delta Max comes in a 2.5-inch, 9.5 mm form factor, about 2.5mm thicker than most similar SSDs due to the RGB module. Even if you don’t care to see the flashy lights, you can simply appreciate the beautiful mirror finish of the drive.



Image 1 of 15

(Image credit: Tom's Hardware)
Image 2 of 15

(Image credit: Tom's Hardware)
Image 3 of 15

(Image credit: Tom's Hardware)
Image 4 of 15

(Image credit: Tom's Hardware)
Image 5 of 15

(Image credit: Tom's Hardware)
Image 6 of 15

(Image credit: Tom's Hardware)
Image 7 of 15

(Image credit: Tom's Hardware)
Image 8 of 15

(Image credit: Tom's Hardware)
Image 9 of 15

(Image credit: Tom's Hardware)
Image 10 of 15

(Image credit: Tom's Hardware)
Image 11 of 15

(Image credit: Tom's Hardware)
Image 12 of 15

(Image credit: Tom's Hardware)
Image 13 of 15

(Image credit: Tom's Hardware)
Image 14 of 15

(Image credit: Tom's Hardware)
Image 15 of 15

(Image credit: Tom's Hardware)

With Silicon Motion’s SM2258 SATA controller and Samsung’s 64L 3D V-NAND, the components within complement the looks. This isquite a rare combination to come across too, as Samsung NAND is usually found within only Samsung drives.
