OCZ Vector 150 SSD Review: A New Flagship With 19 nm Flash

Results: 128 KB Sequential Performance

Fantastic sequential read and write performance is a trademark of modern SSDs. To measure it, we use incompressible data over a 16 GB LBA space, then test at queue depths from one to 16. We're reporting these numbers in binary (where 1 KB equals 1024) instead of decimal numbers (where 1 KB is 1000 bytes). When necessary, we're also limiting the scale of the chart to enhance readability.

128 KB Sequential Read

It's not necessary to spend much time talking about the sequential performance achieved by these three OCZ drives; they're fast. In fact, most of the time, they're quicker than almost everything else subject to the same SATA limitations.

128 KB Sequential Write

Again, there just isn't much reason to speak to the Vector 150's sequential speed. The interesting stuff comes later. Based on this testing, the Vector 150 is as fast as the Vector, and both are faster than any other SATA 6Gb/s drive.

For what its worth, the evolution of OCZ's line-up, from the Everest-based Vertex 4 to the Barefoot 3-powered Vector 150, is interesting. Whatever OCZ is doing is working. But like SanDisk's Extreme II, Samsung's EVO, and a few other offerings that employ various methods to emulate SLC using MLC flash, you don't get those performance levels all of the time. They are evident usually though, and their effects are profound.

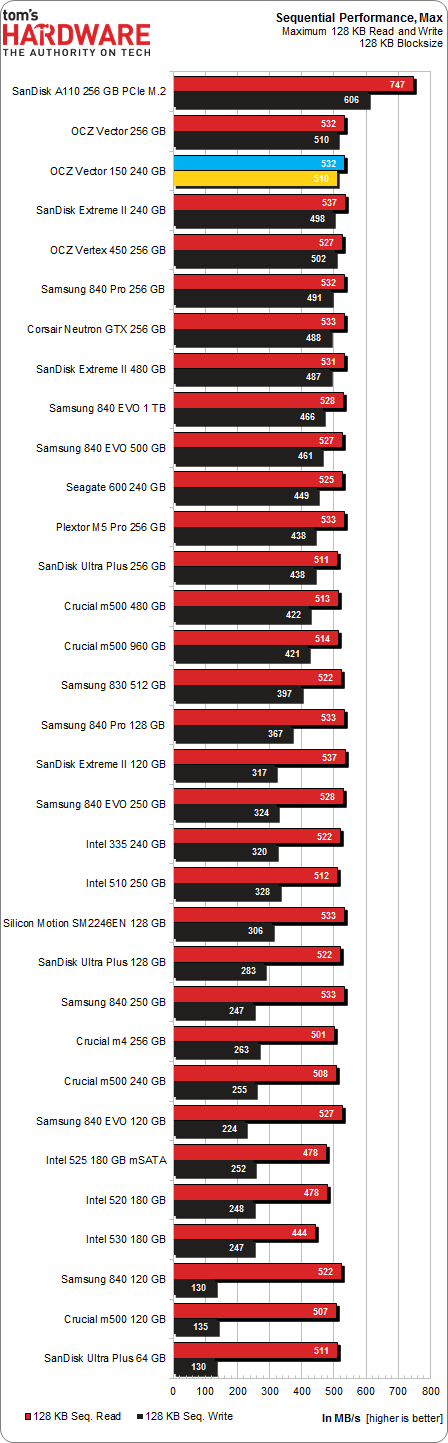

Here's a break-down of the maximum observed 128 KB sequential read and write performance with Iometer:

The Vector and Vector 150 take second and third place, just below the awesome M.2 PCIe-based SanDisk A110. If sequential performance is all you care about, OCZ's drives are clearly spectacular. Or are they? Aggravatingly, the answer depends. More on this shortly. For now, we move to 4 KB random performance.

  • Amdlova
    time to upgrade from vertex 4 to 150
    Reply
  • CommentariesAnd More
    It looks pretty good and it does perform pretty good.
    Reply
  • enihcam
    Will Toshiba buy OCZ?
    Reply
  • jimmysmitty
    11918040 said:
    time to upgrade from vertex 4 to 150

    I just hope the quality increased. Only because at my last job we had used Vertex 3s for all of our work stations and they one by one started having random issues, from not being detected to wiping the partitions.

    I like OCZ because they help lower the price of SSDs but there has to be quality behind the price as well.
    Reply
  • Sakkura
    Some of the numbers in the bottom diagram on page 4 seem to be off. Look at the Intel 520 180GB for example; the random write bar is longer than the random read bar, but the actual IOPS numbers are the other way around.
    Reply
  • Sakkura
    11918340 said:
    11918040 said:
    time to upgrade from vertex 4 to 150

    I just hope the quality increased. Only because at my last job we had used Vertex 3s for all of our work stations and they one by one started having random issues, from not being detected to wiping the partitions.

    I like OCZ because they help lower the price of SSDs but there has to be quality behind the price as well.
    My impression is that OCZ was hit hard by the Sandforce issues, partially as a result of being an early adopter. Their newer drives seem to be reliable.
    Reply
  • cryan
    11918441 said:
    Some of the numbers in the bottom diagram on page 4 seem to be off. Look at the Intel 520 180GB for example; the random write bar is longer than the random read bar, but the actual IOPS numbers are the other way around.

    Awesome catch! The 520 seems to have the right bar length, but the label from the Intel 510. I'll sort that out, but that's a genuine not-my-fault problem. One of the very few. I can blame Excel 2013 with confidence, but kudos for the eagle eye.

    The random write bar is correct though; the SandForce-based 520, 525, and Intel 530 each pull down more random write IOps than read with incompressible data.



    Regards,
    CR
    Reply
  • kancaras
    TOM!!! you gotta unswap PCMARK 7 graph with PCMARK vantage graph!
    Reply
  • Amdlova
    I got two SSD vertex 4 128gb on my computer 3770k and on my girlfriend 3470 I never get an single error on this SSD. raid 0 or normal configs. run solid!
    Reply
  • ssdpro
    11918455 said:
    My impression is that OCZ was hit hard by the Sandforce issues, partially as a result of being an early adopter. Their newer drives seem to be reliable.

    Early on yes, but the 2nd gen SF drives really are pretty darn stable now. OCZ has had solid top tier releases since the Vertex 4. I own Vertex 4 and Vector, will probably get a 150. Hands down the worst thing they ever did was try budget/value offerings like the Petrol. I don't think there is any reason for fanboism, I own Samsung and OCZ drives and all work happily together.

    Reply
