Do Intel’s Core i7-3000-series CPUs really need closed-loop liquid cooling? Today we're testing fourteen different LGA 2011-compatible air coolers on an overclocked Core i7-3960X in order to determine whose is the most effective.

Installing Arctic Cooling's Freezer i30

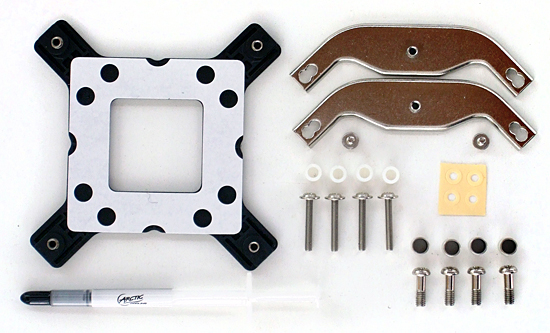

Arctic Cooling’s extremely simplified installation kit eliminates any LGA 1366 support plate in favor of LGA 2011-specific screws.

This could have even been considered a Sandy Bridge-only package if not for the fact that the included LGA 1155 hardware also fits LGA 1156. Even still, we're ignoring both of those interfaces in today’s installation.

Metal spacers fit over the LGA 2011’s integrated screw posts (foreground) before attaching each of the Freezer i30’s two adapter brackets (background).

With its fan removed, the Freezer i30’s integrated cross bracket screws onto its adapter brackets.

Plugging in the fan’s motherboard lead and clipping it to the heat sink completes Arctic Cooling’s Freezer i30 installation.

Thomas Soderstrom
Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
