X58 On A Budget: Seven Sub-$200 Core i7 Boards

Benchmark Results: Synthetic

3DMark Vantage shows no discernable difference between various X58 motherboards.

The EX58-UD3R edges out competitors in PCMark Vantage. We again retested the P6T SE to make sure its results were accurate, finding the results consistent.

The top three contenders in Sandra CPU tests follow an order-of-performance identical to the difference in base clock.

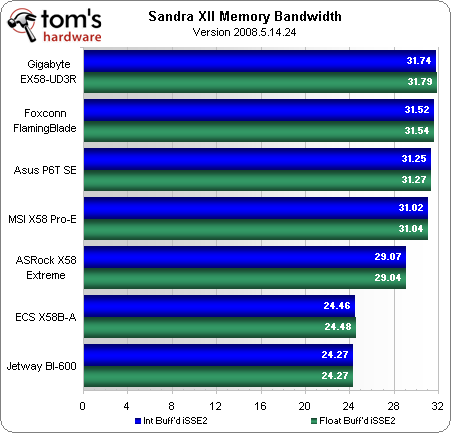

Gigabyte’s slight lead in memory performance could explain several of its benchmark wins. ECS and Jetway were both handicapped by their use of DDR3-1600 memory speed, as both were unable to properly support DDR3-1866 when using safe voltage levels.

Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
  • midnightgun
    If I am not mistaken, the reason the Asus P6T SE is so cheap is because it does not support SLI, only supports Crossfire. Is that not correct?
    Reply
  • Crashman
    9477978 said:
    If I am not mistaken, the reason the Asus P6T SE is so cheap is because it does not support SLI, only supports Crossfire. Is that not correct?

    At the time the review was written, the P6T SE web page read that it supported SLI. Perhaps Asus changed the web page following a complaint?

    The big difference between the P6T SE and the P6T is the missing Jmicron SATA multiplier. By removing it, Asus killed the pathway that went to it, leaving the JMB363 controller with a "dead port".
    Reply
  • midnightgun
    Perhaps. I have had my eye on this board since I started planning my eventual upgrade to i7/i5 architecture (MSI and Gigabyte as well). I know on ncix's forums (canada's equivalent to newegg in the states) the P6T SE had been listed as only crossfire since at least mid May.
    Reply
  • midnightgun
    Anywho, thanks for the review. Interesting read.
    Reply
  • Crashman
    midnightgunPerhaps. I have had my eye on this board since I started planning my eventual upgrade to i7/i5 architecture (MSI and Gigabyte as well). I know on ncix's forums (canada's equivalent to newegg in the states) the P6T SE had been listed as only crossfire since at least mid May.
    I never trust a seller as a source: Asus listed the P6T SE as having SLI support as little as four weeks ago, and now has a completely different page for it. They weren't the only company that advertised SLI capability and leave out the bridge, but it now appears the former P6T SE web page must have been an error, probably from the company copying its P6T page and editing it for the P6T SE, but missing one detail.
    Reply
  • anamaniac
    Personally I will (atleast attempting to now) head straight for the Foxconn Bloodrage with a i7 920 and 3 ddr3 1333 sticks (and give them good timings, ignoring bandwidth and attempting a lower voltage) and a 4870 1gb (due to them being quite cheap now). =D
    Though first on my priority list is a better monitor (and rent).

    Neat article regardless.
    Reply
  • ceteras
    What an inspiring name for the Foxconn mainboard... looks like it's a corporate culture thing.

    I've skipped the Foxconn page, wouldn't buy from them anyway.
    Reply
  • Onus
    Interesting read. If I were going to build an i7 rig for myself, that ASRock would probably be my choice. I'm not thrilled about the VRM heating up so much, but I only do low-moderate overclocks so it ought to be ok. The feature set of that board looks suitable.
    Reply
  • gxpbecker
    I am kinda surprised that the ECS board held its own against these "sronger" boards. From my past experieces ECS has been the walmart brand of mobos. :)
    Reply
  • Ryun
    Question: Is the Asrock board able to go into S3 state/Standby mode? The one board I got from Asrock would not and after emailing their tech support they responded by saying that their boards do not support S3 state.
    Reply
