Load Regulation, Hold-Up Time & Inrush Current

To learn more about our PSU tests and methodology, please check out How We Test Power Supply Units.

Corsair HX1000

Corsair HX1000i

Corsair HX1200

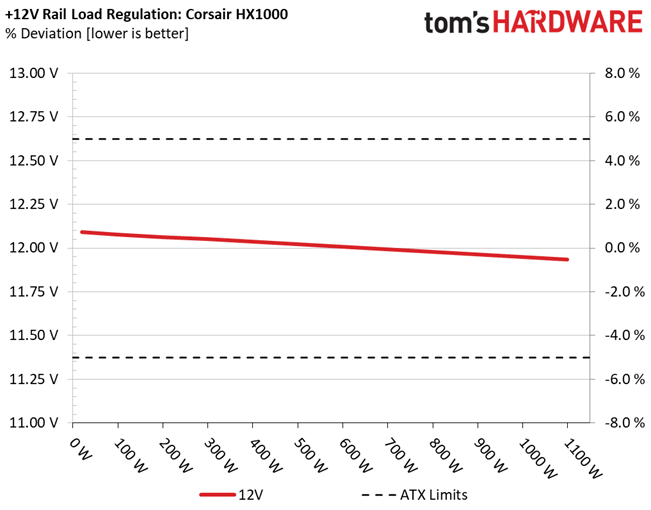

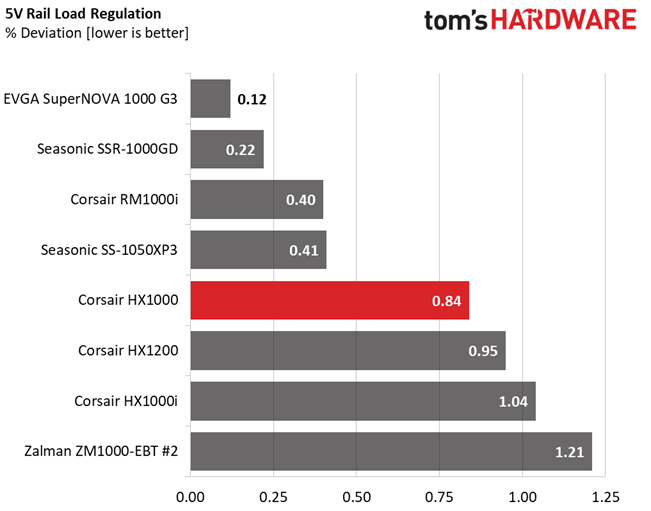

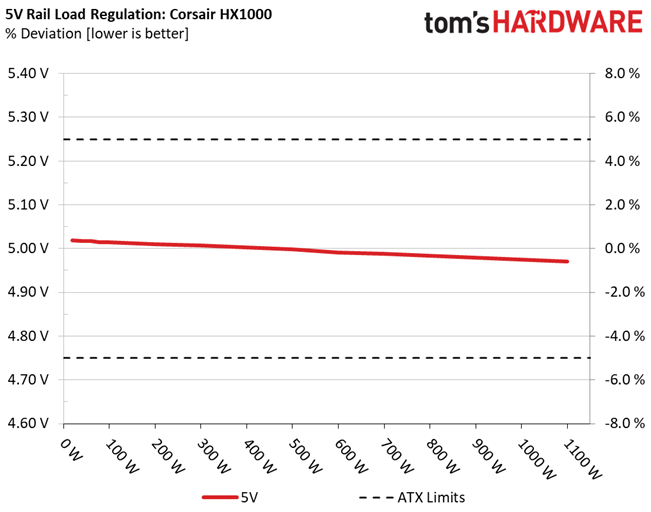

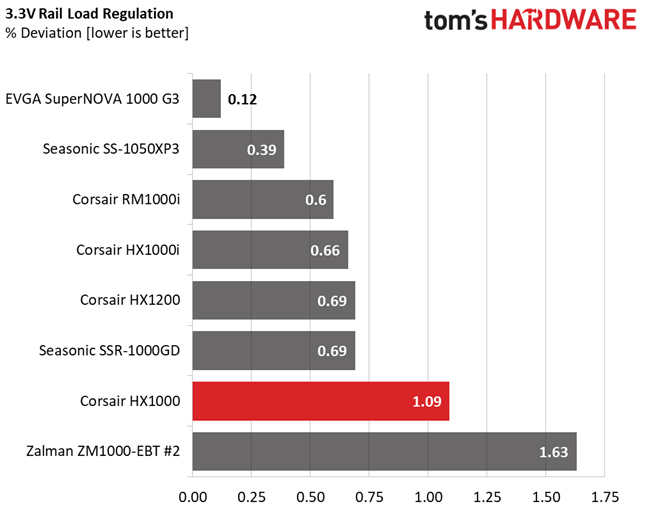

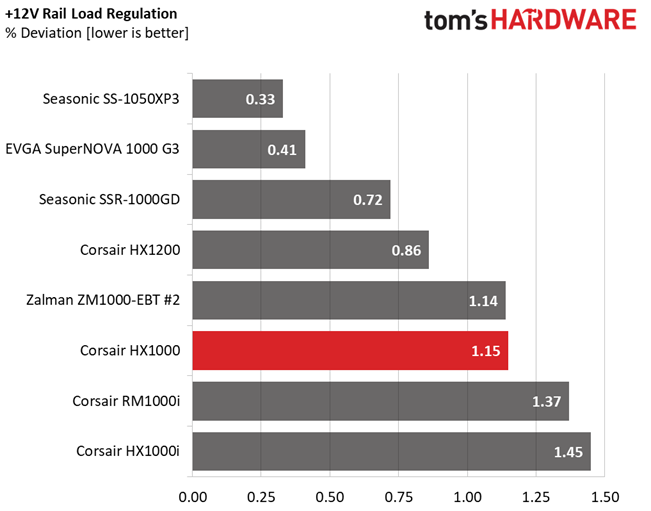

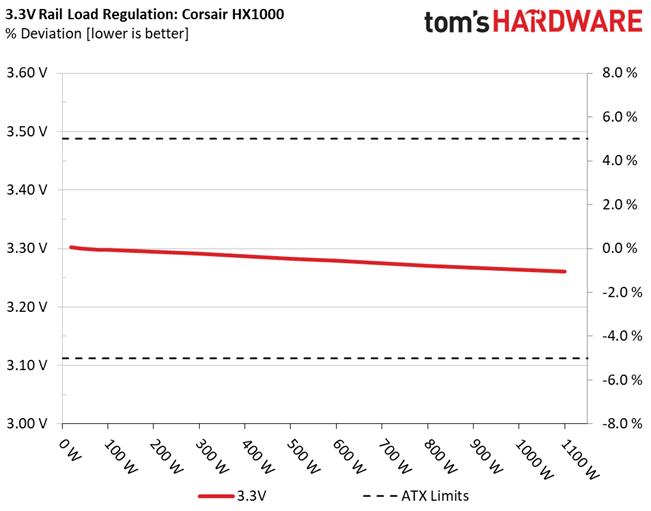

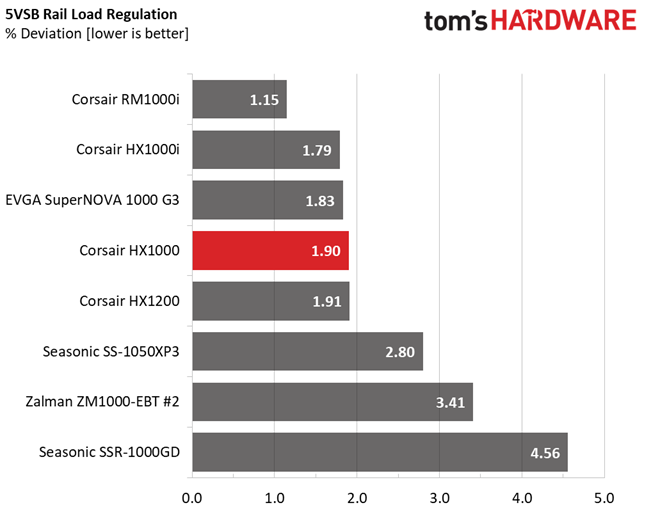

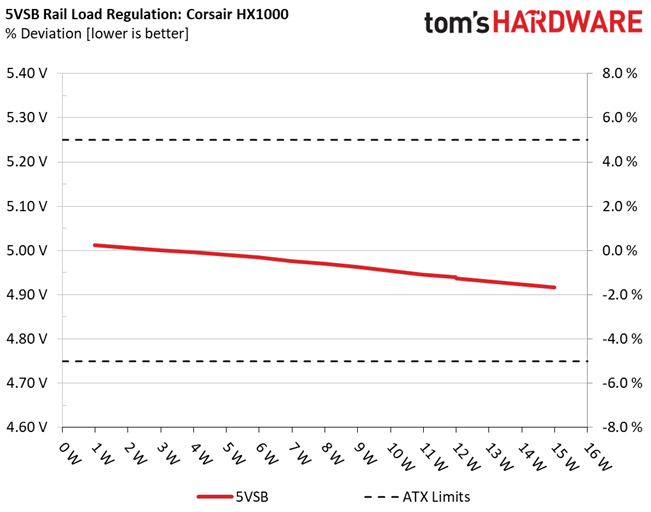

Primary Rails And 5VSB Load Regulation

Load Regulation testing is detailed here.

Image 1 of 8

Hold-Up Time

Our hold-up time tests are described in detail here.

Image 1 of 7

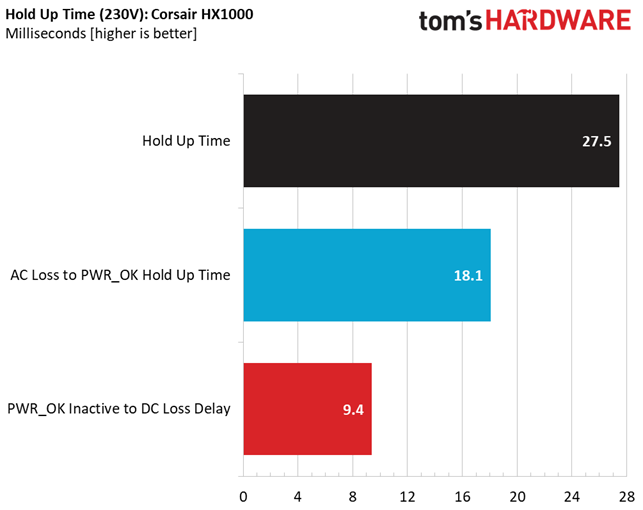

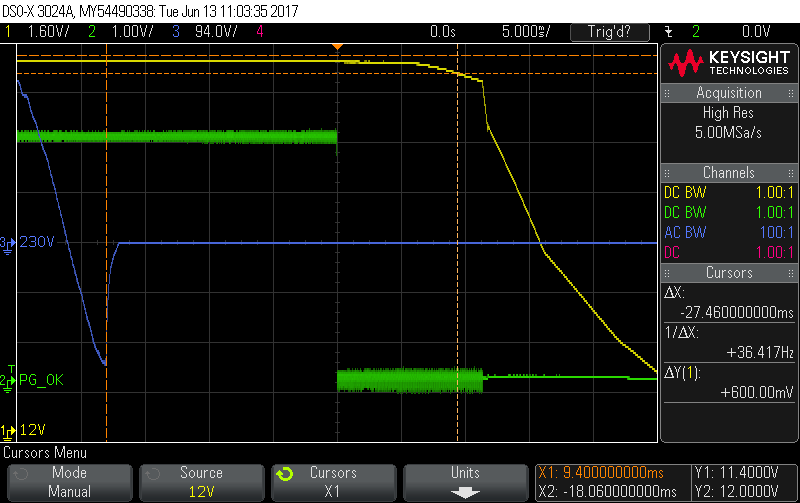

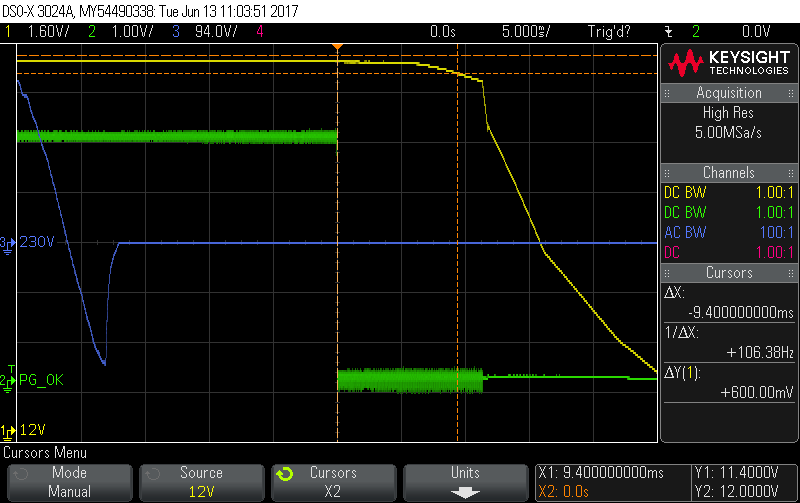

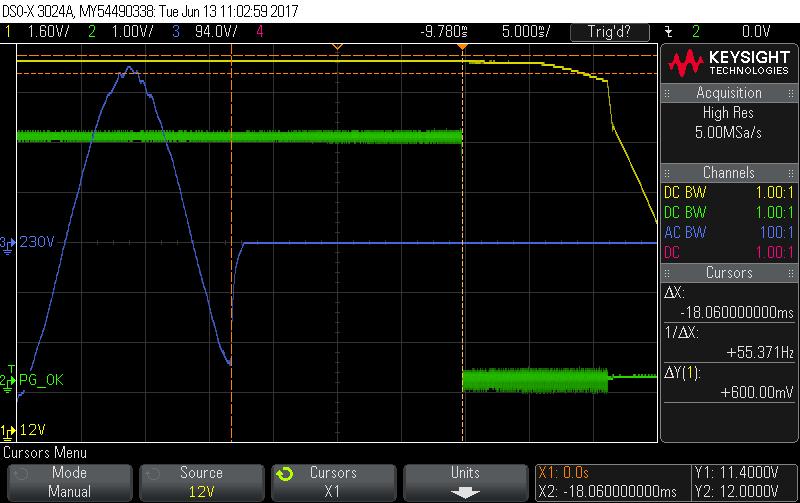

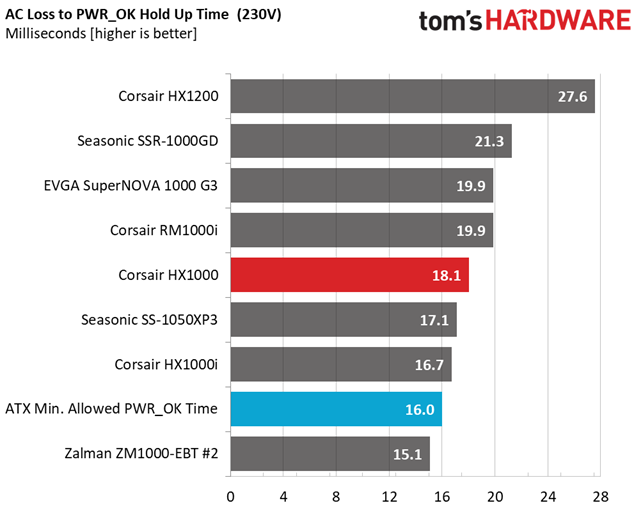

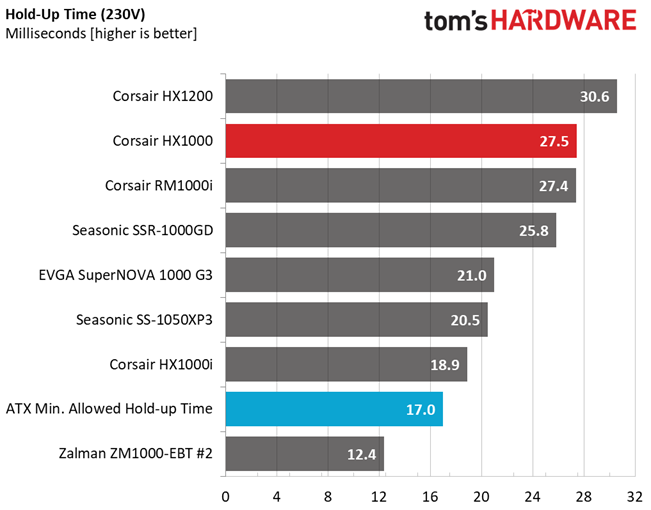

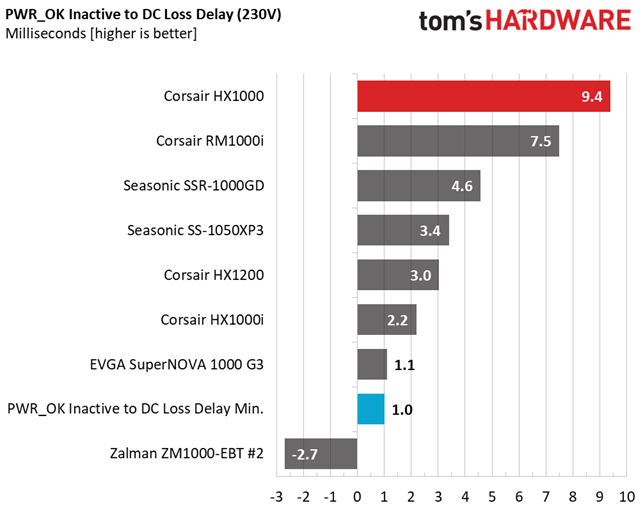

The hold-up time we measured is pretty long, and the power-good signal is highly accurate (it drops 9.4ms before the rails go out of spec).

Inrush Current

For details on our inrush current testing, please click here.

Image 1 of 2

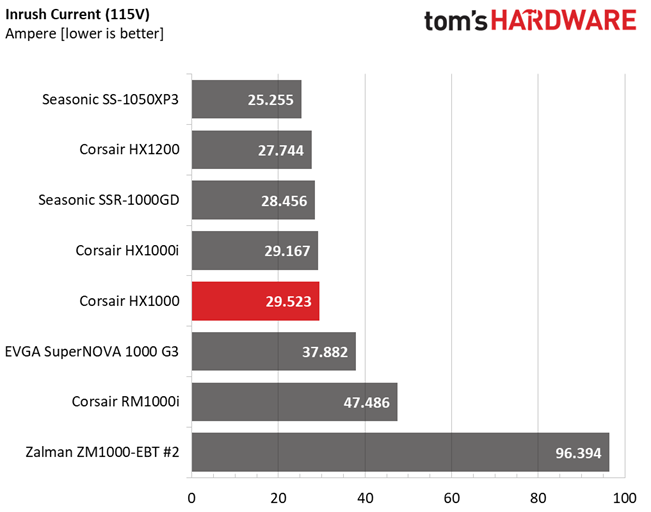

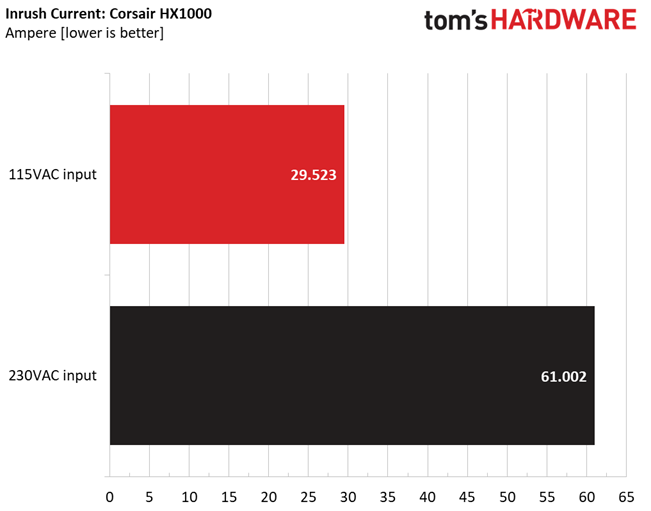

Inrush current is low with 115V input. But that's not the case with 230V, where we measure over 60A.

Load Regulation And Efficiency Measurements

The first set of tests reveals the stability of the voltage rails and the HX1000's efficiency. The applied load equals (approximately) 10 to 110 percent of the PSU's maximum load in increments of 10 percentage points.

We conducted two additional tests. During the first, we stressed the two minor rails (5V and 3.3V) with a high load, while the load at +12V was only 0.1A. This test reveals whether a PSU is compatible with Intel's C6/C7 sleep states or not. In the second test, we determined the maximum load the +12V rail could handle with minimal load on the minor rails.

Swipe to scroll horizontally

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed	PSU Noise	Temps (In/Out)	PF/AC Volts
1	6.477A	1.998A	1.998A	1.001A	99.835	87.999%	0 RPM	<6.0 dB(A)	45.56°C	0.972
12.078V	5.015V	3.298V	4.991V	113.450	39.33°C	115.18V
2	13.993A	2.990A	3.003A	1.201A	199.669	91.302%	0 RPM	<6.0 dB(A)	46.58°C	0.991
12.064V	5.010V	3.294V	4.984V	218.691	40.38°C	115.17V
3	21.890A	3.498A	3.522A	1.405A	299.871	92.153%	0 RPM	<6.0 dB(A)	47.18°C	0.995
12.050V	5.007V	3.291V	4.976V	325.406	40.94°C	115.17V
4	29.785A	3.400A	4.013A	1.608A	399.683	92.155%	0 RPM	<6.0 dB(A)	48.26°C	0.996
12.036V	5.002V	3.287V	4.970V	433.707	42.01°C	115.17V
5	37.367A	4.999A	5.023A	1.811A	499.652	91.626%	0 RPM	<6.0 dB(A)	49.15°C	0.998
12.021V	4.998V	3.283V	4.963V	545.314	42.77°C	115.16V
6	44.960A	6.011A	6.035A	2.015A	599.608	91.034%	700 RPM	19 dB(A)	42.99°C	0.998
12.007V	4.991V	3.279V	4.954V	658.666	56.47°C	115.16V
7	52.569A	7.016A	7.052A	2.220A	699.532	90.385%	845 RPM	22.2 dB(A)	43.29°C	0.998
11.993V	4.988V	3.275V	4.946V	773.946	57.72°C	115.15V
8	60.200A	8.028A	8.070A	2.426A	799.450	89.717%	950 RPM	25.5 dB(A)	44.22°C	0.998
11.978V	4.983V	3.270V	4.939V	891.078	59.64°C	115.15V
9	68.280A	8.538A	8.597A	2.430A	899.428	88.817%	1060 RPM	27.8 dB(A)	45.38°C	0.998
11.963V	4.979V	3.267V	4.937V	1012.678	62.80°C	115.15V
10	76.123A	9.055A	9.098A	3.050A	999.258	87.817%	1200 RPM	31.7 dB(A)	45.46°C	0.998
11.948V	4.975V	3.264V	4.917V	1137.884	63.95°C	115.15V
11	84.594A	9.060A	9.106A	3.051A	1099.182	86.891%	1280 RPM	33.4 dB(A)	46.57°C	0.998
11.933V	4.971V	3.261V	4.913V	1265.019	66.53°C	115.15V
CL1	0.099A	18.028A	18.000A	0.004A	150.105	83.097%	1030 RPM	27.2 dB(A)	45.57°C	0.986
12.058V	4.989V	3.275V	5.019V	180.638	60.94°C	115.17V
CL2	83.247A	1.004A	1.002A	1.002A	1008.319	88.177%	1170 RPM	31.1 dB(A)	46.34°C	0.998
11.953V	4.987V	3.277V	4.967V	1143.523	64.66°C	115.15V

The +12V rail has tight enough load regulation, although it's not as good as EVGA's 1000 G3 and Seasonic's 1000W Prime Gold. Both minor rails are close to 1% deviation, while the 5VSB rail lands within 2%.

We observe high efficiency levels, too. It's only during our full-load test that the HX1000 lands ~1% short of its corresponding 80 PLUS limit (though that's defined at a much lower ambient temperature than what we use for testing).

The HX1000 can surely handle elevated operating temperatures. This much becomes clear in our overload test, where the PSU delivers 1.1kW at 46.6°C for a prolonged period. On top of that, the fan profile is highly relaxed. It's only during the full load test that output noise exceeds 30 dB(A). This is a really quiet PSU, even under tough environmental conditions.

MORE: Best Power Supplies

MORE: How We Test Power Supplies

MORE: All Power Supply Content

Current page: Load Regulation, Hold-Up Time & Inrush Current

Prev Page Teardown & Component Analysis Next Page Efficiency, Temperature & Noise
