Why you can trust Tom's Hardware
Firmware

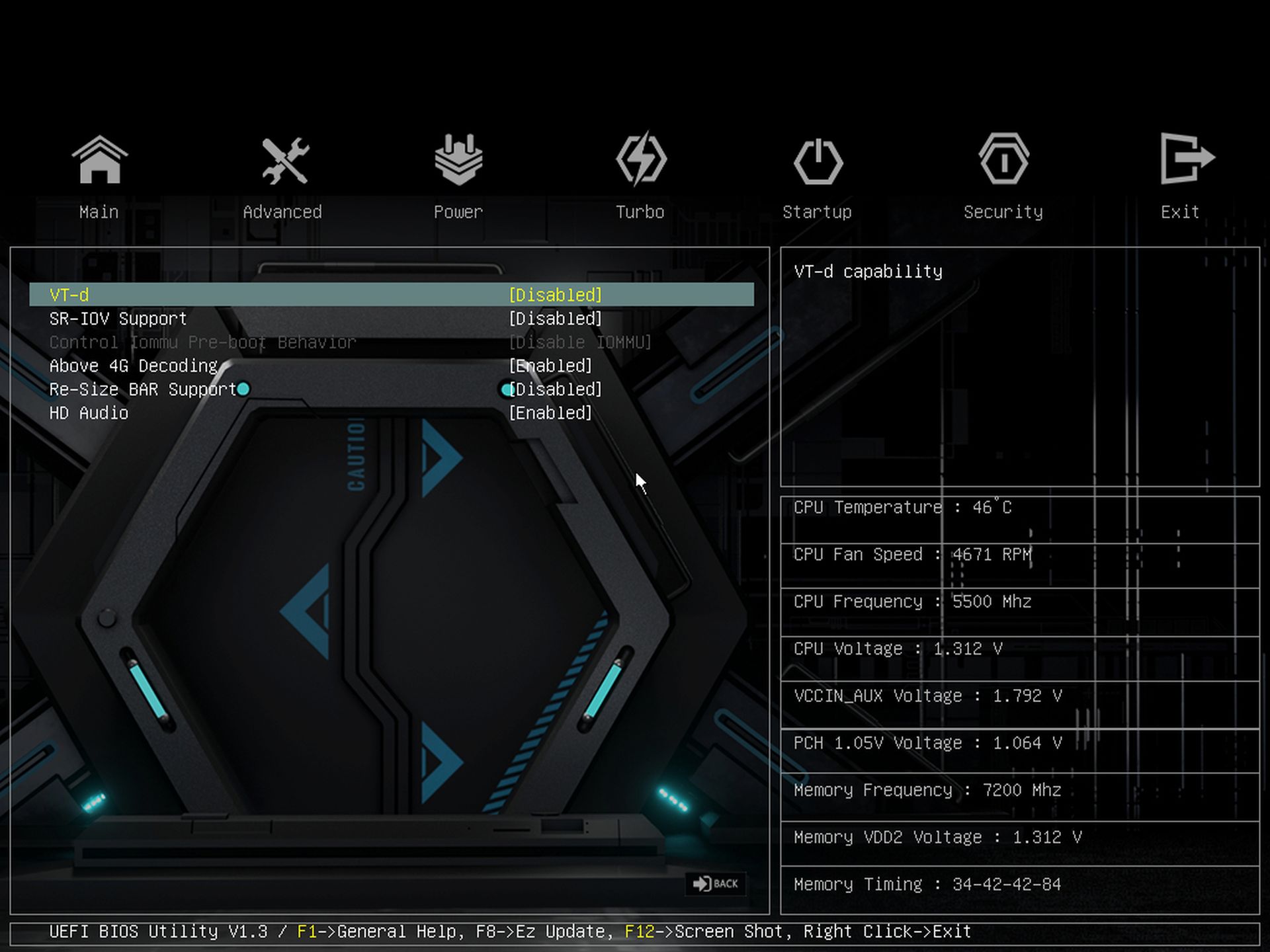

The Maxsun UEFI BIOS is somewhat of a throwback to the days of old, looking somewhat basic compared to others from the major board partners. First, there isn’t an ‘easy mode.’ You just jump right into the advanced portion. Across the top are several headers (Main, Advanced, Power, Turbo, Startup, Security, and Exit), with subheadings below. The right third displays a system summary, including CPU temperatures and voltage, fan speeds, and more, while the left side is where you select the options within. It does the job and offers plenty of functionality. It’s just not up there among the best-looking UEFIs.
Software
On the software side of things, there isn’t much to talk about. The only software available to download is the Maxsun LED application to control any attached RGB lighting. While the Maxsun LED application does the job, we couldn’t find a version that was ALL in English, so we’re not sure what some of the options are. We don’t find any driver installation helper applications or software utilities to control the system (be it fans or overclocking). Any tweaks have to come from the BIOS, at least for now.
Test System / Comparison Products
We’ve updated our test system to Windows 11 64-bit OS with all updates applied. We kept the same Asus TUF RTX 3070 video card from our previous testing platforms but updated the driver. We also updated to F1 22 for our games and kept Far Cry 6. We use the latest non-beta motherboard BIOS available to the public. The hardware we used is as follows:
Test System Components
CPU | Intel Core i9-13900K |
Memory | Kingston Fury Beast DDR5-6000 CL36 (KF560C36BBEAK2-32) |
GSkill Trident Z DDR5-5600 CL36 (F5-5600U3636C16GX2-TZ5RK) | |
GPU | Asus TUF RTX 3070 |
Cooling | Coolermaster MasterLiquid PL360 Flux |
PSU | EVGA Supernova 850W P6 |
Software | Windows 11 64-bit (22H2) |
Graphics Driver | Nvidia GeForce Driver 522.25 |
Sound | Integrated HD audio |
Network | Integrated Networking (GbE or 2.5 GbE) |
EVGA supplied our Supernova 850W P6 power supply (appropriately sized and more efficient than the 1.2KW monster we used previously) for our test systems, and G.Skill sent us a DDR5-5600 (F5-5600U3636C16GX2-TZ5RK) memory kit for testing.
Benchmark Settings
Synthetic Benchmarks and Settings | Row 0 - Cell 1 |
Procyon | Version 2.1.459 64 |
Row 2 - Cell 0 | Office Suite (Office 365), Video Editing (Premiere Pro 22.6.2.2), Photo Editing (Photoshop 23.5.1, Lightroom Classic 11.5) |
3DMark | Version 2.22.7359 64 |
Row 4 - Cell 0 | Firestrike Extreme and Time Spy Default Presets |
Cinebench R23 | Version RBBENCHMARK330542 |
Row 6 - Cell 0 | Open GL Benchmark - Single and Multi-threaded |
Blender | Version 3.3.0 |
Row 8 - Cell 0 | Full benchmark (all 3 tests) |
Application Tests and Settings | Row 9 - Cell 1 |
LAME MP3 | Version SSE2_2019 |
Row 11 - Cell 0 | Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s) |
HandBrake CLI | Version: 1.2.2 |
Row 13 - Cell 0 | Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX) |
Corona 1.4 | Version 1.4 |
Row 15 - Cell 0 | Custom benchmark |
7-Zip | Version 21.03-beta |
Row 17 - Cell 0 | Integrated benchmark (Command Line) |
Game Tests and Settings | Row 18 - Cell 1 |
Far Cry 6 | Ultra Preset - 1920 x 1080, HD Textures ON |
F1 2022 | Ultra Preset - 1920 x 1080, Ultra High (default) Bahrain (Clear/Dry), FPS Counter ON |
MORE: Best Motherboards
MORE: How To Choose A Motherboard
MORE: All Motherboard Content
Current page: Firmware, Software and Test System
Prev Page Features and Specifications Next Page Benchmarks and Final AnalysisJoe Shields is a Freelance writer for Tom’s Hardware US. He reviews motherboards.
