SSD Performance In Crysis 2, World Of Warcraft, And Civilization V

Features
By
published

There are a ton of terms used to quantify storage performance. If you're a gamer, you have to be wondering how such dry terminology can apply to having fun. Rather than telling you, we're going to dissect three popular titles to show you instead.

Launching Sid Meier's Civilization V

Swipe to scroll horizontally
Overall StatisticsCivilization V: Game Launching
Elapsed Time00:38
Read Operations12 016
Write Operations619
Data Read629.94 MB
Data Written15.83 MB
Disk Busy Time2.15 s
Average Data Rate299.27 MB/s

As we've seen twice now, starting a game mostly involves reads. Civilization V makes the third confirmation of that trend. Considering that you have to read about 630 MB to launch this game, though, Civilization V turns out to be a more intensive storage workload than Crysis 2 or World of Warcarft: Cataclysm.

According to the trace, Civilization behaves a bit like WoW. There’s a wide variety of transfer sizes, and most operations occur at a queue depth of one. It's also interesting that this is the first game we've tested with more than 5% of its commands stacking up at a queue depth in excess of 32.

I/O Trends:

  • 64% of all operations occur at a queue depth of one
  • 29% of all operations occur between a queue depth of two and 10
  • 75% of all operations are sequential
  • 30% 128 KB, 22% 4 KB, 9% 8 KB, 8% 16 KB

Seek Distance

QD

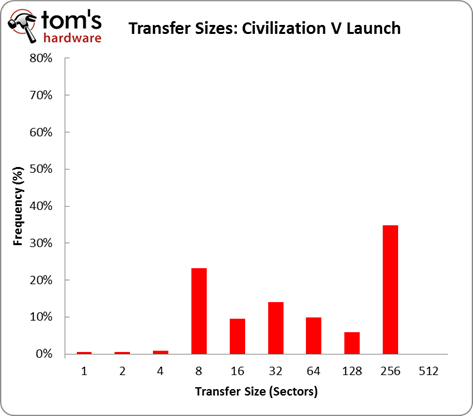

Transfer Size
