Wooting One Analog Mechanical Keyboard Review

Switches, Lighting & Key Caps

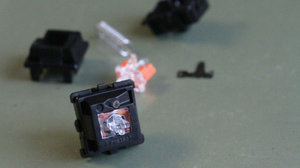

As we discussed on the previous page, the Wooting One uses Flaretech optical switches. To clear up any misconception, the “optical” part refers only to the sensing method. These are still mechanical switches: They have a similar housing to any Cherry MX clone you’ve seen, they have a stem, etc. They’re even compatible with cross-stem replacement keycaps. The difference is that instead of two metal points making contact, a beam of light senses the depth of the stem when you depress it.

Optical switches allege to be “faster,” because they don’t suffer from debounce like metal contact switches do, but don’t mistake that to mean that the physical action of the switch is faster or smoother.

The One that Wooting sent us was loaded up with linear switches (Flaretech Red), but the box also contained a full replacement set of clicky Flaretech Blue switches, too. (You can get the extra set of switches only in the Premium package.) Because optical switches don’t have to be soldered, they’re by nature hot-swappable. Thus, you can remove and replace every switch on this keyboard if you prefer clicky over linear switches (or vice versa).

Image 1 of 2

That’s easier said than done, though. It is not always so easy to pry off a single switch, let alone 88 of them, and the whole process is rather time consuming, so expect to perform this action on rare occasions. Still, it’s important to understand that you can swap the switches without any soldering. Just pluck (with the included tool) and replace.

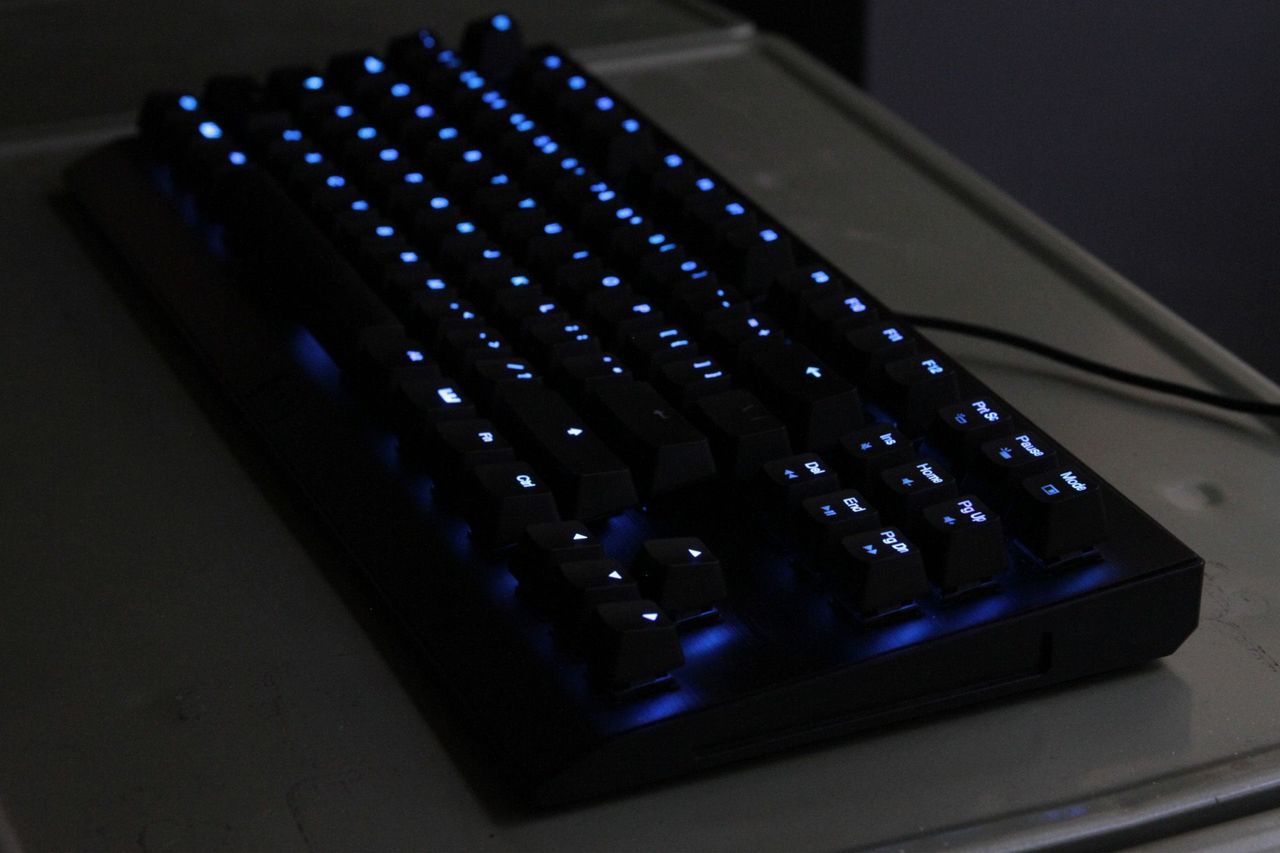

The entire One keyboard is RGB backlit. We did have a few issues, though--a couple of the LEDs went out on us. But it turns out that an early version of the firmware loaded up the wrong layout (ISO instead of ANSI). For whatever reason, future updates didn't solve the issue. Once we completely reset the One and reloaded the proper layout, though, all the LEDs are properly lit.

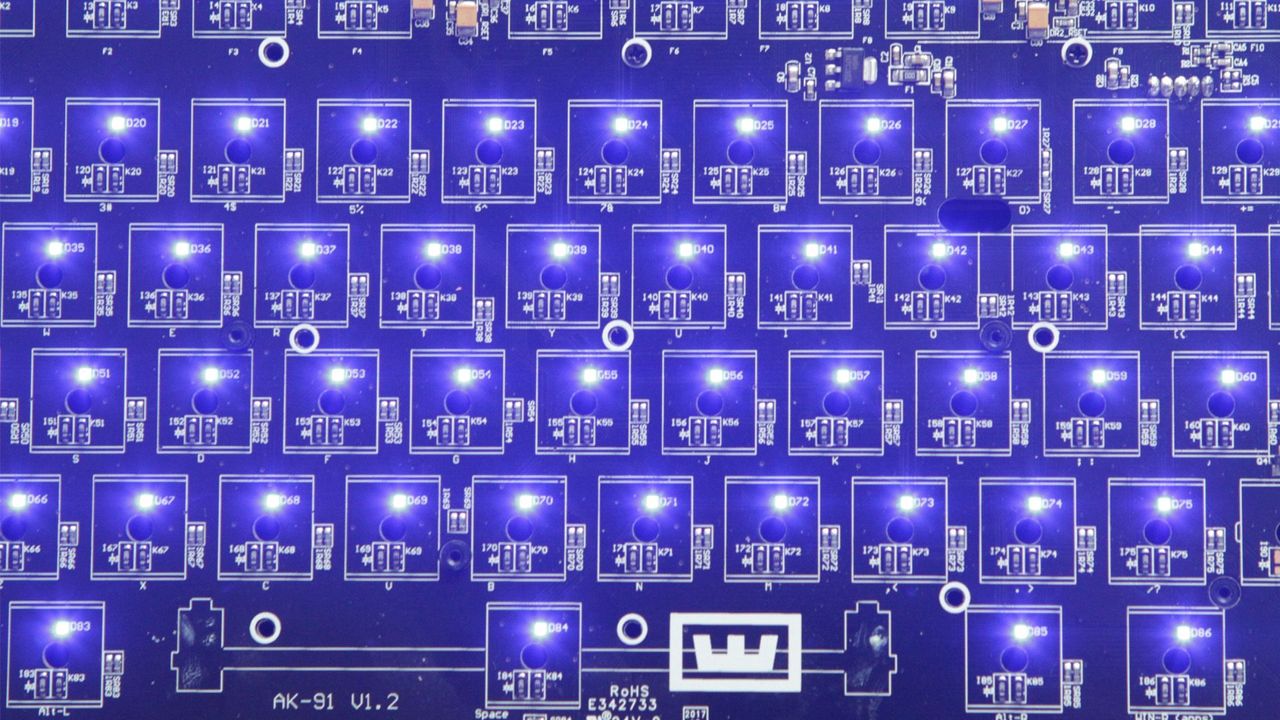

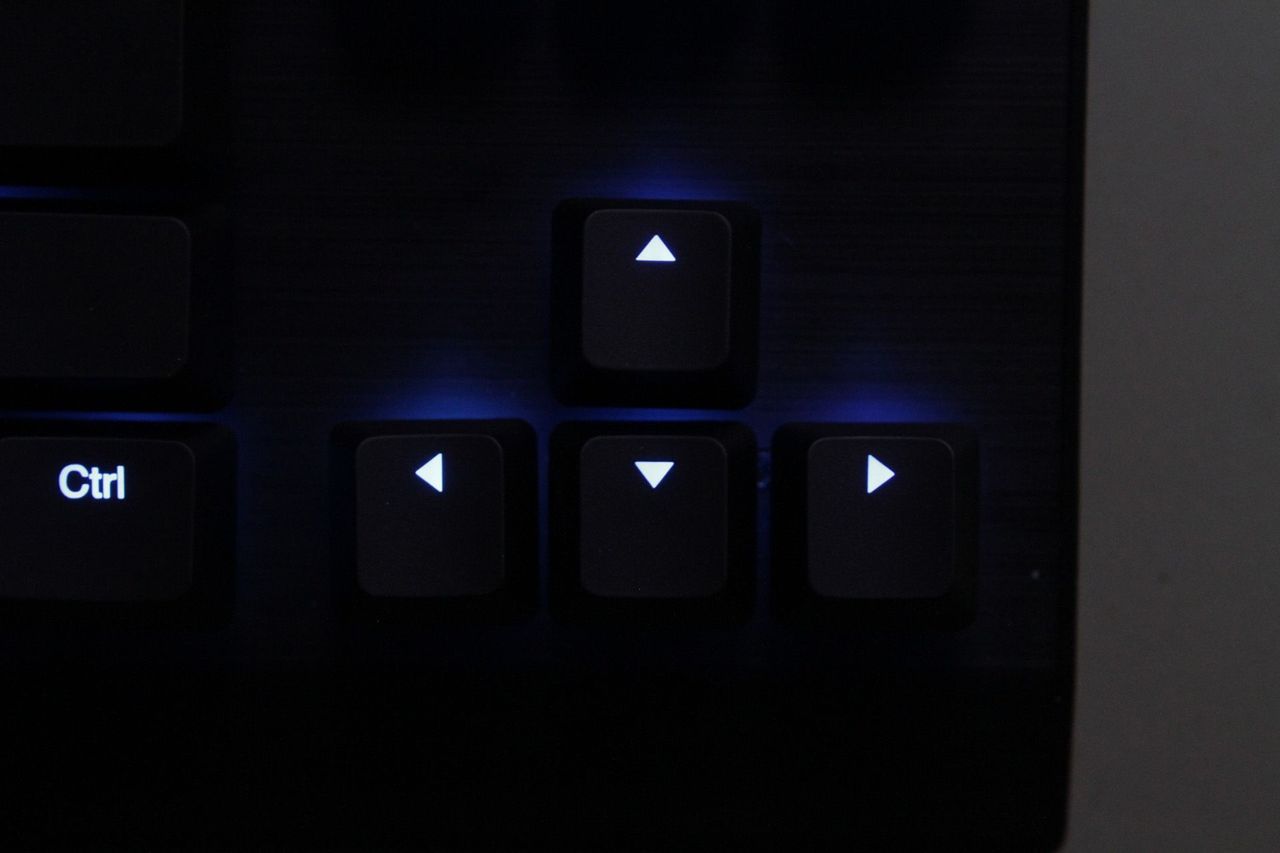

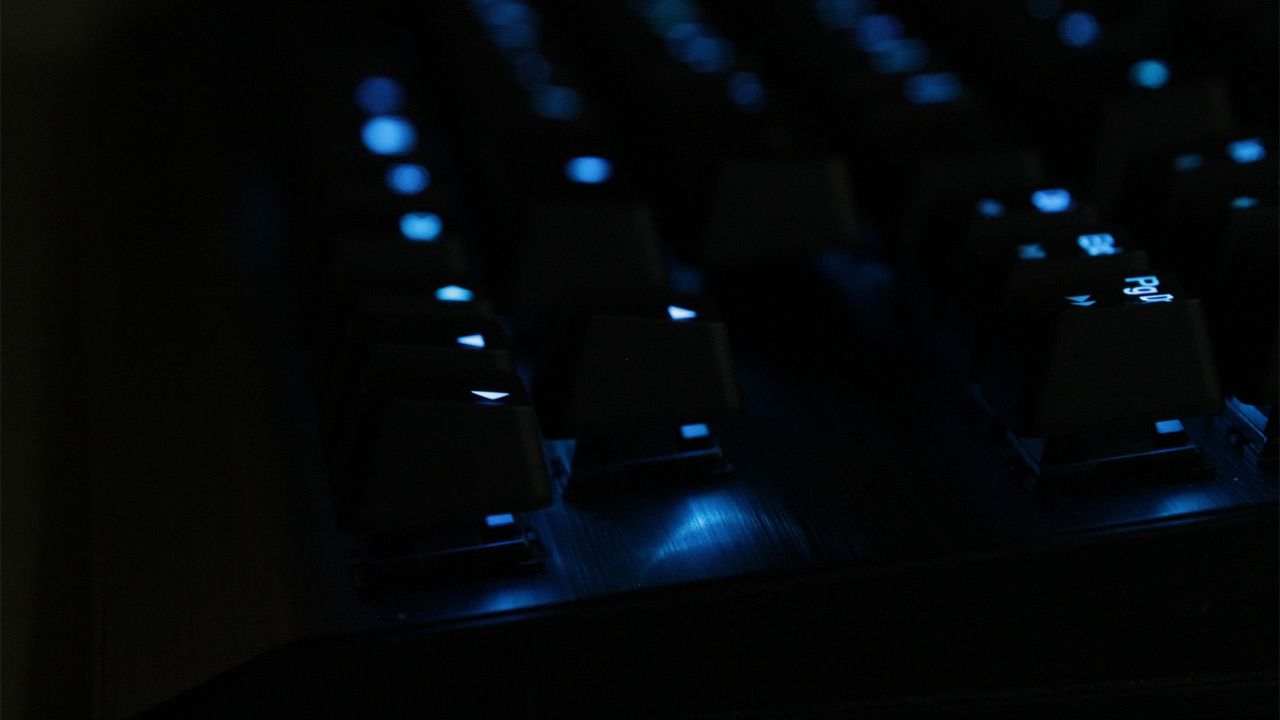

The LEDs are perched at the top of the switch housing, as is common, and the keycap legends are positioned directly above them to ensure bright, even lighting--for the legends. However, because the One features a top plate design with the switch housings slightly exposed, the caps have underglow. Overall, it’s a lovely aesthetic, but the slightly offset location of the LEDs means that the underglow is commensurately offset.

Image 1 of 5

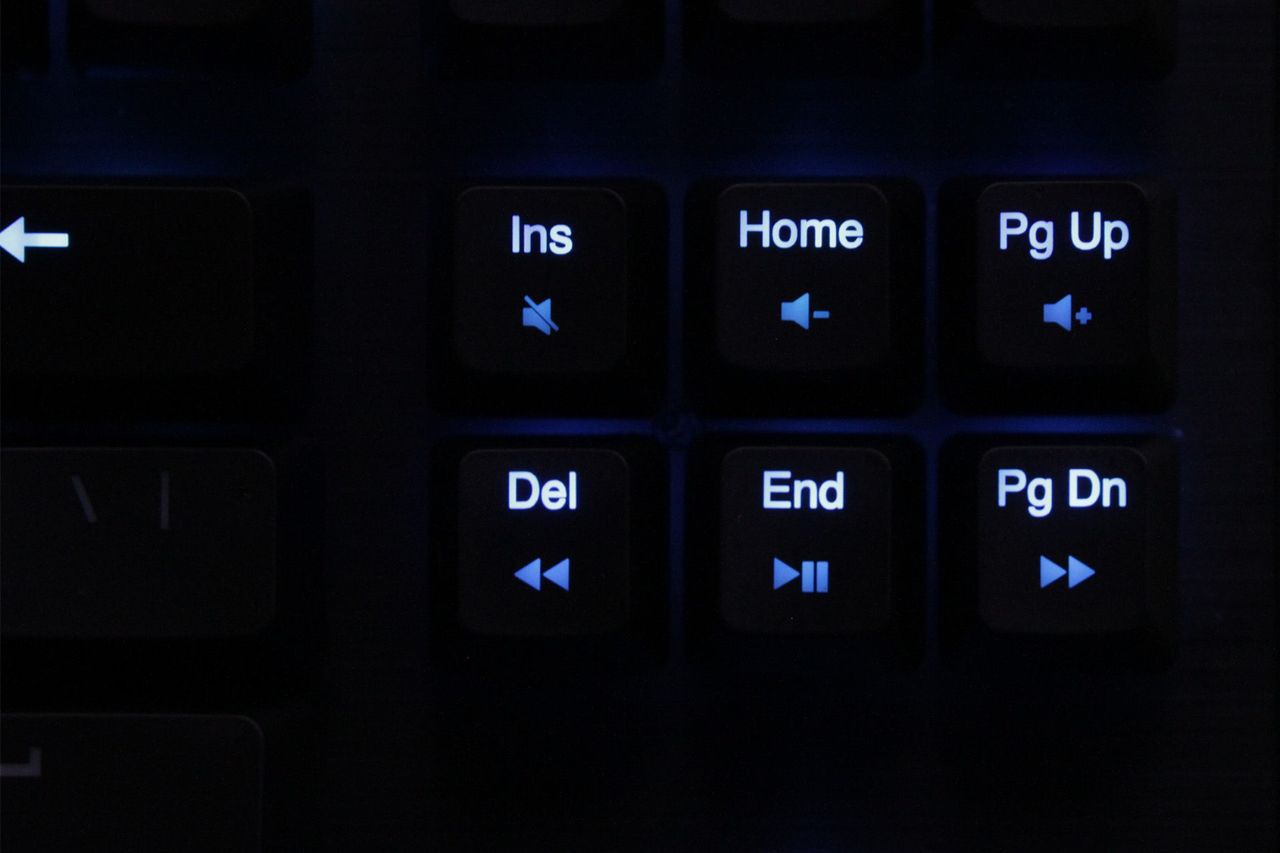

This is a common design, so it’s not as if Wooting goofed here, and because you’re always looking at your keyboard at an angle anyway you won’t notice it much, but it’s still not quite ideal. It’s a compromise required by the LED placement: You can have either ideal keycap legend backlighting or underglow, but not both. We posit that it’s better to ensure the former, because uneven lighting under legends is more noticeable. The secondary legends are also slightly dimmer as well, by dint of where they’re located.

The One offers per-key RGB lighting, and the colors are easily programmable in the accompanying Wootility software, which we’ll dive into on the next page.

After many hours of use, we spotted a bit of shine on the key caps, although it was mostly on the modifier keys. This is unsurprising, because the caps are ABS plastic. They’re black UV-coated with laser-ablated lettering. We measured the walls of the key caps at approximately 1.15mm.

There are a handful of replacement caps in the box that offer fun alternative legends. For example, one is a second Windows replacement cap featuring the Wooting “w” logo, one has a heart and says “analog,” and so on. (Update, 7/20/17, 10:20am PT: It turns out that these neat caps were just something fun that Wooting threw in for reviewers. Sorry, everyone else!)
