Overclocking Core i7-3770K: Learning To Live With Compromise

Features
By , published

We recently took our first look at Intel's Ivy Bridge architecture. Then, we evaluated its efficiency. Now, we turn to overclocking. Recently, each of Intel's die shrinks has helped increase frequency headroom. This time, however, we ran into some walls.

Single- And Multi-Threaded Efficiency

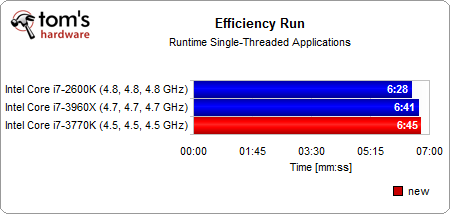

Single-Threaded Applications

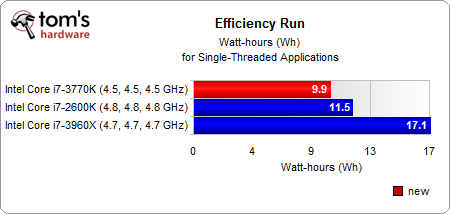

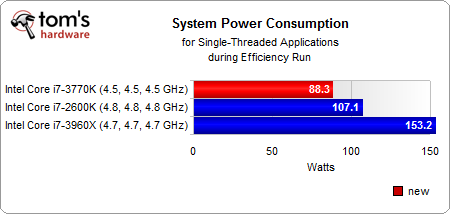

The total run time for all single-threaded applications doesn’t differ by a lot. In the end, though, Sandy Bridge's higher clock rate secures the victory. The power draw tests, however, favor Ivy Bridge.

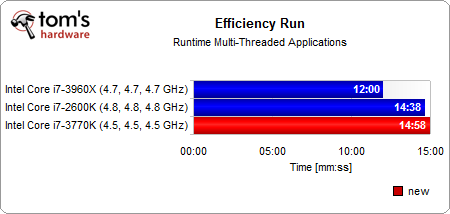

Multi-Threaded Applications

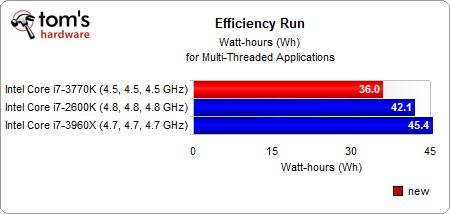

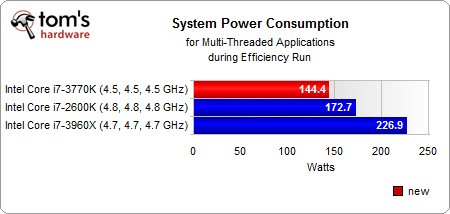

Thread-optimized applications show us a similar picture. However, the Core i7-3960X and its six-core architecture exhibits dominant performance. Factoring power into the equation, though, gives Ivy Bridge another clear win.
