MSI MEG Ai1000P PCIe 5 ATX v3.0 Power Supply Review

MSI enters the high-end club with the MEG Ai1000P PCIe 5 power supply.

Reviews
By Aris Mpitziopoulos
published
MSI MEG Ai1000P PCIe5 ATX v3.0
Editor's Choice
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Protection Features

Check out our PSUs 101 article to learn more about PSU protection features.

Swipe to scroll horizontally
OCP (Cold @ 26°C)12V: 102.2A (122.64%), 11.927V
5V: 29A (131.82%), 5.046V
3.3V: 28.4A (129.09%), 3.311V
5VSB: 4.8A (160%), 4.993V
OCP (Hot @ 44°C)12V: 101.4A (121.68%), 11.906V
5V: 28.8A (130.91%), 5.057V
3.3V: 27.4A (124.55%), 3.324V
5VSB: 4.7A (156.67%), 4.989V
OPP (Cold @ 28°C)1223.42W (122.34%)
OPP (Hot @ 43°C)1223.42W (122.34%)
OTP✓ (168°C @ 12V Heat Sink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper operation
NLO✓
SIPSurge: MOV
Inrush: NTC Thermistor & Bypass relay

The OCP triggering points are correctly set at 12V and the same goes for OPP. It is a pleasant surprise to find proper OCP triggering points on the minor rails, too.

DC Power Sequencing

According to Intel’s most recent Power Supply Design Guide (revision 1.4), the +12V and 5V outputs must be equal to or greater than the 3.3V rail at all times. Unfortunately, Intel doesn't mention why it is so important to always keep the 3.3V rail's voltage lower than the levels of the other two outputs.

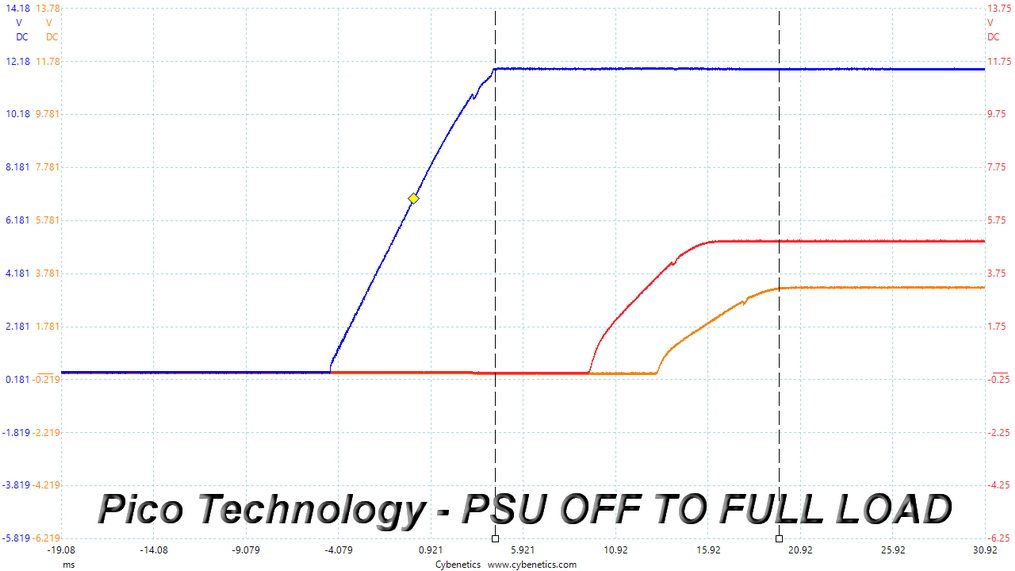

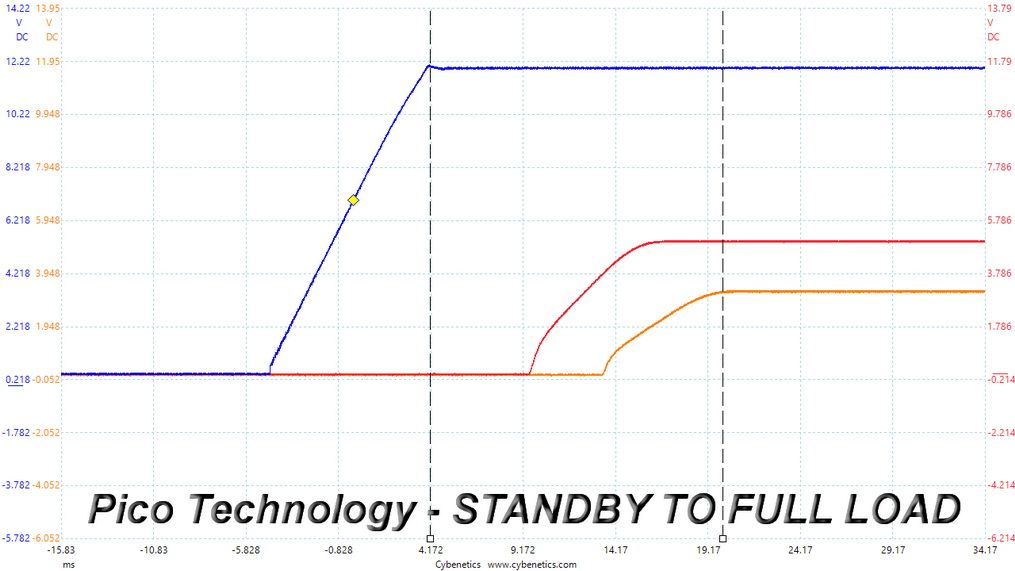

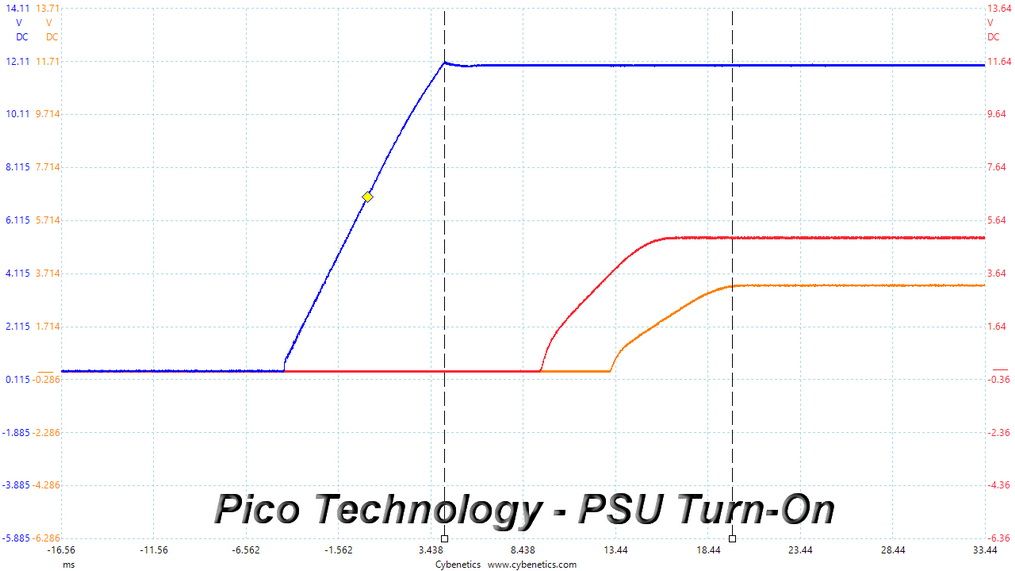

Image 1 of 3
MSI MEG Ai1000P PCIe5
(Image credit: Tom's Hardware)

No problems here since the 3.3V rail is always lower than the other two.

Cross Load Tests

To generate the following charts, we set our loaders to auto mode through custom-made software before trying more than 25,000 possible load combinations with the +12V, 5V, and 3.3V rails. The deviations in each of the charts below are calculated by taking the nominal values of the rails (12V, 5V, and 3.3V) as point zero. The ambient temperature during testing was between 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit).

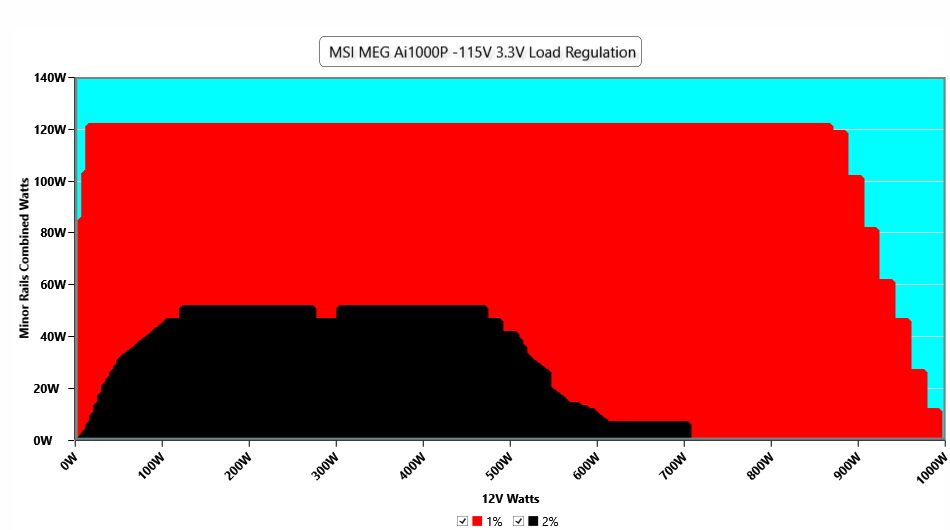

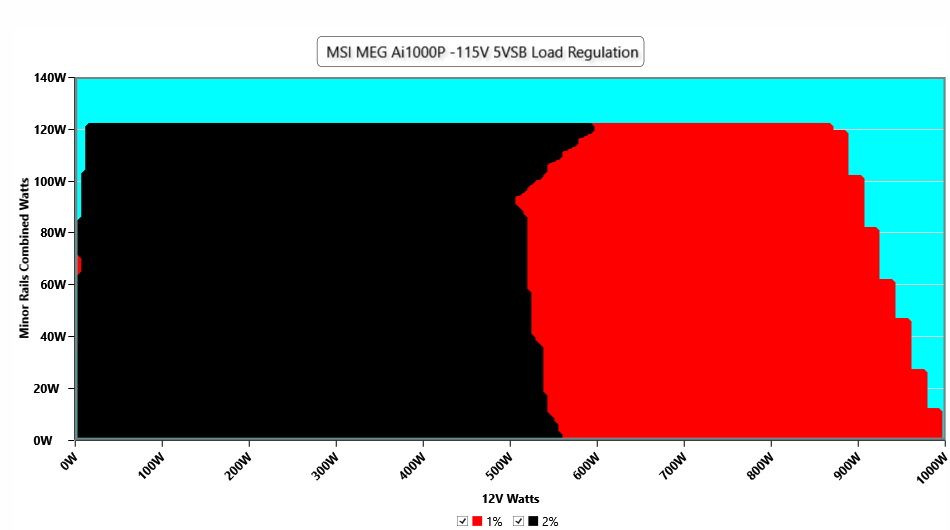

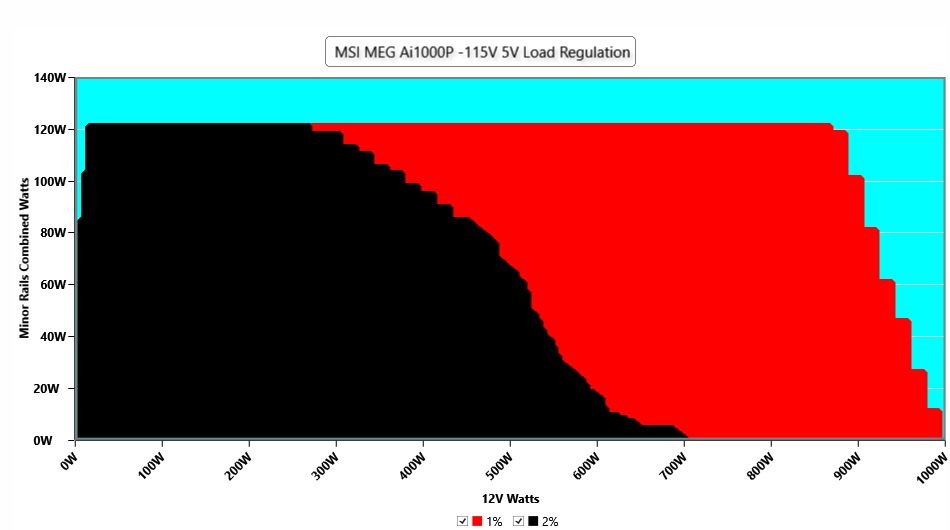

Load Regulation Charts

Image 1 of 4
MSI MEG Ai1000P PCIe5
(Image credit: Tom's Hardware)

Efficiency Graph

(Image credit: Tom's Hardware)

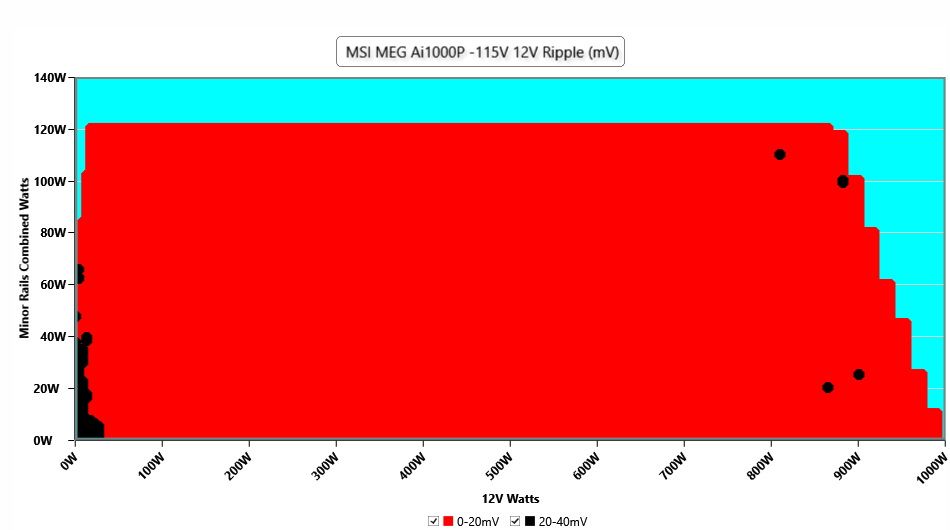

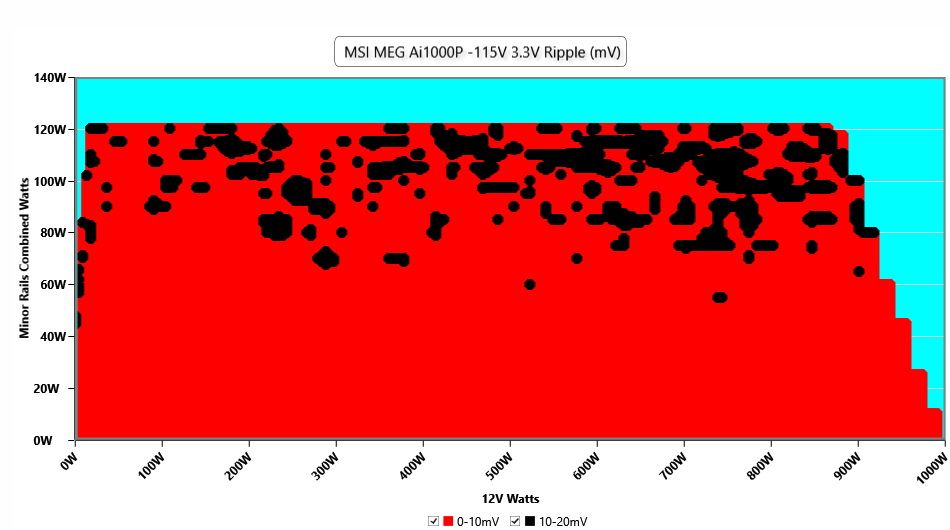

Ripple Graphs

The lower the power supply's ripple, the more stable the system will be and less stress will also be applied to its components.

Image 1 of 4
MSI MEG Ai1000P PCIe5
(Image credit: Tom's Hardware)

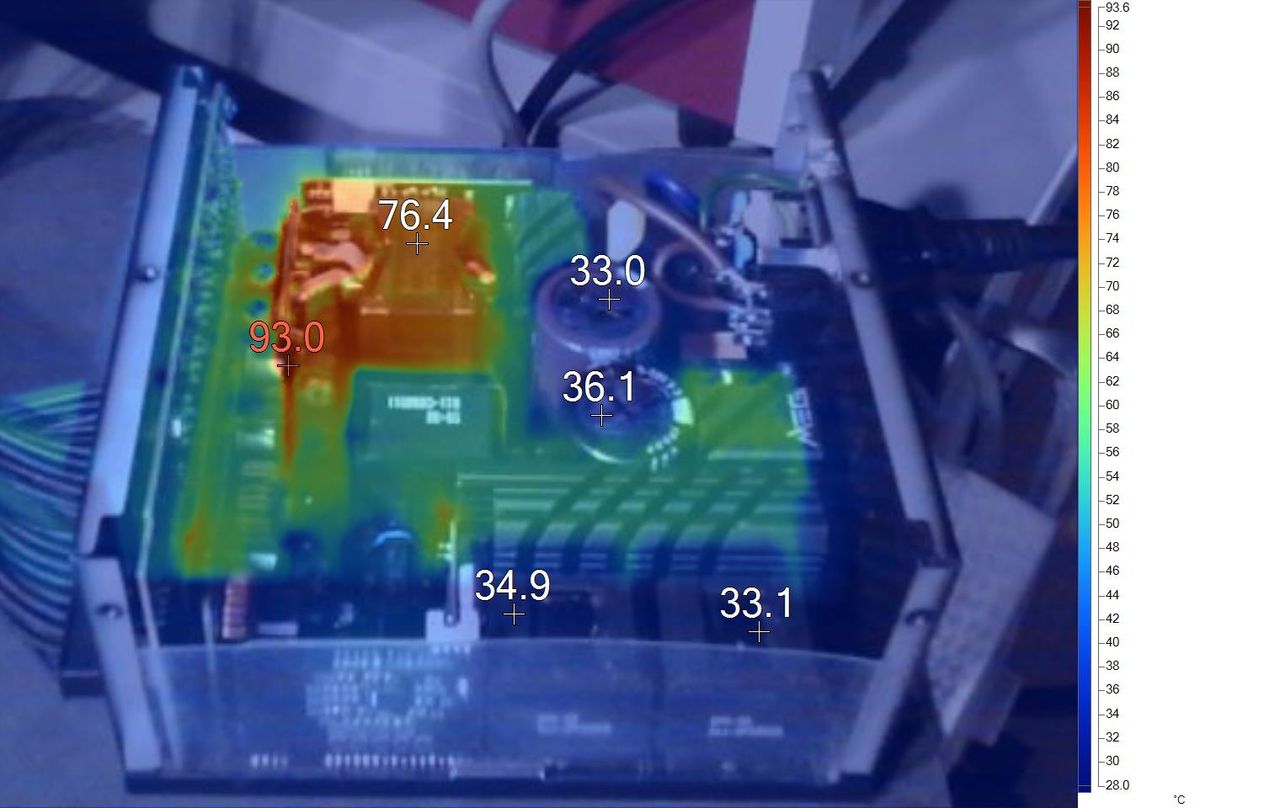

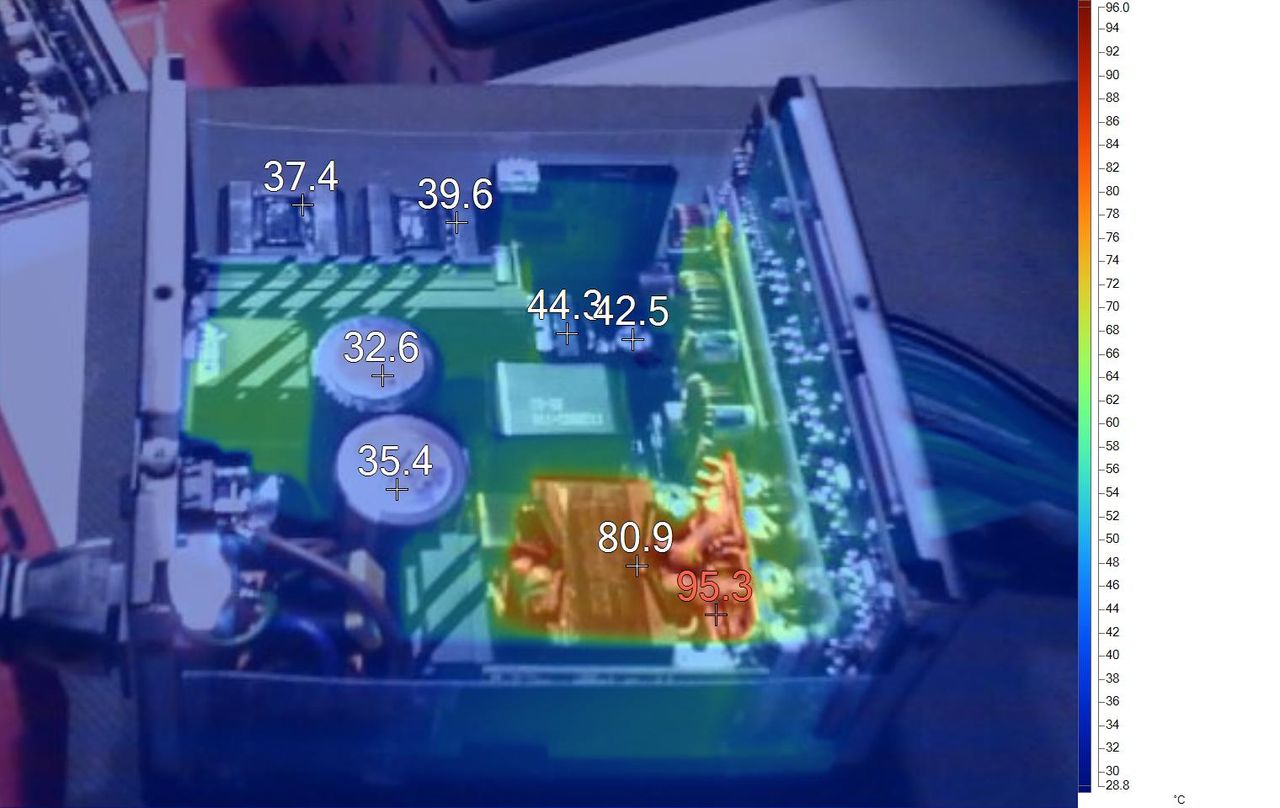

Infrared Images

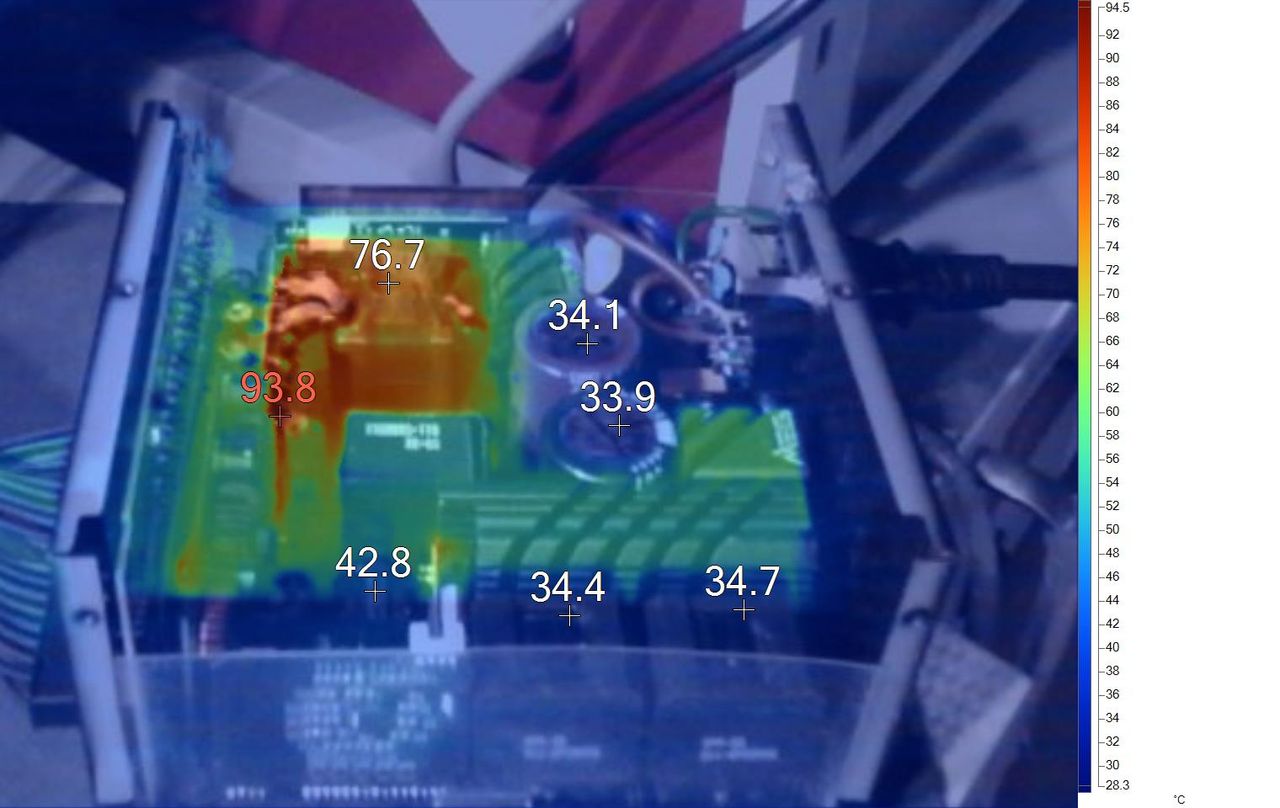

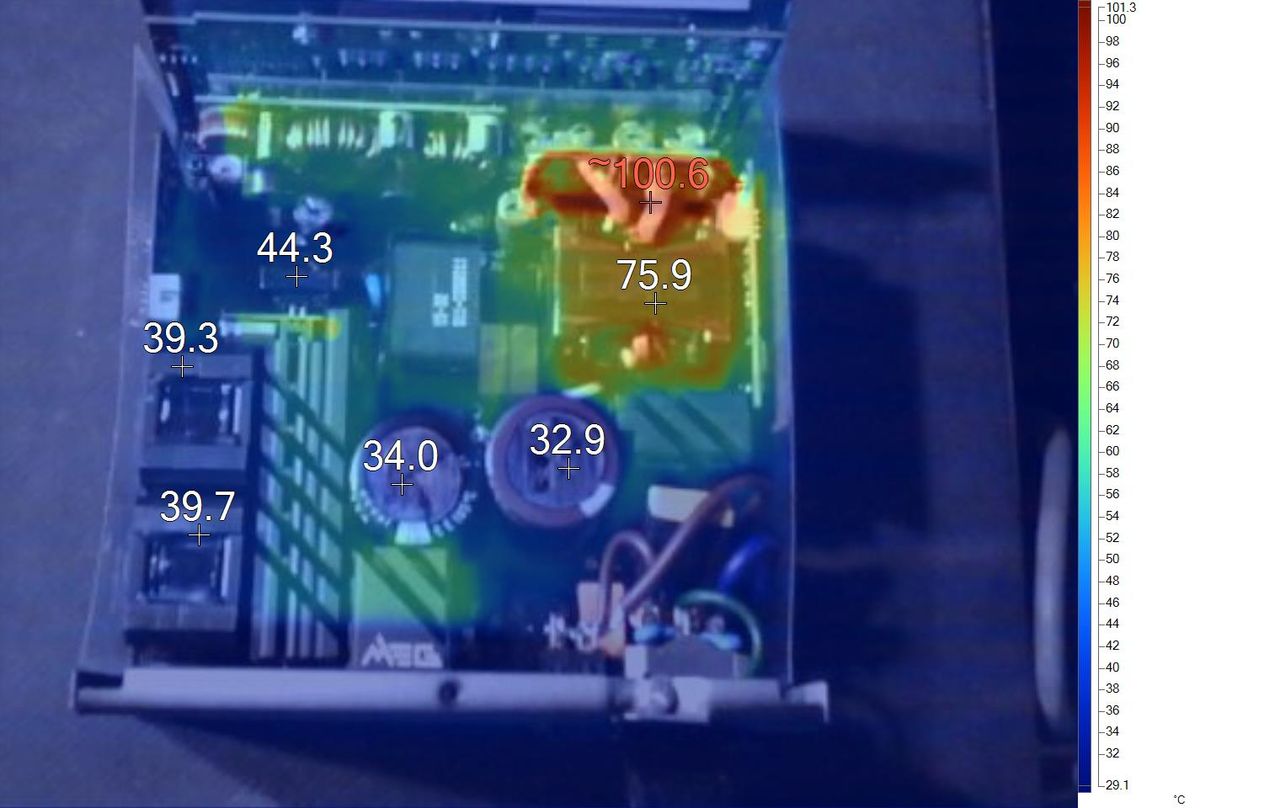

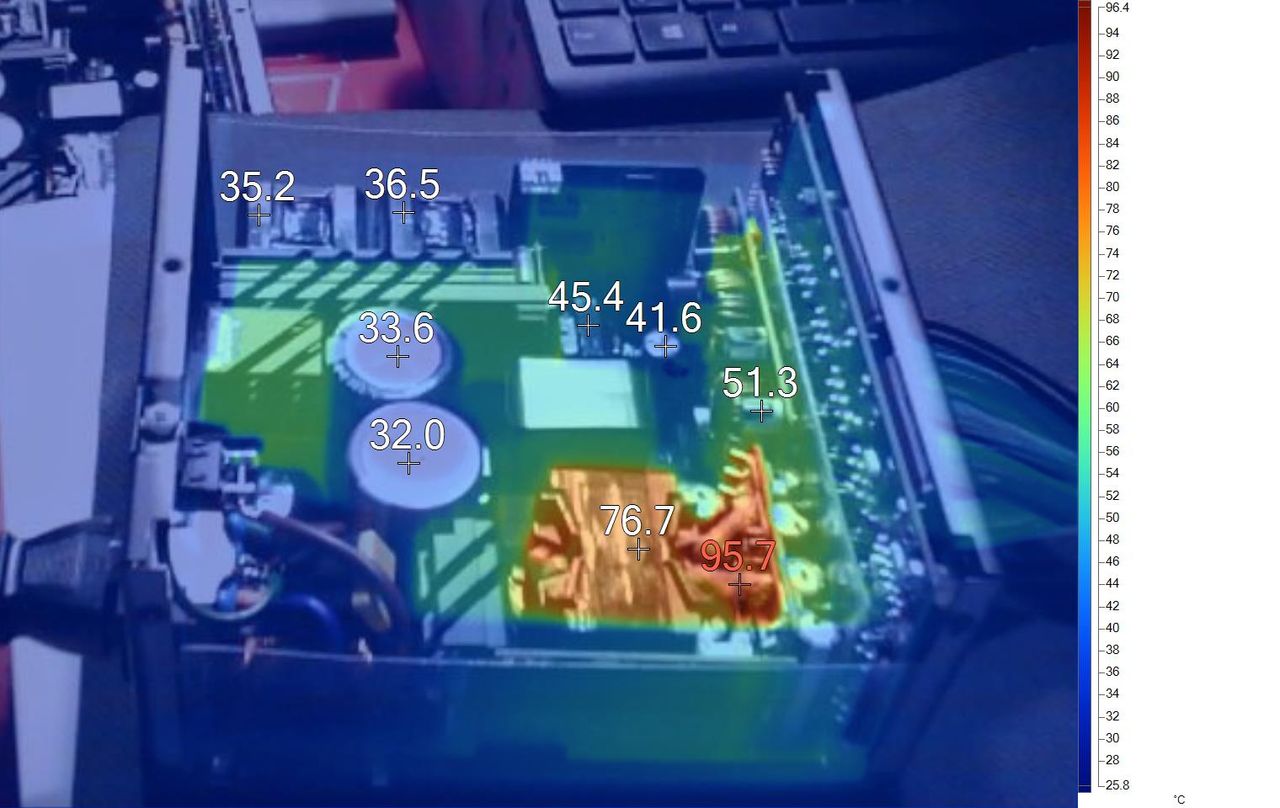

We apply a half-load for 10 minutes with the PSU's top cover and cooling fan removed before taking photos with a modified Fluke Ti480 PRO camera able to deliver an IR resolution of 640x480 (307,200 pixels).

Image 1 of 5
MSI MEG Ai1000P PCIe5
(Image credit: Tom's Hardware)

The 12V board exceeded 100 degrees Celsius without active cooling and a half load for ten minutes. The FETs on this board can handle the heat, but up to a point, which is why active cooling is required at increased loads.

MORE: Best Power Supplies

MORE: How We Test Power Supplies

MORE: All Power Supply Content

Aris Mpitziopoulos
Contributing Editor

Aris Mpitziopoulos is a Contributing Editor at Tom's Hardware US, covering PSUs.
