Benchmark Results: Synthetics
We start with a look at the synthetic performance of both systems.

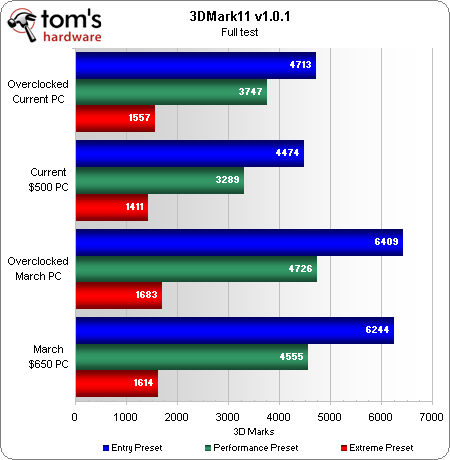

A powerful graphics card keeps the $500 machine competitive at 3DMark's Extreme preset. However, its less muscular processor is outed at the lower two settings, which put more emphasis on the overall platform. Fairly roundly, though, this quarter's build gets beat by our most recent effort.

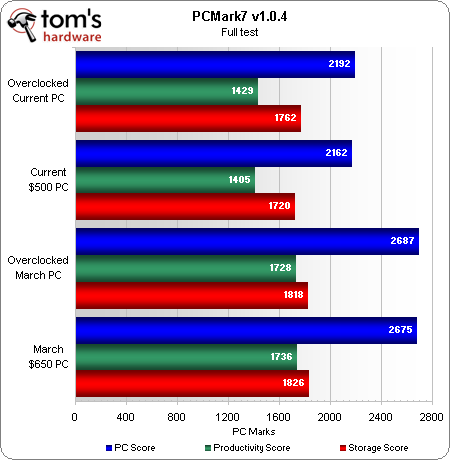

“Anything you can do, I can do better. I can do anything better than you.” Lasting lyrics from the 1946 Broadway Musical, Annie Get Your Gun, are so true in PCMark 7. The machine with a 150%-higher processor budget simply cleans house.

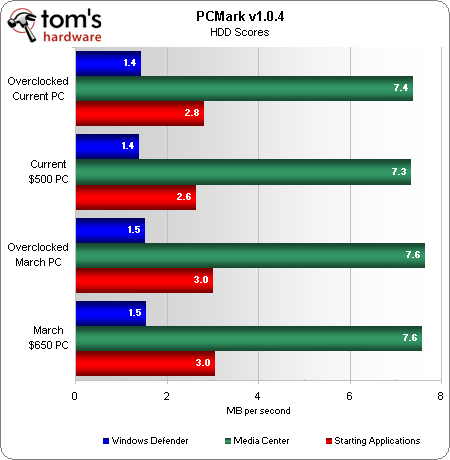

However, using the same motherboard and mechanical drives with similar specifications means we get fairly comparable storage performance.

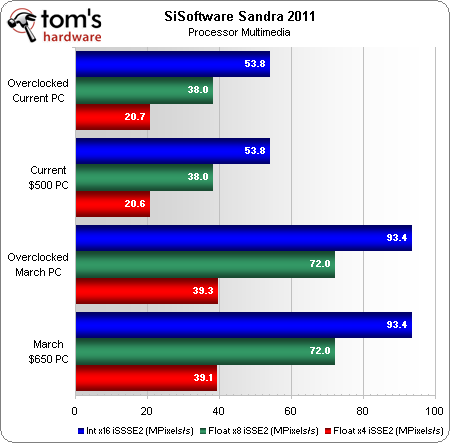

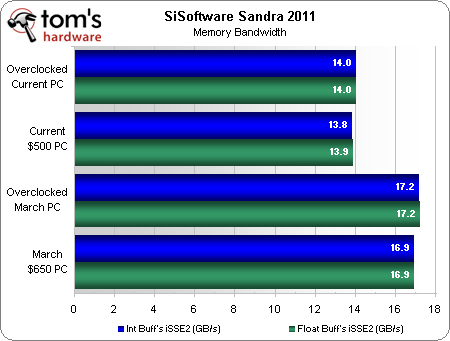

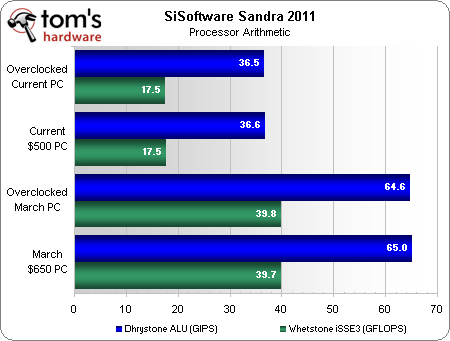

The Celeron G530 trails by a hefty margin in Sandra’s processor tests, while its DDR-1066 memory controller curbs bandwidth as expected.
Current page: Benchmark Results: SyntheticsPrev Page Test System Configuration And Benchmarks Next Page Benchmark Results: Battlefield 3 And DiRT 3
Stay on the Cutting Edge
Join the experts who read Tom's Hardware for the inside track on enthusiast PC tech news — and have for over 25 years. We'll send breaking news and in-depth reviews of CPUs, GPUs, AI, maker hardware and more straight to your inbox.
It is just incredible how well the G530 performs in gaming.Reply
Would have liked to see Diablo 3 and SC 2 benchmarks for this build.Reply
why are you not increasing the voltages on the GPU to get more clocks ?Reply
any enthusiast with limited budget would want to maximize his core clocks with higher voltages.. the card can keep cool by increasing the fan speed.
More noise for a gaming session is acceptable.
Dumping the bulk of our funding into graphics is sure to spell disaster throughout the media encoding and productivity benchmarks. But it's time to face the music.
pun intended ? ;)
Celeron G530 is what I'm rocking in my gaming rig. It is definitely a capable processor, surprising given the legacy behind anything labeled Celeron.Reply
Slomo4shOWould have liked to see Diablo 3 and SC 2 benchmarks for this build.I can't give you exact fps rates, but my machine is very similar to this one (only difference is the GPU: 6950+Z68) and I get similar frame rates in all the tested games. So I'll infer to you what this rig would probably get close to.Reply
Diablo 3 maxes out at 60fps with occasional dips down to ~30fps when getting mobbed on hell. As for SC2, frame rates for me tended to be around 35fps on average with everything maxed out at 1920x1080 for both games.
s3anisterCeleron G530 is what I'm rocking in my gaming rig. It is definitely a capable processor, surprising given the legacy behind anything labeled Celeron.Ah, but think way back.... slot 1, 440BX, and the Celeron 300A? I had a 266@412MHz, a 300A@464MHz, a 300A@450MHz, and a 333(that topped out down at an 83 MHz FSB).Reply
While not the first chips I had overclocked, those slot 1 Celeron's gave me the incurable OC bug! *dreams of G530K*
Amazing! I never thought an SBM machine would ever come this close to my own rig. And confirm for me that my drooling over $200+ graphics cards is not an impractical fantasy for my current rig. I've been dreaming of retiring my old GT240 for a newer card and had the HD7850 (or comparable Nvidia counterpart when it comes out) in mind, or even an HD7770. I now feel justified and my wife will go nuts over the pc part purchase, again.Reply
I did notice one thing when I compared this build with my system - mine idles at 48-52 watts, too, and I use a 500W S12II. I think right-sizing the PSU will add to the efficiency. A 350w PSU is my bet for bringing the idle power draw closer to the 20% mark of the PSU rating where efficiency starts to pick up (as per 80plus requirements). I say 350w because whoever gets this will likely want to upgrade the CPU to something beefier sooner or later. Nah, sooner!
Thanks, Paul! for tackling love and system-building with reckless abandon.
i got a question. if I were to use a phenom 2x4 965 BE(3.4ghz) for a gaming rig on a similar budget to this, would it bottleneck me in gaming and other applications?Reply
mayankleoboy1why are you not increasing the voltages on the GPU to get more clocks ?any enthusiast with limited budget would want to maximize his core clocks with higher voltages.. the card can keep cool by increasing the fan speed.More noise for a gaming session is acceptable.As mentioned, it was maiinly a matter of consistency with the past few builds. Dealing with fixed CPU clocks and memory frequency, I just haven't been too aggresive with previous efforts with Radeons, and thus didn't want to boost voltage here with the GTX. Trying to play it fair, that's all. Maybe once we revisit overclockable platforms, and are already dealing with increaded noise, I'll get itchy to max-out the GPU.Reply
Thanks for the feedback though. I'm actually surprised given the balance of the system, that people would desire to see aggressive GPU overclocking.
