Benchmark Results: Audio And Video Encoding

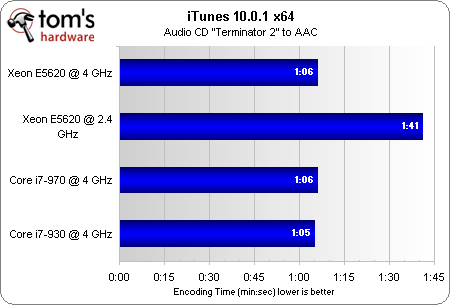

Now in version 10, we’d expect iTunes to take better advantage of threaded processors, but it still doesn’t. The three 4 GHz chips turn in nearly identical scores, and the 2.4 GHz stock Xeon shows what a 1.6 GHz deficit does in a single-threaded piece of software.

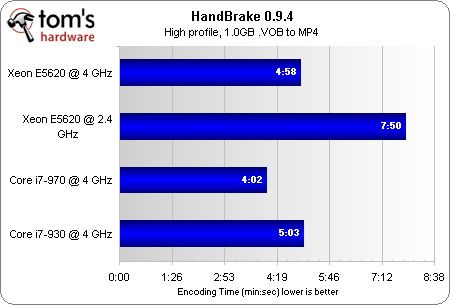

Now this is more like it. Understandably, the quad-core 2.4 GHz Xeon gets smoked in this freely-available well-threaded transcoding app. But when it’s overclocked to 4 GHz, it’s able to edge out Intel’s Core i7-930.

As a point of comparison, the six-core Core i7-970 is 25% faster than the i7-930, but you have to pay an additional 300% for that extra performance. Unless you’re transcoding professionally and simply cannot get enough compute muscle, it’d be hard to justify such a steep premium.

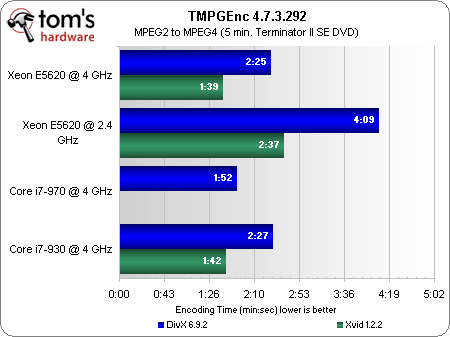

DivX capitalizes on available core count, and easily shows how much faster the overclocked Xeon E5620 is versus the same CPU in stock form. A higher memory frequency and more L3 cache help nudge that overclocked Xeon in front of Intel’s Core i7-930 running at 4 GHz, but the six-core Core i7-970 takes first place (at a significant cost).

Xvid isn’t as nice to the Gulftown-based chip, crashing before the job can finish. This is an issue we’ve seen before, and it looks like it still hasn’t been fixed. Instead, the overclocked Xeon takes first-place here.

A 50%-higher core count and an extra 4 MB of L3 cache buys 34% additional performance when you compare the Core i7-970 to the i7-930. That’s not perfect scaling, but it’s reasonable. The overclocked Xeon E5620 is 2% quicker than the i7-930 baseline at 4 GHz.

Clearly, threading rules this test—the question is: are you ready to pay hundreds of dollars more for the speed boost?

Chris Angelini
Chris Angelini
Chris Angelini is an Editor Emeritus at Tom's Hardware US. He edits hardware reviews and covers high-profile CPU and GPU launches.
