Five Z87 Motherboards For Your Mini-ITX Build, Reviewed

Features
By
published

Z87 rules the PC enthusiast market by exposing the Haswell architecture's full feature set. We're particularly interested in mini-ITX-based platforms able to integrate Z87 in a compact form factor. Five boards contend for supremacy of compact computing.

Energy, Heat, And Efficiency

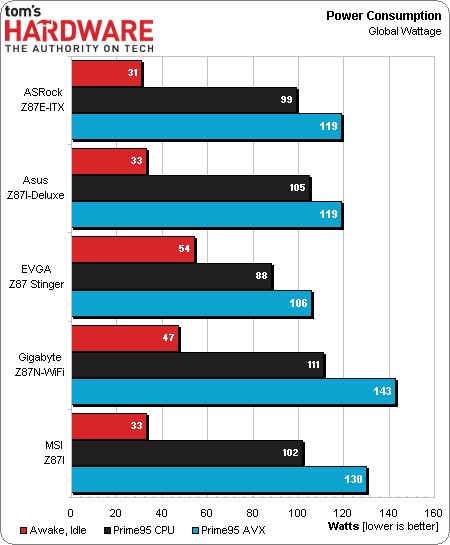

The Z87E-ITX puts ASRock in the lead for lowest idle power consumption, while EVGA registers the highest idle and lowest full-load power numbers. Inconsistent Turbo Boost behavior could explain the small leads in a few benchmarks, though the Z87 Stinger's overall performance is just 1% above average.

Gigabyte’s Z87N-WiFi demonstrated high full-load power consumption, and showed us similarly higher core temperatures. With its processor interface nudged up close towards the graphics card, we credit cooler orientation with part of the heat increase.

High full-load power consumption hurts Gigabyte’s overall efficiency, while low full-load power consumption boosts EVGA’s average efficiency in spite of idle power issues.

TOPICS
Thomas Soderstrom
Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
28 Comments Comment from the forums
  • lp231
    Here is another MSI ITX board
    Reply
  • PEJUman
    Why would one pay extra for ASUS's power delivery if it didn't yield any additional OC/DRAM stability? In the end, ASRock features & cheaper price should be a better option here.
    Reply
  • Crashman
    12025866 said:
    Here is another MSI ITX board
    Yes, they've sent one for another article. If the site did multiple items per manufacturer the article would take weeks to finish. That wouldn't be a problem if all Tom's Hardware did was motherboards :p
    12025873 said:
    Why would one pay extra for ASUS's power delivery if it didn't yield any additional OC/DRAM stability? In the end, ASRock features & cheaper price should be a better option here.
    ASRock's cheaper features also made it a competitor with the cheaper boards for the value award. Since it competed well for both awards, it had to get a different award.

    Reply
  • nukemaster
    While some may not like the layout, the Gigabyte and MSI layout should work well in some cases like the SG05 from SilverStone. The top mounted power and sata ports help keep wires out of the air flow path.

    More room between the PCI-E and CPU LGA is nice on the Asus as are all the features.

    I am still running an older H55n usb3 24/7 and it has been quite stable and cool and low on power consumption. Shame that this new gigabyte board has higher power and temperature levels.
    Reply
  • xkm1948
    Since most of them has built in Wi-Fi. Will it be better to include a Wi-Fi test column?
    Reply
  • Crashman
    12025986 said:
    Since most of them has built in Wi-Fi. Will it be better to include a Wi-Fi test column?
    We formerly had a controller reviewer, and I'd like to see someone take on this task again. A separate article on the controllers (with everything else identical) wouldn't tell you anything about the antennas included with different products, but antennas are cheaply replaceable.

    Reply
  • KrazyKap
    Is the Asus Z87 Pro the same as the Deluxe? Seems to be region specific but I can't find the difference. Help? I've just bought the Pro for myself as it is only slightly more than the MSI or Gigabyte options.
    Reply
  • unipablo
    I think that the Pro version comes with wifi-N instead of wifi-AC.
    Reply
  • vertexx
    Let's just roll some dice and toss out some awards, eh? Couldn't help but laugh through the conclusion.

    Overall it's good to see the roundup. Would have liked to see post times. With SSD storage, motherboard post times are now becoming the longer wait in a system boot up.

    Also interested in thoughts on reasons for Z87 mobos for a standard non-overclocking build. For a non-overclocked gaming ITX PC, say with an I3 or low-end I5, are there any compelling reasons to pay the Z87 premium over, say an H81, which can run $100 cheaper?
    Reply
  • rolli59
    Nice review and boards, conclusion is all good buy's depending on what features you want except the EVGA.
    Reply
