Benchmark Results: Siemens NX
Benchmark: Siemens NX

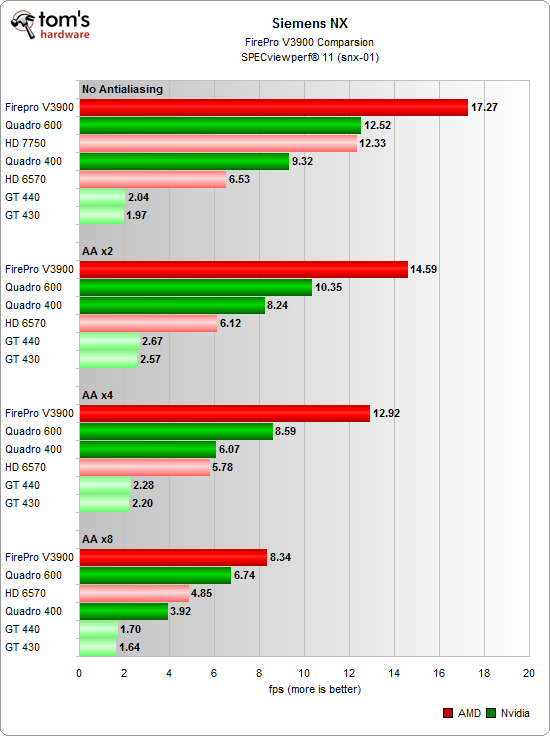

The FirePro V3900 leads by a wide margin, followed by Nvidia's Quadro cards and the AMD consumer boards. The Radeon HD 7750 almost catches the Quadro 600 when anti-aliasing is disabled. We only wish we knew how it'd finish with anti-aliasing turned on.
Current page: Benchmark Results: Siemens NXPrev Page Benchmark Results: Siemens Teamcenter Visualization Mockup Next Page Power Consumption And Noise
Stay on the Cutting Edge
Join the experts who read Tom's Hardware for the inside track on enthusiast PC tech news — and have for over 25 years. We'll send breaking news and in-depth reviews of CPUs, GPUs, AI, maker hardware and more straight to your inbox.
If a large difference between a workstation card and a gaming card can be the drivers, does this apply to gaming performance as well? Does the workstation GPU preform similar to the desktop equiv or higher thanks to 'better' drivers. Is it just a case of drivers being optimized for things that end up not applying to gaming, thus any sort of performance increase only applies to none gaming applications?Reply
Just curious :)
I'm curious about some things, can you pop one of these cards in a pc running next to a 560Ti used for gaming? And then exchange the output in the back of the pc and select the workstation card to use to render in max or maya? Or do you have to reboot every time you set the video output?Reply
Can these cards run...THAT game? OR any other GPU intense game?Reply
Both Cards run on the same Hardware, its just that Professional Video Cards have their Drivers optimized to CAD/CGI, etc.. Its like two same SUV cars with Same Engine, but with different tires, one with plain road tire and the other has snow tires.. SUV with a snow tires will certainly run better in snow terrain that the plain road tire SUV..Reply
CAD apps like AutoCAD had Optimized code to run better on Professional Video Cards because the Optimized code in the Drivers.. Unlike Gaming Video Cards which has Optimized codes for Games but not on this CAD apps..
It would be nice to see one or two games thrown into the test.Reply
Just for the heck of it, and also to answer the question:
- Which card is the better choice for my work station if I'd also like to run a game or two during the lunch break?
I wonder, is there going to be a new budget version out soon based on AMD 7xxx series?Reply
These clowns need to be brought into court for this intentionally crippling of desktop GPUs, and price fixing of workstation cards.Reply
This travesty needs to stop.
Exactly. With how often the question is asked, "How well will this or that pro card perform in games?", I can't believe at least one or two game benchmarks weren't included.Reply
I'd especially like to see some benchmarks on mid-range pro cards.
Also, same question as above, can I use a Profession CAD graphics card along side a gaming card and get CAD benefits on one monitor and gaming on the other.
MarriedManExactly. With how often the question is asked, "How well will this or that pro card perform in games?", I can't believe at least one or two game benchmarks weren't included.I'd especially like to see some benchmarks on mid-range pro cards. Also, same question as above, can I use a Profession CAD graphics card along side a gaming card and get CAD benefits on one monitor and gaming on the other.Reply
Unless your motherboard supports PCI Express slot switch off via software you can't. Even if it would, you would need to restart. Plus knowing AMD driver compatibility and reliability I wouldn't even hope atm. If you are gaming a lot and doing a lot of 3D, question is, what is more important to you, games or 3D content creation? If you are just beginner and doing CAD for fun, you will get by with gaming GPU. Otherwise, you must be making money on your projects and you should afford mid-high GPU for CAD.
Nice article and thank you!Reply
Holly cow, you weren't kidding when you said 'Entry Level', this is more like 'Impoverished Level.'
To me an entry level are sub-$400 cards; nVidia Quadro 2000 series and AMD FirePro v5800. Obviously, Pro GPU's are tailored for their use.
