Gigabyte RX 5600 XT Gaming OC 6G Review: Priced Right, Performs Well

This RX 5600 XT is inexpensive, quiet, and performs well: Can we ask for more?

Gigabyte RX 5600 XT Gaming OC 6G
(Image: © Gigabyte)

Moving up in resolution but dropping down to medium settings, the Gigabyte card averages 103 fps across all games—one fps more than the 1080p ultra results. All 11 titles are above 60 fps, including Metro: Exodus at 72.5 fps. Meanwhile, the rest are all in the 90s or well above 100 fps. While some games could likely run using high or even ultra settings at this resolution, a few need lower image quality settings to maintain a stutter-free gaming experience.

At the higher resolution, we saw nearly the same performance gap between all the tested cards. The biggest difference is with the Asus card, where the gap increased by around 1%, again due to the slower memory speeds. Outside of that, the Gigabyte continued to trade punches with the Sapphire card—there's less than a 1% difference between the two, which is within the margin of error.

The RX 5600 XT and Gigabyte's overclocked variant proved to be plenty capable at 1440p using medium settings. Many less demanding titles should be able to run with higher settings and still reach 60 fps. However, if you own a 144Hz display, you'll want FreeSync as the 5600 XT generally can't maintain anywhere close to 144 fps in more demanding games.

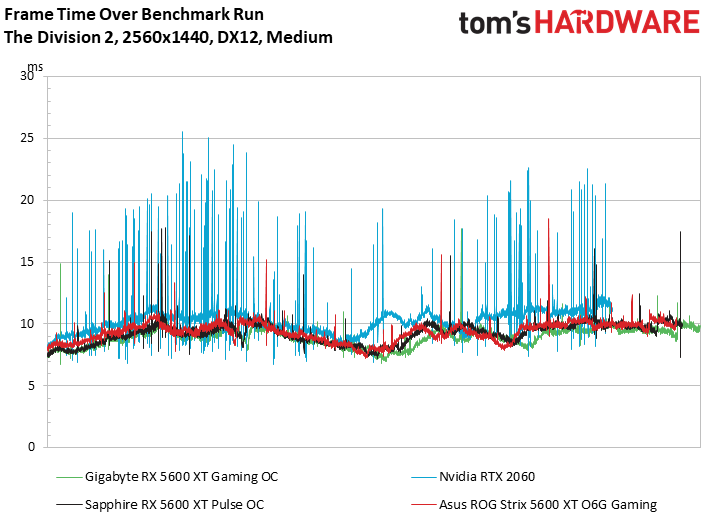

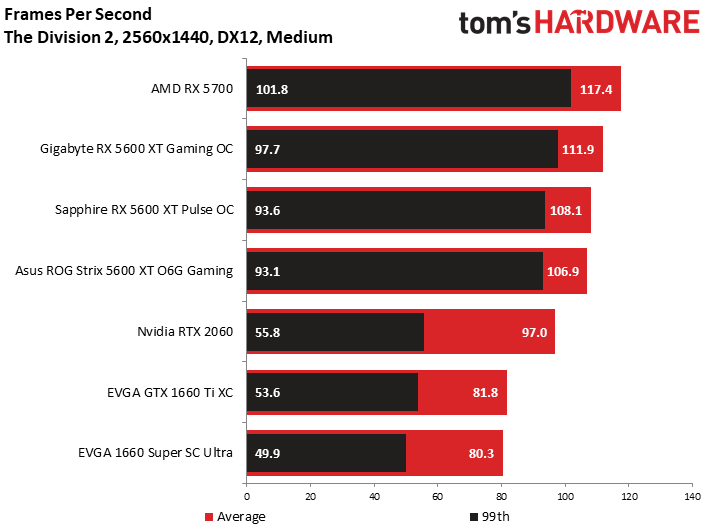

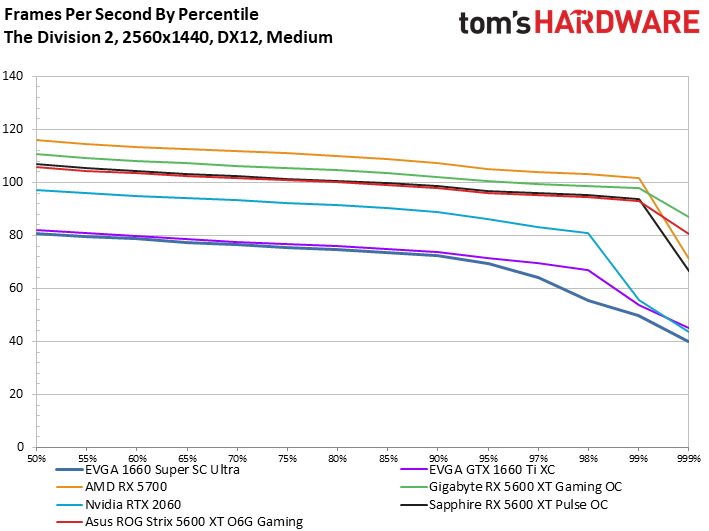

The Division 2

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

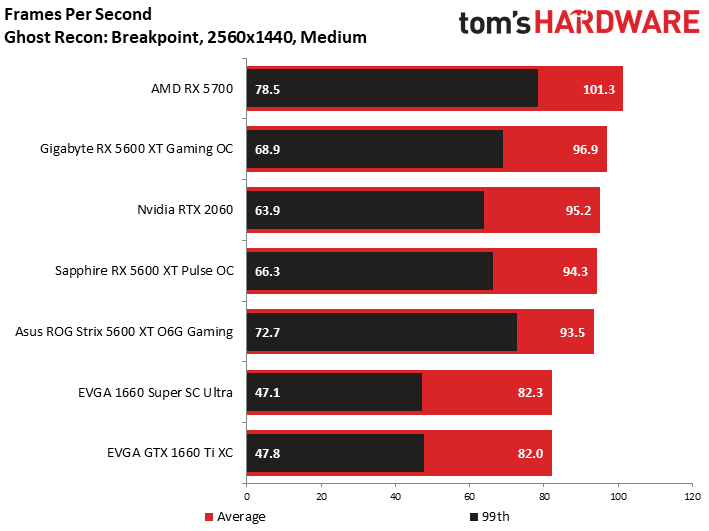

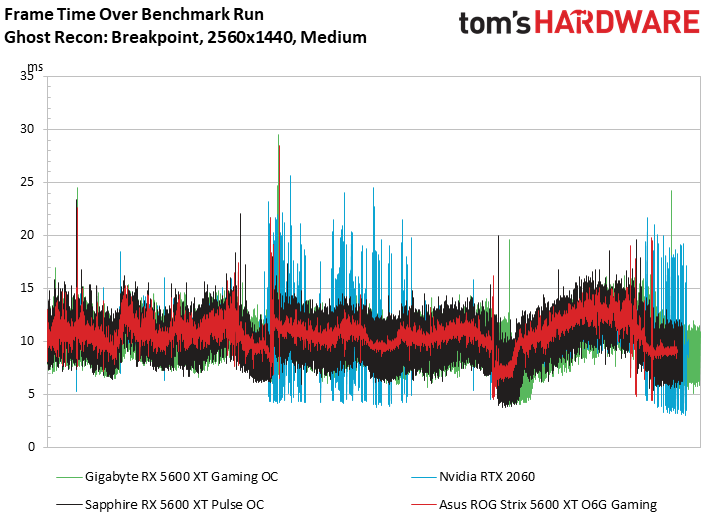

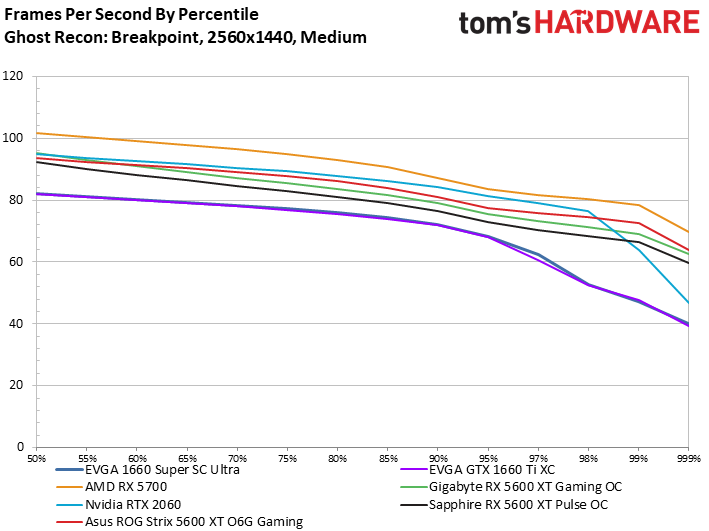

Ghost Recon: Breakpoint

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

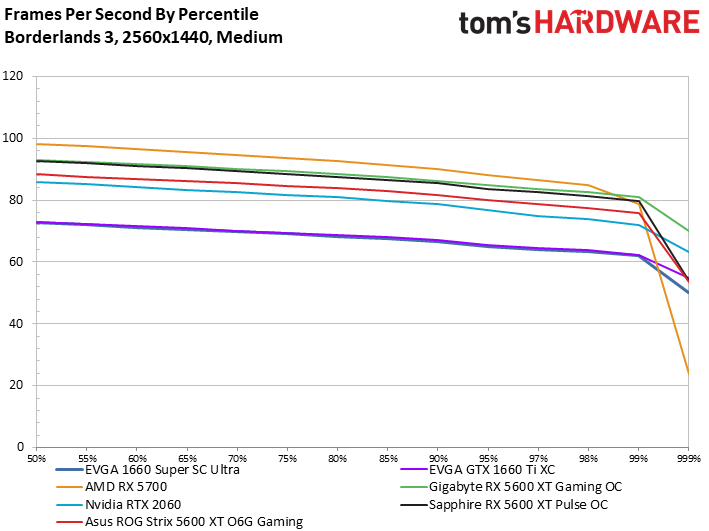

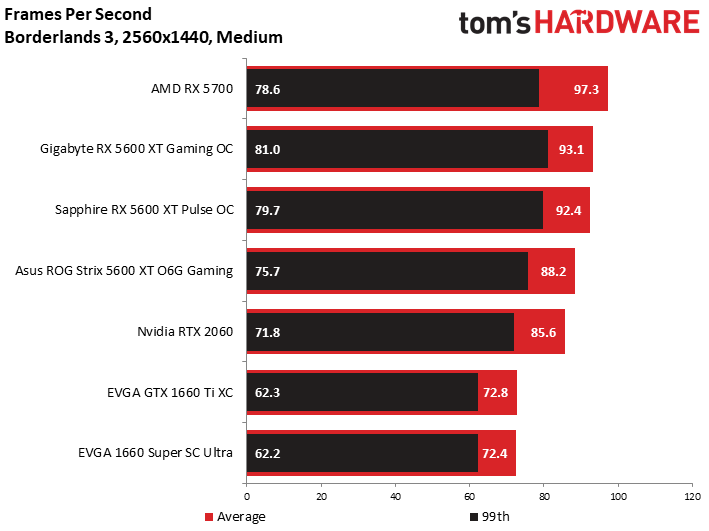

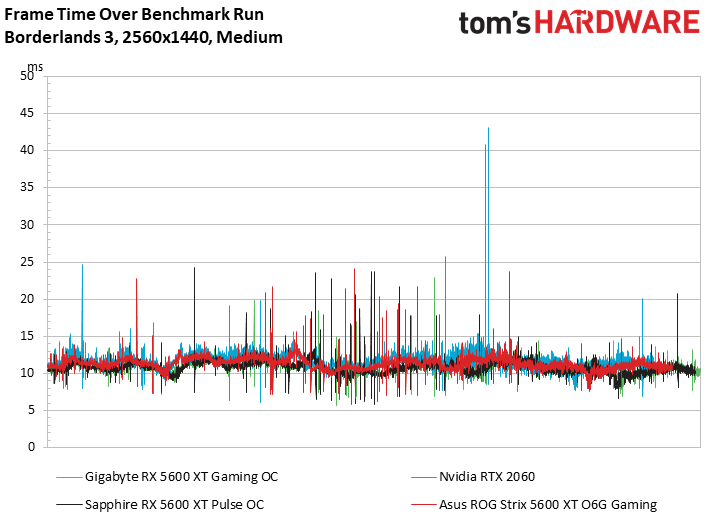

Borderlands 3

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

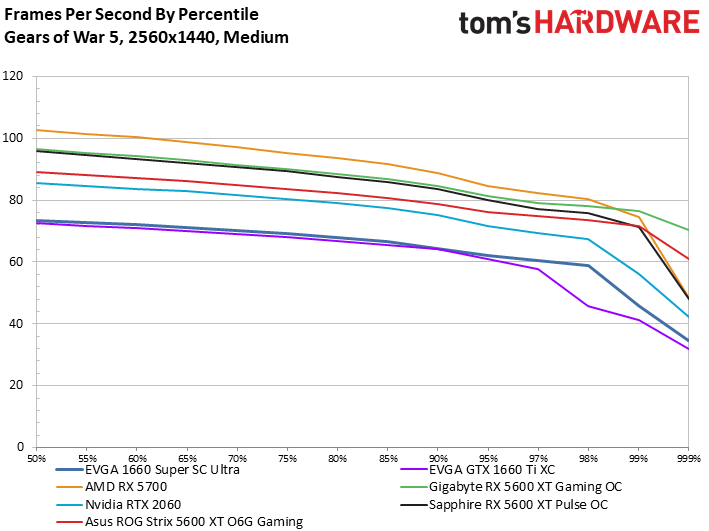

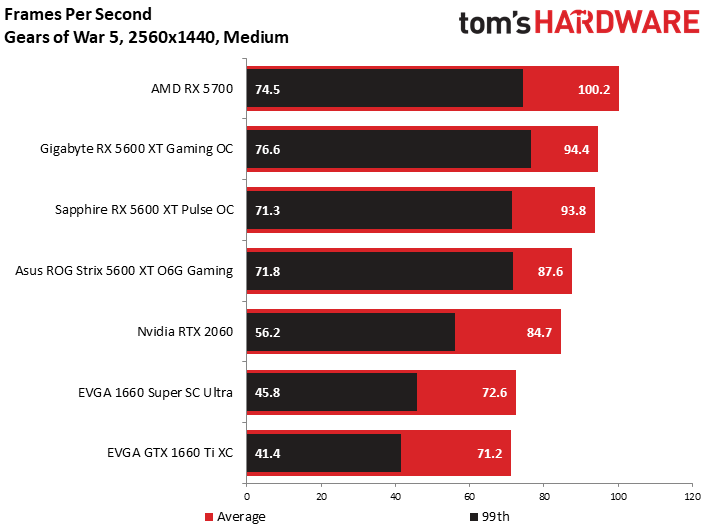

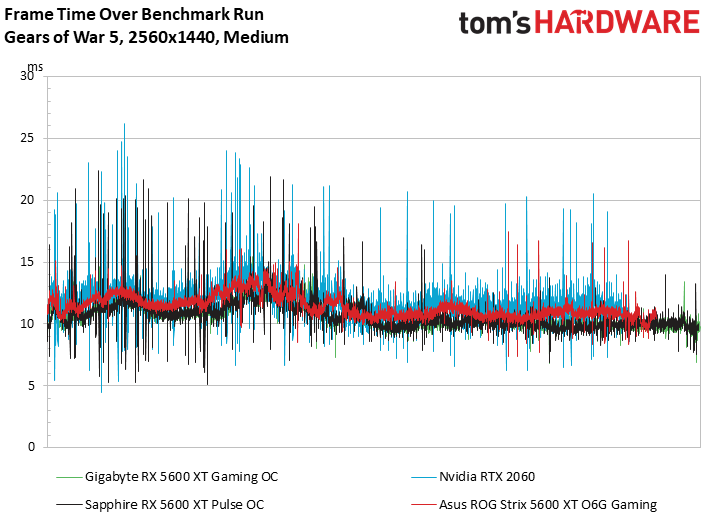

Gears of War 5

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

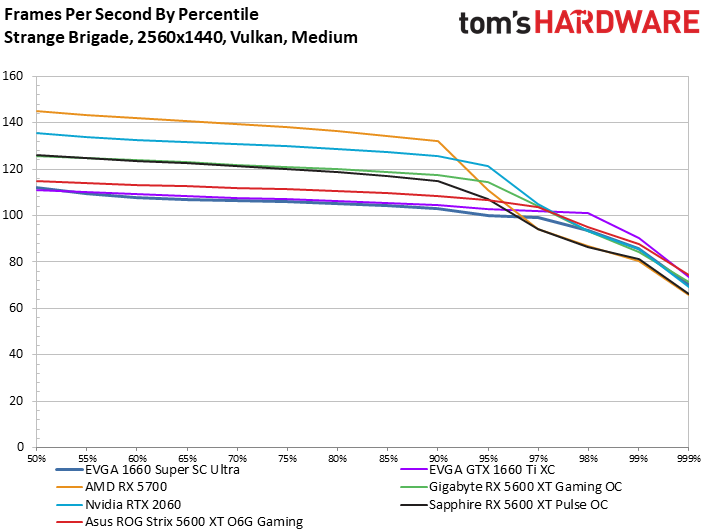

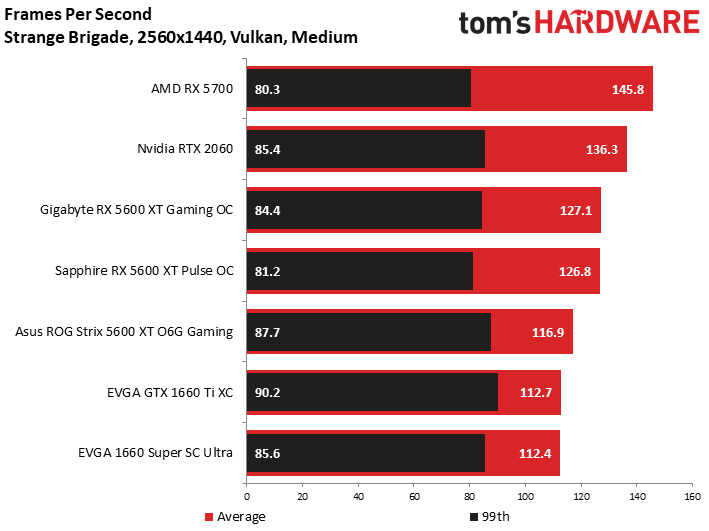

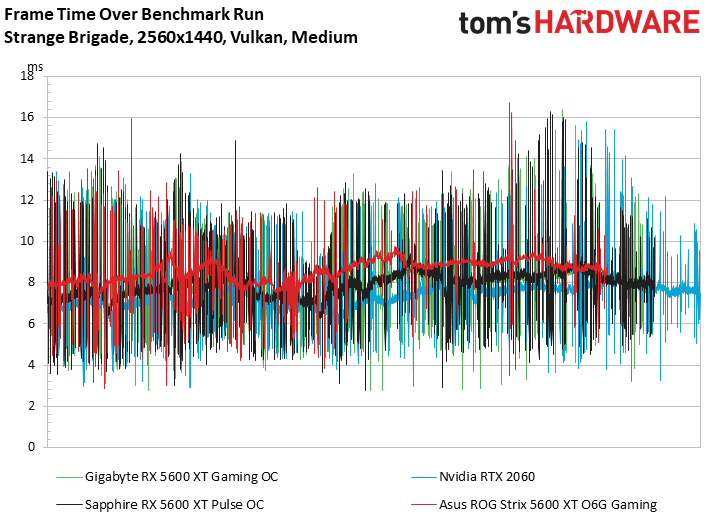

Strange Brigade

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

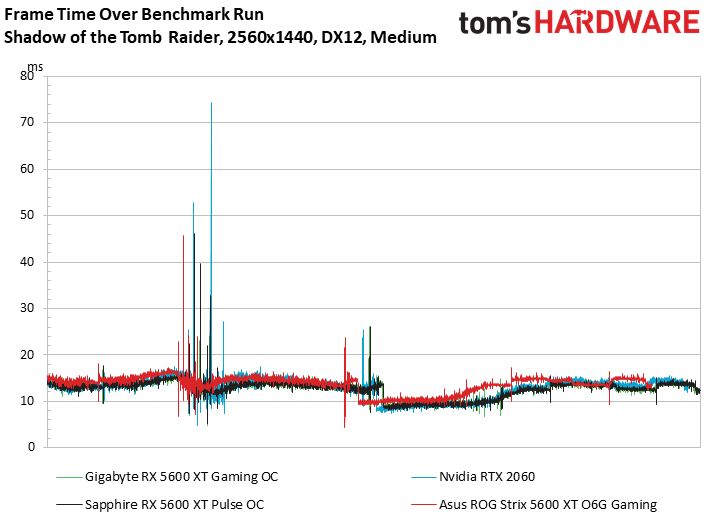

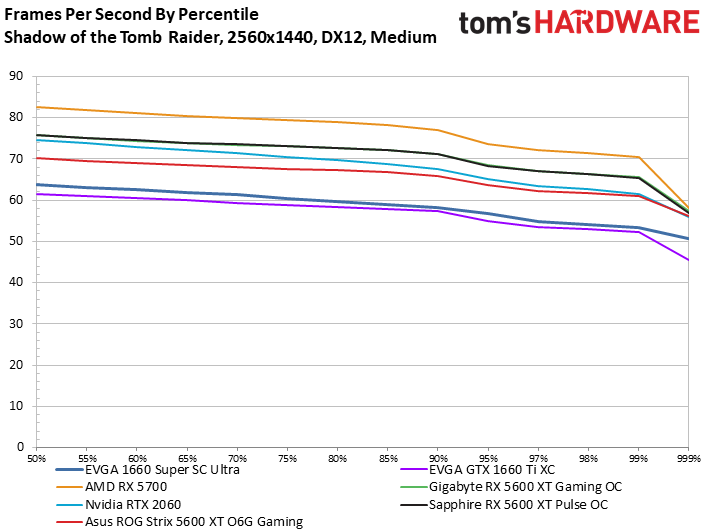

Shadow of the Tomb Raide

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

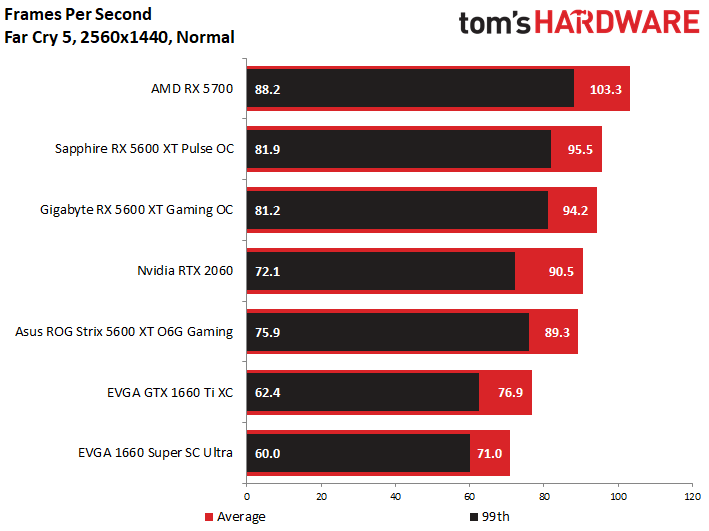

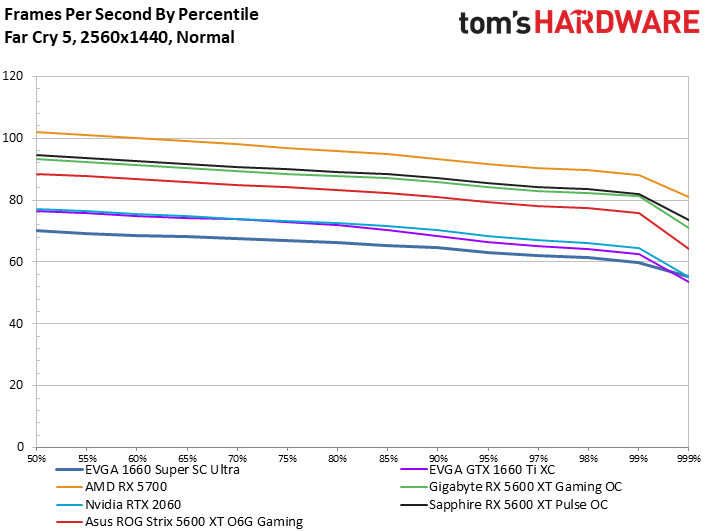

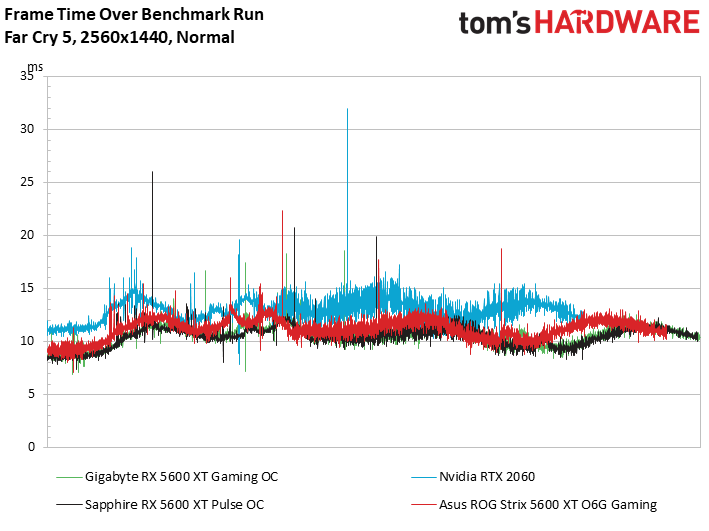

Far Cry 5

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

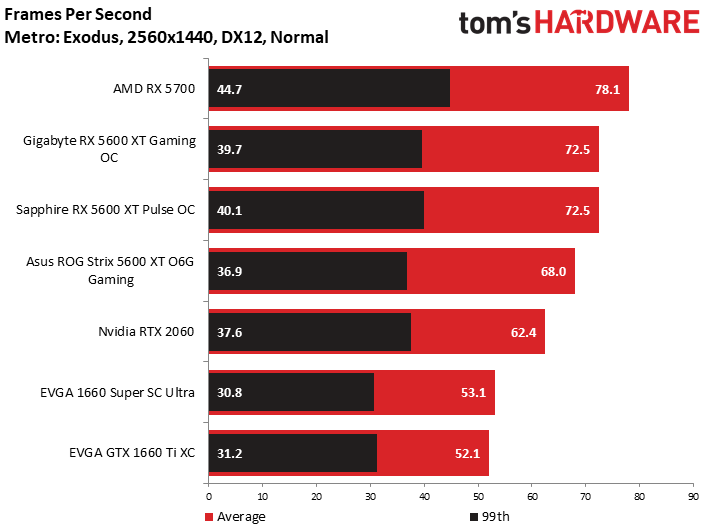

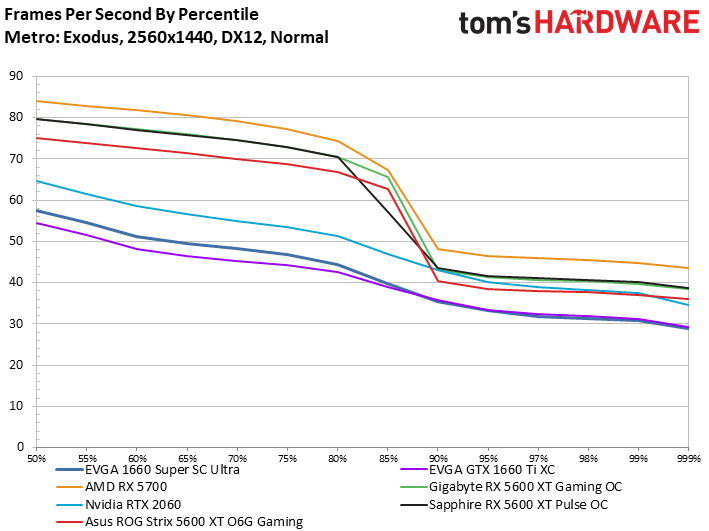

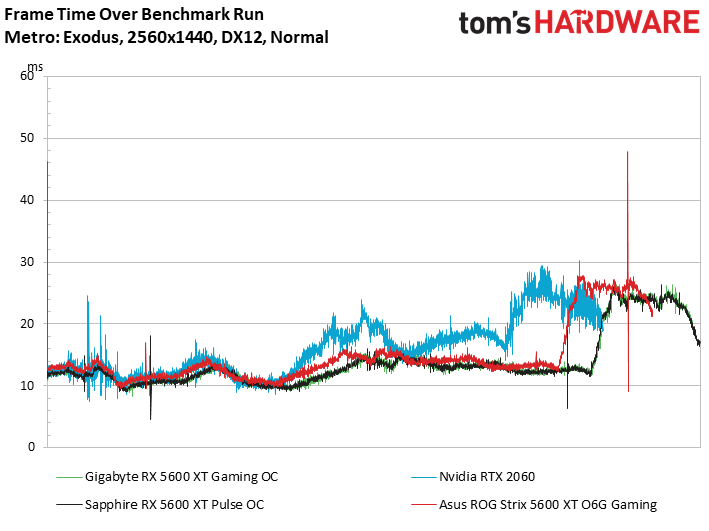

Metro: Exodus

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

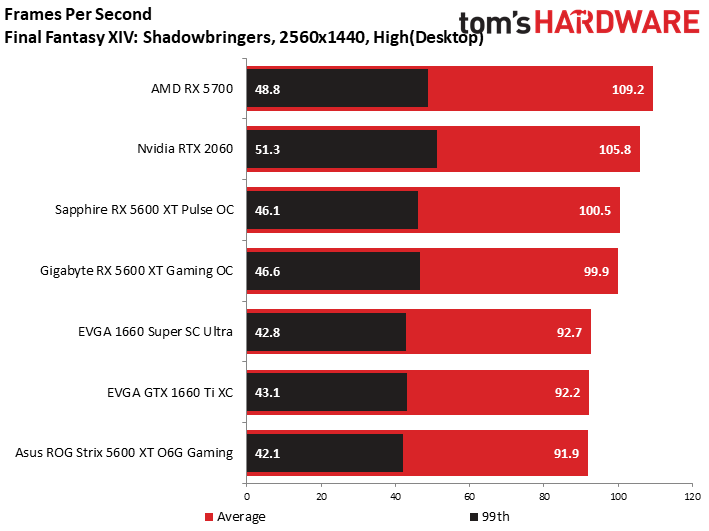

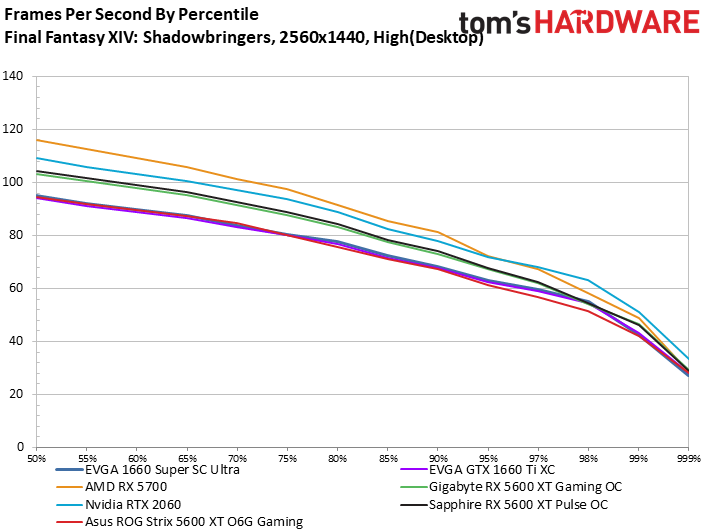

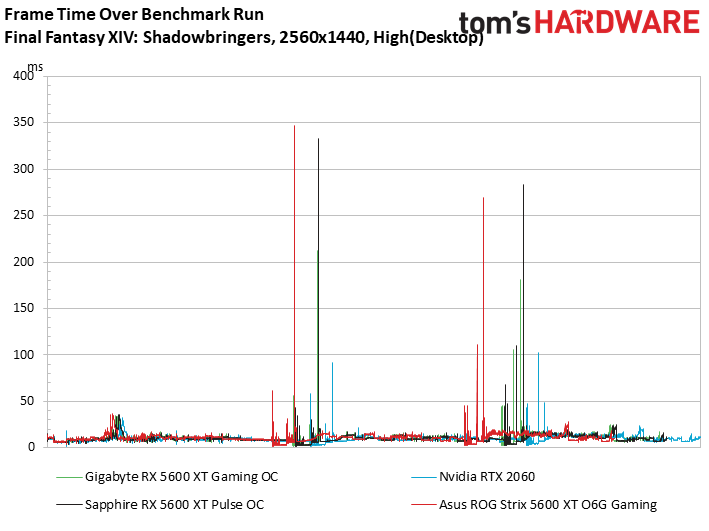

Final Fantasy XIV: Shadowbringers

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

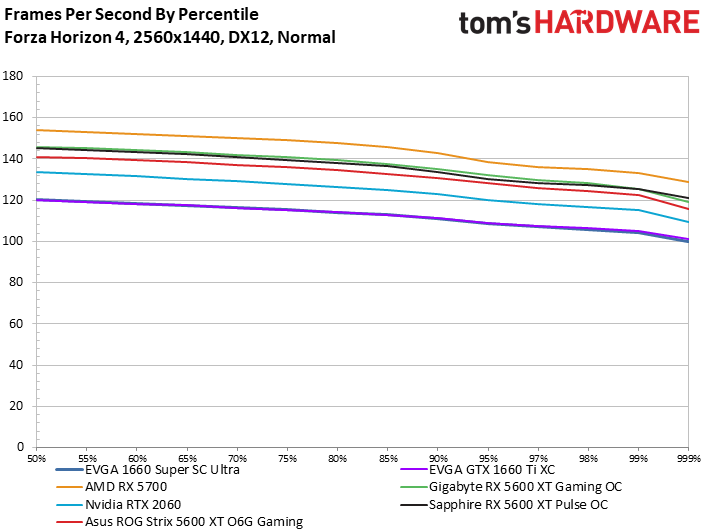

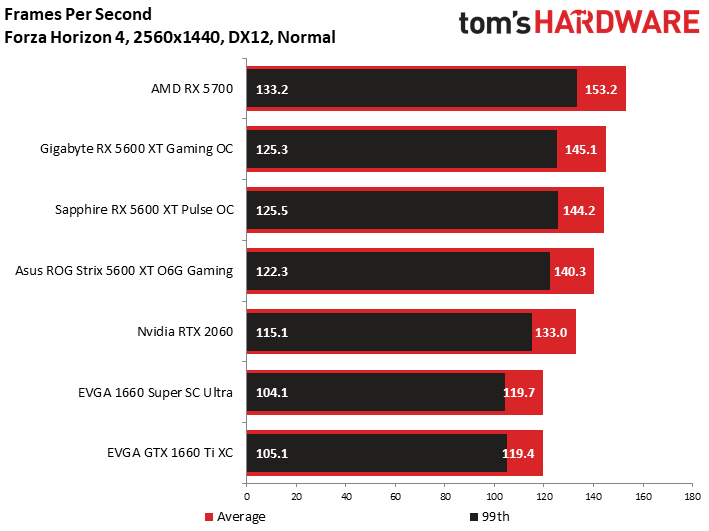

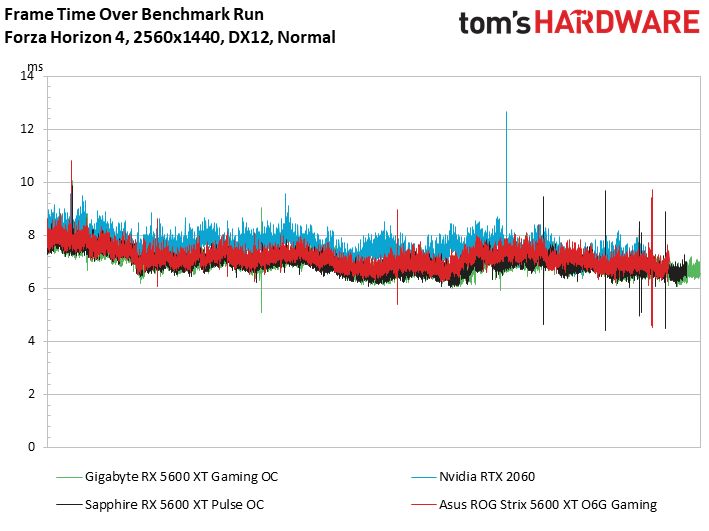

Forza Horizon 4

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

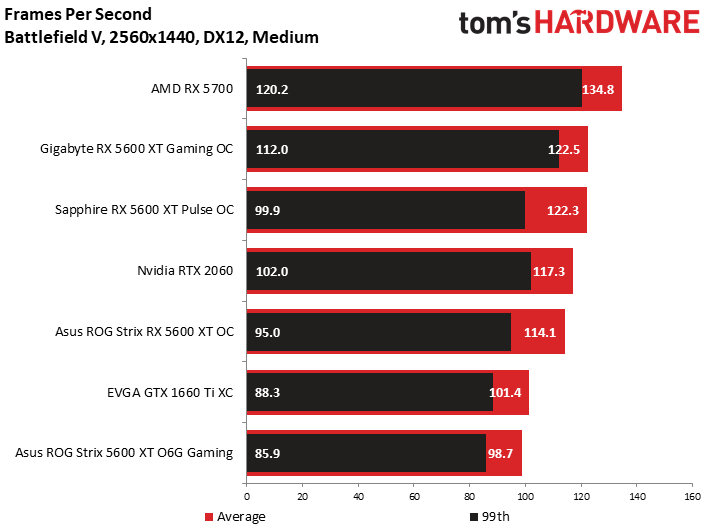

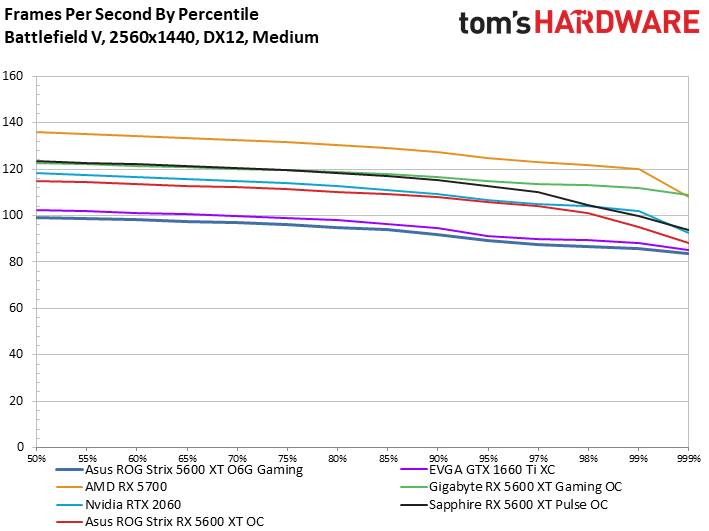

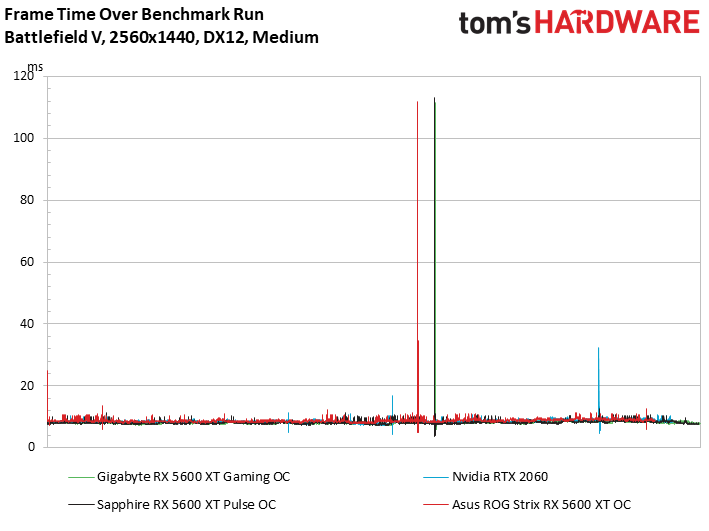

Battlefield V

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

MORE: Best Graphics Cards

MORE: Desktop GPU Performance Hierarchy Table

MORE: All Graphics Content
