AMD Radeon RX 7900 XTX and XT Review: Shooting for the Top

RDNA 3 dons a halo for its coming out party

Reviews
By Jarred Walton
published
AMD Radeon RX 7900 XTX and XT
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

(Image credit: Tom's Hardware)

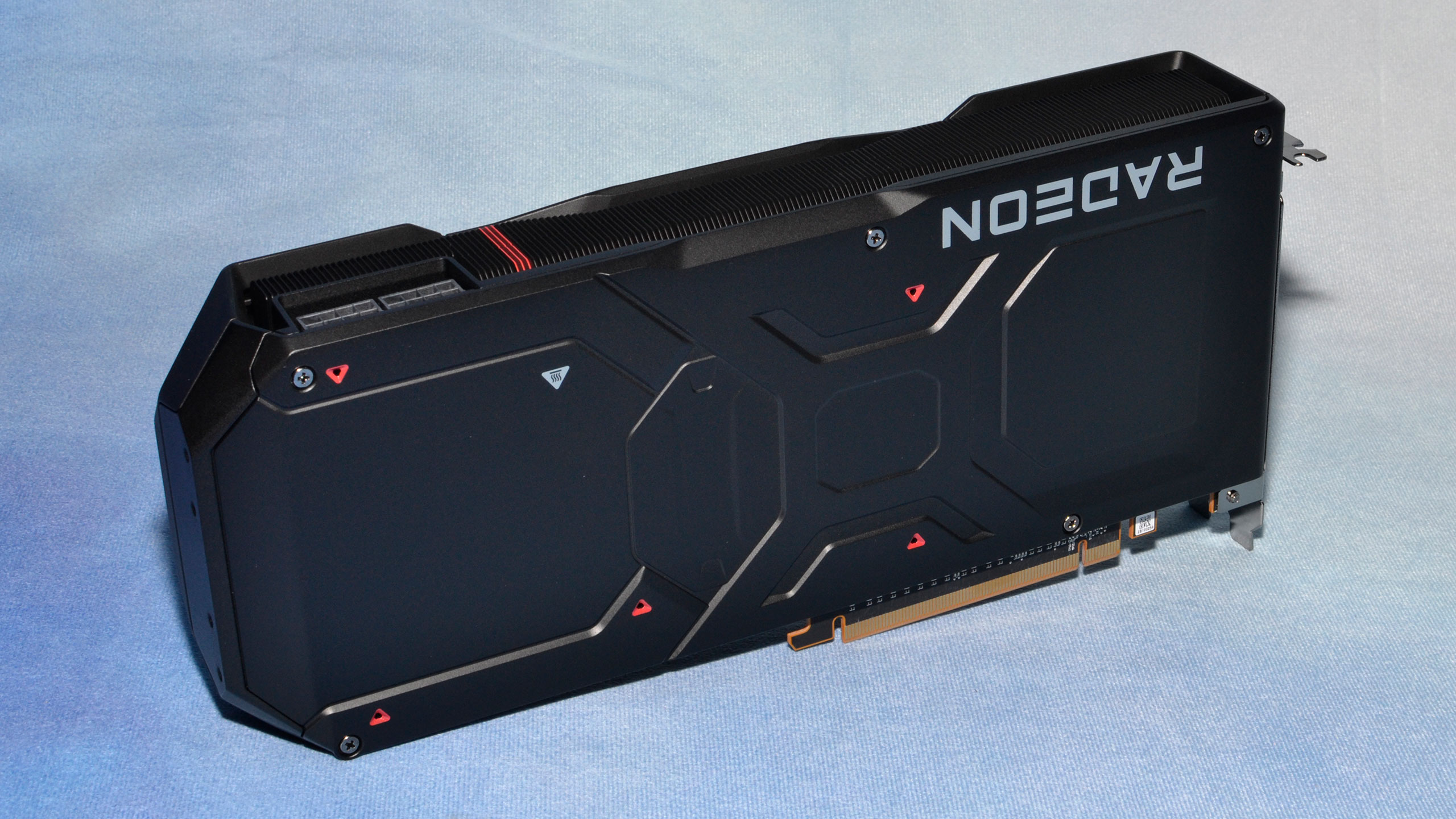

Physically, AMD's RX 7900 cards are substantially more compact than Nvidia's RTX 4080/4090 Founders Editions — which are both the same size. The two AMD reference cards look generally similar, though there are some noteworthy differences. For example, the XTX includes RGB lighting where the XT model does not. The XTX is also slightly longer, taller, has larger fans, and of course it weighs more.

The RX 7900 XTX measures 287 x 123 x 51.5mm while the RX 7900 XT measures 276 x 113 x 51.5mm — both have a 2.5-slot thickness. The XTX card weighs 1799g and the XT weighs 1525g, so both cards are heavier than the previous generation 6900 XT that weighed about 1490g. AMD uses custom 78mm fans on the XT card and 84mm fans on the XTX, all of which feature an integrated rim.

Image 1 of 13
AMD Radeon RX 7900 XTX and XT
(Image credit: Tom's Hardware)

Aesthetically, I like the new design — matte black and sleek looking without a ton of bling getting in the way. AMD's reference designs remind me a bit of Intel's recent Arc A770 Limited Edition and Arc A750 Limited Edition, in a good way. Clean lines, simple and elegant appearance, and not too much flash — especially on the XT card that omits all LED lighting. If you want more bling, of course the usual AIB (add-in board) partners will be happy to provide such cards, though availability on some of those might take a few more weeks.

On the connectivity side of the equation, AMD has a slightly different approach from Nvidia and Intel. There are two full size DisplayPort 2.1 connectors (54 Gbps), one HDMI 2.1 output (48 Gbps), and then a single USB Type-C connector that can support single cable VR headsets as well as DisplayPort 2.1 monitors. DP2.1 54Gbps means AMD can also support up to 240 Hz 4K displays without resorting to Display Stream Compression (DSC), though we've yet to try a DSC monitor ourselves so we're not sure how much DSC truly impacts the user experience.

Image 1 of 12
AMD Radeon RX 7900 XTX and XT
(Image credit: Tom's Hardware)

Obviously, a lot of stuff has changed under the surface. Gone is the old monolithic die, replaced by a single larger GCD and six MCDs, which in turn connect to six GDDR6 chips (or five on the XT). The memory is rated for 20 Gbps, and with a 384-bit interface AMD nearly matches Nvidia on bandwidth without the need for more expensive GDDR6X memory.

AMD also skips using PCIe 16-pin 12VHPWR connectors, opting instead for the tried and true 8-pin connectors. Combined with a potential 75W from the PCIe x16 slot, both cards have access to as much as 375W of power, though they generally stay well below that mark. We did see a few spikes into the 400–410 watt range on the XTX while running FurMark, though the PCIe slot power use never got above 56W.

Jarred Walton
Jarred Walton

Jarred Walton is a senior editor at Tom's Hardware focusing on everything GPU. He has been working as a tech journalist since 2004, writing for AnandTech, Maximum PC, and PC Gamer. From the first S3 Virge '3D decelerators' to today's GPUs, Jarred keeps up with all the latest graphics trends and is the one to ask about game performance.
